VPR-17

LOADING IMAGES

Voltage Protection Relay - VPR-17 banner

Voltage Protection Relay - VPR-17 banner

Voltage Protection Relay - VPR-17 banner

Voltage Protection Relay - 3 Knob

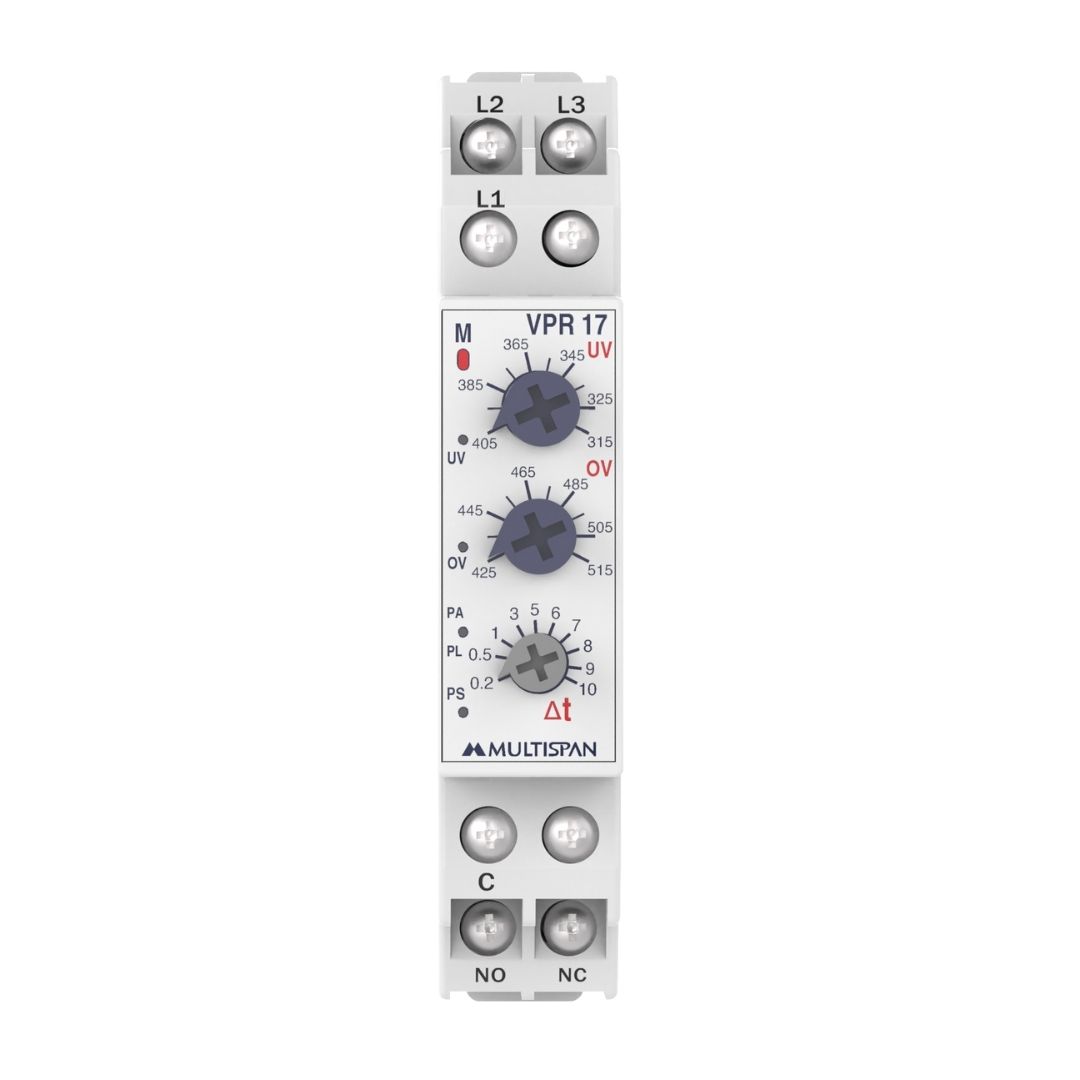

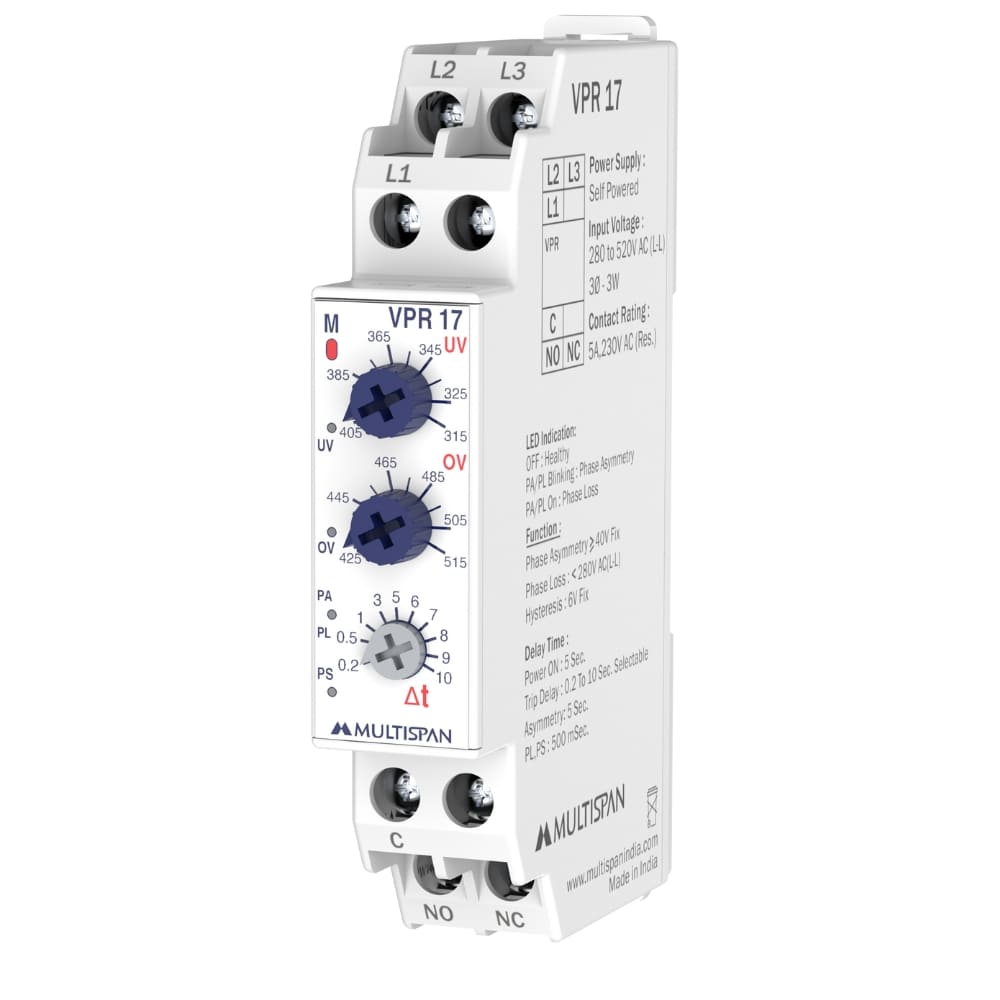

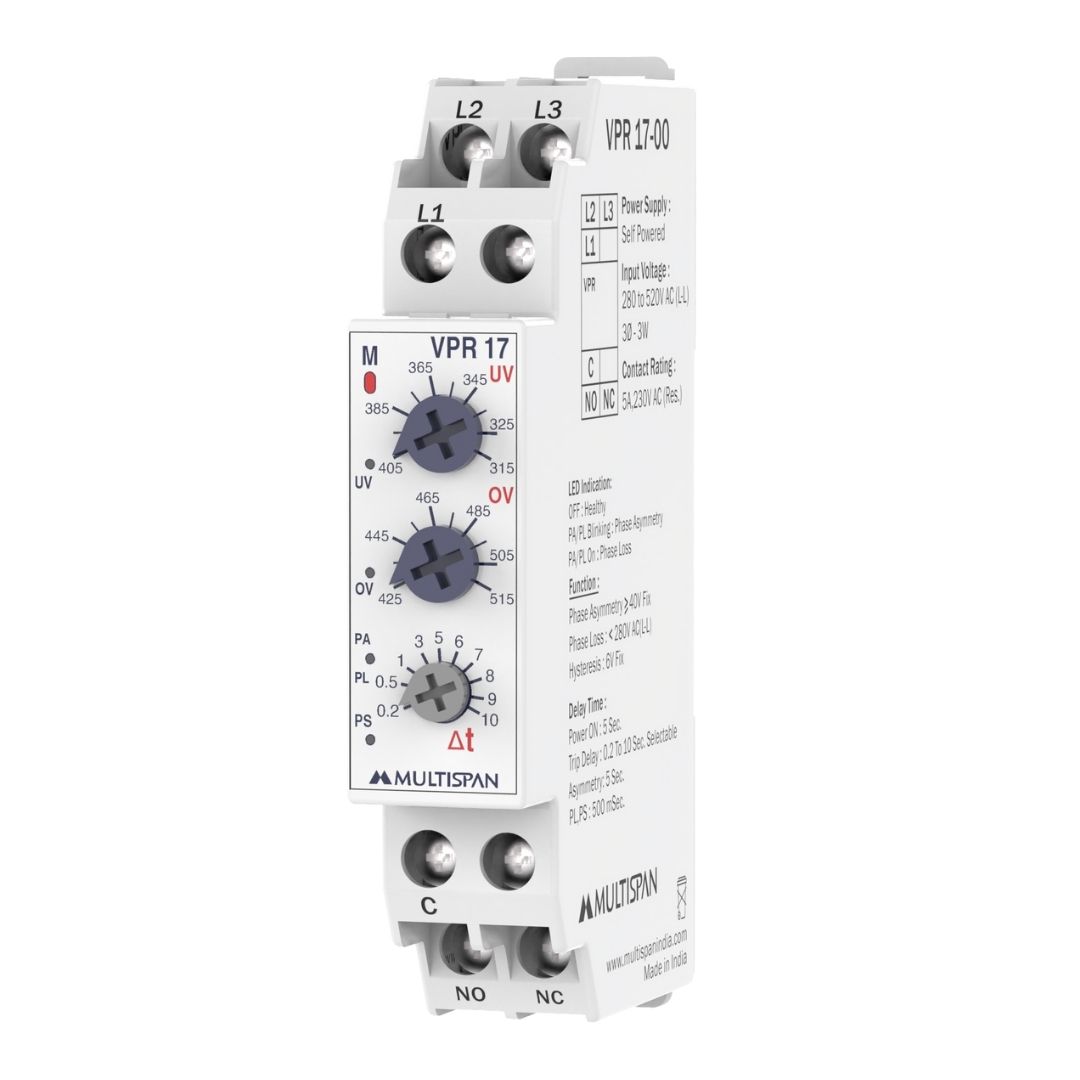

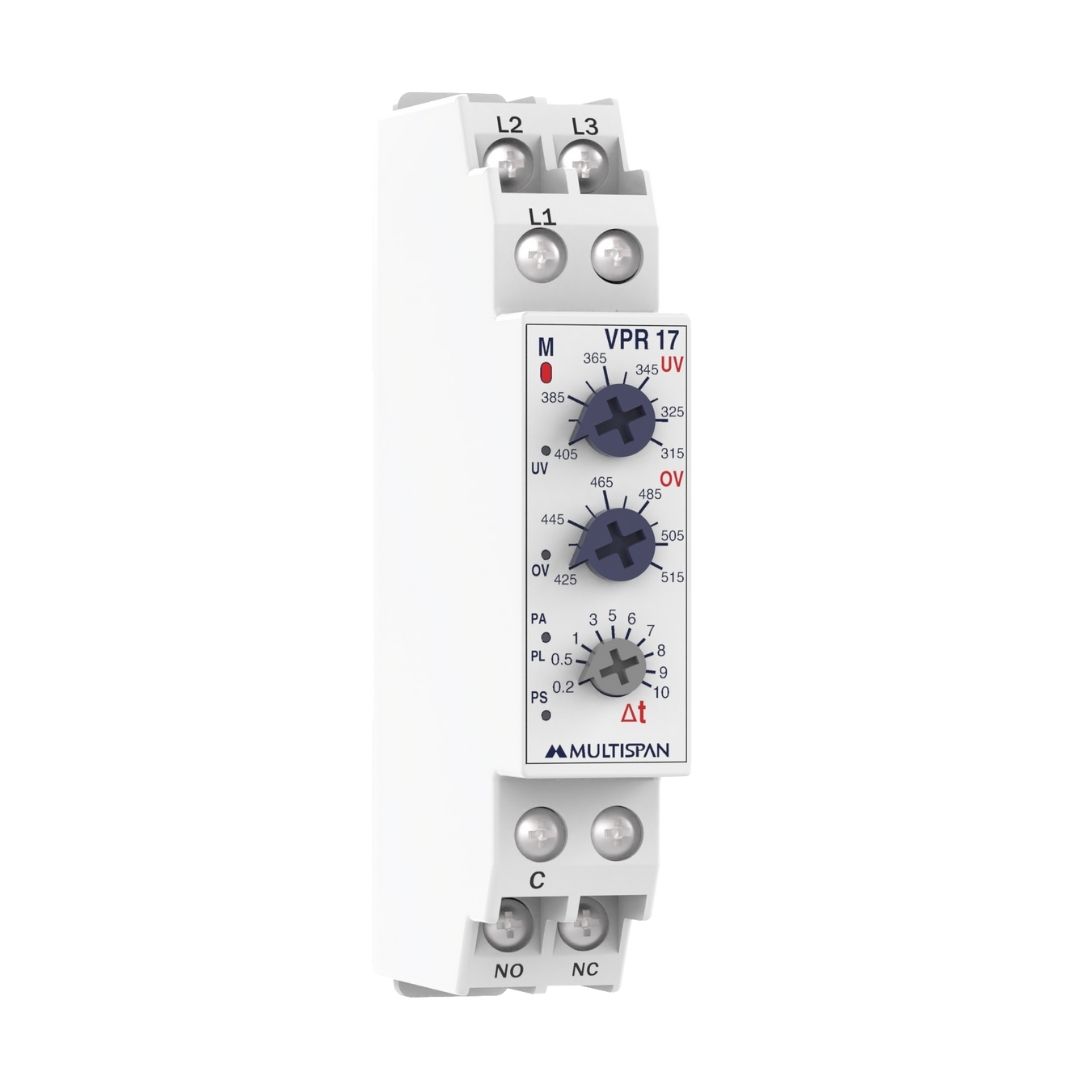

Product: VPR-17

Network Selection: 3Ø3W
Input Voltage: 280V AC to 520V AC (L-L)
Selection of Under- Over Voltage by Knob
Individual Knob For Trip Delay Time
1-Relay, 1C/O
Size: (H)90mm X (W)17.5mm X (D)62mm
Self Powered

Top Variants:

SUPPLY VOLTAGE
Input Voltage	280 to 520V AC,3Ø3W
Burden	7VA @ 415V AC Max
Tripping Parameters
Under Voltage	315 to 405 (L-L)
Over Voltage	425 to 515 (L-L)
Trip Delay	0.2 to 10 Seconds
Phase Sequence	500ms
Phase Loss	500ms
Phase Asymmetry	40V Fix
LED Indication
Under Voltage LED
Over Voltage LED
Phase Sequence LED
Phase Loss : PL/PA LED ON
Phase Asymmetry : PL/PA LED Blinking
Dimensions
Mounting	Din Rail Mounting
Bezel (HXW)	90 x 17.5 mm
Depth of Installation	62 mm

Electrical LV panels
Distribution boxes
Automation panels
Special purpose machine
Air conditioning - HVAC
