Universal temperature controller

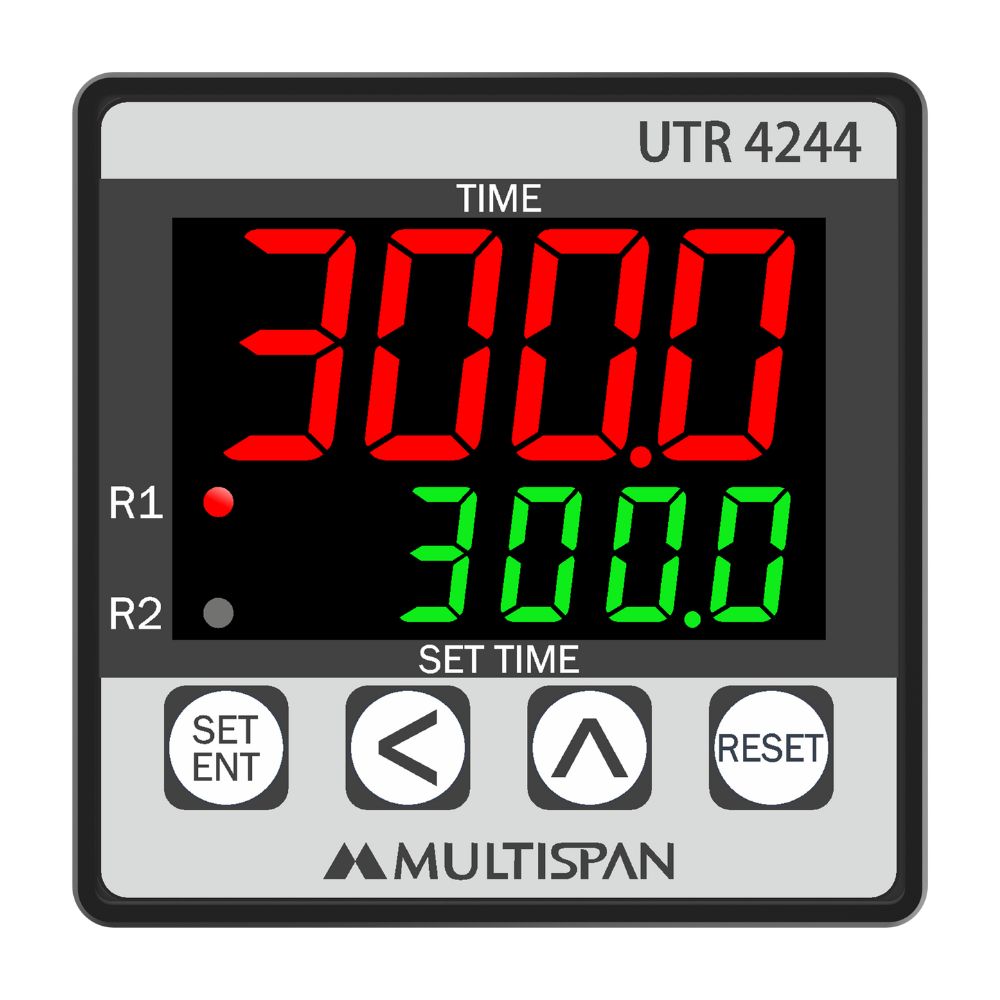

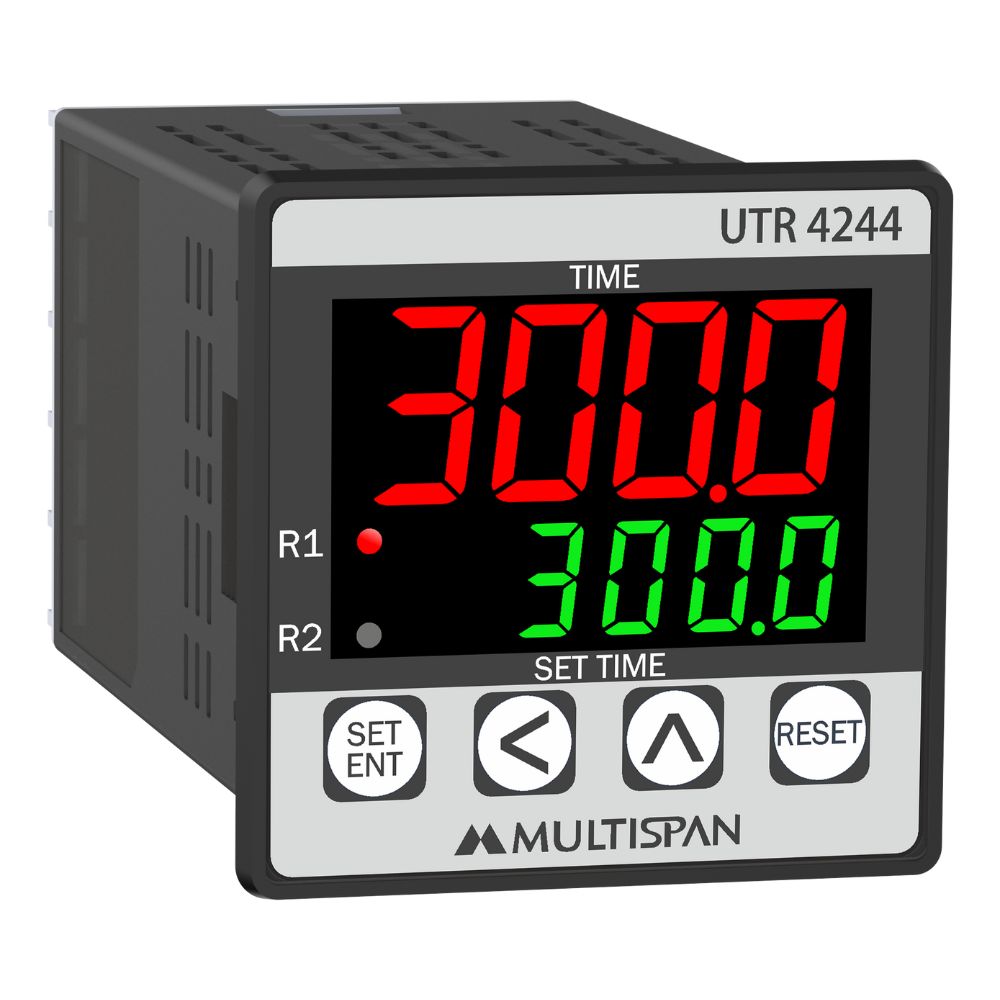

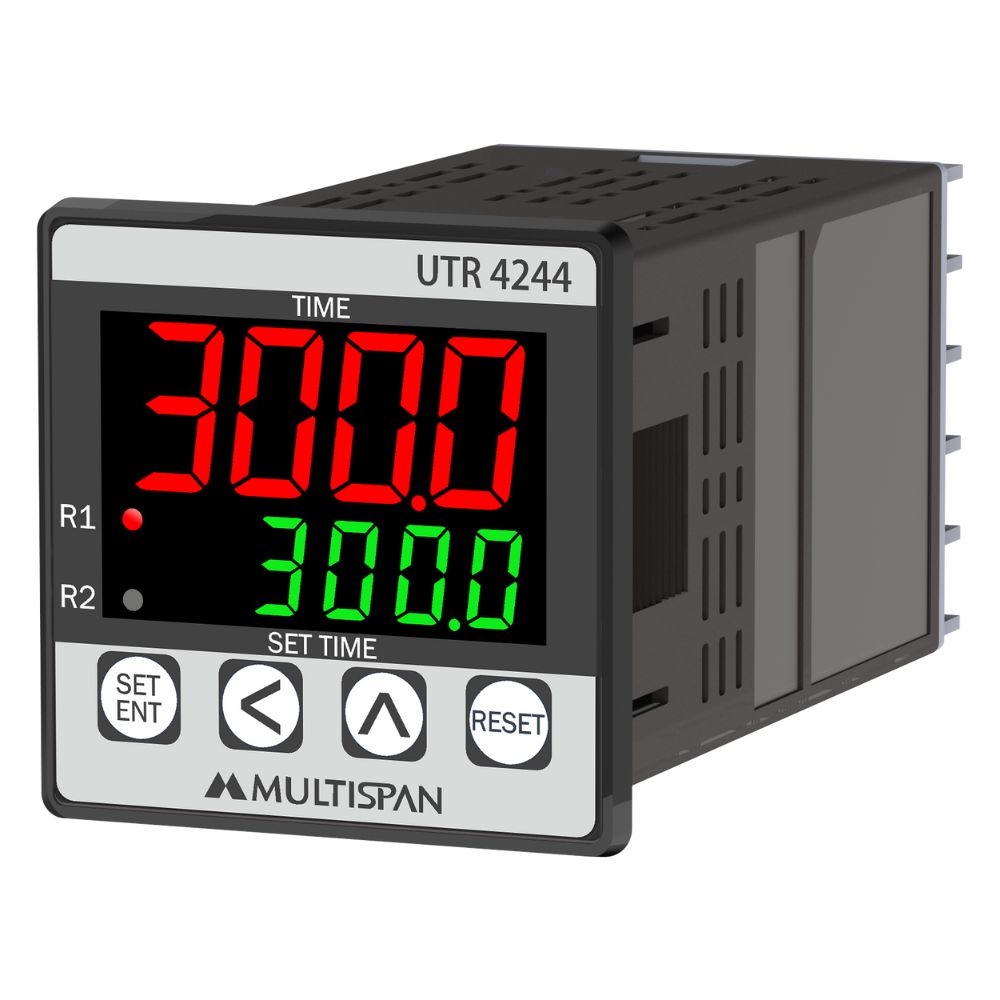

Product: UTR-4244
- PNP/NPN/Micro Switch Trigger Input
- Cyclic, Sequential, Combinational, Forward Reverse Mode
- Range: Hour/Minute/Second
- Reset by Front Keypad and terminal Reset
- With Power Fail Memory
- Size: (H)48mm x (W)48mm x (D)70mm
- Supply Voltage: 100-270V AC
Top Variants:
| INPUT SPECIFICATION: | |
| Input (Start Pulse) | NPN/PNP Proximity |
| Micro Switch | |
| Limit Switch | |
| Time Range | Sec (9.999/999.9/9999) |
| Min (99.59/999.9/9999) | |
| Hour (99.59/999.9/9999) | |
| DISPLAY AND KEYS: | |
| Display | Upper: 4 digit, 7 segment, 0.56” Red |
| Lower: 4 digit, 7 segment, 0.33” Green | |
| Keys | SET/ENT, SHIFT, INC, RESET |
| DIMENSION: | |
| Size | 48 (H) x 48 (W) x 70 (D) mm |
| Panel Cutout | 45 (H) x 45 (W) mm |
| GENERAL SPECIFICATION: | |
| Operating Mode | Forward - Reverse Timer |
| Cyclic Timer | |
| Sequential Timer | |
| Combination Timer | |
| Counting Direction | UP/ DOWN |
| Reset Option | Front Panel Reset |
| Terminal Reset | |
| OUTPUT SPECIFICATION: | |
| Relay Output | |
| Relay | 2 nos. |
| Relay Type | 1 C/O (NO-C-NC) |
| Rating | 5A, 230V AC |
| AUXILIARY SUPPLY: | |
| Supply voltage | 100 to 270V AC, 50-60Hz |
| Power consumption (VA RATING) |
Approx 4 VA @ 230V AC MAX |
| ENVIRONMENT CONDITION: | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | UP to 95% RH (non-condensing) |
| Protection Level (AS Per Request) |
IP-65 (Front side) As per IS/IEC 60529 : 2001 |
- Packaging Machinery
- Extrusion Machinery
- Furnace & Boilers
- Ovens & Incubators
- Food Industry
