UTC-3203 | 4-Digit Dual Display Three Output PID Controller

LOADING IMAGES

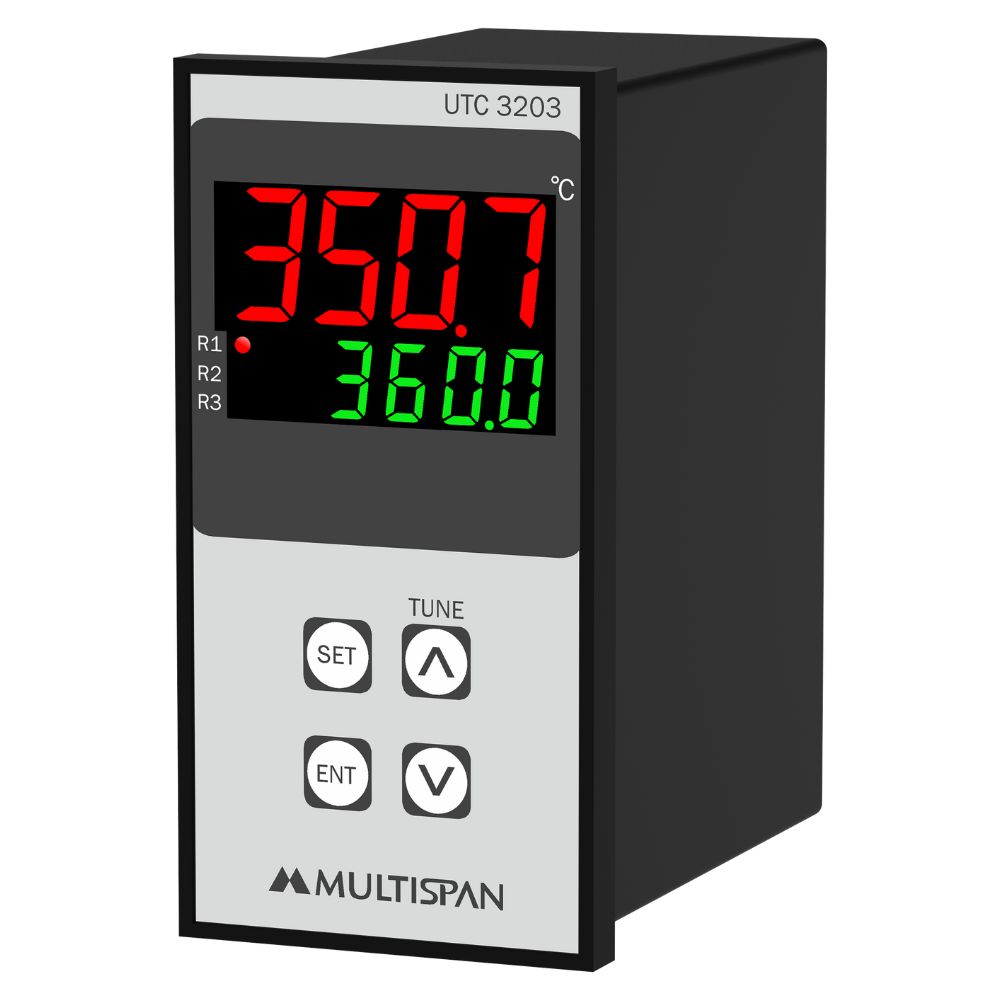

UTC-3203 regular image

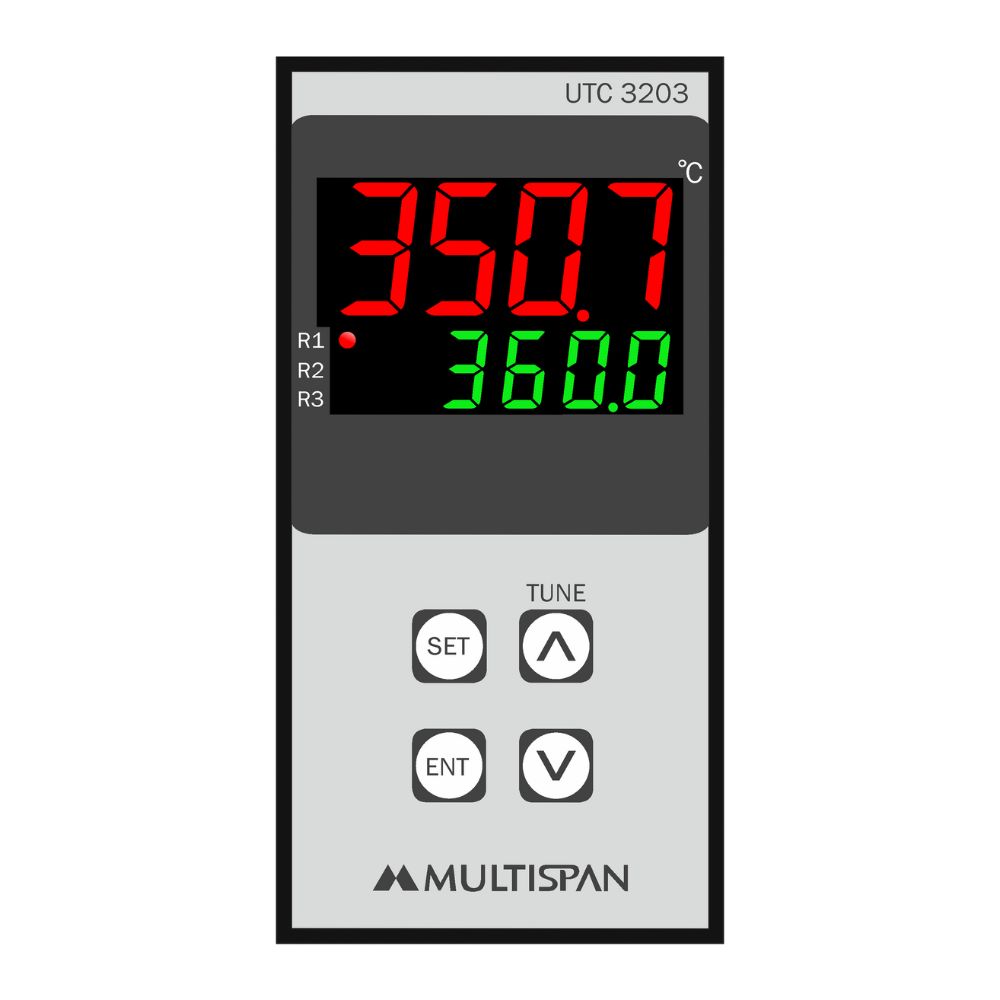

UTC-3203 front image

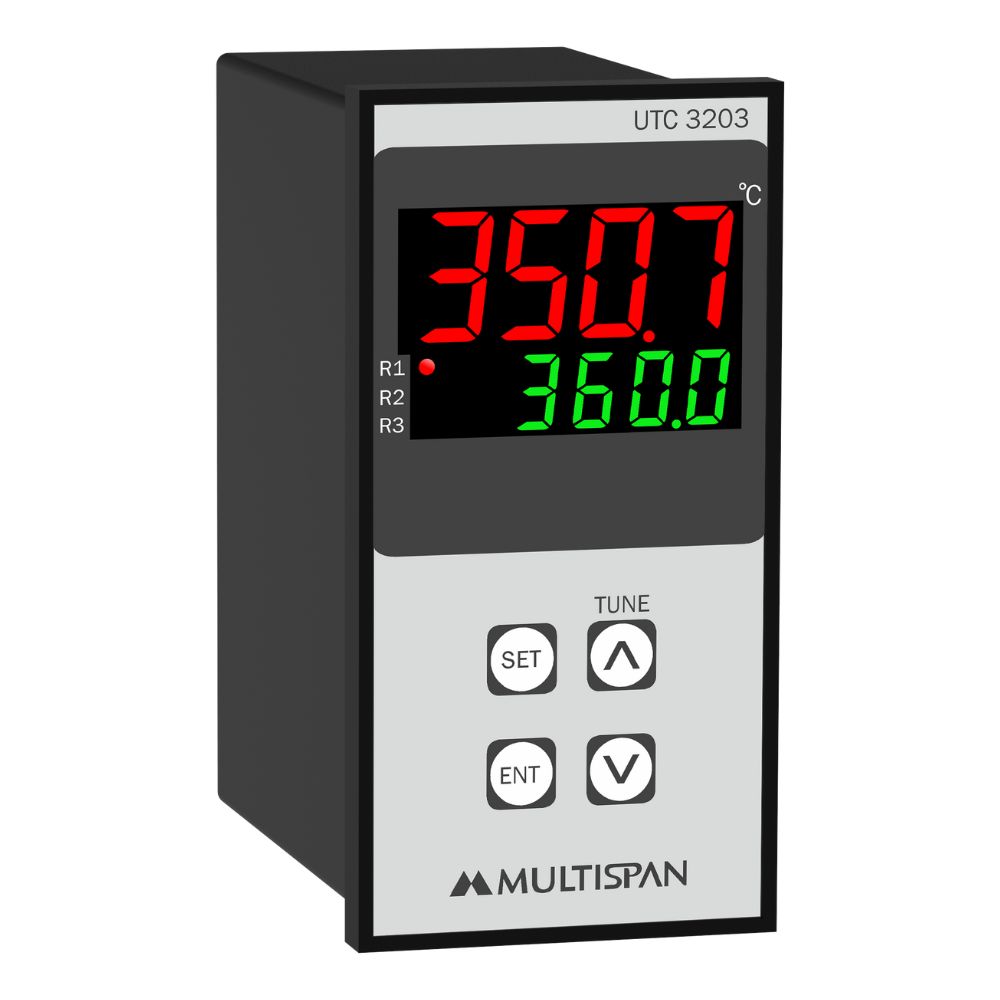

UTC-3203 side image

Universal temperature controller

Product: UTC-3203

Universal Input (J/K/RTD)
4-Digit Dual Red/White LED Display
PID/On-Off Controller, Time Proportional (TP)
Three Output (Relay or SSR) for Load Control & Alarm Functions
With Soak Timer Facility
Size: (H)96mm x (W)48mm x (D)85mm
Supply Voltage: 100-270V AC

Top Variants:

UTC-4203 UTC-3203

Model	UTC-3203
Display	UPPER:- 4-Digit 7-Seg 0.56”, red LED Display
Display	LOWER:- 4-Digit 7-Seg 0.33”, green LED Display
Size (mm)	96 (H) X 48 (W) X 85 (D)
Panel Cutout (mm)	92 (H) X 44 (W)
Input	J, K, PT-100
Temperature Range	J: 0 to 600°C / K: 0 to 1200°C /
Temperature Range	PT-100: -99 to 400ºC, PT.1: -99.0 to 400.0°C
Control Action	PID/TP/ ON-OFF (selectable)
Output	3-Relay Output
Power Supply	100 to 270V AC,50/60 Hz, Approx 4VA
Protection Level	IP-65 (Front side) As per IS/IEC 60529 : 2001
(As per request)	IP-65 (Front side) As per IS/IEC 60529 : 2001
Operating Temperature	0°C To 55°C
Relative Humidity	Upto 95% RH Non Condensing

Pharmaceutical Industries
Extrusion Machinery
Furnace & Boilers
Ovens & Incubators
Process Industry
