UTC-214 | Universal Input Single Display PID Controller

LOADING IMAGES

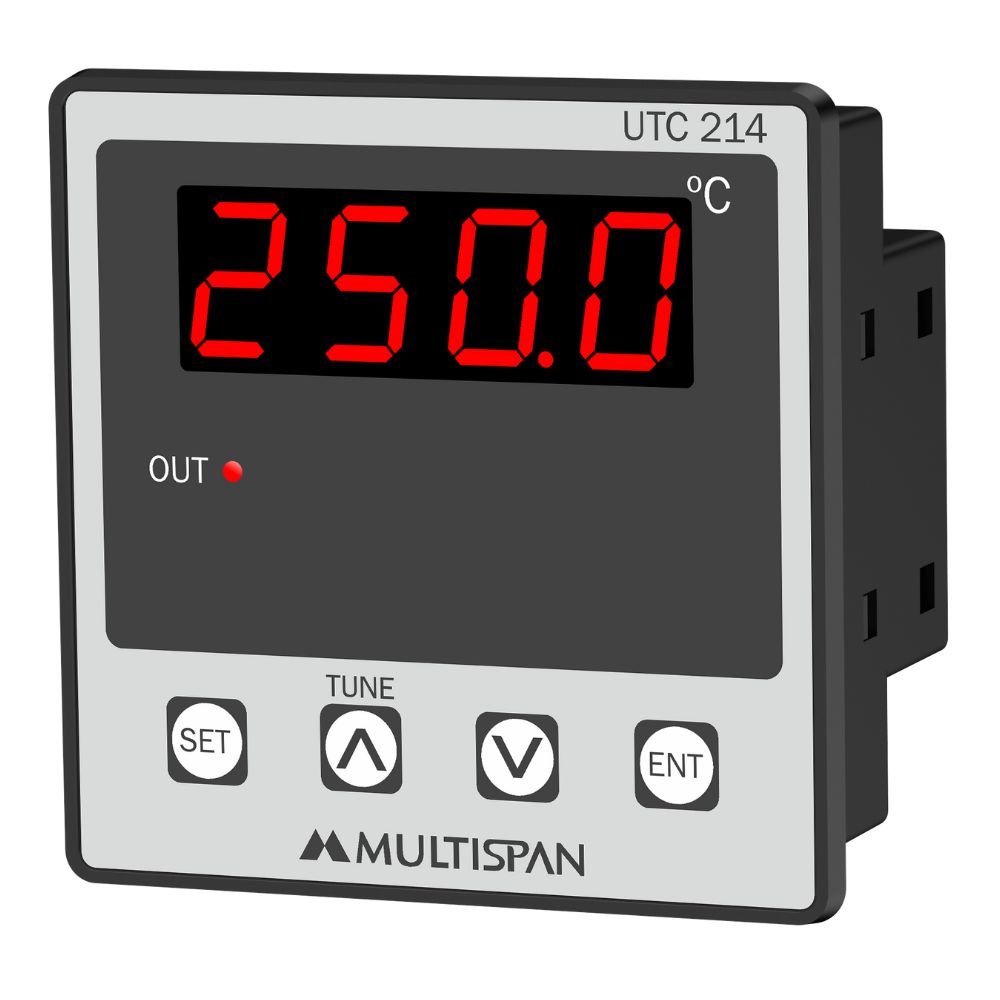

UTC-214 regular image

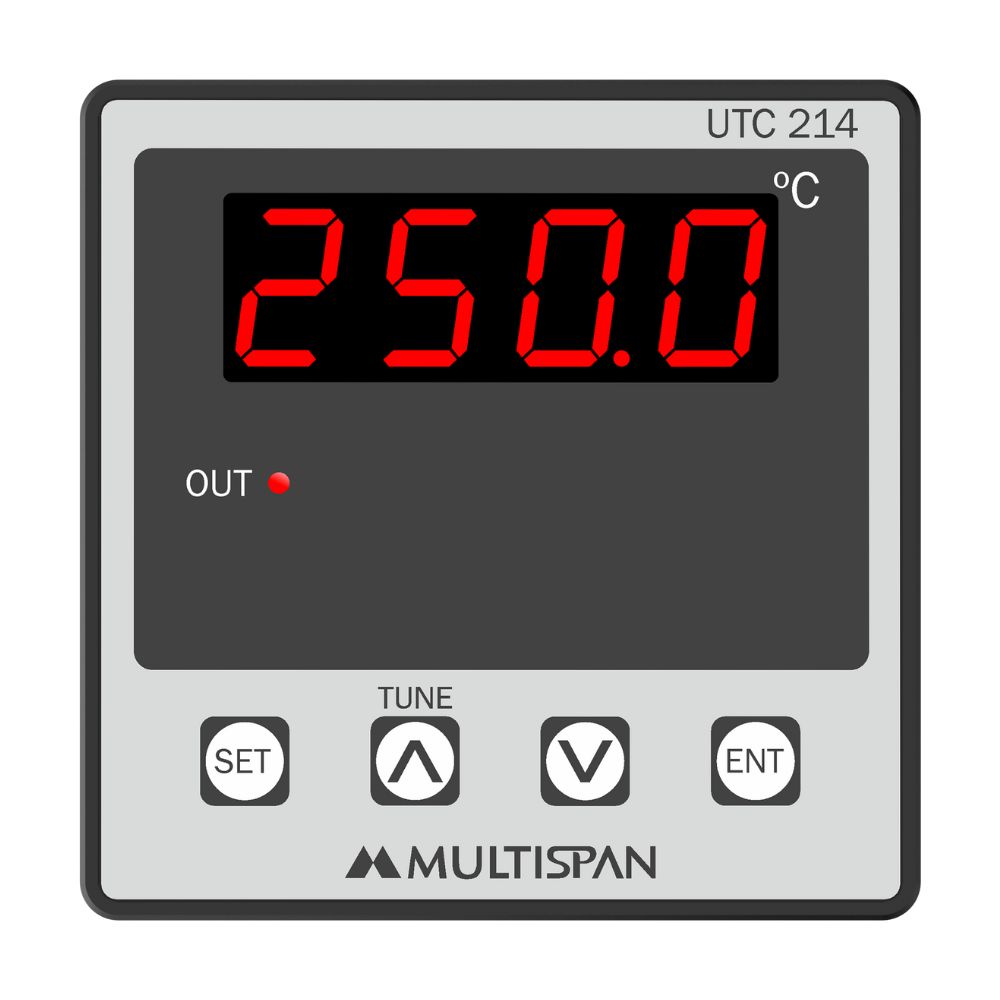

UTC-214 front image

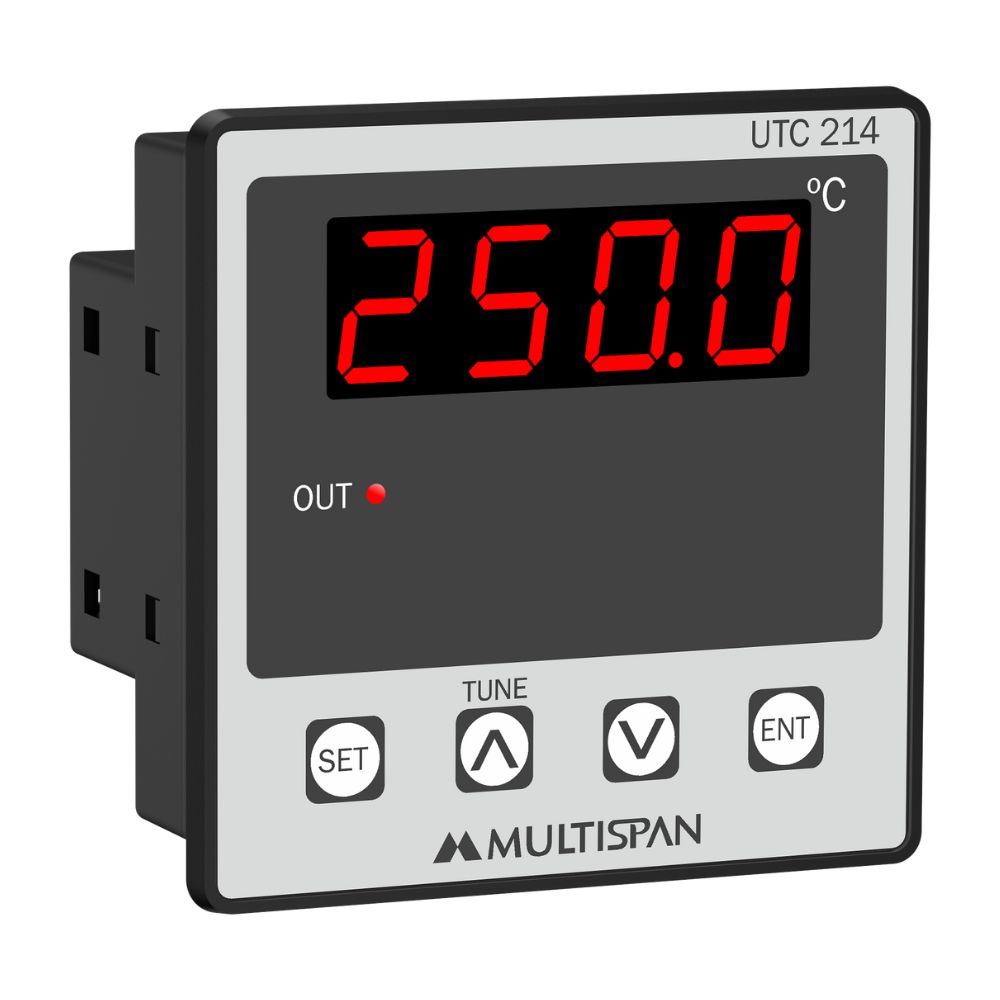

UTC-214 side image

Universal temperature controller

Product: UTC-214

Universal Input (J/K/RTD)
4-Digit Single Red/White LED Display
PID/On-Off Controller, Time Proportional (TP)
Single Output (Relay || SSR) for Load Control
Size: (H)72mm x (W)72mm x (D)45mm
Supply Voltage: 100-270V AC

Top Variants:

UTC-114 UTC-214 UTC-413P

INPUT SPECIFICATION:
Input Types	Input	Range
	J	0 to 600°C
	K	0 to 1200°C
	PT-100	-99 to 400°C
	PT.1	-99.9 to 400.0°C
Resolution	J,K,PT-100 = 1°C, PT.1 = 0.1°C
Indication Accuracy	±1% of FSD ± 1°C
	(FSD:- Full Scale Deflection)
DISPLAY AND KEYS:
Display	4-Digit, 7-Segment, 0.56”
Keys	SET, INC, DEC, ENT
DIMENSION:
Size (mm)	72 (H) x 72 (W) x 45 (D)
Panel Cutout (mm)	68 (H) x 68 (W)
CONTROL METHOD:
Heating	1. PID control with Auto-Tuning
	2. (TP) Time Proportional
	3. On-Off Control
Cooling	ON-OFF control
OUTPUT SPECIFICATION:
Relay Output
Relay	1 Nos
Relay Type	1C/O (NO-C-NC)
Rating	10A, 230V AC / 28V DC (Reg. Load)
SSR Drive Output
Output Signal	12V DC, 30mA DC (On-Off condition)
POWER SUPPLY:
Supply Voltage	100 to 270V AC, 50-60Hz
Power Consumption (VA Rating)	4VA @ 230V AC MAX
ENVIRONMENT CONDITION:
Operating Temp.	0°C to 55°C
Relative Humidity(As per request)	Upto 95% RH (non-condensing)
	IP-65 (Front side) As per IS/IEC 60529 : 2001
Protection Level

Packaging Machinery
Extrusion Machinery
Furnace & Boilers
Ovens & Incubators
Food Industry
