UTC-121P | 3-Digit Dual Display Single Output PID Controller

LOADING IMAGES

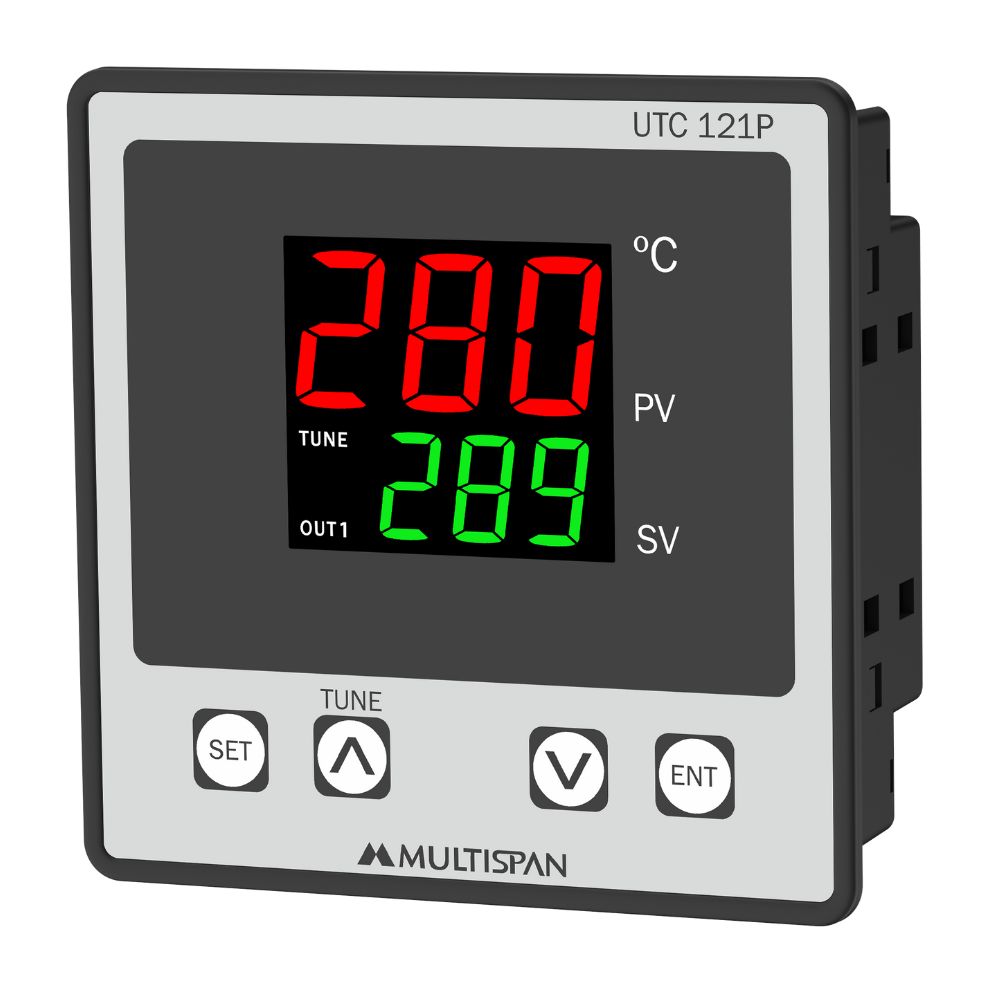

UTC-121P regular image

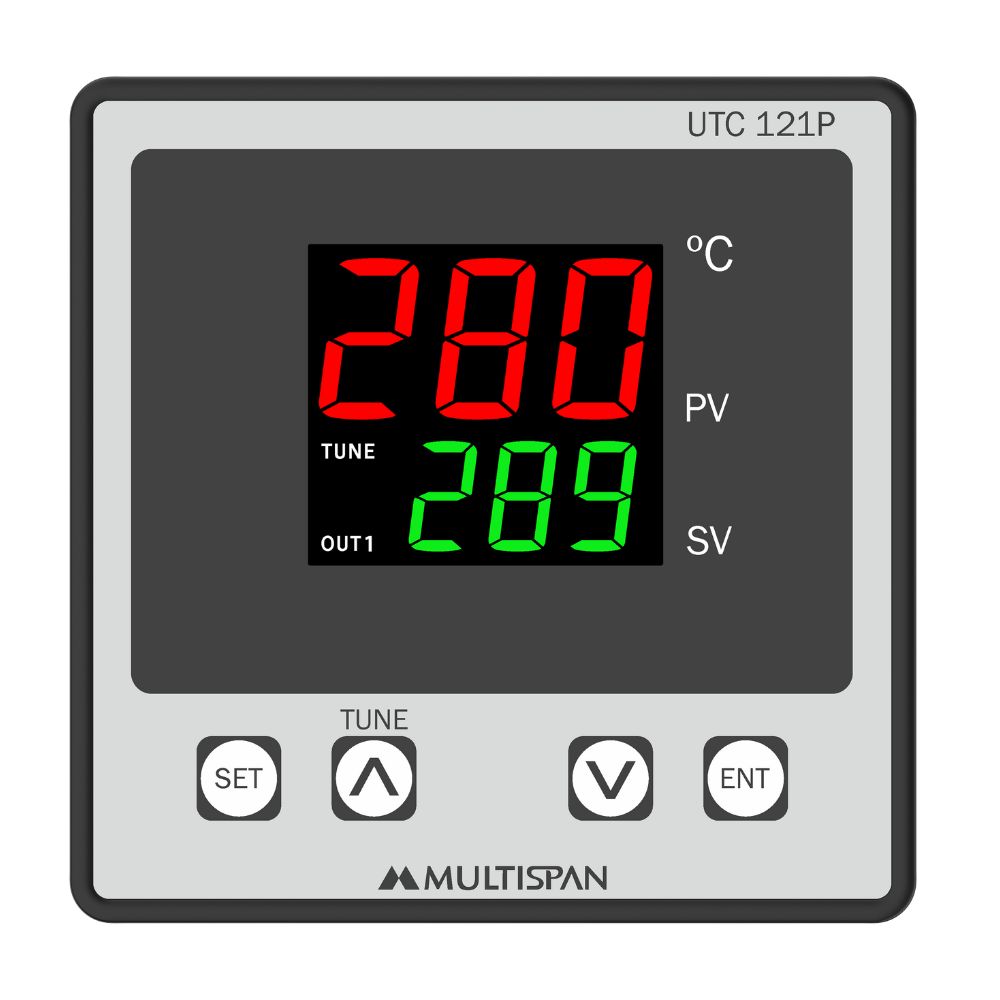

UTC-121P front image

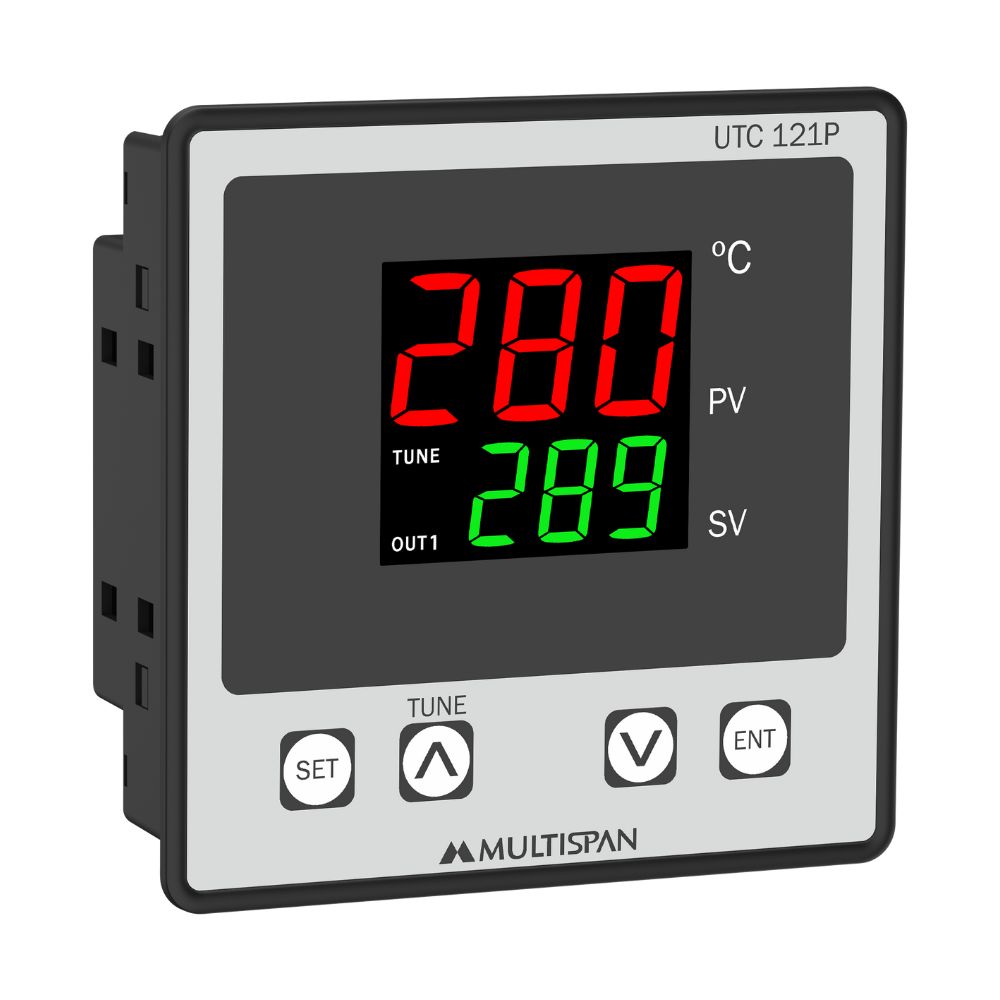

UTC-121P side image

Universal temperature controller

Product: UTC-121P

Universal Input (J/K/RTD)
3-Digit Dual Red/White LED Display
PID/On-Off Controller
Single Output (Relay || SSR) for Load Control
Size: (H)96mm x (W)96mm x (D)43mm
Supply Voltage: 100-270V AC

Top Variants:

UTC-421P UTC-121P UTC-221P

Product Variant

INPUT SPECIFICATION:
Input Types	Input	Range
	J	0 to 600°C,
	K	0 to 999°C,
	PT-100	-99 to 400°C,
	PT.1	-19.9 to 99.9°C,
Resolution	J,K,PT-100 = 1°C,PT.1 = 0.1°C
Indication Accuracy	±1% of FSD ± 1°C
	(FSD:-Full Scale Deflection)
DISPLAY AND KEYS:
Display	Upper: 3-Digit, 7-Segment, 0.80”
	Lower: 3-Digit, 7-Segment, 0.40”
Keys	SET, INC, DEC, ENT
DIMENSION:
Size (mm)	96 (H) x 96 (W) x 43 (D) mm
Panel Cutout (mm)	92 (H) x 92 (W) mm
CONTROL METHOD:
Heating	1. PID control with Auto-Tuning
	2. (TP) Time Proportional
	3. ON-OFF control
Cooling	ON-OFF control
OUTPUT SPECIFICATION:
Relay Output
Relay	1 Nos
Relay Type	1C/O (NO-C-NC)
Rating	5A, 230V AC / 28V DC
SSR Drive Output
Output Signal	12V DC, 30mA DC
	(On-Off condition)
POWER SUPPLY:
Supply Voltage	100 to 270V AC, 50-60Hz
Power Consumption (VA Rating)	4VA @ 230V AC MAX
ENVIRONMENT CONDITION:
Operating Temp.	0°C to 55°C
Relative Humidity	Upto 95% RH
	(non-condensing)
Protection Level	IP-65 (Front side) As per IS/IEC 60529 : 2001
(As per request)

Packaging Machinery
Extrusion Machinery
Furnace & Boilers
Ovens & Incubators
Food Industry

Product Variant

Model No	Display	Input	Output	Aux Supply
UTC-121P-A2-3-RG	Red + Green	J/K/Pt-100 (Selectable)	Relay \|\| SSR	100-270V AC
UTC-121P-A2-3-WG	White + Green	J/K/Pt-100 (Selectable)	Relay \|\| SSR	100-270V AC
