PTC-4202A-M1 | Universal Input PID Controller with Analog Output

LOADING IMAGES

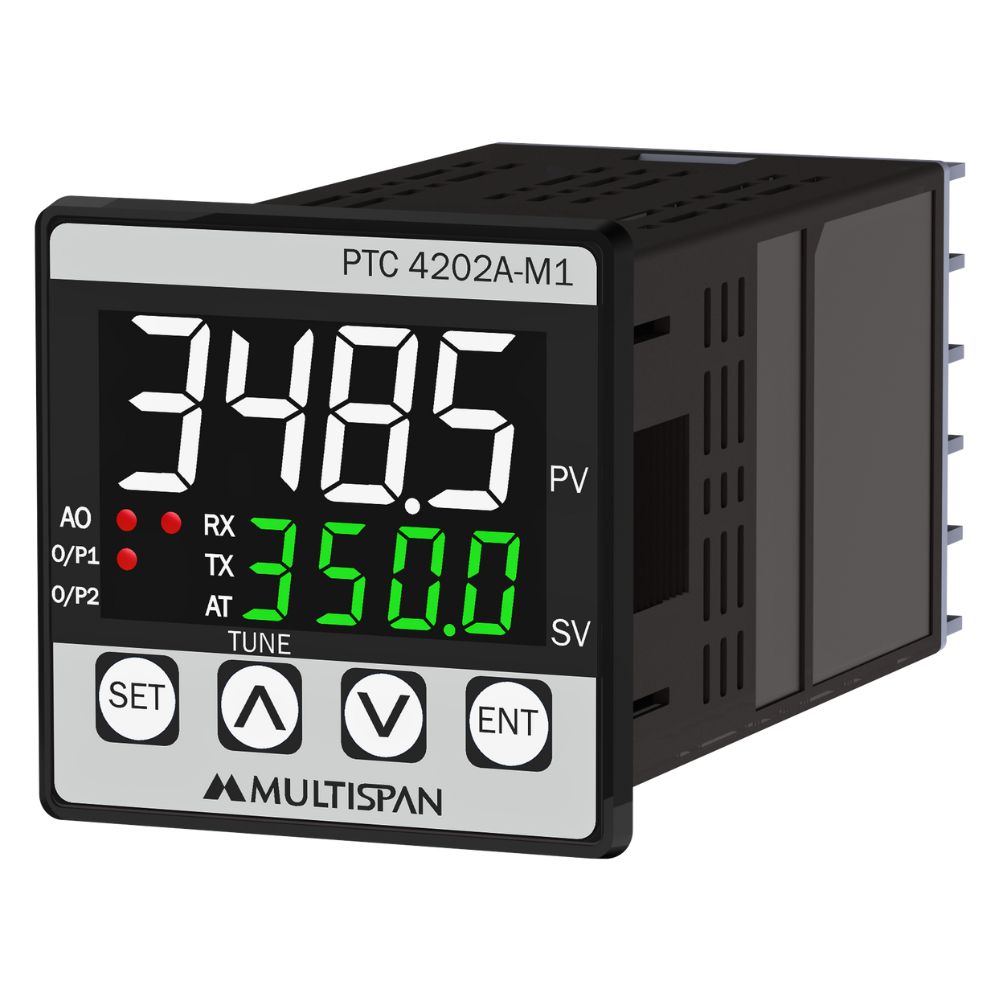

PTC-4202A-M1 regular image

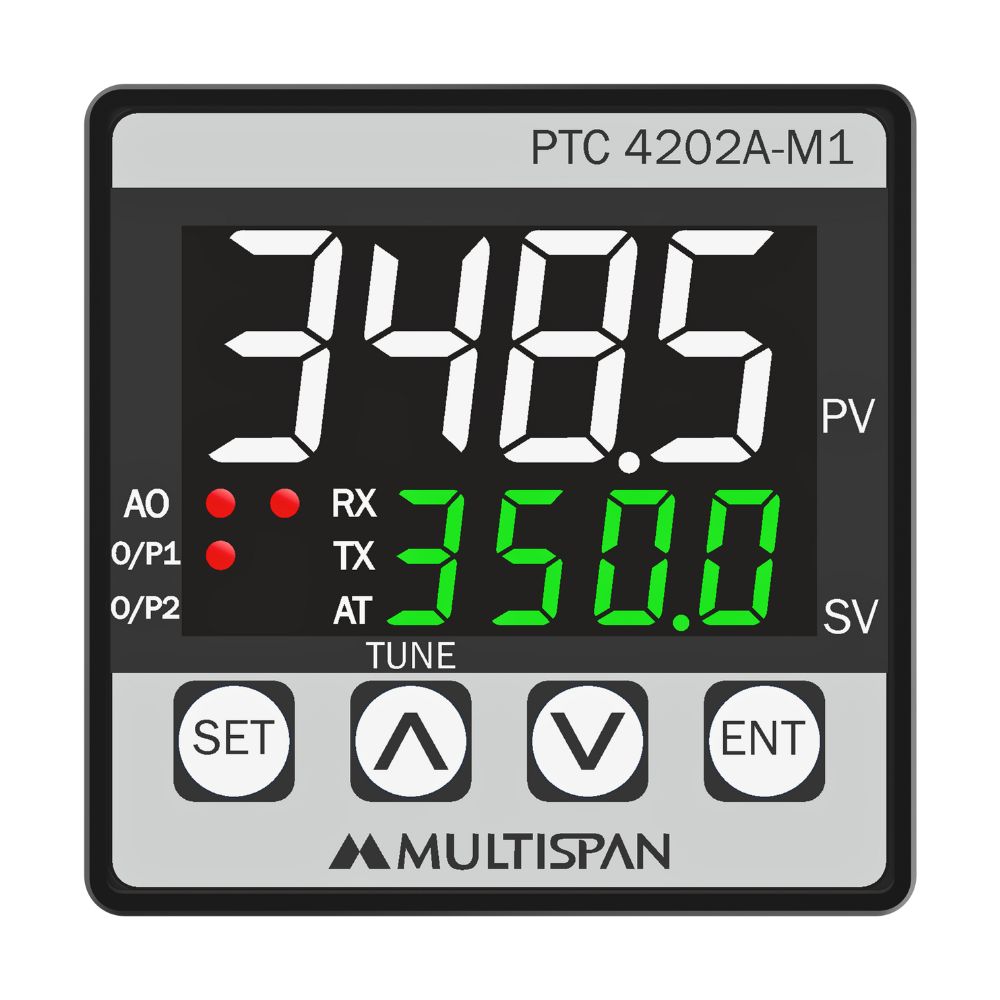

PTC-4202A-M1 front image

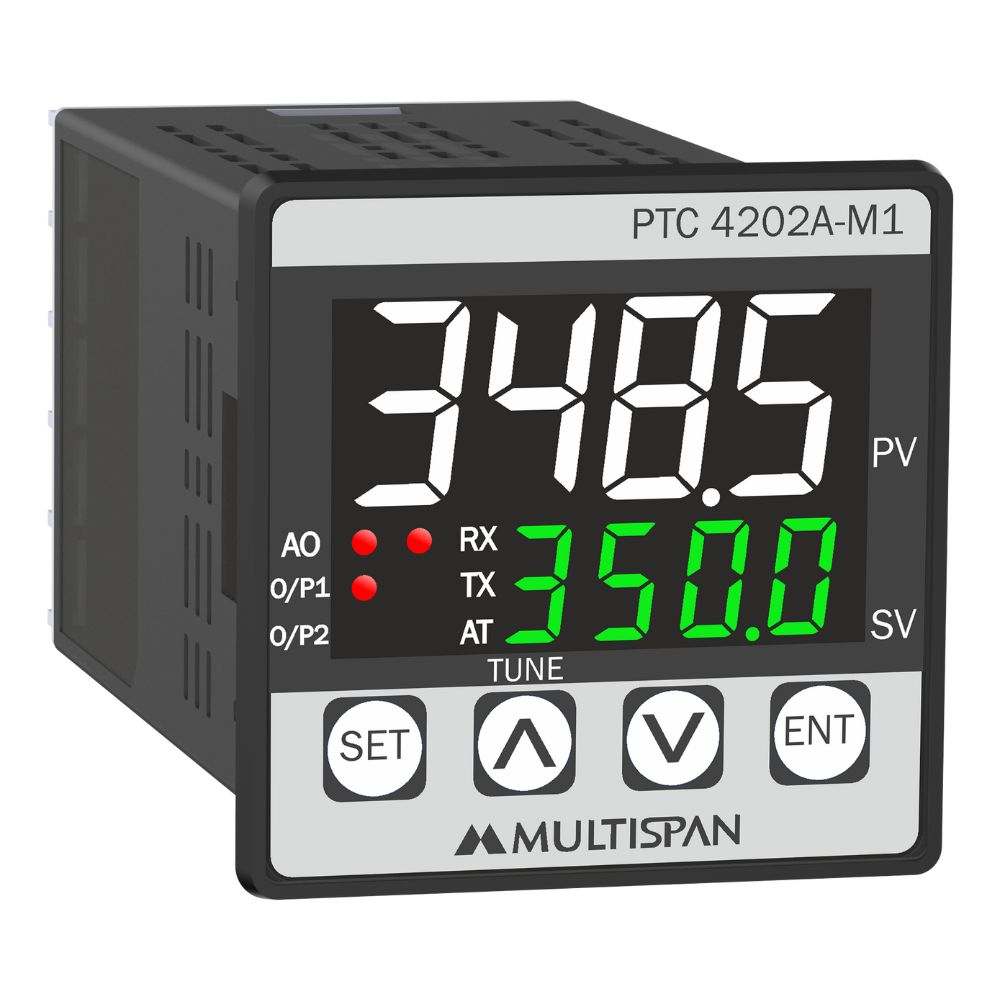

PTC-4202A-M1 side image

Universal Input PID Controller with Analog Output

Product: PTC-4202A-M1

Universal Input (J/K/RTD/4-20mA DC/0-10V DC/0-20mA DC)
4-Digit Dual Red/White LED Display
2-Relay Output
Analog Output (Retransmission & Controlling) & RS-485 Modbus Facility
Size: (H)48mm x (W)48mm x (D)95mm
Supply Voltage: 100-270V AC

Top Variants:

PTC-1202A-M1 PTC-4202A-M1 PTC-382A-M1

INPUT SPECIFICATION:
Input Types	Input	Range
	J	0 to 600°C
	K	0 to 1200°C
	PT-100	-99 to 400°C
	PT.1	-99.9 to 400.0°C
	0-10V DC	-999 to 9999
	0-20mA DC	-999 to 9999
	4-20mA DC	-999 to 9999
Resolution	J,K,PT-100 = 1°C
	PT.1 = 0.1°C
	0-10V DC,0-20mA DC,4-20mA DC
	= 0.1,0.01,0.001,0001
Indication Accuracy	±1% of FSD ± 1°C
	(FSD : full scale deflection)
DISPLAY AND KEYS:
Display	Upper: 4 digit, 7 segment, 0.39”
	Lower: 4 digit, 7 segment, 0.28”
Keys	SET, INC, DEC, ENT
DIMENSION:
Size (mm)	48 (H) x 48 (W) x 95 (D) mm
Panel Cutout (mm)	45 (H) x 45 (W) mm
CONTROL METHOD:
Heating	1. PID Control with Auto-Tuning
	2. ON-OFF Control
Cooling	1. BL.TP (Blower Time Proportion)
	2. ON-OFF Control
OUTPUT SPECIFICATION
Relay Output
Relay	2 nos.
Relay Type	(NO-C)
Rating	5A, 230V AC/30V DC
Analog Output
4 to 20mA DC
Transmitter supply
24V DC
Modbus Communication
RS-485
AUXILIARY SUPPLY
Supply voltage	100 to 270V AC, 50-60Hz
Power consumption (VA RATING)	Approx 7 VA @ 230V AC MAX
ENVIRONMENT CONDITION
Operating Temp.	0°C to 55°C
Relative Humidity	Upto 95% RH
	(non-condensing)
Protection Level	IP-65 (Front side) As per IS/IEC 60529 : 2001

Menufacturing industries
Pharmaceutical and Biotech Industries
Industrial Process Control
