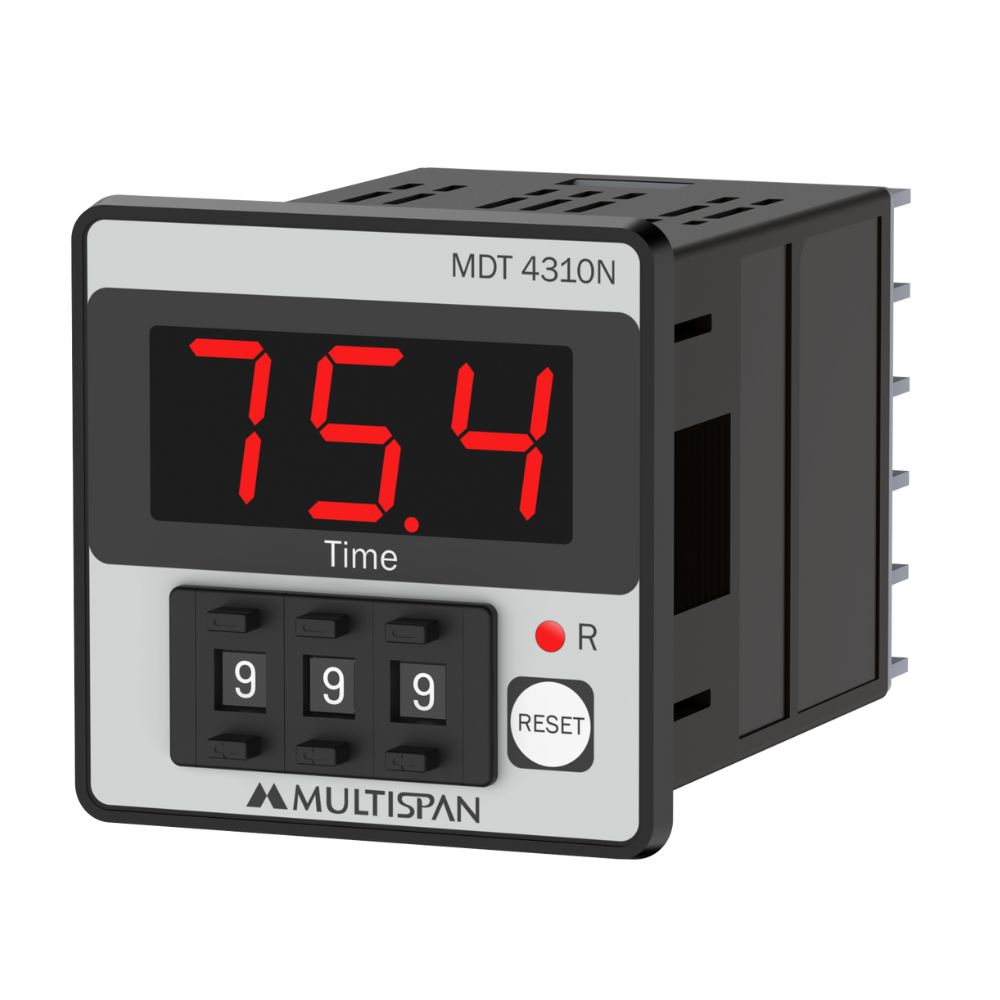

MDT-4310N regular image

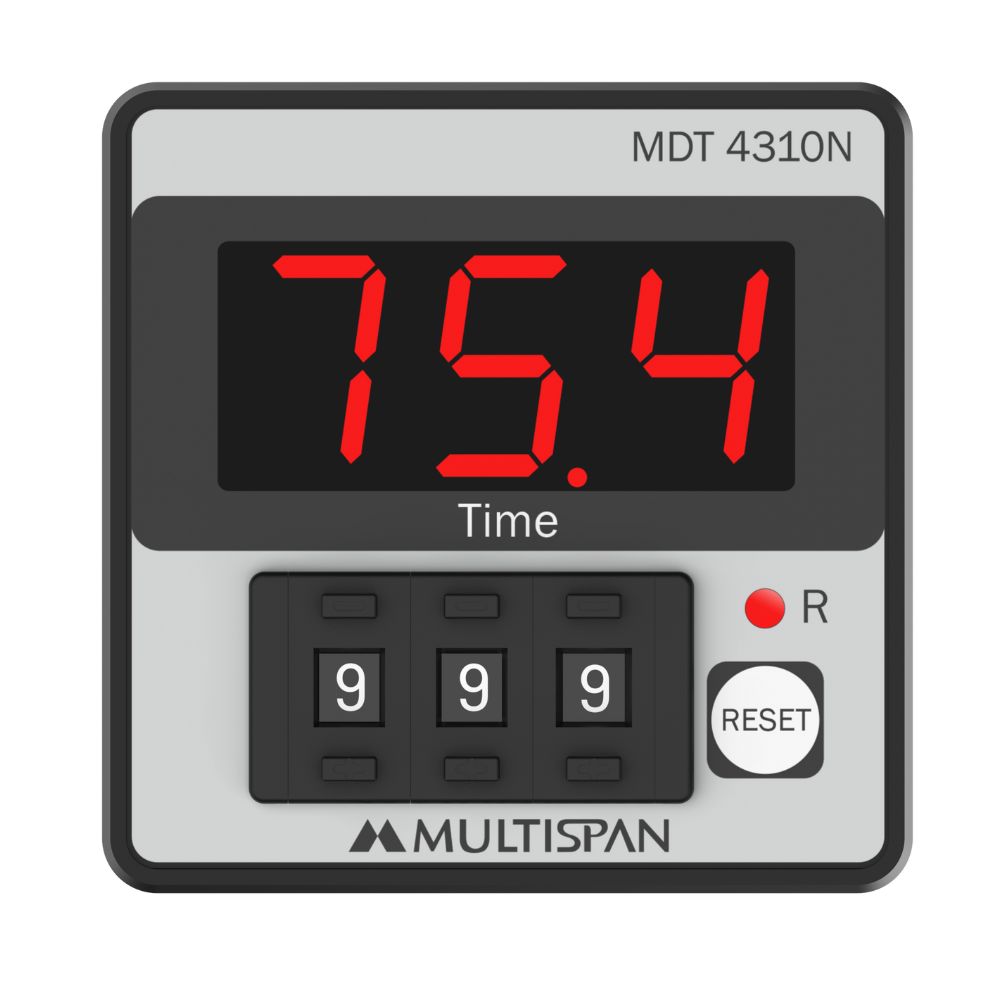

MDT-4310N front image

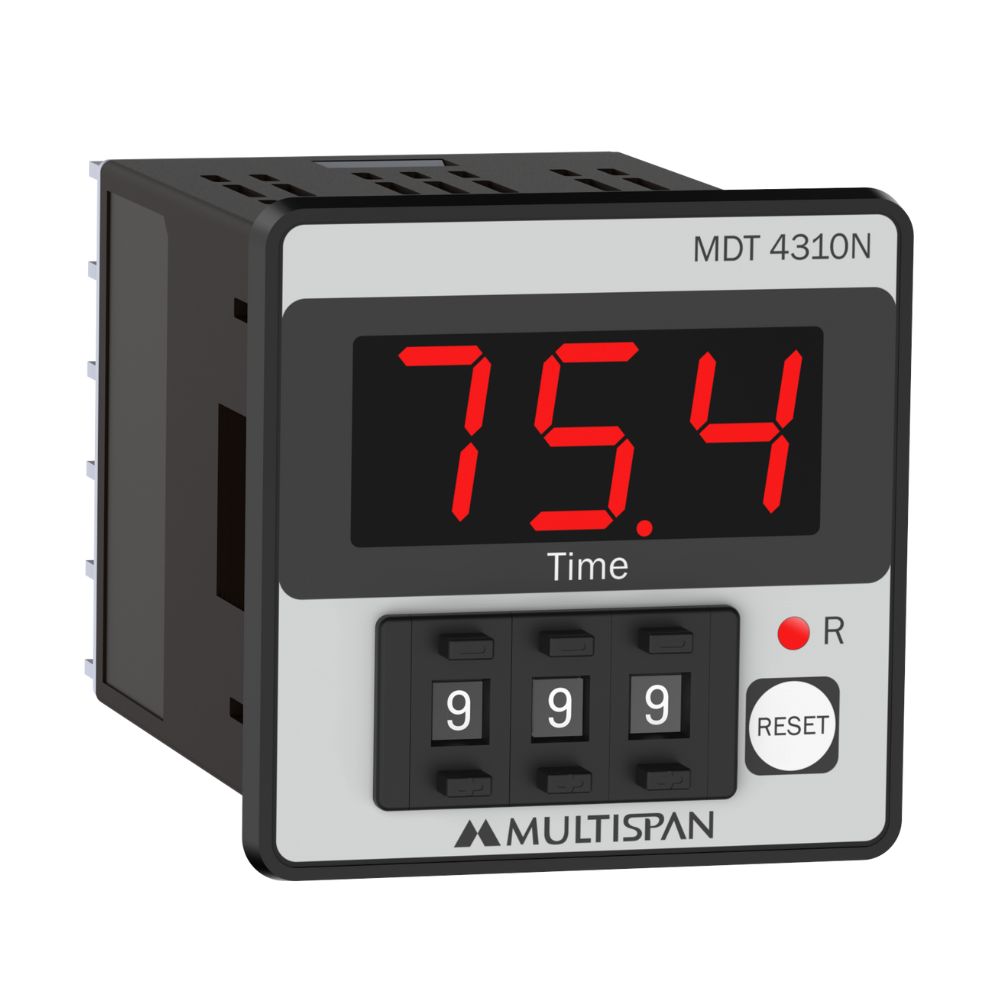

MDT-4310N side image

Thumbwheel –On/Off Timer

Product: MDT-4310N

3-Digit Display, Time Set by Thumbwheel
Input Proxy/Micro Switch
Delayed On/Off
Range Hour/Minute/Second
With Power fail memory
Size: (H)48mm x (W)48mm x (D)70mm
Supply Voltage: 100-270V AC

Top Variants:

MDT-1310F MDT-2312F MDT-4310N

Description	MDT-4310N
Dimension (mm)	48 (H) X 48 (W) X 70 (D) mm
Panel Cutout (mm)	45 X 45 mm
Display	3 Digit 7 seg 0.56”,LED Display
Range	Multi Range
Reset	Front & back key
Counting Direction	Up or Down Counting (Configurable)
Power Supply	100 to 270V AC,50/60 Hz, Approx 3VA
Input	Start Pulse M/S
Output	1 Relay 1C/O,5A,230V AC
Protection Level (As per request)	IP-65 (Front side) As per IS/IEC 60529 : 2001
Operating Temperature	0°C To 55°C
Relative Humidity	Up to 95% RH Non Condition

Packaging Machinery
Printing Industries
Furnace & Boilers
Automation Panel
Food Industry
