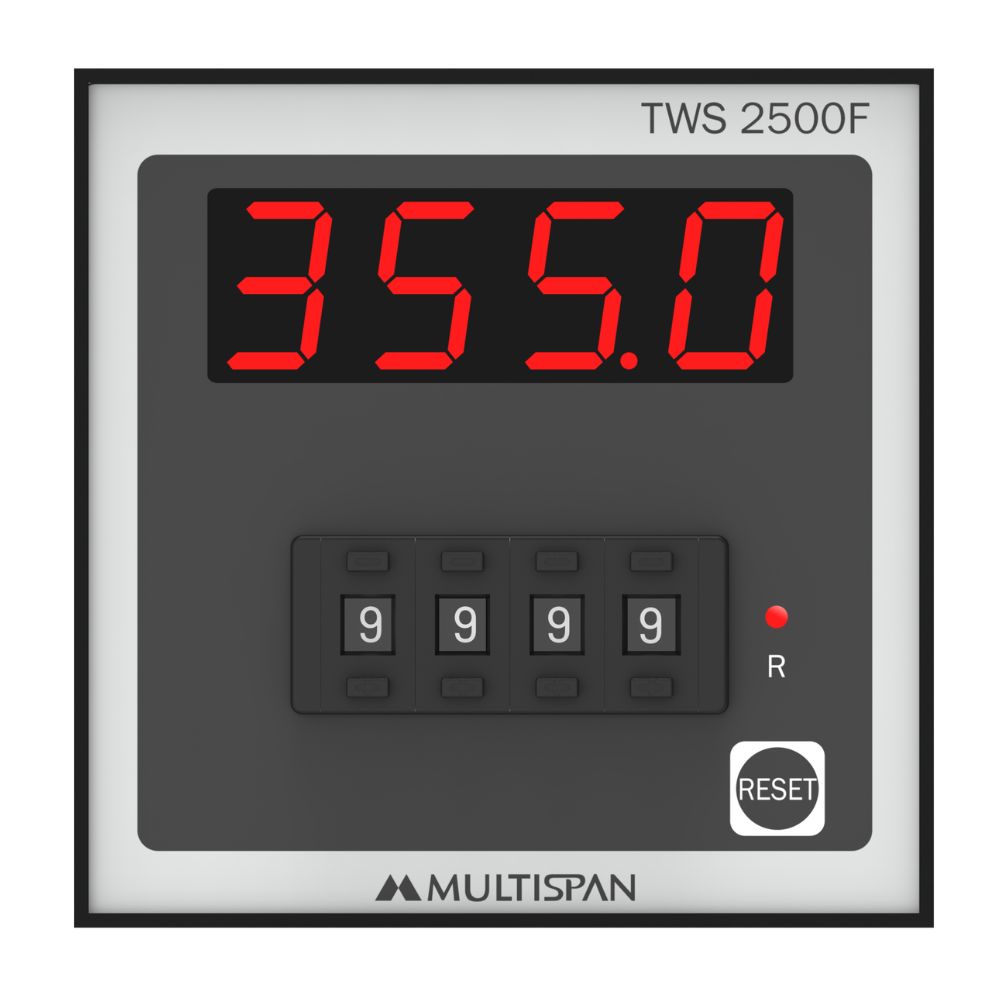

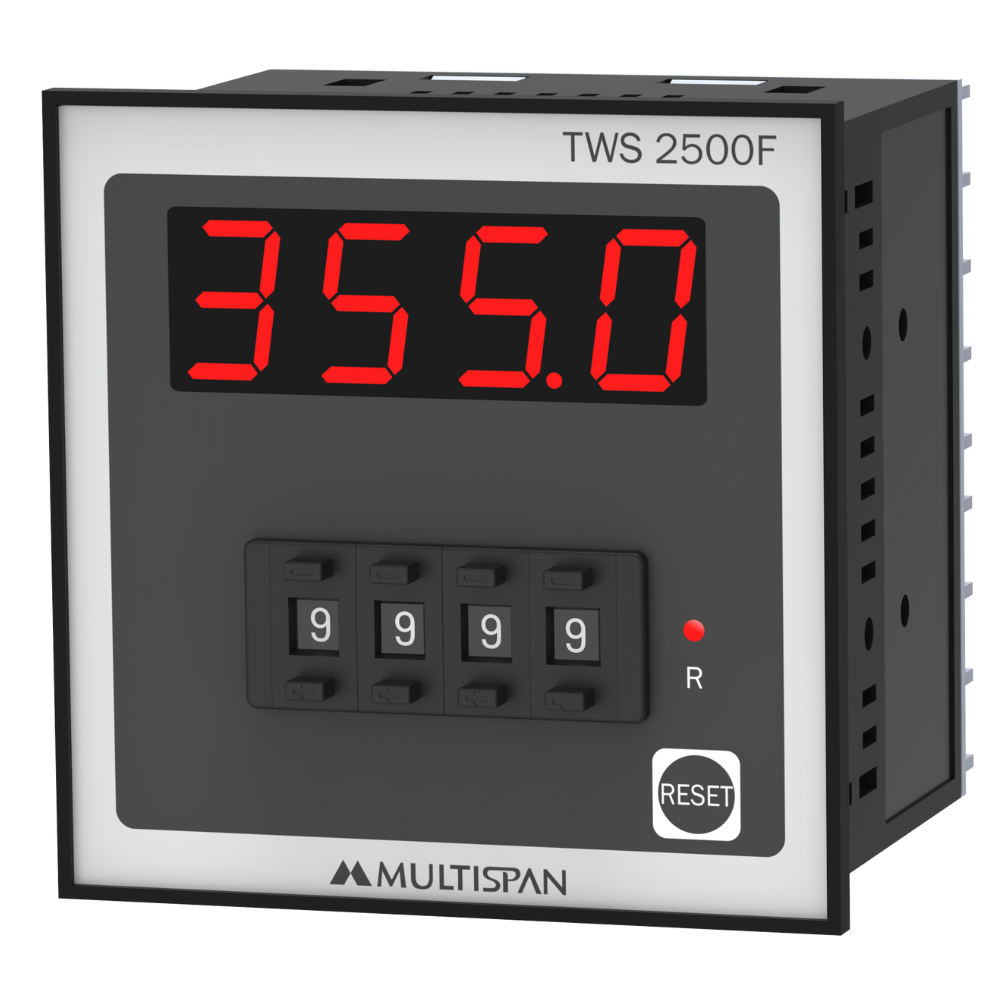

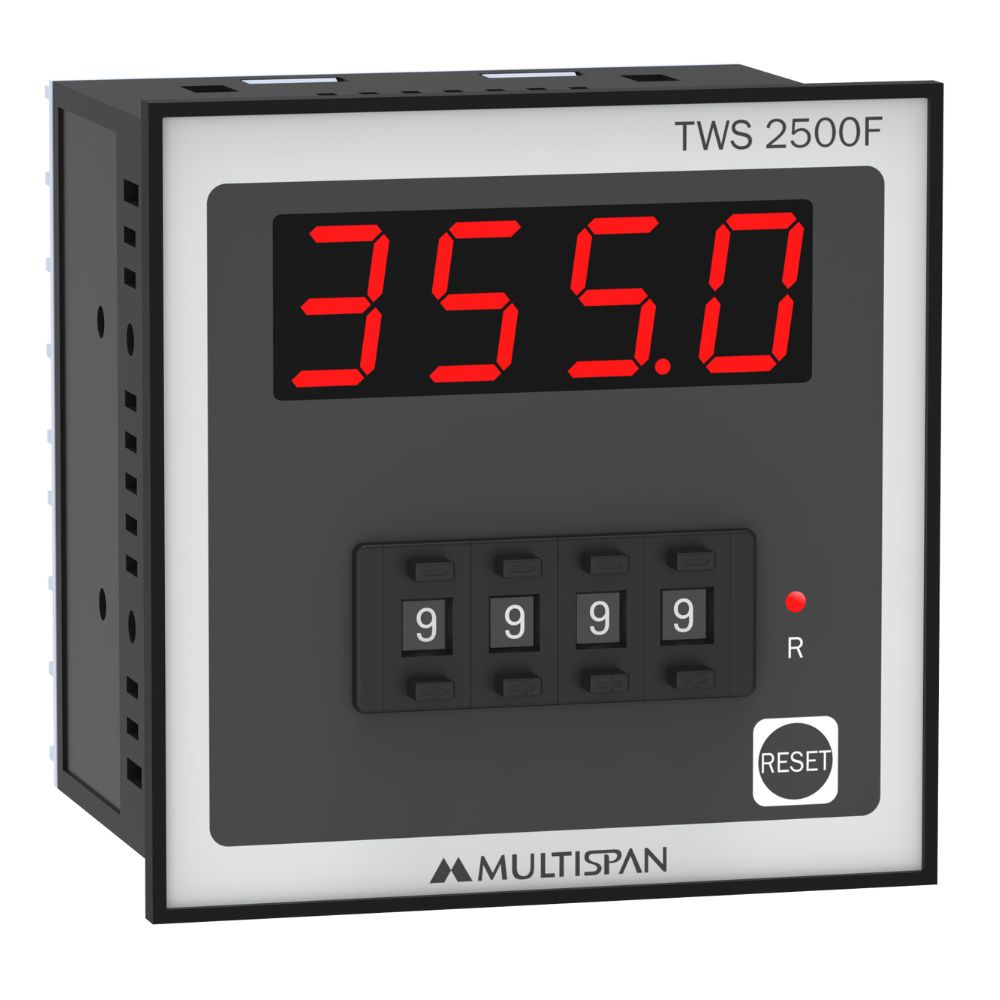

| Model | TWS - 2500F | ||
| Display | 4-Digit, 7-Seg 0.56”,RED LED Display | ||
| Size (mm) | 72 (H) X 72 (W) X 45 (D) | ||
| Panel Cutout (mm) | 68 (H) X 68 (W) | ||
| Input | Proximity NPN/PNP (Selectable) & Micro Switch | ||
| Output | 1-Relay, 2-C/O Contact, 230V AC, 5A | ||
| Power Supply | 100 to 270V AC, 50 Hz, Approx 4VA | ||
| Memory | Yes / No (Selectable) | ||
|
Delay ON/Delay OFF |
Selectable | ||
|
Over Counting /No Over Counting |
Selectable | ||
| Speed Selection | Selectable | ||
|
Protection Level (As per request) |
IP-65(Front side) AS per IS/IEC 60529:2001 | ||
|
Operating Temperature |
0°C To 55°C | ||
| Relative Humidity | Upto 95% RH Non Condensing | ||
