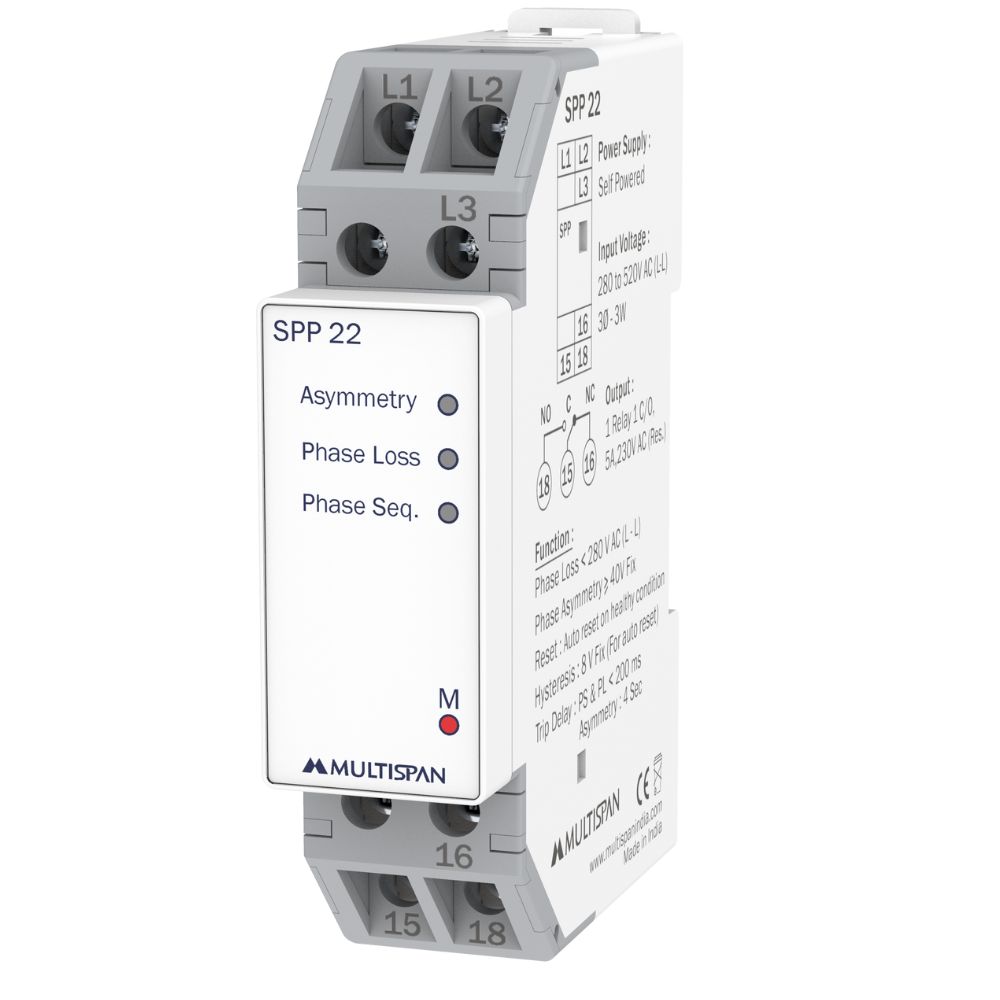

SPP-22 regular image

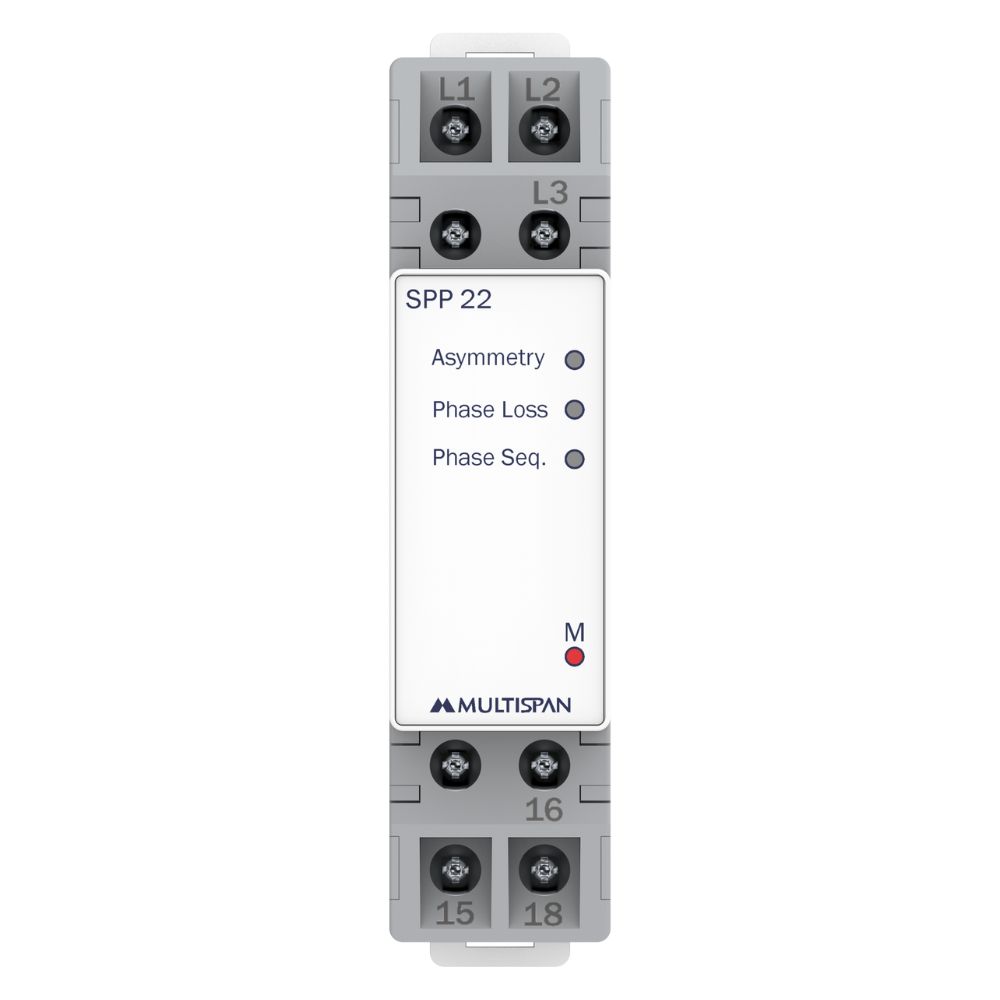

SPP-22 front image

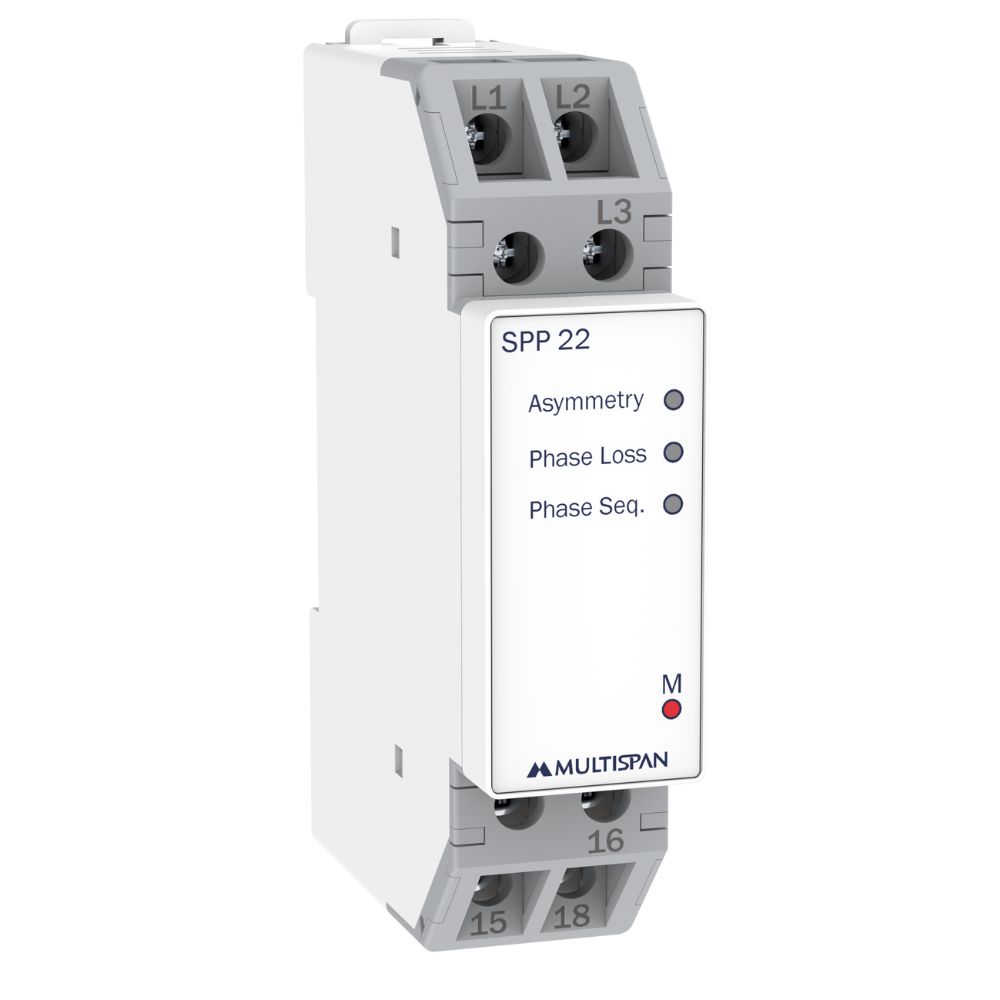

SPP-22 side image

Single Phase Preventer

Product: SPP-22

3Ø- 3 Wire Input
Separate Aux supply not needed as it is self-powered
Tripping parameter : Phase Sequence, Phase Loss & Phase Asymmetry
1 Relay 1 C/O
Size: 90 X 22.5 X 66.5 (H XW X D) mm

Top Variants:

System	3Ø - 3W
Supply Voltage	154 to 400V AC (L-L)
Phase Loss	< 154V AC (L-L)
Phase Asymmetry	>40V AC (L-L)
Hysteresis	8 V
Reset	Auto Reset on Removal of fault condition
Output	1 C/O, 10 A 250V AC 10A, 28V DC (Resistive Load)
Trip Accuracy	±10V
Response Time	200msec MAX

Electrical Control Panel
Submersible Pump
Road Construction Panel
MCC Panel
Industrial Chiller And HVAC System
D.G. Set

Related Products

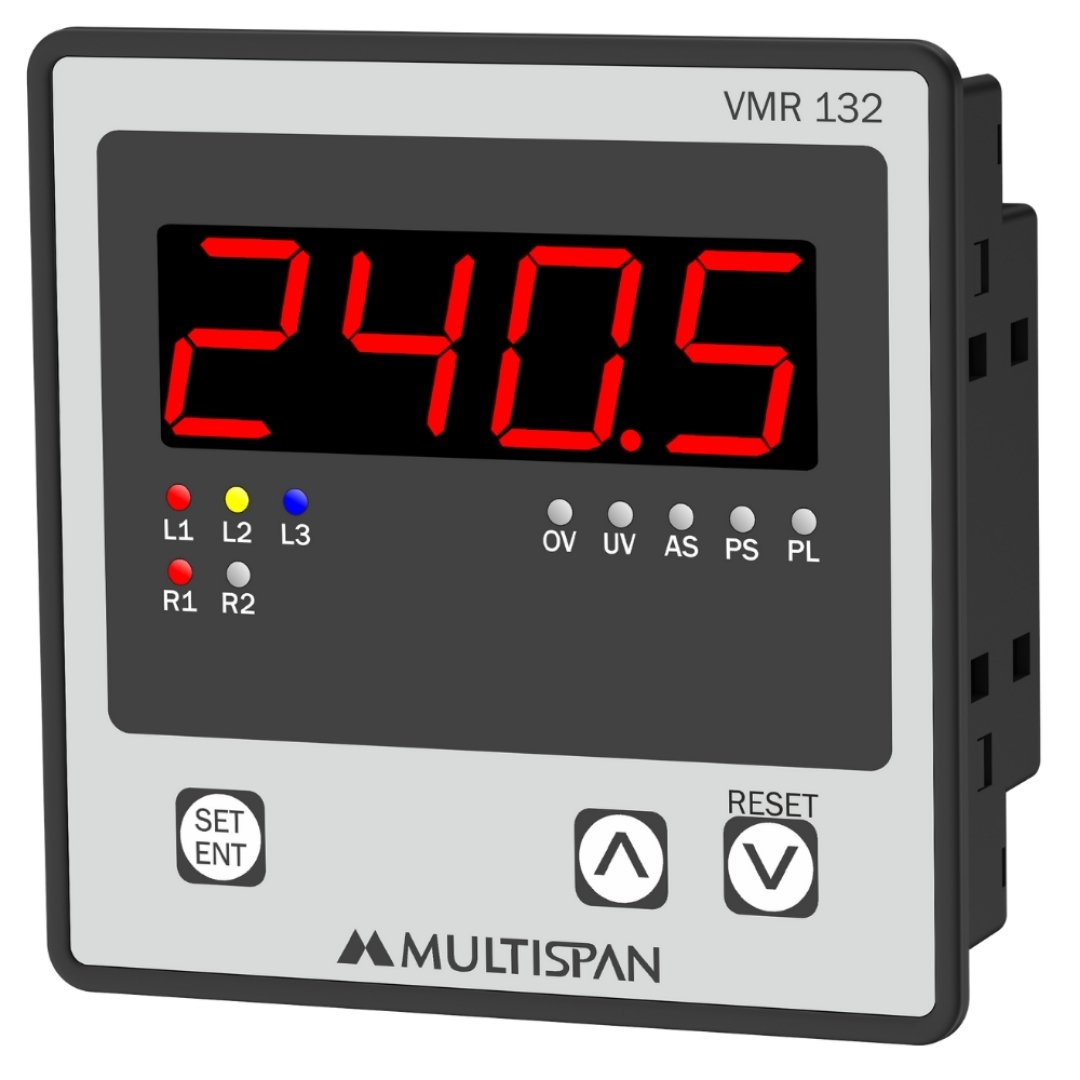

Voltage Monitoring Relay- Panel Mount

VMR-132 Panel Mount Relay - product image

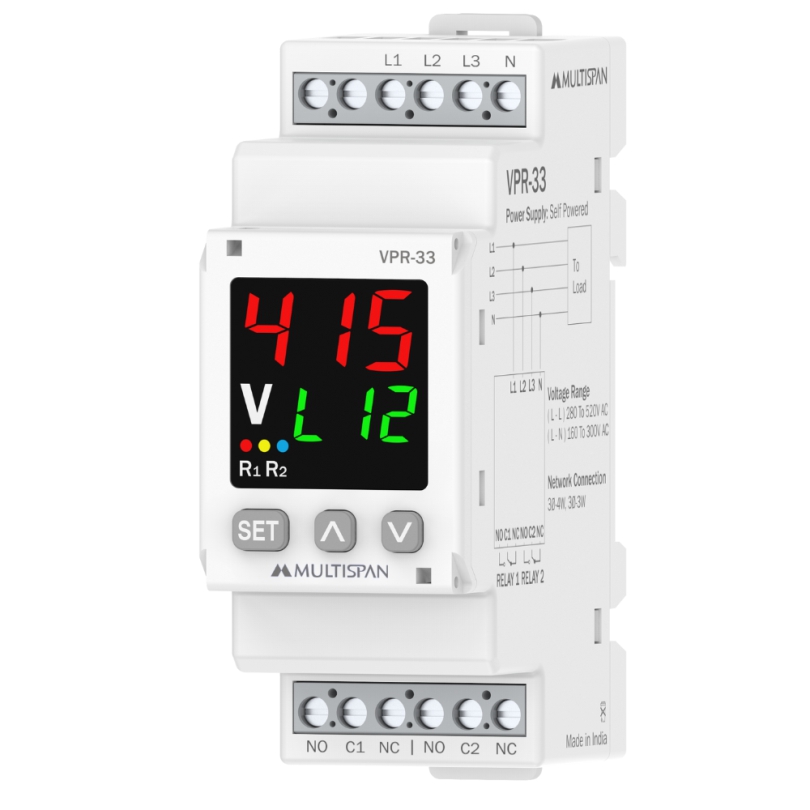

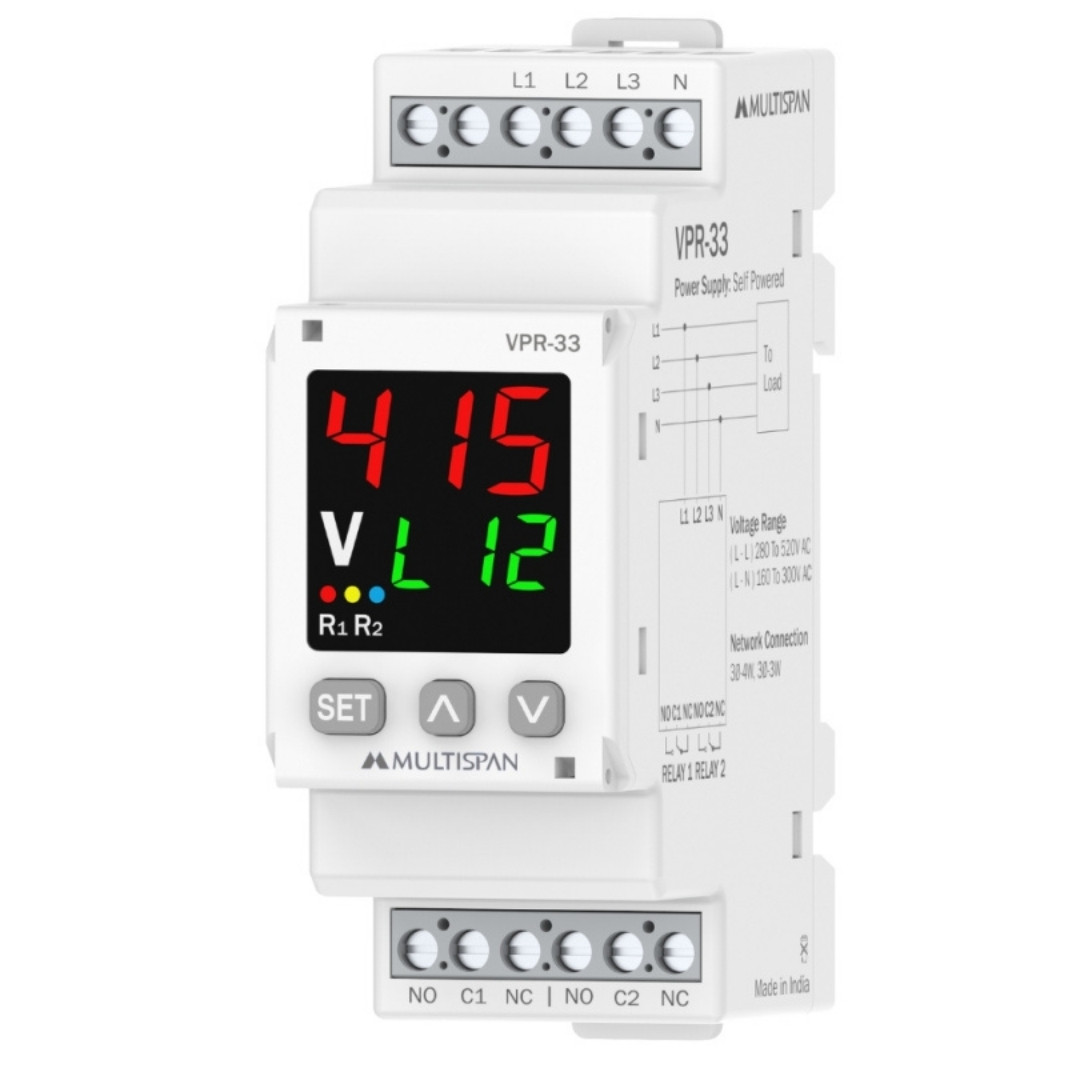

Voltage Protection Relay- Digital Din Rail Mount

VPR-33 DIN Rail with Display - product image

Analog Voltage Protection Relay - Din Rail Mount

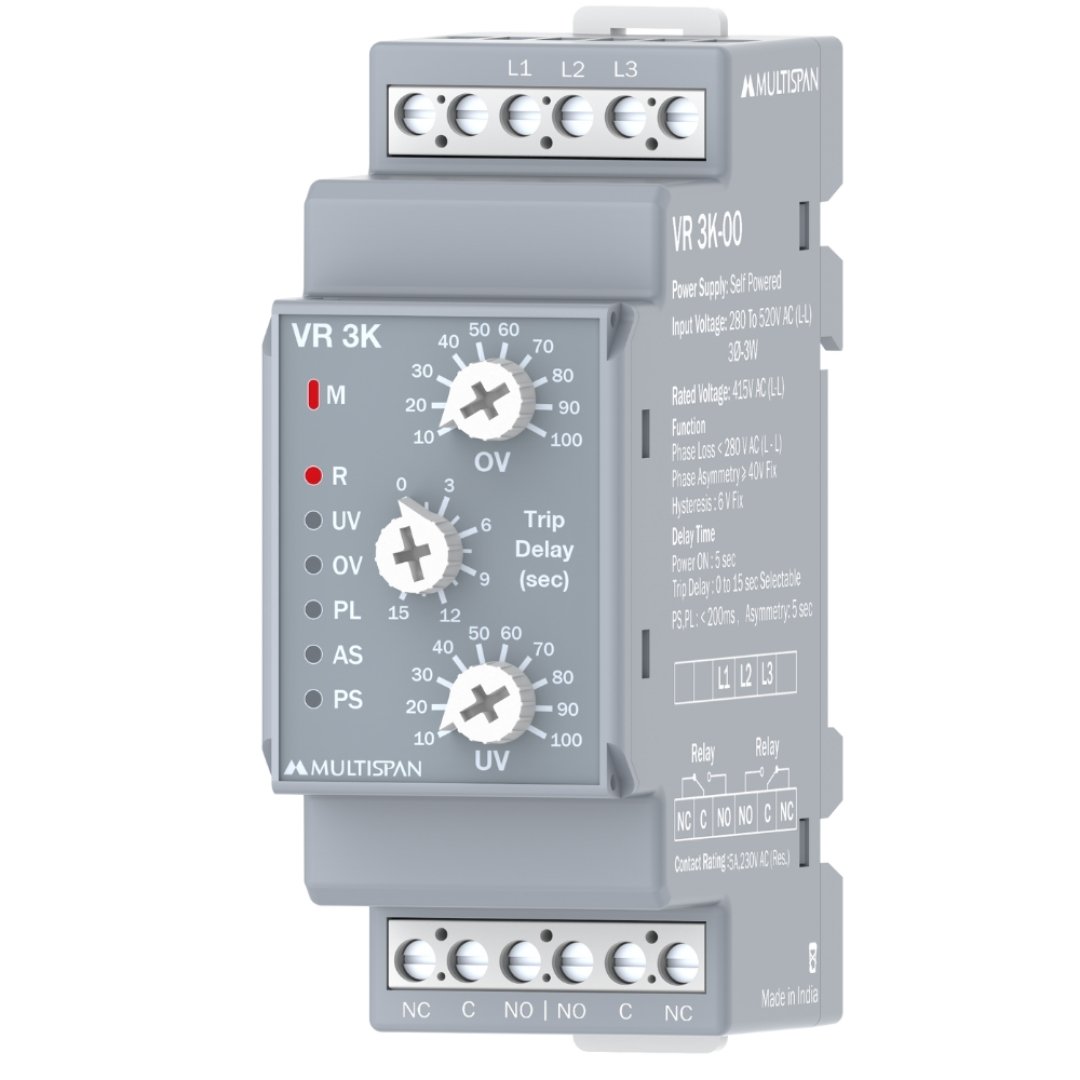

VR-3K Analog Voltage Protection Relay - Product image

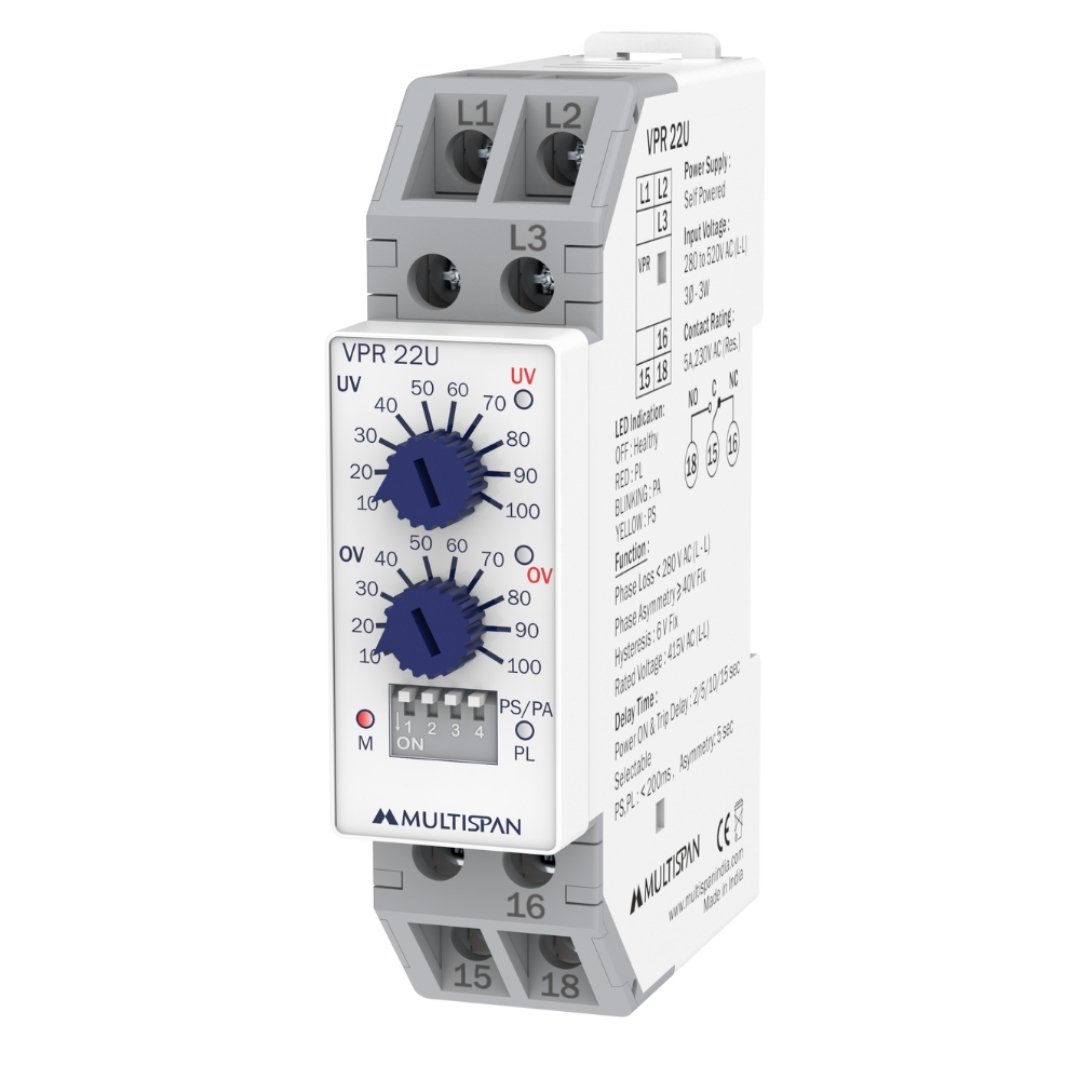

Voltage Protection Relay Din Rail Mount - Analog

VPR-22U Analog Voltage Protection Relay - Product image

Digital Din Rail Mount – Current Protection Relay

CPR-35 DIN Rail with Display - product image

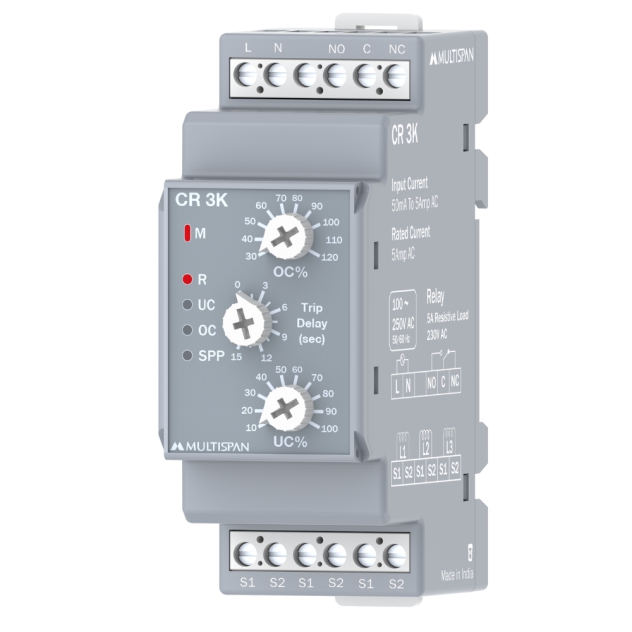

Din Rail Mount– Current Protection Relay

CR-3K Din Rail Mount– Current Protection Relay regular angle image

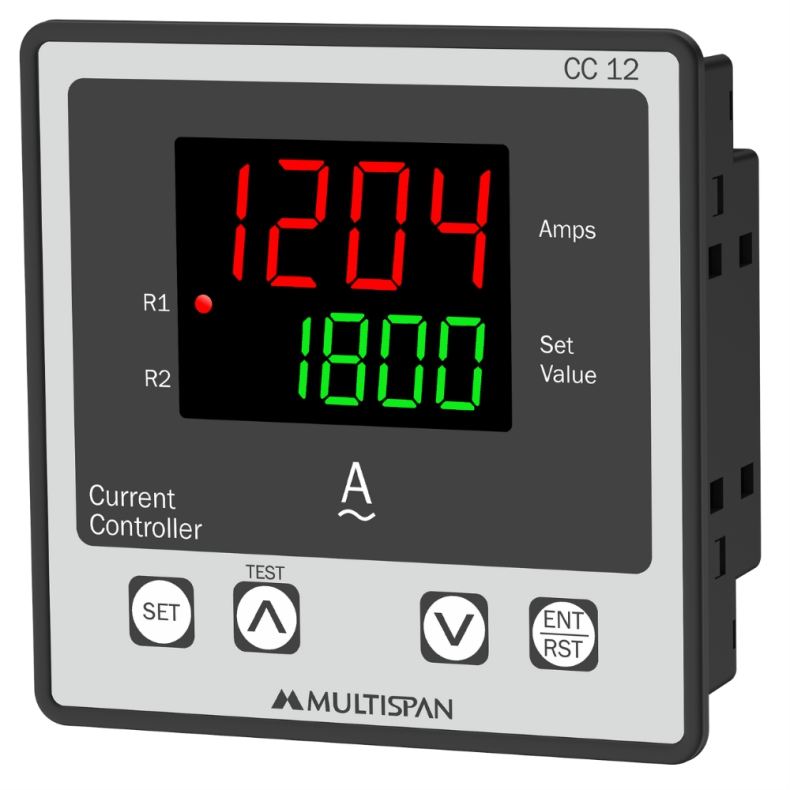

Digital Panel Mount – Current Protection Relay

CC-12 Digital Panel Mount Display - product image

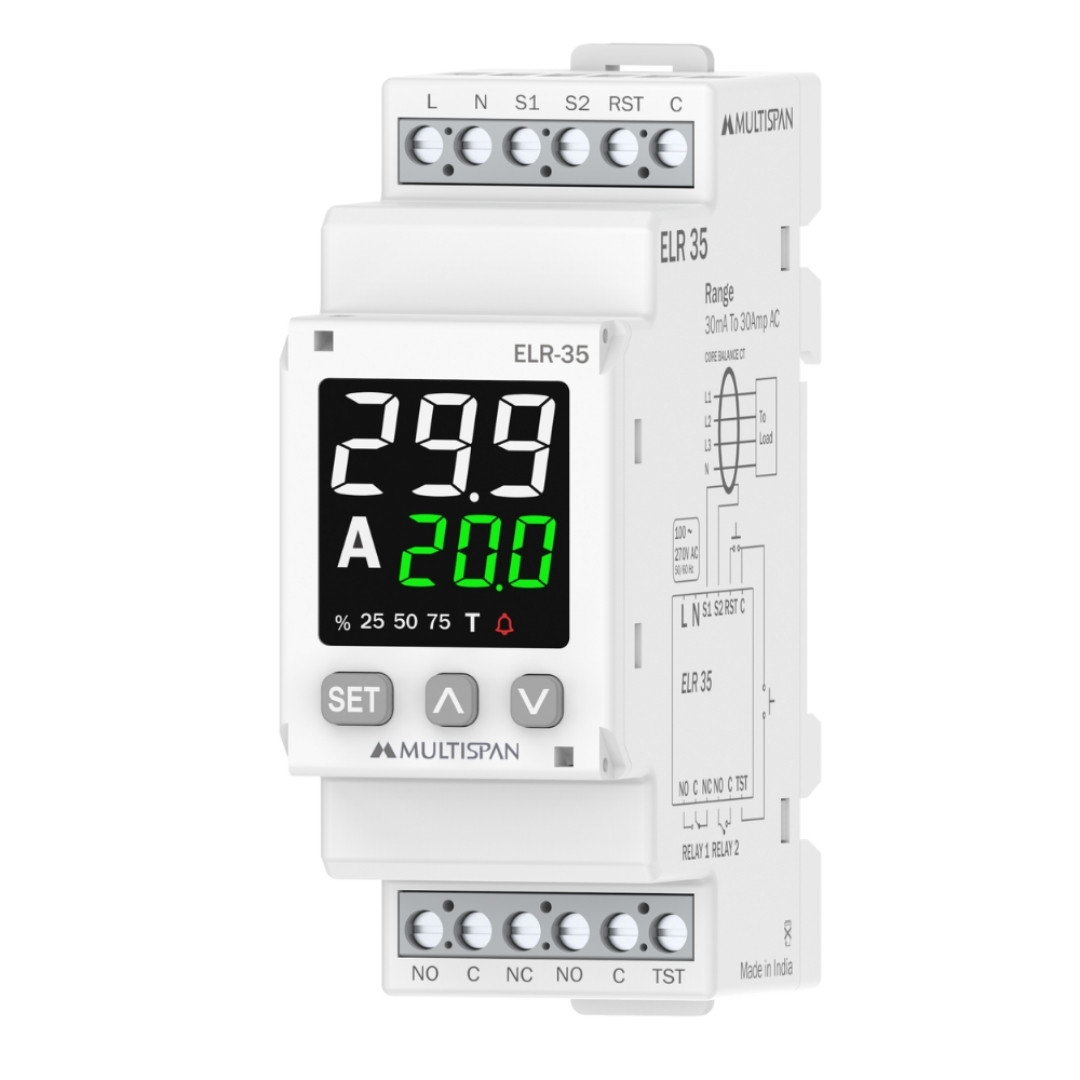

Din Rail Earth leakage Relay

ELR-35 DIN Rail with Display - Industrial Control Equipment - product image

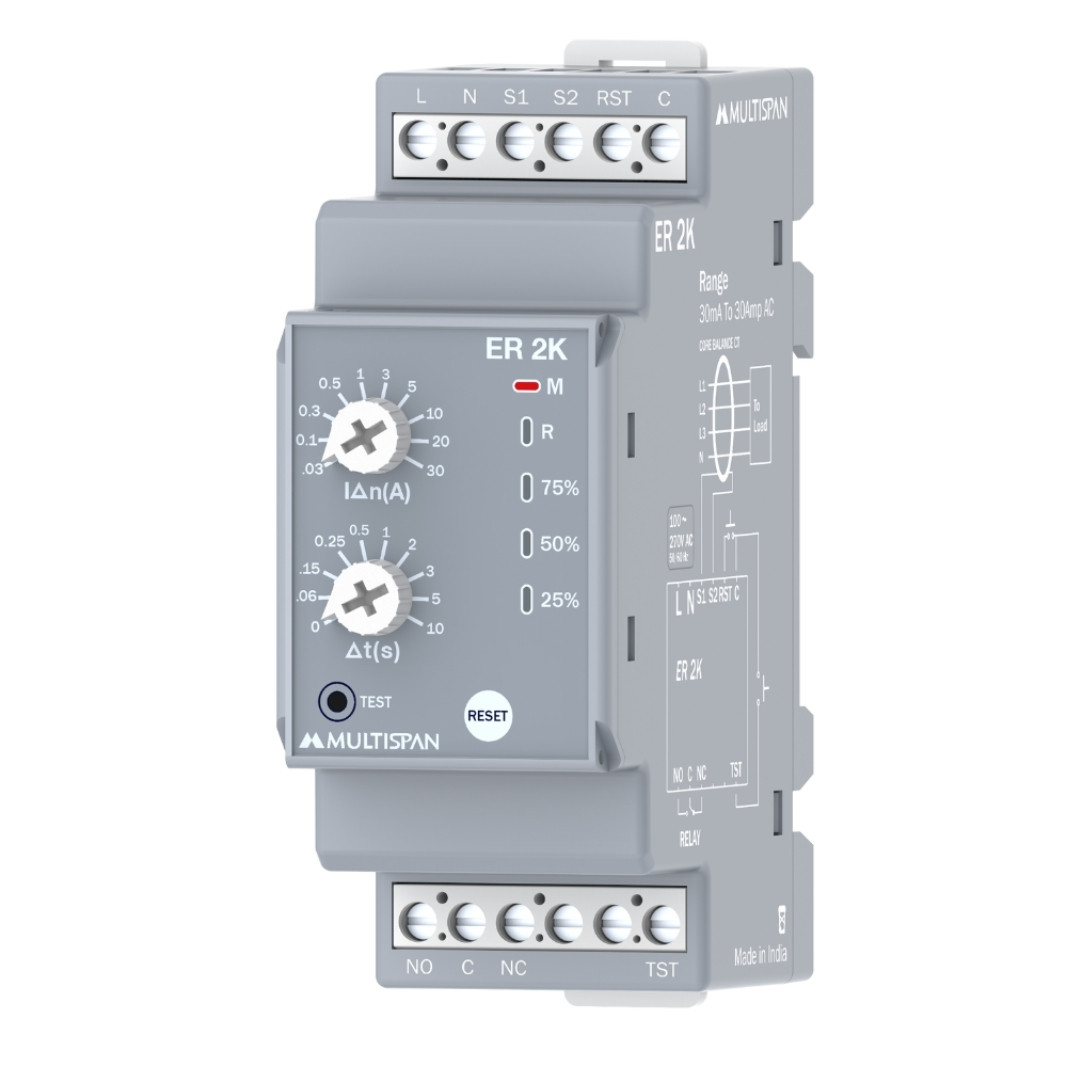

Analog Din Rail Earth Leakage Relay

ER-2K Analog Set by Knob - product image

Earth Leakage Relay- BUILT IN CBCT ID 35 mm

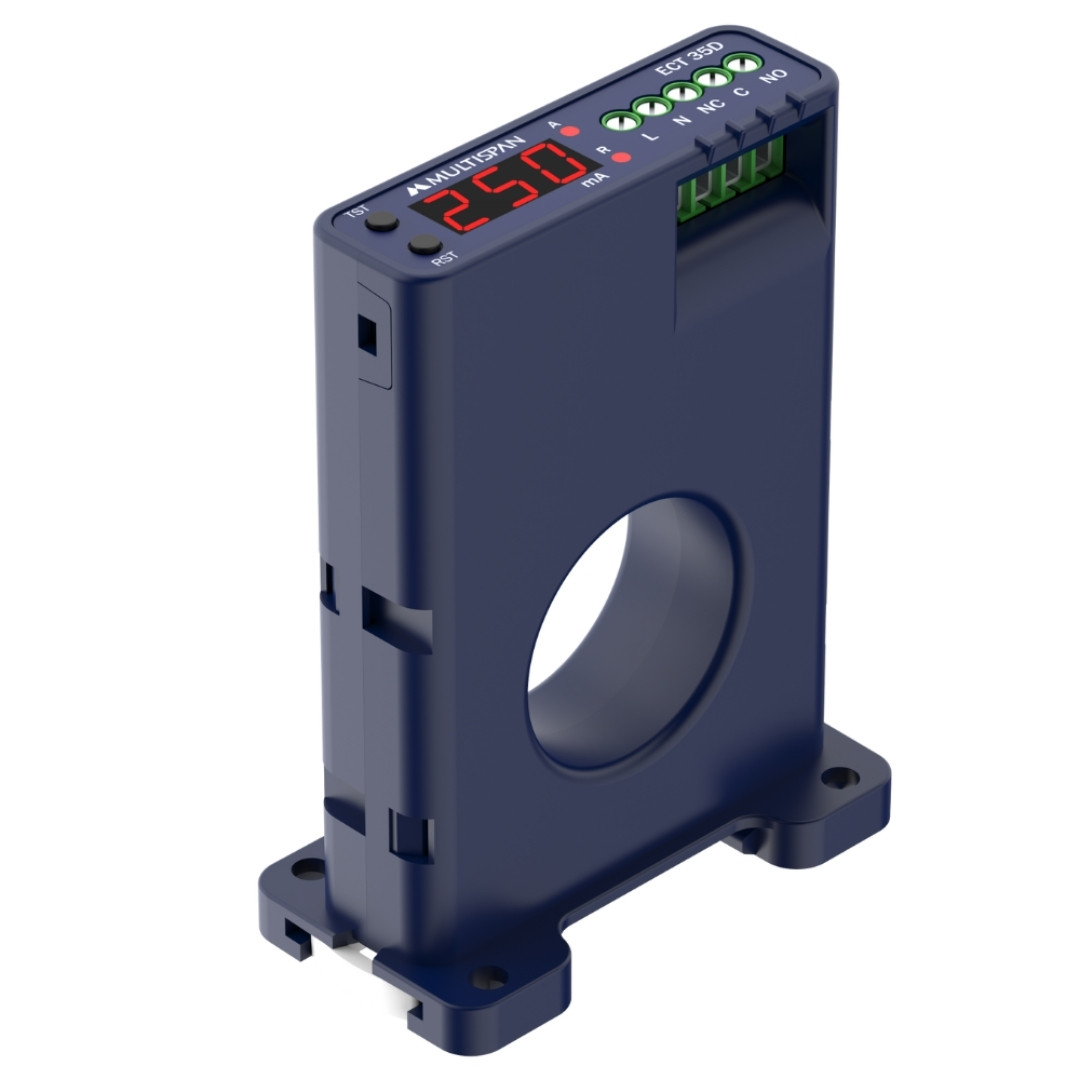

Ect-35d Elr with Built-In CBCT - product image

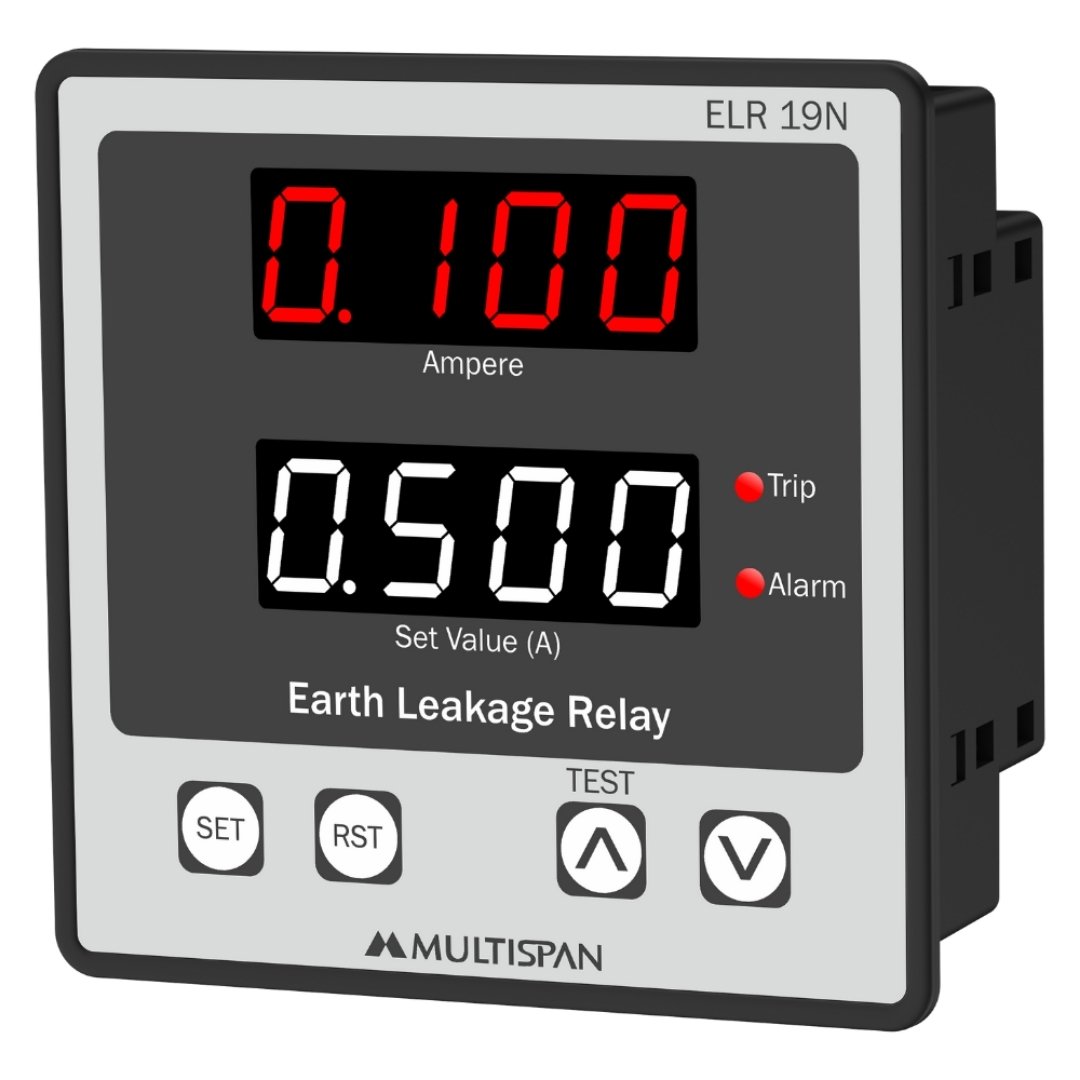

Panel Mount Earth Leakage Relay

ELR-19N Panel Mount Digital Display - product image

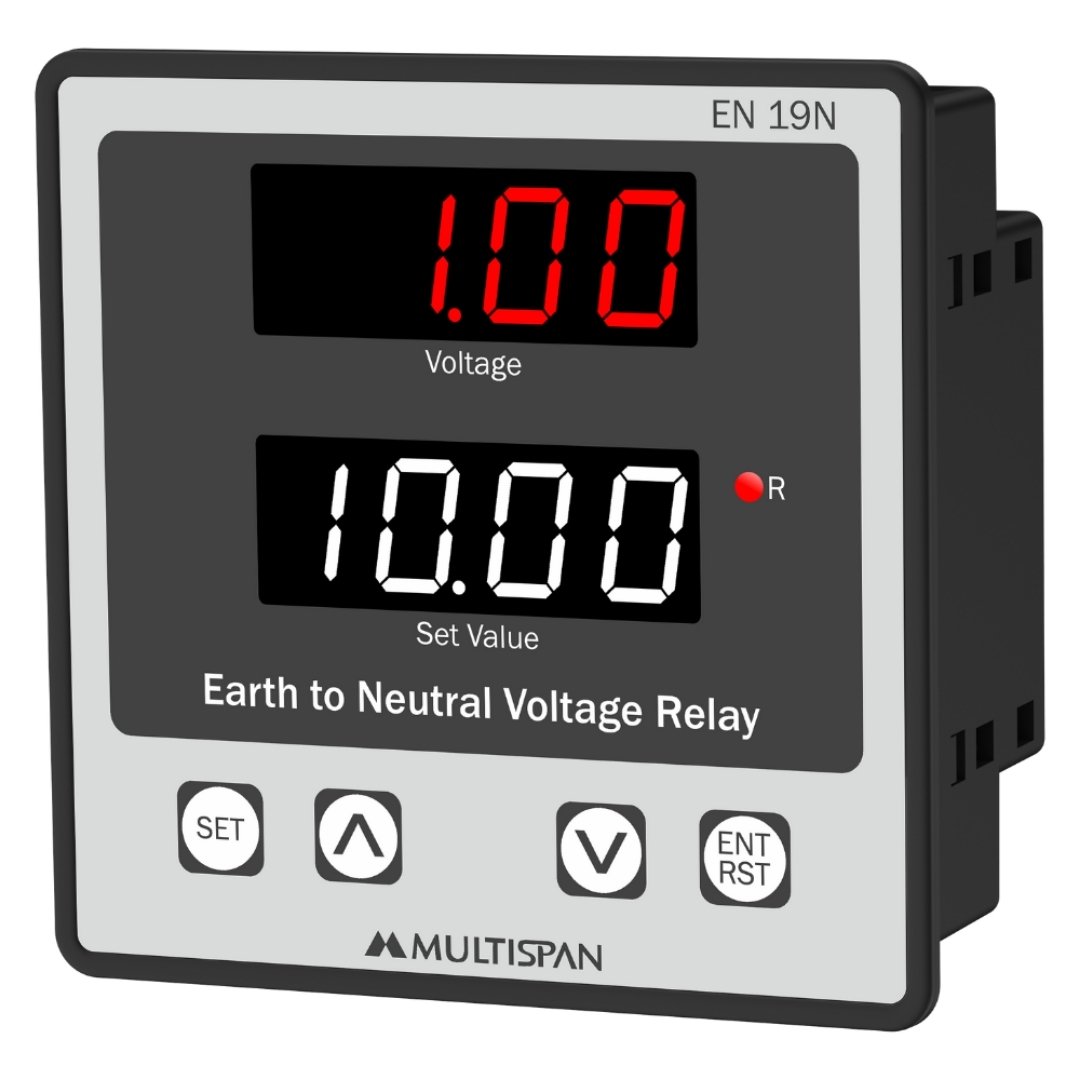

(Panel Mount) Earth to Neutral Relay

Elegant EN-19N Panel DIN Rail Mount Digital Display product image

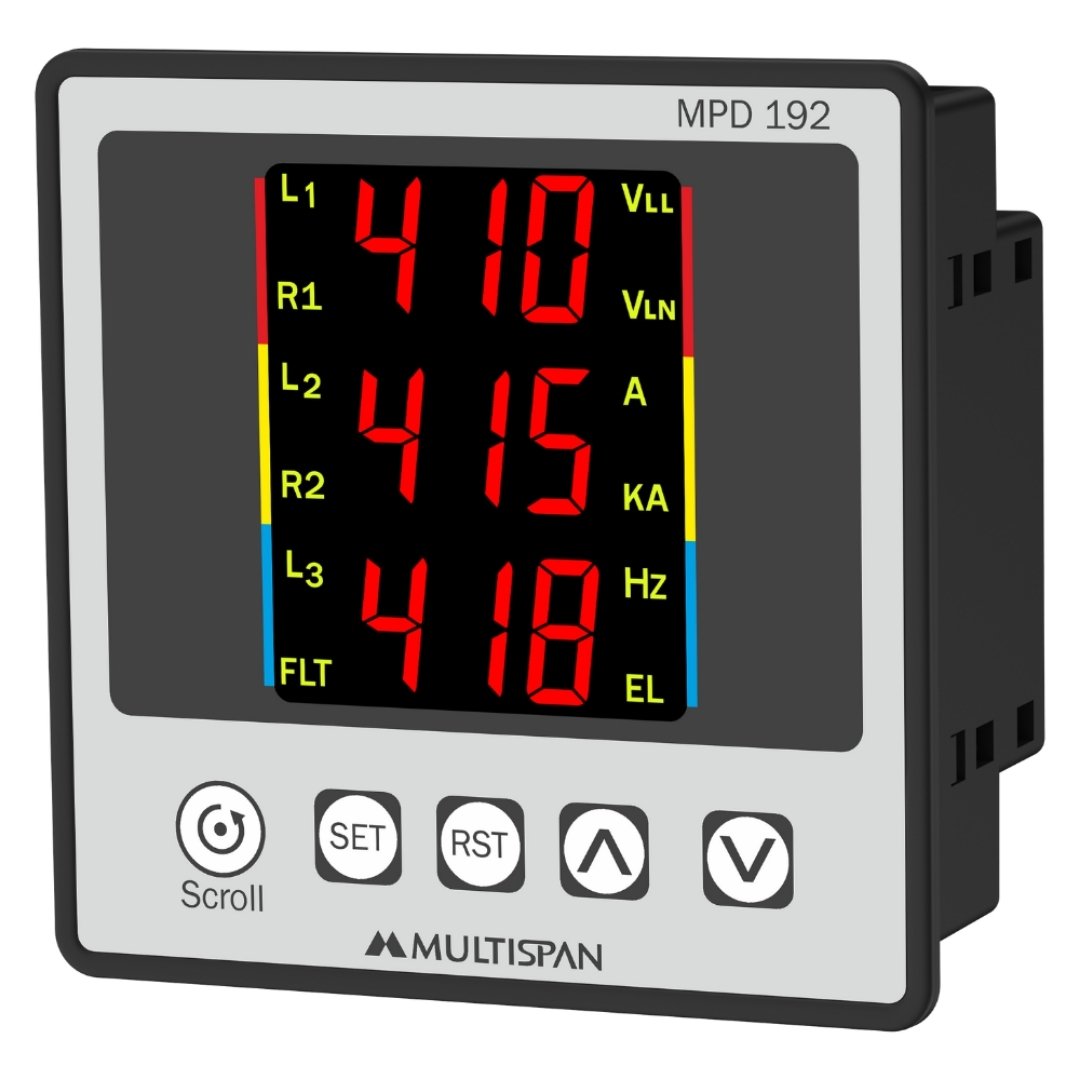

(Panel Mount) Multifunction 3 Phase Protection Relay

Mpd-192 Panel Din Rail Mount product image

Din Rail Mount

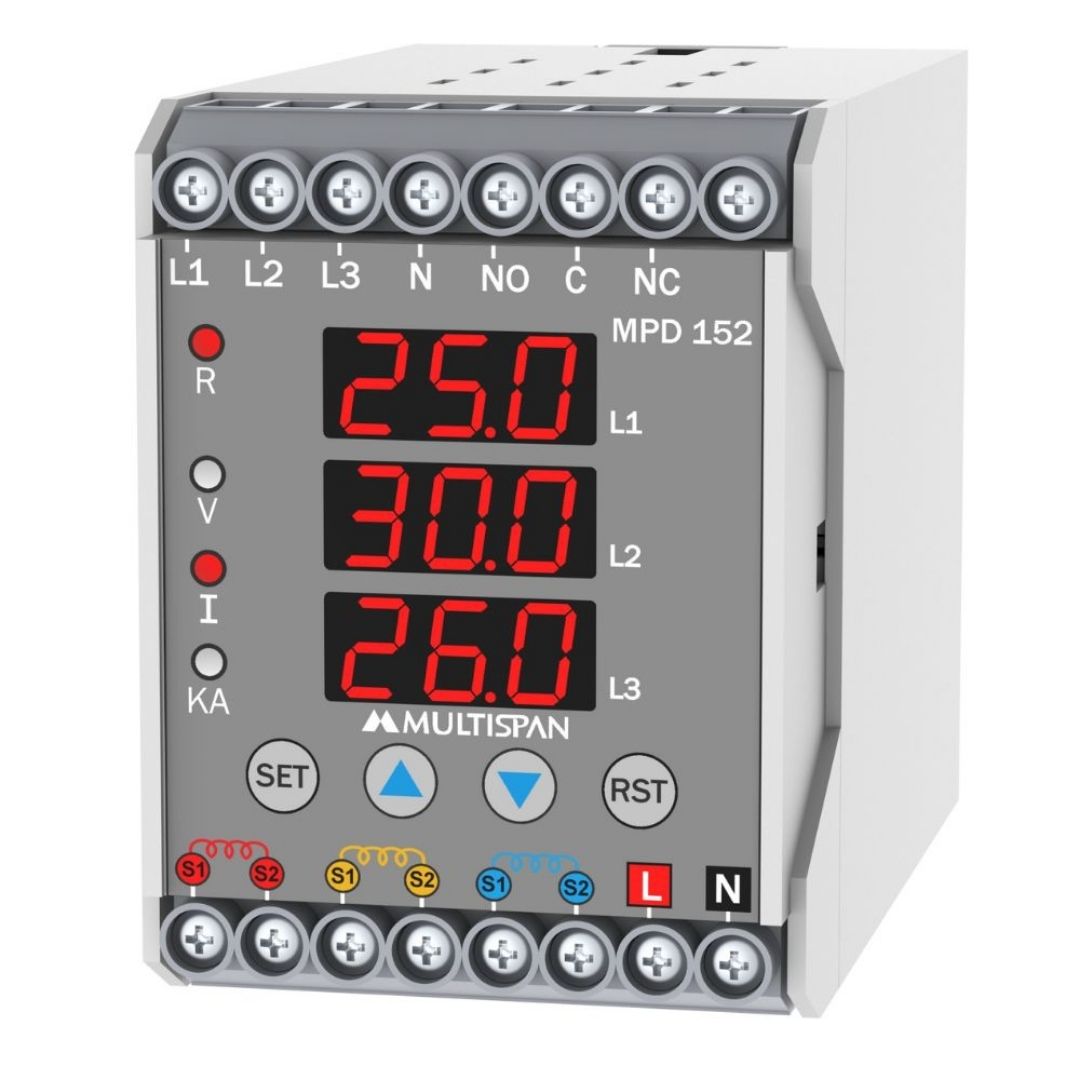

MPD-152 Motor Protection Device - Product image

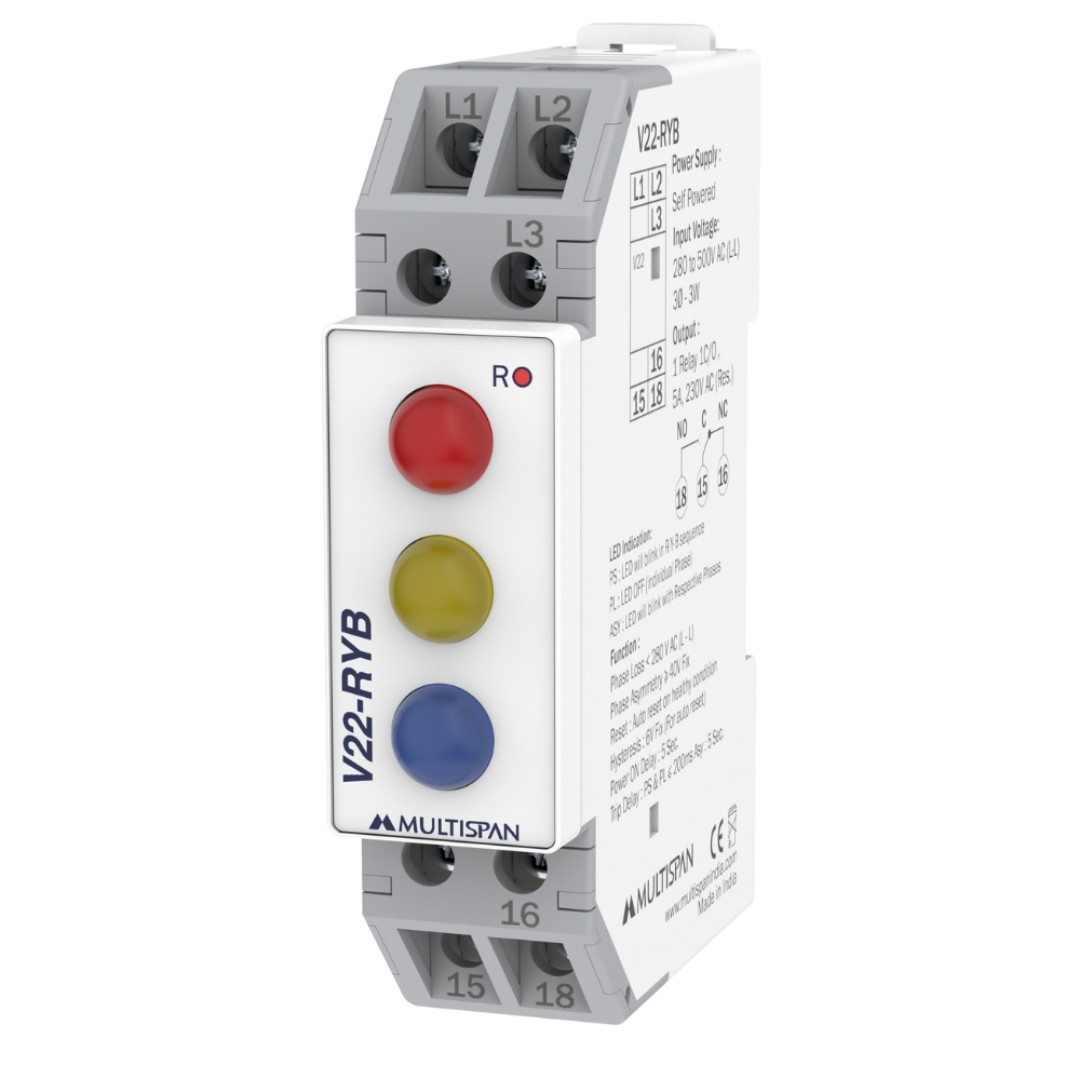

Din Rail Phase Sequence Relay

V22-RYB Voltage Protection Device - Product image

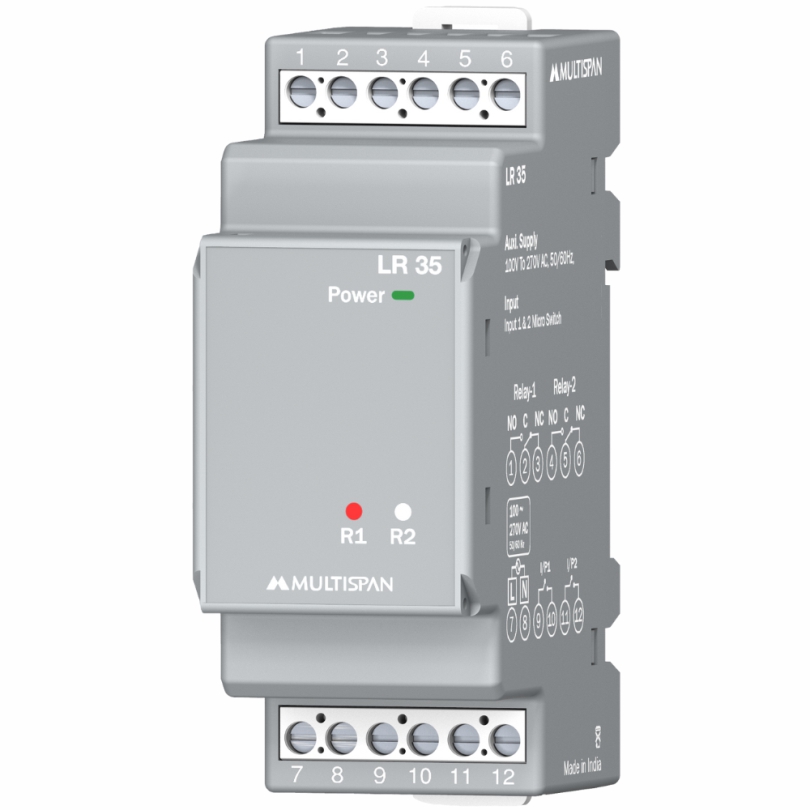

load sharing relay

LR-35 Two Load Sharing Relay - product image

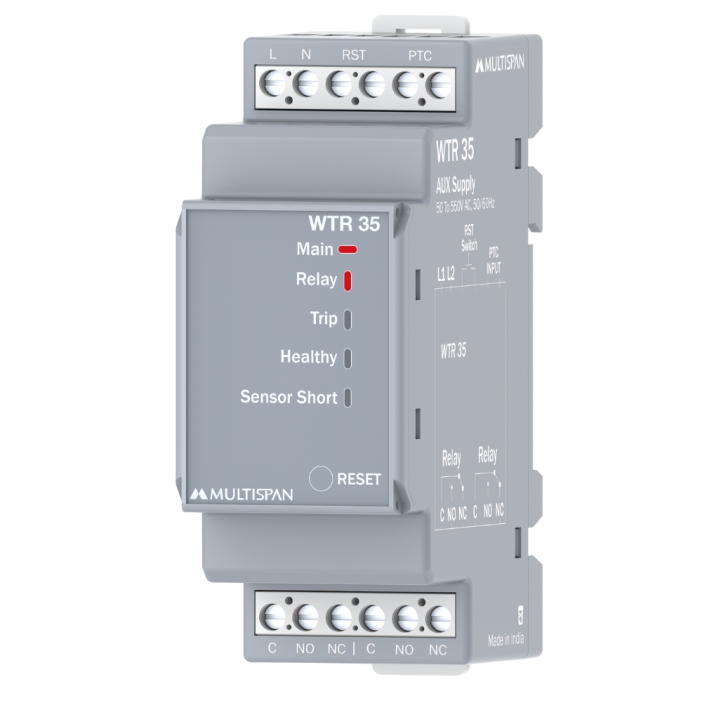

Winding Temperature Relay

WTR-35 Winding Temperature Relay - product image

Din Rail Mount – Earth Fault Relay

EFR-63 DIN Rail Mount with Display - product image

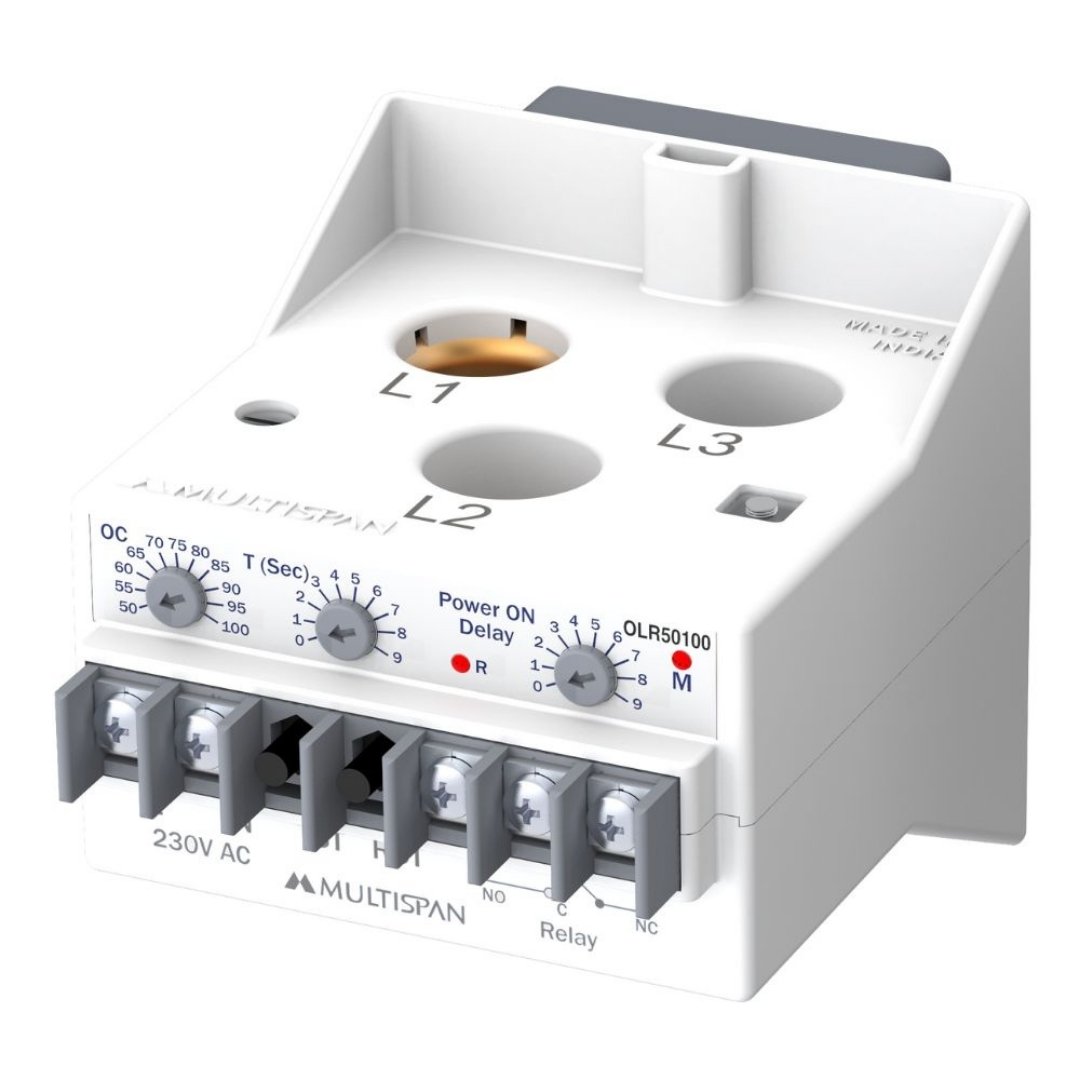

Din Rail Mount – Overload Relay 3Phase-CT Built-in

OLR-50100 DIN Rail Mount Overload Relay - Product image

Automatic Power Factor Controller- APFC

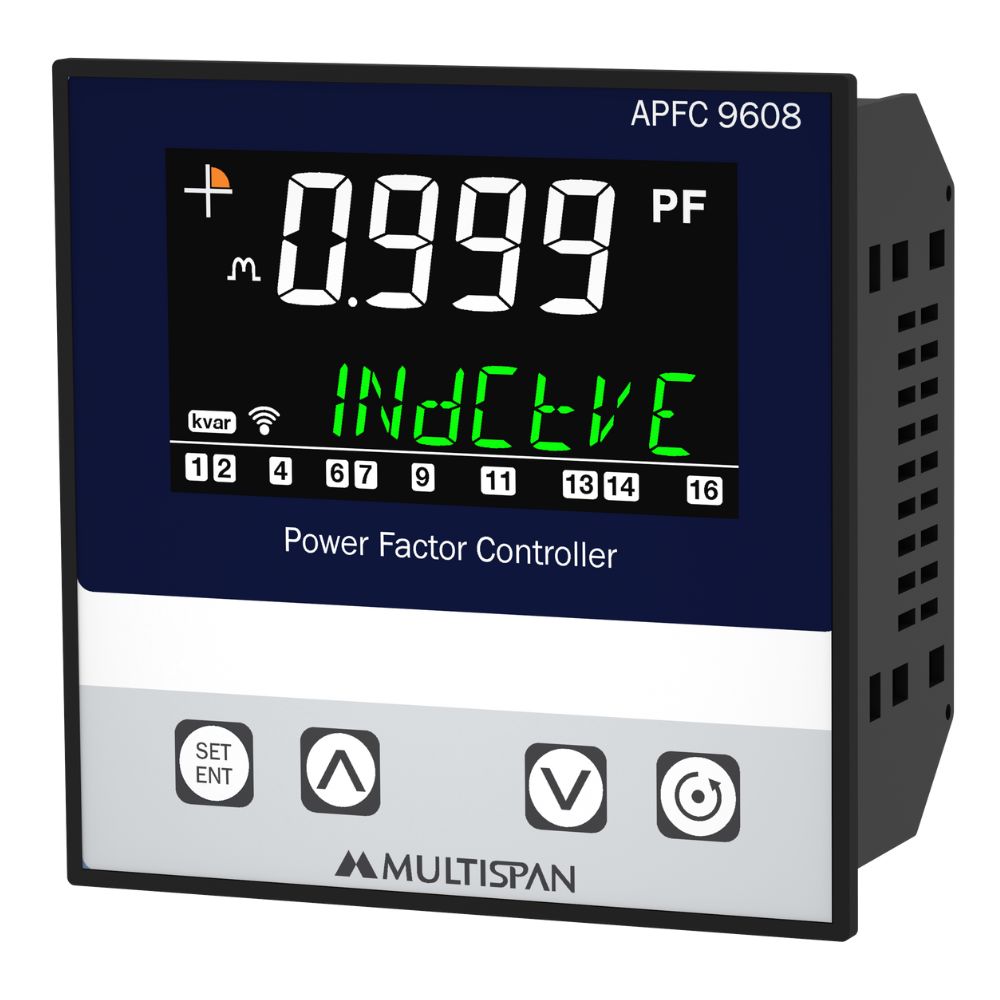

APFC-9608 - Automatic Power Factor Controller- APFC regular image image

Power Factor Correction 16 Stage

APFC-116 - Power Factor Correction 16 Stage - regular image

Water Level Controller

water level controllers

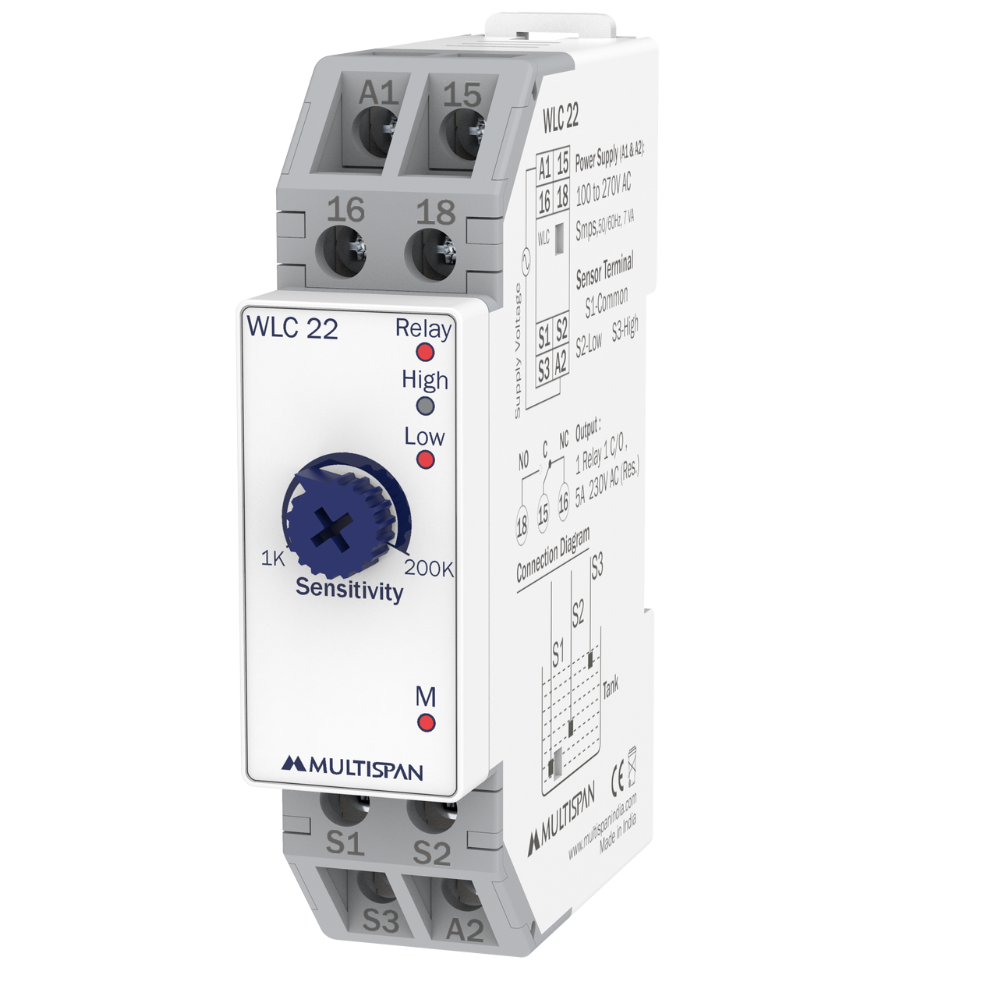

water level controller
