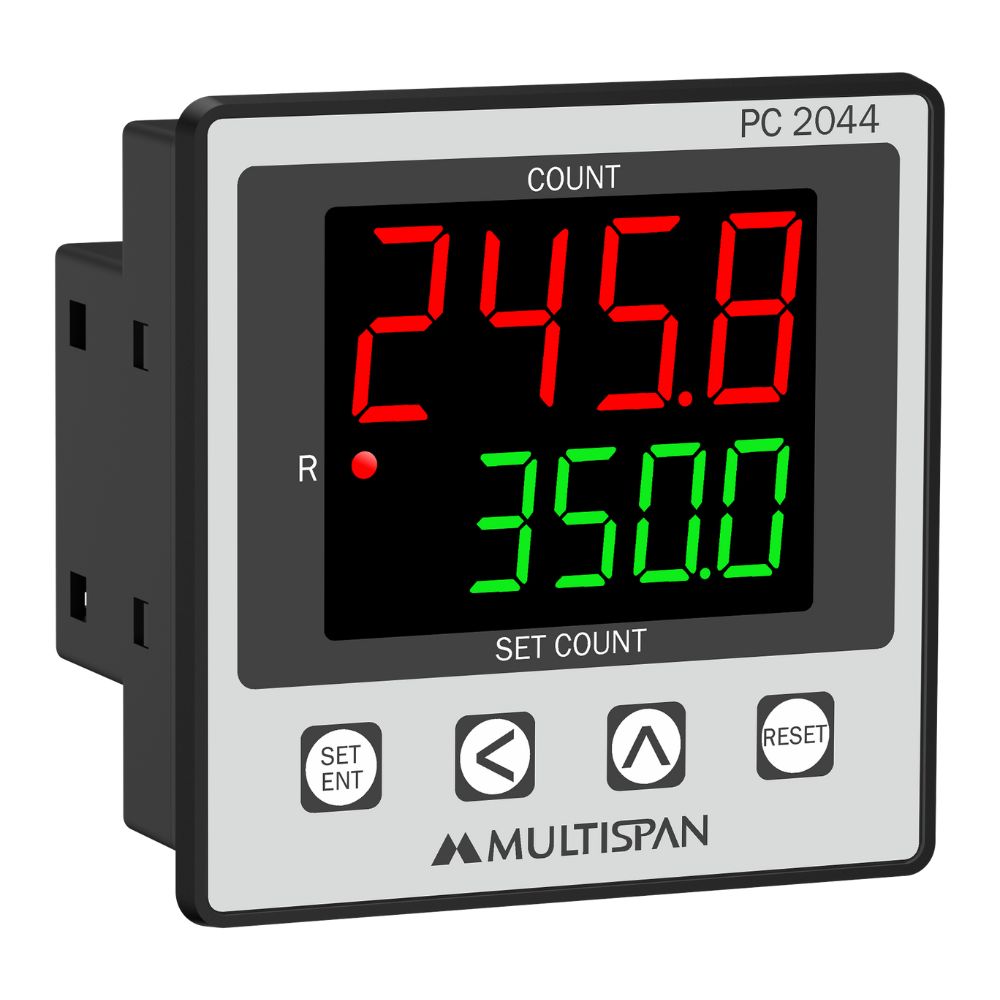

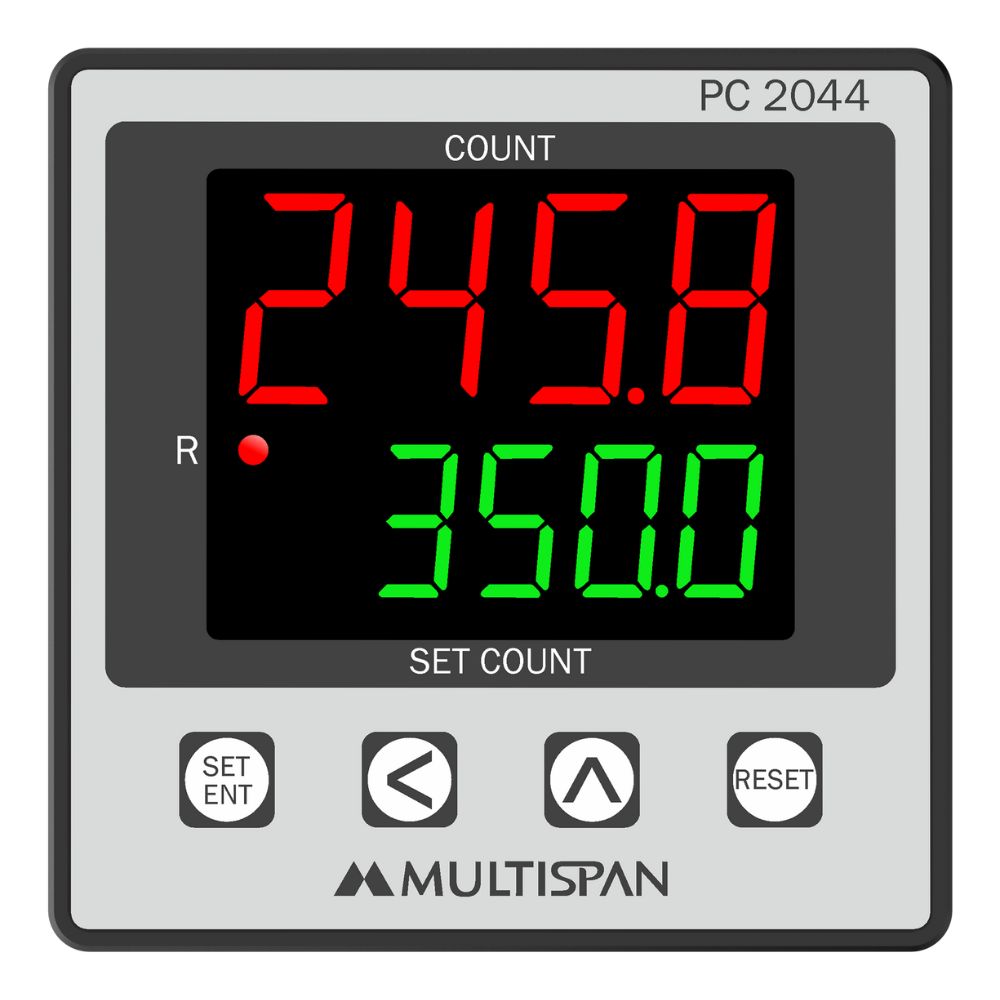

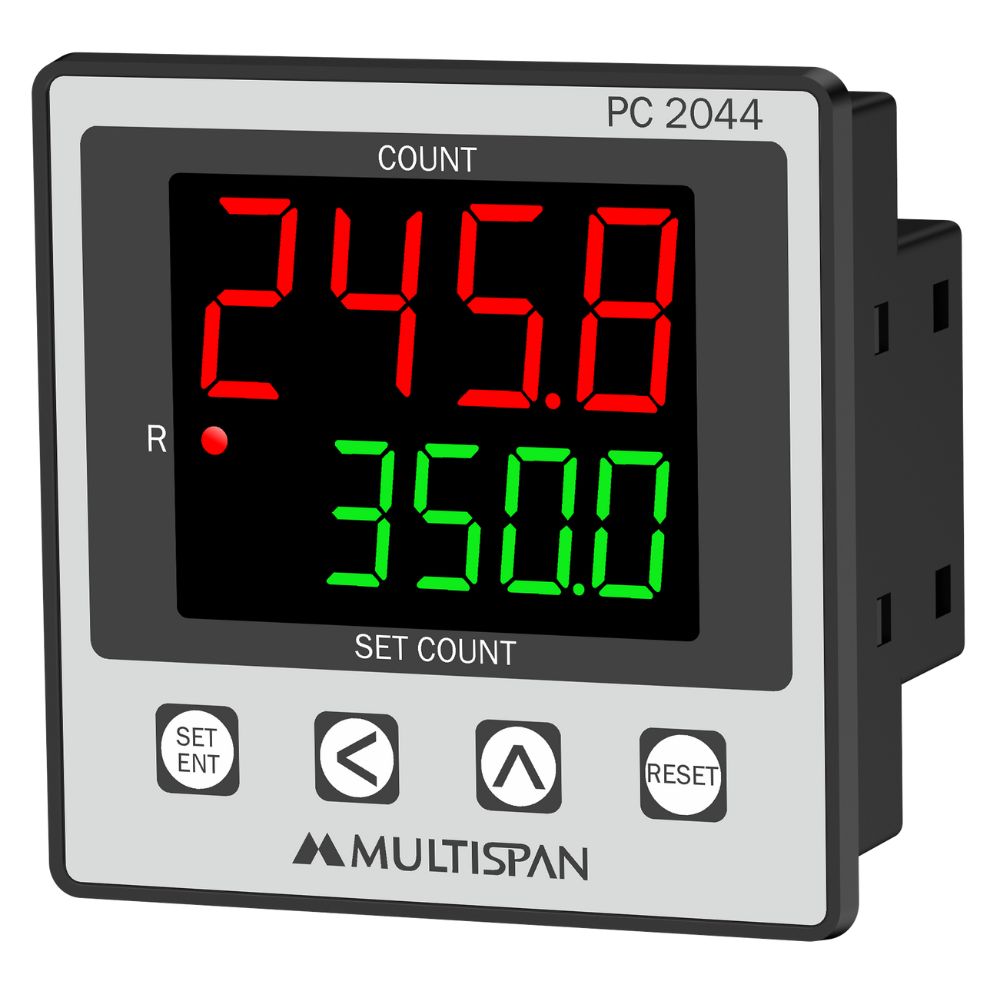

Programmable Counter
Product: PC-2044
- Proximity or Micro switch input
- 1 Relay 2C/O Output
- Individual display for Present Count & Set Count
- Auto/Manual reset
- Size: (H)72mm X (W)72mm X (D)45mm
- Supply Voltage: 100 to 270V AC
Top Variants:
| Parameter | Specification |
|---|---|
| Model | PC-2044 |
| Display UPPER | 4-Digit, 7-seg 0.70", Red LED |
| Display LOWER | 4-Digit 7-Seg 0.50", Green LED |
| Size (mm) | 72 (H) x 72 (W) x 45 (D) |
| Panel Cutout (mm) | 68 (H) x 68 (W) |
| Input | NPN/PNP Proximity & Micro Switch |
| Output | 1 relay 2 C/O contact |
| Power Supply | 100 to 270V AC, 50 / 60 Hz, Approx 4VA |
| Memory Selectable | Yes/No |
| Reset | Front Reset Key |
| Protection Level | IP-65 (Front side) as per IS/IEC 60529:2001 |
| Operating Temperature | 0°C to 55°C |
| Humidity | Upto 95% RH, Non-Condensing |
- Pharmaceutical Machinery
- Product Counting Machinery
- Packaging Machinery
Product Variant
| Model | Description | Auxillary |
| PC-2044-A2-00 | Input: NPN/PNP Proximity Range: 0 to 9999 Count Output: 1 Relay 2C/O Front Reset & Back Reset |
100 to 270V AC |
| PC-2044-A2-02 | Input: 230V AC Pulse Range: 0 to 9999 Count Output: 1 Relay 2C/O Front Reset & Back Reset |
100 to 270V AC |
