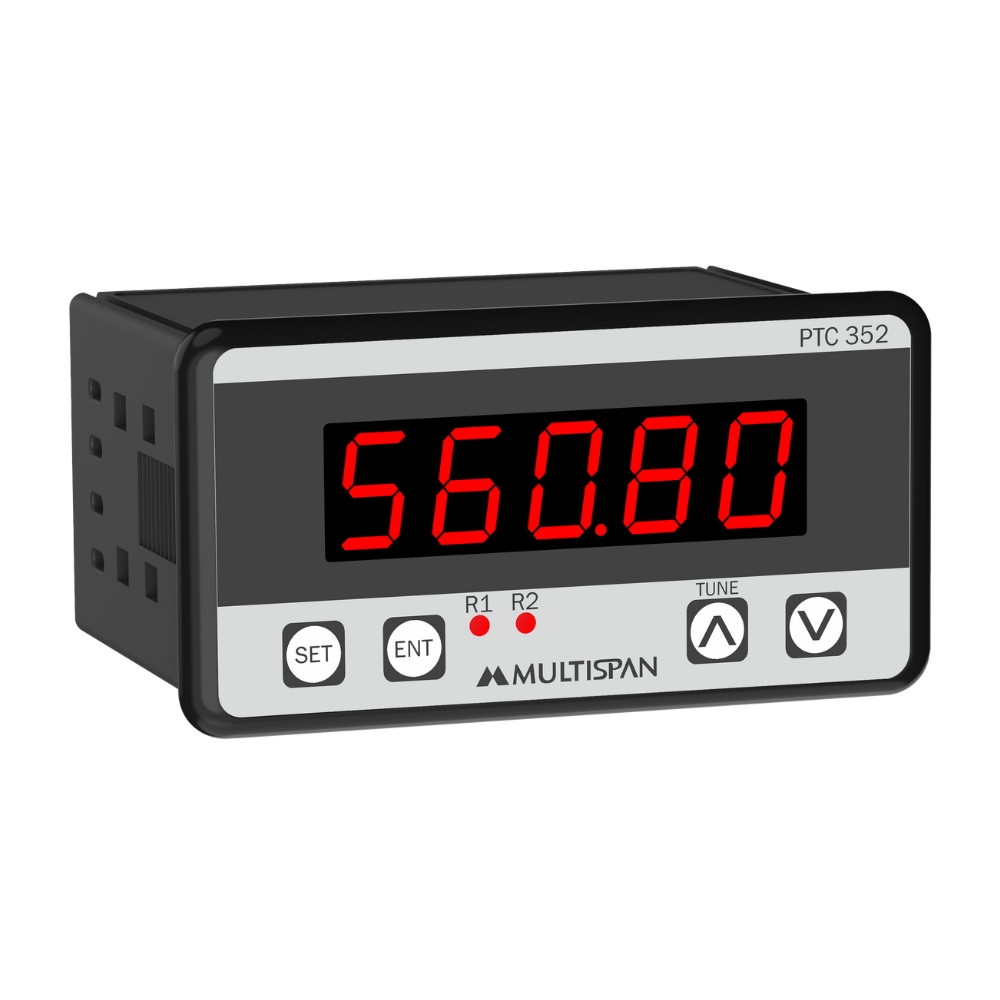

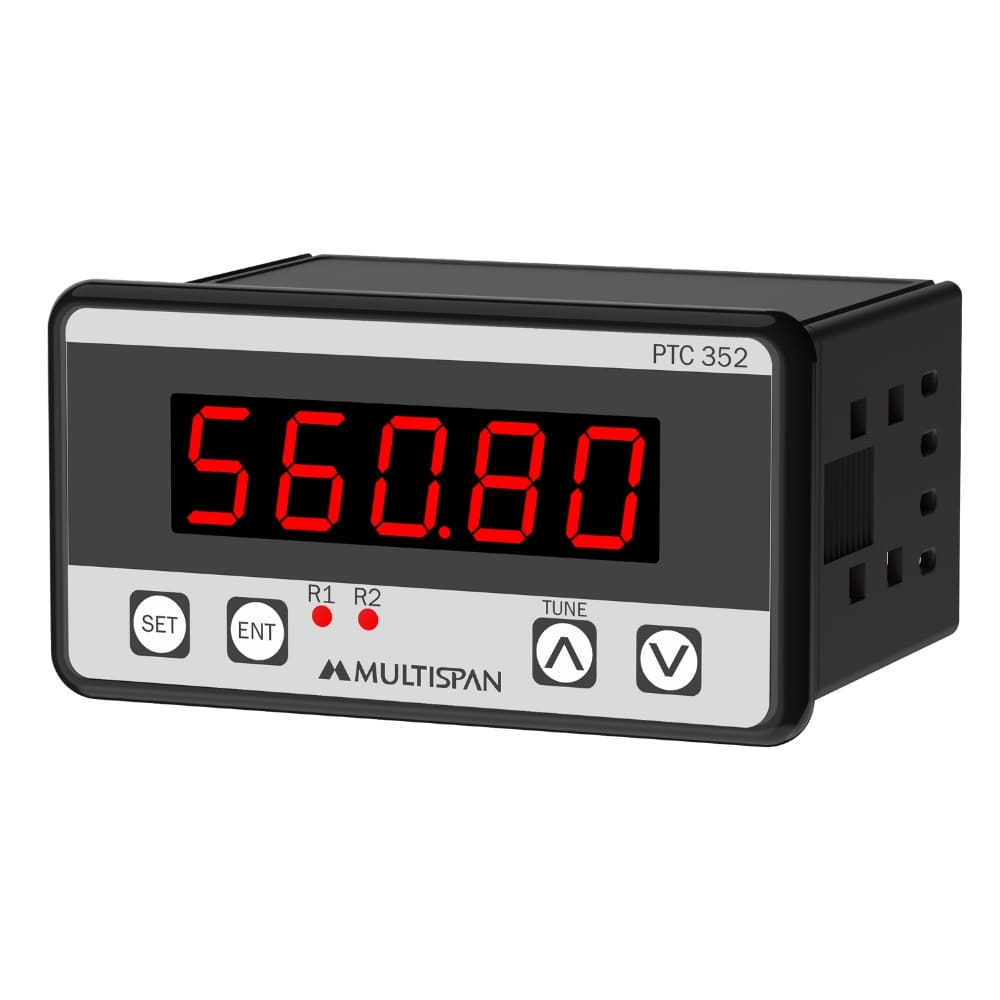

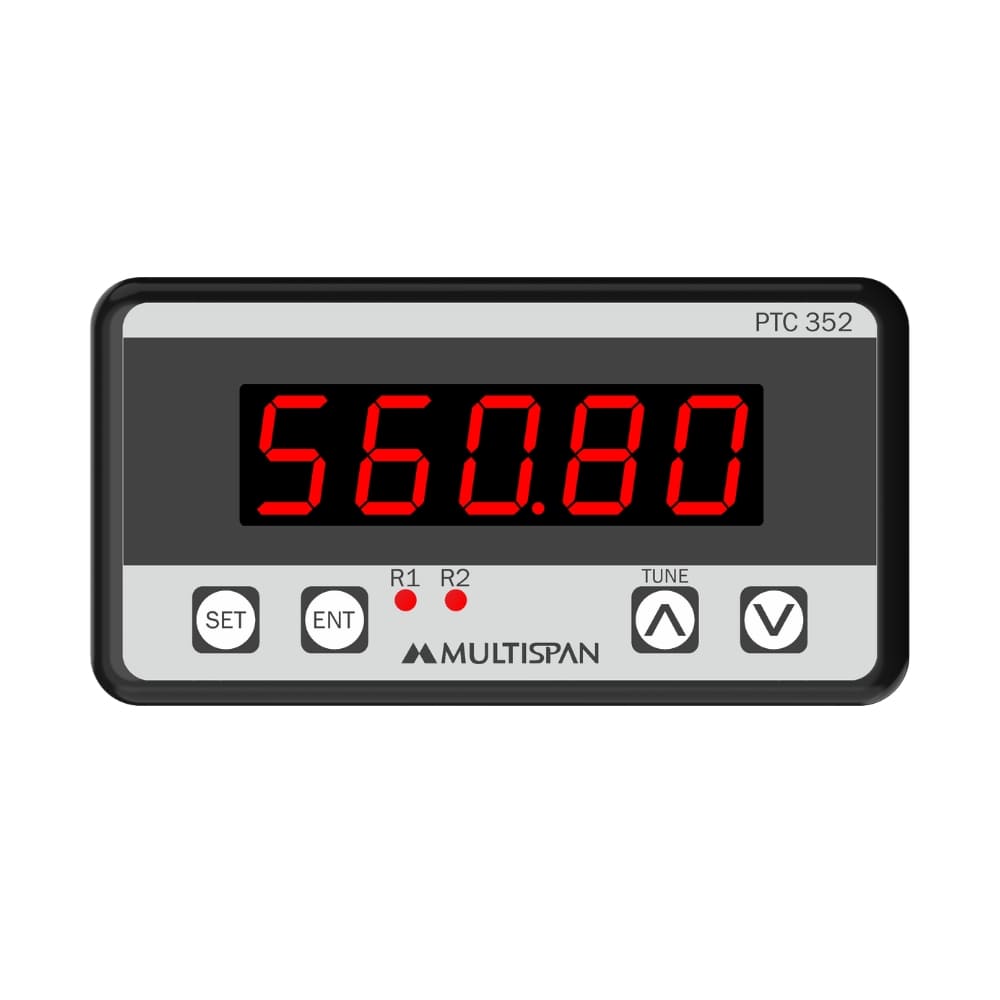

PROCESS & TEMPERATURE CONTROLLER
Product: PTC- 352
- Universal Input (J/K/R/S/E/N/T/B/RTD/4-20mA DC/0-10V DC/0-20mA DC/0-75mV)
- 5-Digit LED Display
- 2-Relay Output
- Analog Output (Retransmission & Controlling) & RS-485 Modbus Facility
- Size: (H)48mm x (W)96mm x (D)75mm
- Supply Voltage: 100-270V AC
Top Variants:
| Input Types | Input | Range |
| J | -200 to 800°C | |
| J.1 | -200.0 to 800.0°C | |
| K | -200 to 1300°C | |
| K.1 | -200.0 to 1300.0°C | |
| PT-100 | -200.0 to 600.0°C | |
| PT.1 | -200.0 to 600.0°C | |
| R | 0 to 1800°C | |
| S | 0 to 1850°C | |
| E | 0 to 700°C | |
| N | -200 to 1350°C | |
| T | -200 to 400°C | |
| B | 150 to 1800°C | |
| Voltage | 0-10V DC | -19999 to 99999 |
| 0-75mV DC | -19999 to 99999 | |
| Current | 0-20mA DC | -19999 to 99999 |
| 4-20mA DC | -19999 to 99999 | |
| Resolution | J,K,PT-100,R,S,E,N,T,B = 1°C | |
| J.1,K.1,PT.1 = 0.1°C | ||
| 0-10V DC,0-20mA DC,4-20mA DC = 0.1,0.01,0.001,0001 |
||
| Indication Accuracy |
±1% of FSD ± 1 Count (FSD : full scale deflection) |
|
| DISPLAY AND KEYS: | ||
| Display | 5 digit,7 seg 0.56” RED | |
| Keys | SET, ENT,INC,DEC | |
| DIMENSION: | ||
| Size (mm) | 48 (H) x 96 (W) x 75 (D) mm | |
| Panel Cutout (mm) | 45 (H) x 92 (W) mm | |
| CONTROL METHOD: | ||
| Heating | 1. PID Control with Auto-Tuning | |
| 2. ON-OFF Control | ||
| Cooling | 1. BL.TP (Blower Time Proportion) | |
| 2. ON-OFF Control | ||
| Alarm | High/Low/Inband/Outband/ Absolute Low/Absolute Outband | |
| OUTPUT SPECIFICATION | ||
| Relay Output | ||
| Relay | 2 nos. | |
| Relay Type | 1 C/O (NO-C-NC) , 2 C/O (NO-C) | |
| Rating | 5A ,230V AC/30 V DC | |
| Transmitter supply | ||
| 24V DC | ||
| AUXILIARY SUPPLY | ||
| Supply voltage | 100 to 270V AC, 50-60Hz | |
| Power consumption (VA RATING) | Approx 6 VA @ 230V AC MAX | |
| ENVIRONMENT CONDITION | ||
| Operating Temp. | 0°C to 55°C | |
| Relative Humidity | Upto 95% RH | |
| (non-condensing) | ||
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 | |
- Manufacturing Industries
- Pharmaceutical and Biotech Industries
- Industrial Process Control
- Food and Beverage Industry
