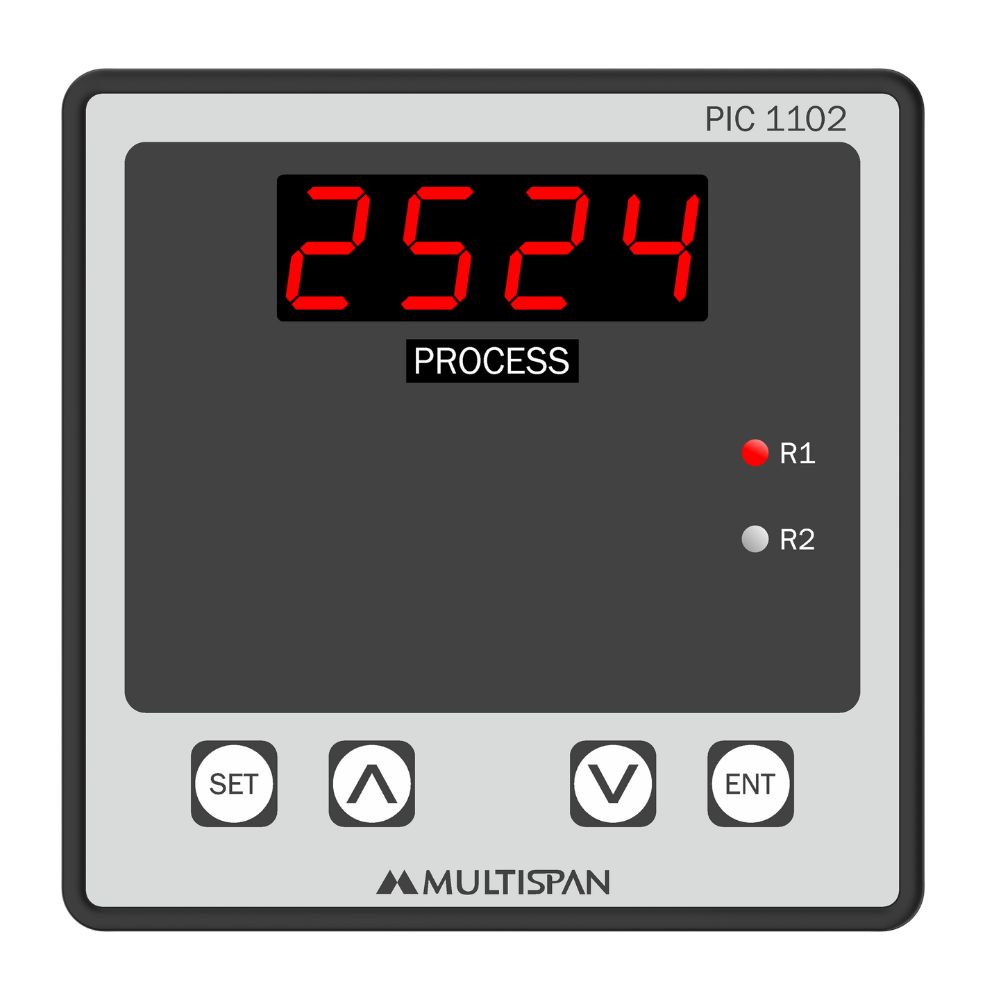

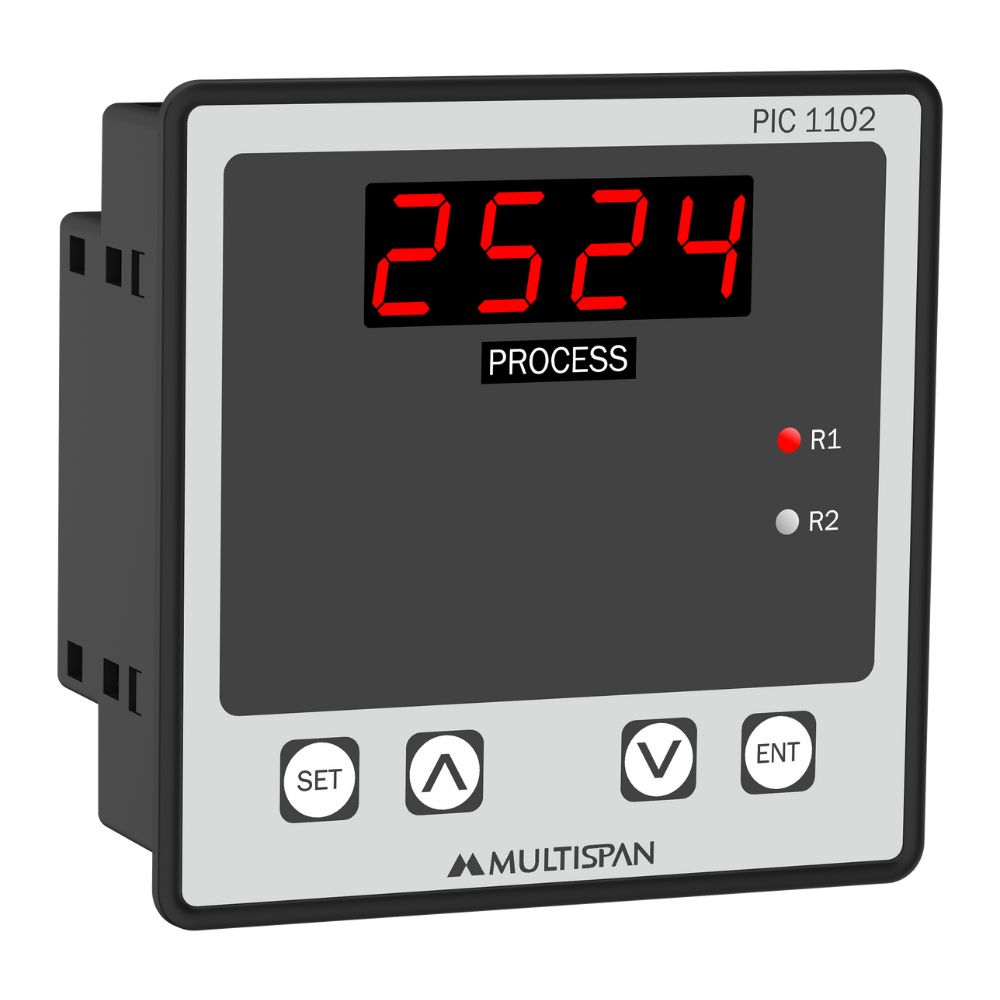

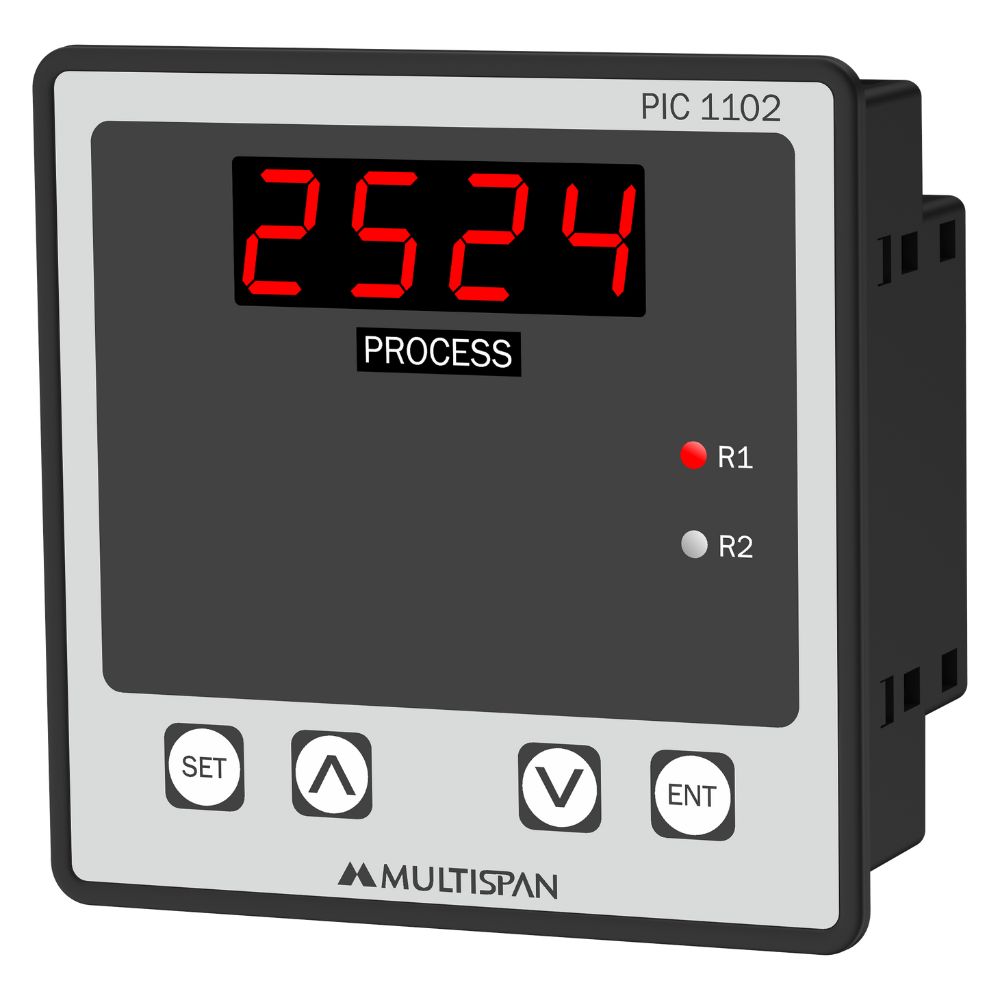

PIC-1102 regular image PIC-1102 front image PIC-1102 side image

Process Indicator

Product: PIC-1102

  • 4 Digit Process Controller with In-Built Sensor Supply
  • Universal Input (4-20mA DC/0-20mA DC/0-10V DC)
  • Upto 2-Relay Output & Transmitter supply, Analog Retransmission( Optional) & RS-485 Modbus Output (optional)
  • Size: (H)96mm x (W)96mm x (D)54mm
  • Supply Voltage: 100-270V AC

Top Variants:

INPUT SPECIFICATION
Input Types Voltage: 0 to 10V DC
Current: 0 to 20mA DC,
              4 to 20mA DC
I/P Filter Time 0.1 Sec to 10.0 Sec
Resolution Decimal Point Selectable:
0.1, 0.01, 0.001, 0001
Range -999 to 9999 (For all I/P)
Indication Accuracy ±1% FSD ± 1 digit
(FSD - Full Scale Deflection)
DISPLAY AND KEY
Display 4-Digit, 7-Segment, 0.56” RED LED
Keys SET, INC, DEC, ENT
DIMENSION
Size (mm) 96 (H) x 96 (W) x 54 (D)
Panel Cutout (mm) 92 (H) x 92(W)
OUTPUT SPECIFICATION:
Relay Output
Relay 2 nos.
Relay Type 1 C/O (NO-C-NC)
Rating 5A, 230V AC
Transmitter Supply
24V DC
POWER SUPPLY
Supply Voltage 100 to 270V AC, 50-60Hz
Power Consuption (VA Rating) 4VA @ 230V AC MAX
ENVIRONMENT CONDITION
Operating Temp. 0°C to 55°C
Relative Humidity Upto 95% RH
(non-condensing)
Protection Level
(As per request)
IP-65 (Front side) As per IS/IEC 60529 : 2001
