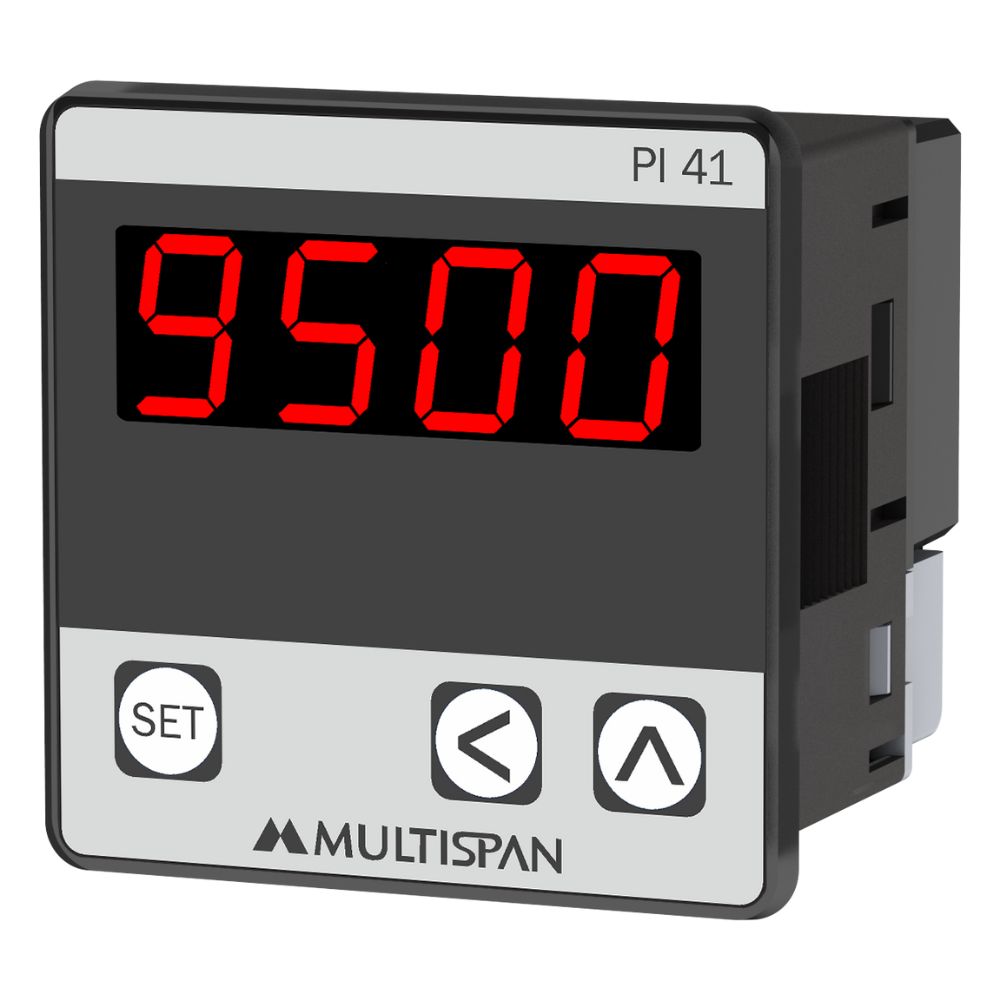

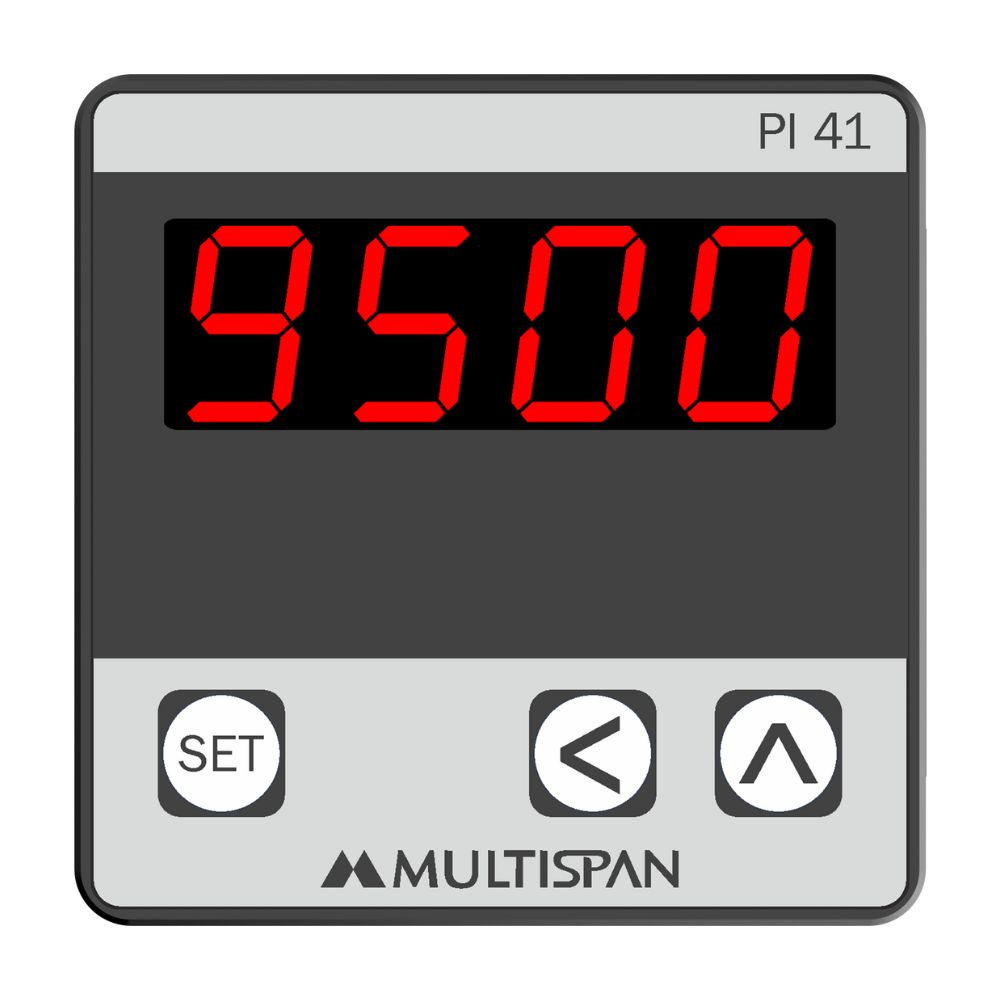

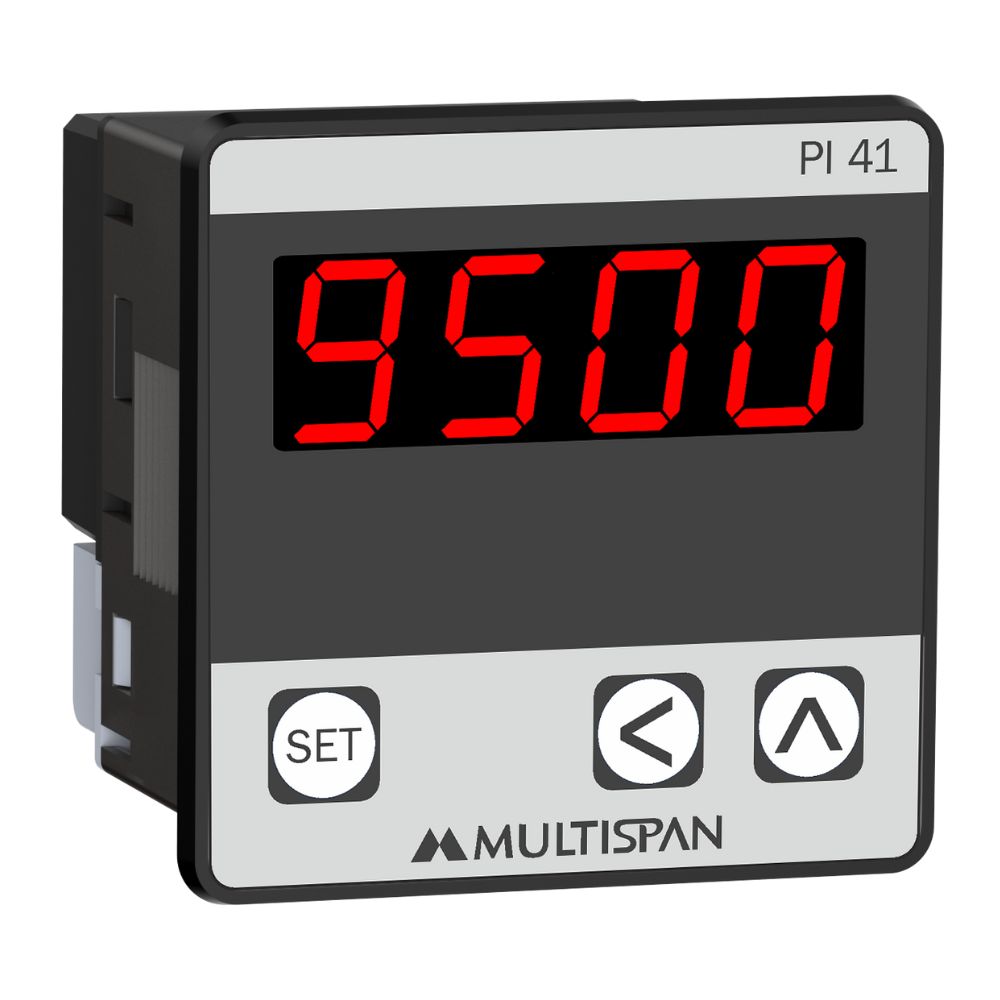

PI-41 regular image PI-41 front image PI-41 side image

Process indicator

Product: PI-41

  • 4-Digit Process Indicator
  • Universal Input (4-20mA DC/0-20mA DC/0-10V DC)
  • Upto 3-Digit Resolution
  • Size: (H)48mm x (W)48mm x (D)46mm
  • Supply Voltage: 100-270V AC

Top Variants:

INPUT SPECIFICATION
Input Types Voltage: 0 to 10V DC
Current: 0 to 20mA DC,
              4 to 20mA DC
I/P Filter Time 0.1 Sec to 10.0 Sec
Resolution Decimal Point Selectable:
0.1, 0.01, 0.001, 0001

Range -999 to 9999 (For all I/P)
Indication Accuracy ±1% FSD ± 1 digit
(FSD - Full Scale Deflection)
DISPLAY AND KEY
Display 4-Digit, 7-Segment, 0.39” RED LED
Keys SET, SHIFT, INC
DIMENSION
Size (mm) 48 (H) x 48 (W) x 46 (D)
Panel Cutout (mm) 45 (H) x 45(W)
POWER SUPPLY
Supply Voltage 100 to 270V AC, 50-60Hz
Power Consuption (VA Rating) 2VA @ 230V AC MAX
ENVIRONMENT CONDITION
Operating Temp. 0°C to 55°C
Relative Humidity Upto 95% RH
(non-condensing)

Protection Level
(As per request)
IP-65 (Front side) As per IS/IEC 60529 : 2001
Weight (Approx) gms :
Unpacked 74
Packed 82
