Process controller

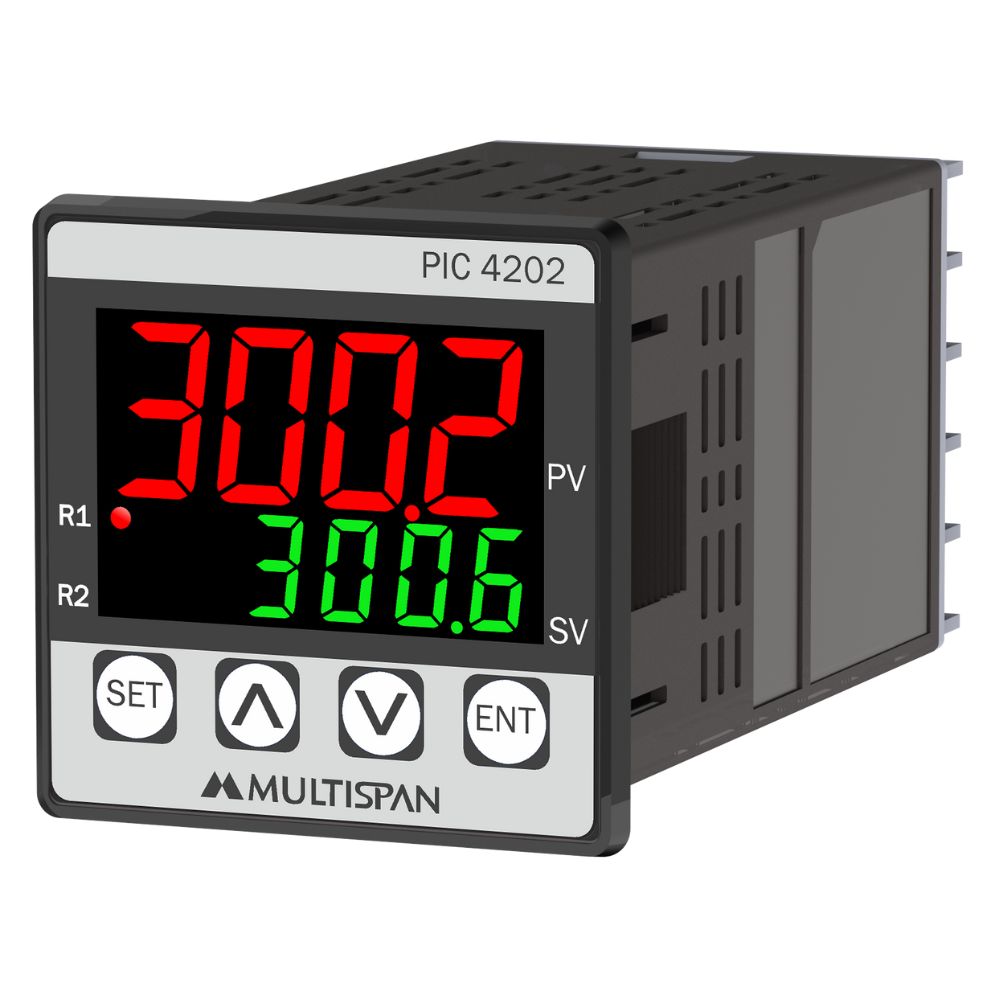

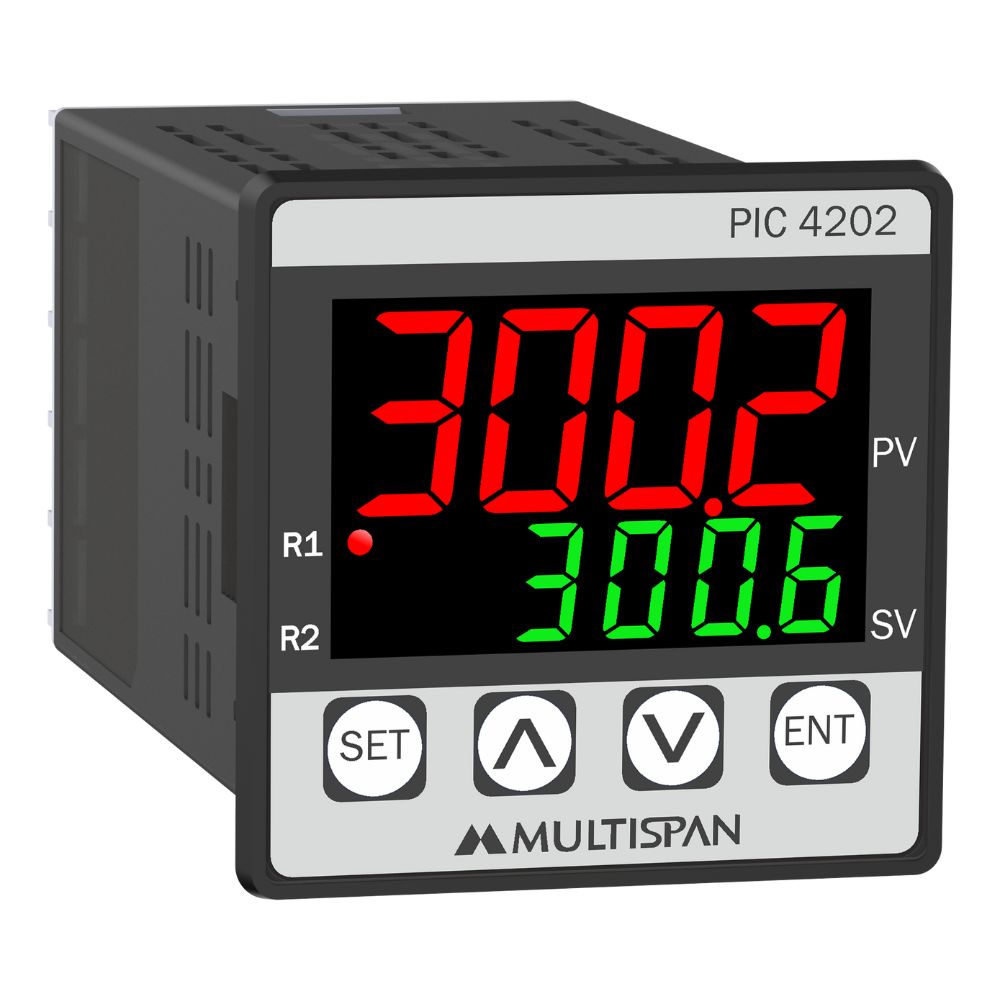

Product: PIC-4202
- 4 Digit Process Controller with In-Built Sensor Supply
- Universal Input (4-20mA DC/0-20mA DC/0-10V DC)
- Upto 2-Relay & Transmitter Supply & RS-485 Modbus Output as per requirement
- Size: (H)48mm x (W)48mm x (D)95mm
- Supply Voltage: 100-270V AC
Top Variants:
| INPUT SPECIFICATION | |
| Input Types | Voltage: 0 to 10V DC |
| Current: 0 to 20mA DC, | |
| 4 to 20mA DC | |
| I/P Filter Time | 0.1 Sec to 10.0 Sec |
| Resolution | Decimal Point Selectable: 0.1, 0.01, 0.001, 0001 |
| Range | -999 to 9999 (For all I/P) |
| Indication Accuracy | ±1% FSD ± 1 digit |
| (FSD - Full Scale Deflection) | |
| DISPLAY AND KEY | |

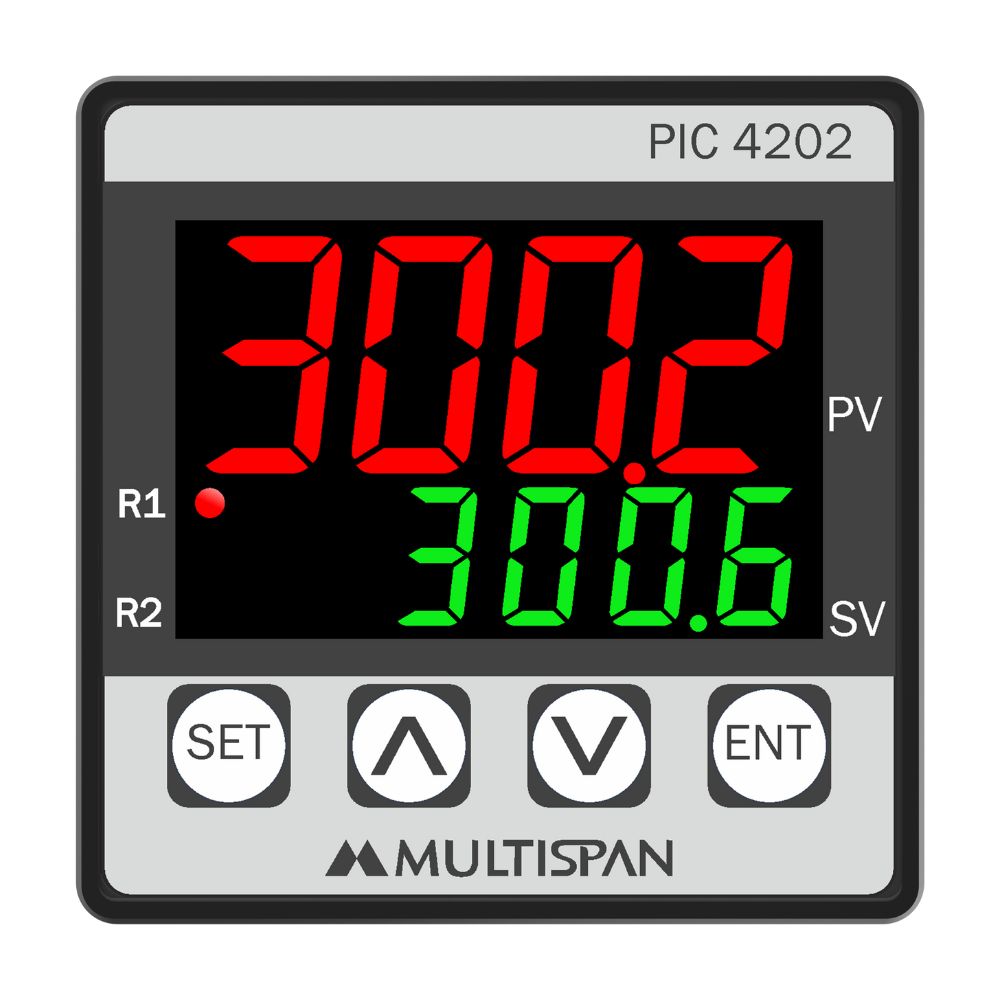

| Display | UPPER: 4 digit, 7 seg, 0.56” RED |
| LOWER: 4 digit, 7 seg, 0.33” GREEN | |
| Keys | SET,INC,DEC,ENT |
| DIMENSION | |
| Size (mm) | 48 (H) x 48 (W) x 95 (D) mm |
| Panel Cutout (mm) | 45 (H) x 45 (W) mm |
| POWER SUPPLY | |
| Supply Voltage | 100 to 270V AC, 50-60Hz |
| Power Consuption (VA Rating) | 4VA @ 230V AC MAX |
| OUTPUT SPECIFICATION: | |
| Relay Output | |
| Relay | 2 nos. |
| Relay Type | 1R (NO-C-NC) , 2R (NO-C) |
| Rating | 5A, 230V AC/30 V DC |
| Transmitter Supply | |
| Supply Voltage | 24V DC |
| ENVIRONMENT CONDITION | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH (non-condensing) |
| Protection Level (As per request) |
IP-65 (Front side) As per IS/IEC 60529 : 2001 |
