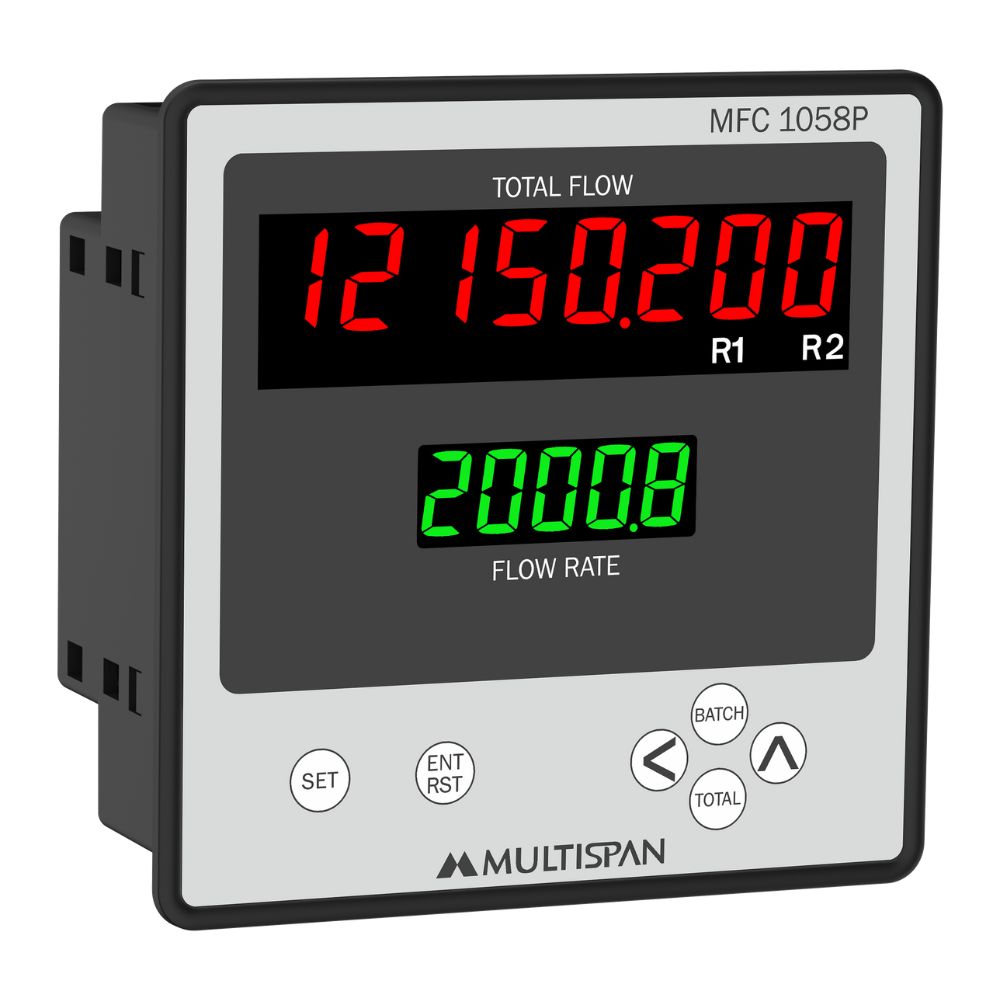

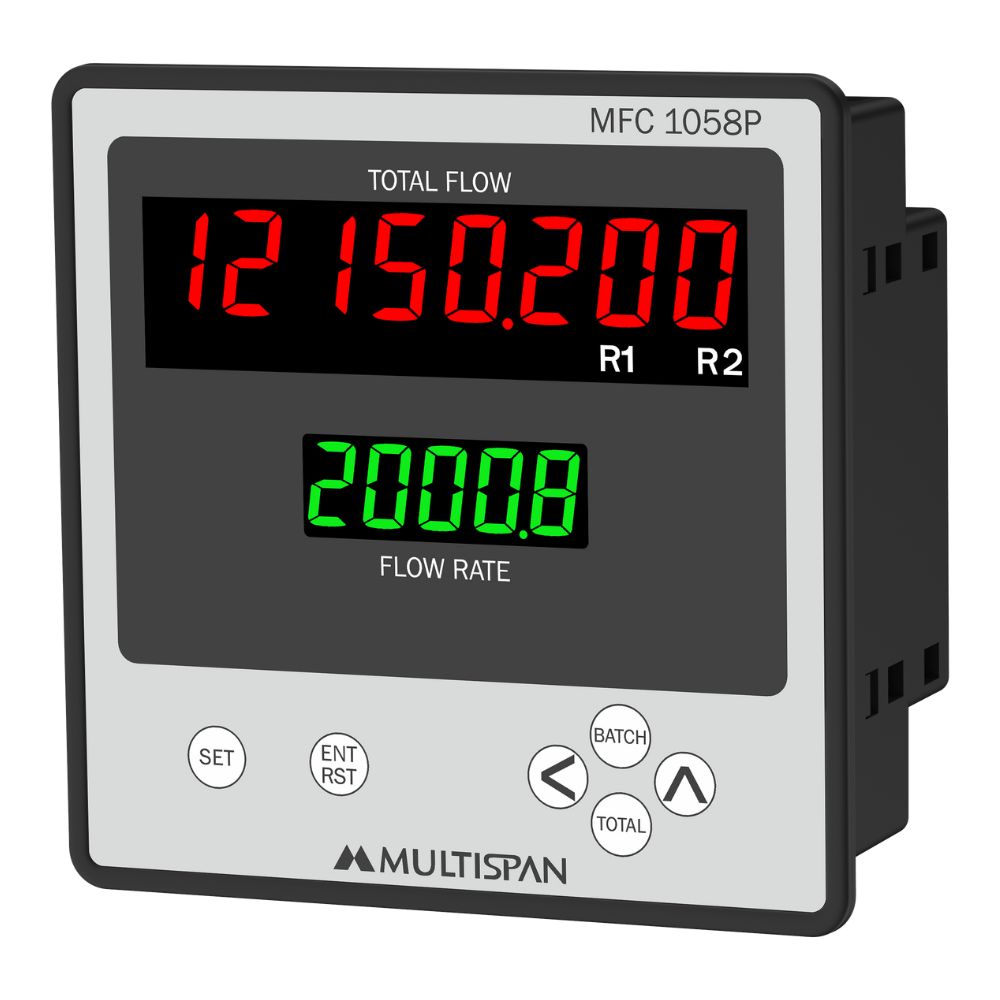

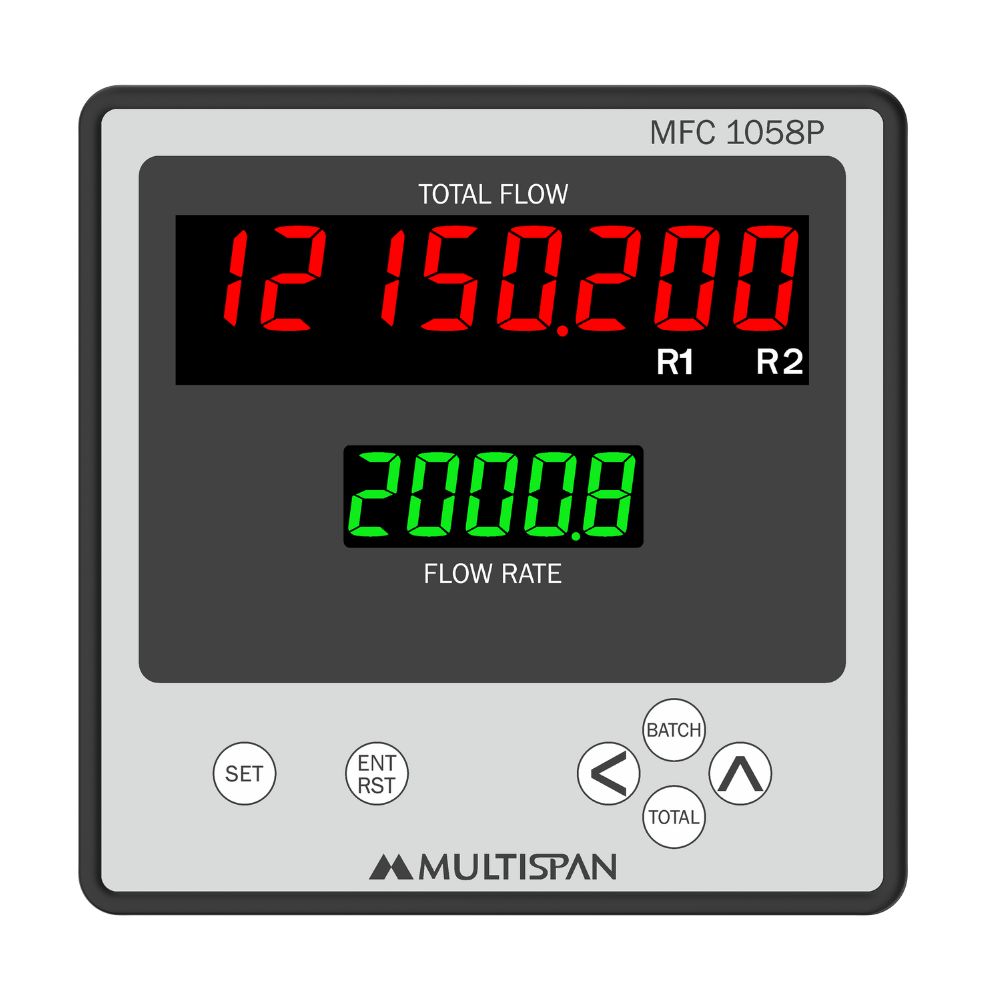

Flow Totalizer
Product: MFC-1058P
- Pulse or Analog Input for Measure the Flow
- Inbuilt Sensor Supply
- Individual Display for Totalizer (8-Digit) & Flow Rate (5-Digit)
- Upto 2-Relay Output with Retransmission/ Transmitter Supply (Anyone) & RS-485 Modbus Output Facility
- Size: (H)96mm x (W)96mm x (D)54mm
- Supply Voltage: 100-270V AC
Top Variants:
| Model | MFC-1058P |
| Display | Upper:- 8 Digit 7 seg 0.5”, with Total flow Lower:- 5 Digit 7 seg 0.4”, with flow rate |
| Size (mm) | 96 (H) x 96 (W) x 54 (D) mm |
| Panel Cutout | 92 x 92 mm |
| Range | 0 To 99999999 Total flow (DP selectable) 0 To 999999 flow rate (DP selectable) |
| Input | Proximity NPN/PNP Input pulse,5V DC,12V DC,24V DC |
| Output | 1 Relay 1C/O (on total flow/flow rate selectable) + Tran. 24V DC |
| Reset | Reset at front & back |
| Memory | Non Volatile |
| Power Supply | 100 to 270V AC,50/60Hz,Approx 4VA |
| Protection Level |
IP-65 (Front side) AS per IS/IEC 60529 : 2001 |
| Op e r ating Temperature |
0° To 55° |
| Relative Humidity |
Up to 95% RH Non Condensing |
- Water Sewage Plant
- Chemical & Pharma
- Automotive and Aerospace
- Industrial Process Control
