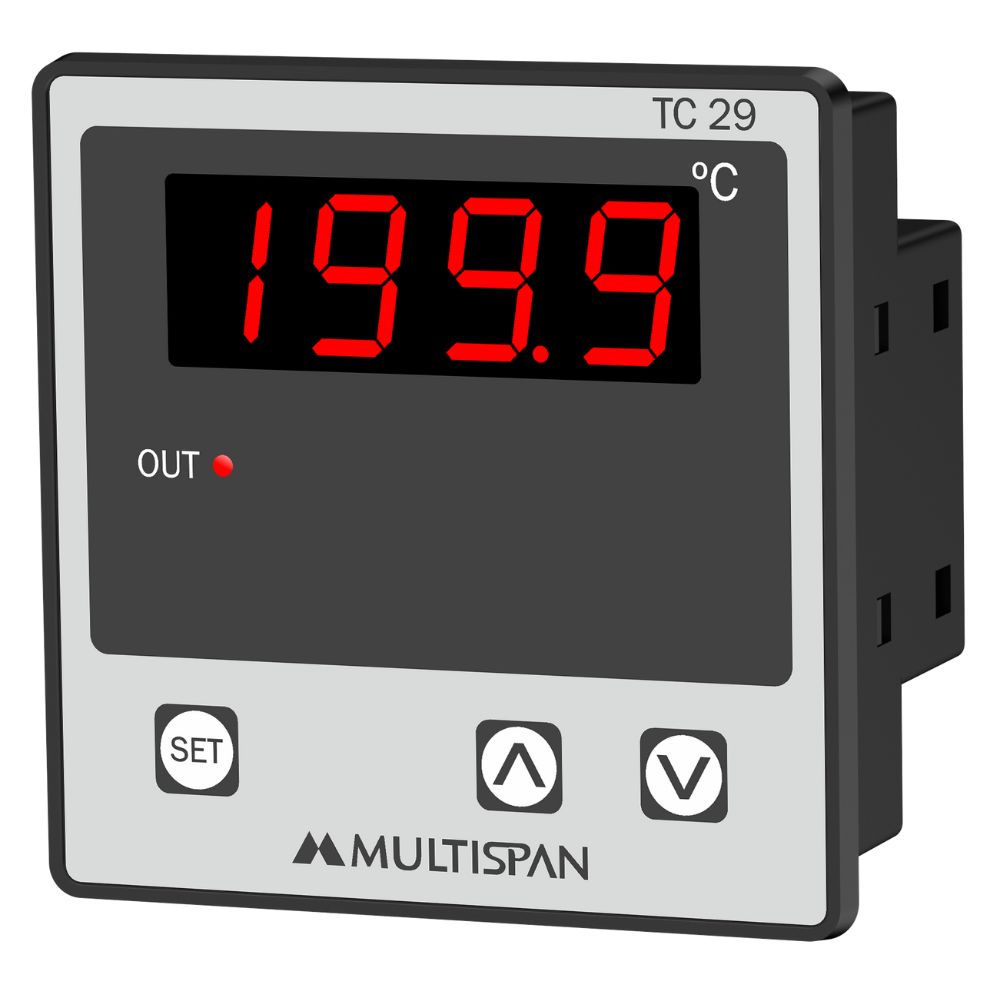

TC-29 regular image

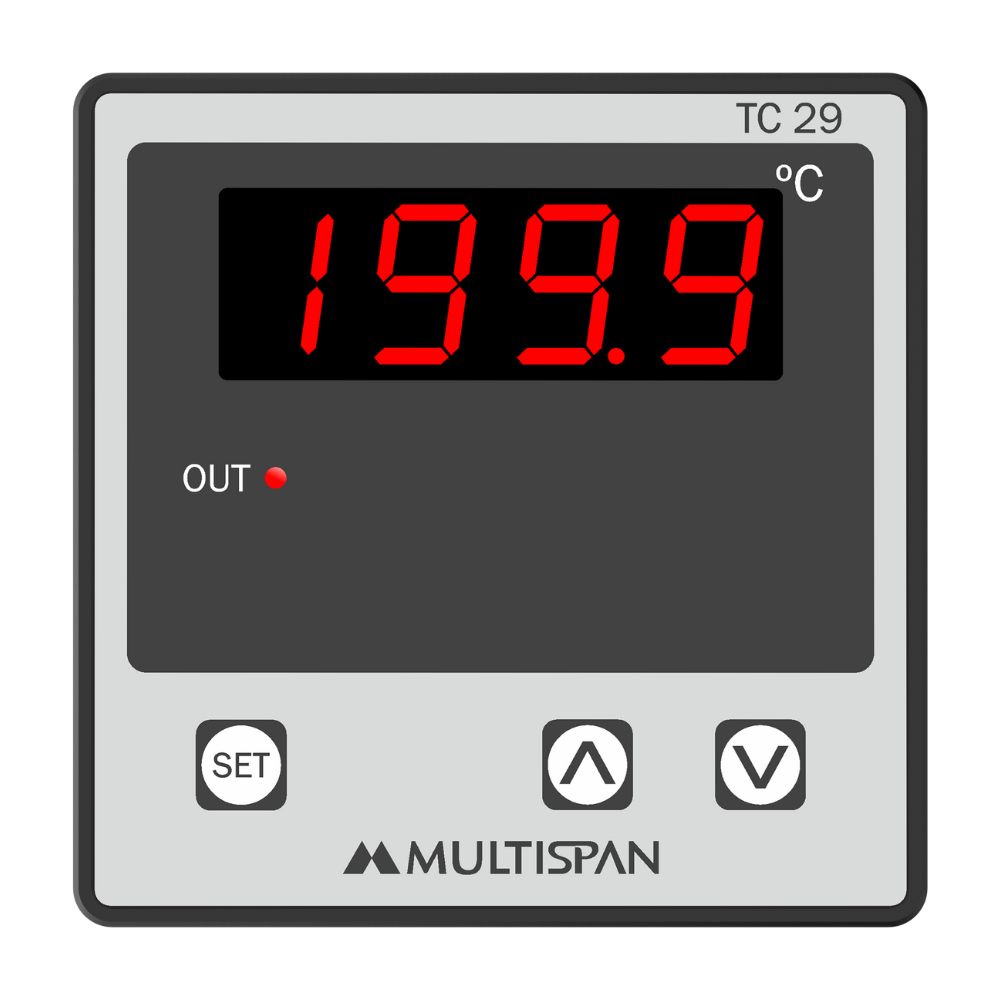

TC-29 front image

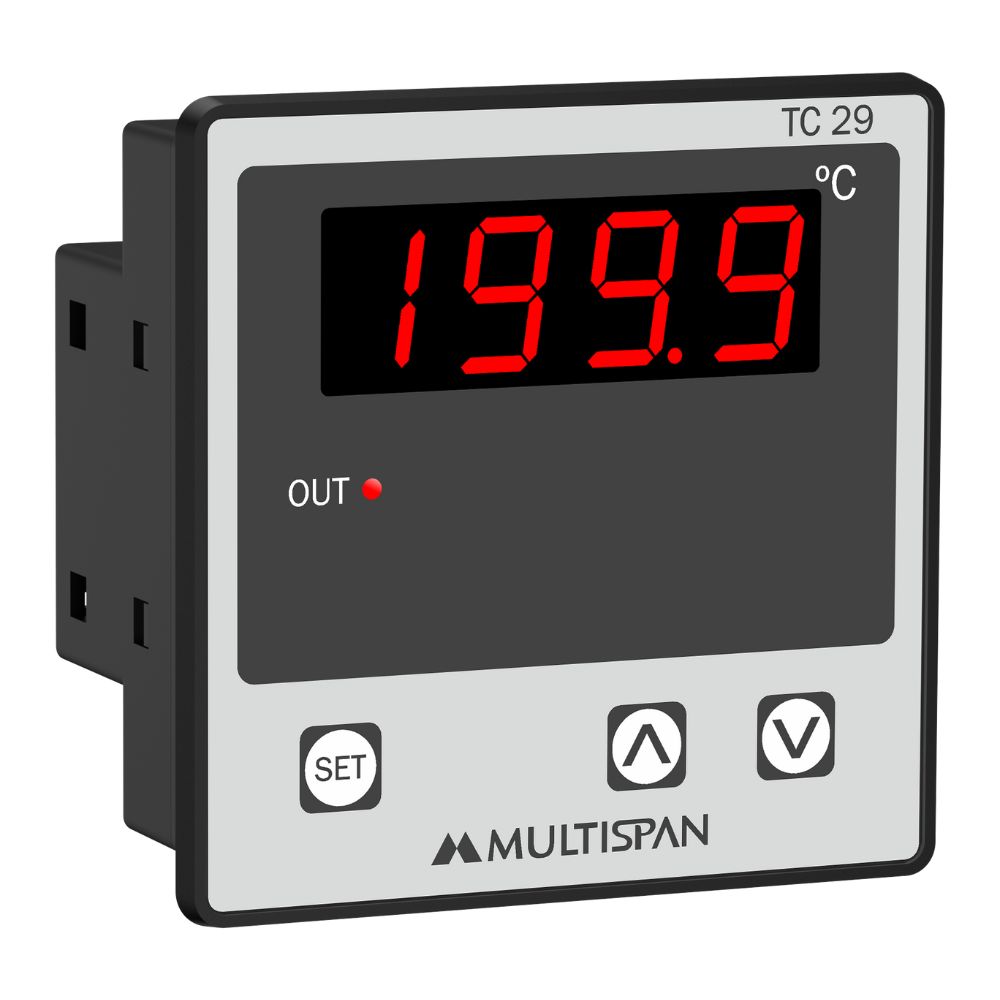

TC-29 side image

Fix Input Single Display Temperature Controller

Product: TC-29

Fix Input (J/k/RTD)
3-Digit Single Red/White LED Display
PID/On-Off Controller
Single Output (Relay || SSR) for Load Control
Size: (H)72mm x (W)72mm x (D)45mm
Supply Voltage: 100-270V AC

Top Variants:

Model	TC-29
Display	4 Digit 7 seg 0.56”,red LED Display
Size (mm)	72 (H) X 72 (W) X 45 (D) mm
Panel Cutout	68 X 68 mm
Input	J/K/R/S/PT-100 2 Wire or 3 Wire (Factory Set)
Temperature Range	J type: 0°C to 400°C or 0° to 600°C K type: 0°C to 1200°C PT-100 2 Wire or 3 Wire: 0°C to 400°C, -50.0 to 200.0°C
Control Action	T.P / ON-OFF (Configurable)
Output	1Relay, 1C/O Contact,5A, 230V AC (Resistive Load) or SSR (Factory Set)
Power Supply	100-270V AC (SMPS), 50/60Hz
Protection Level (As per request)	IP-65 (Front side) As per IS/IEC 60529 : 2001
Operating Temperature	0°C To 55°C
Relative Humidity	Up to 95% RH Non Condensing

Packaging Machinery
Extrusion Machinery
Furnace & Boilers
Ovens & Incubators
Food Industry
