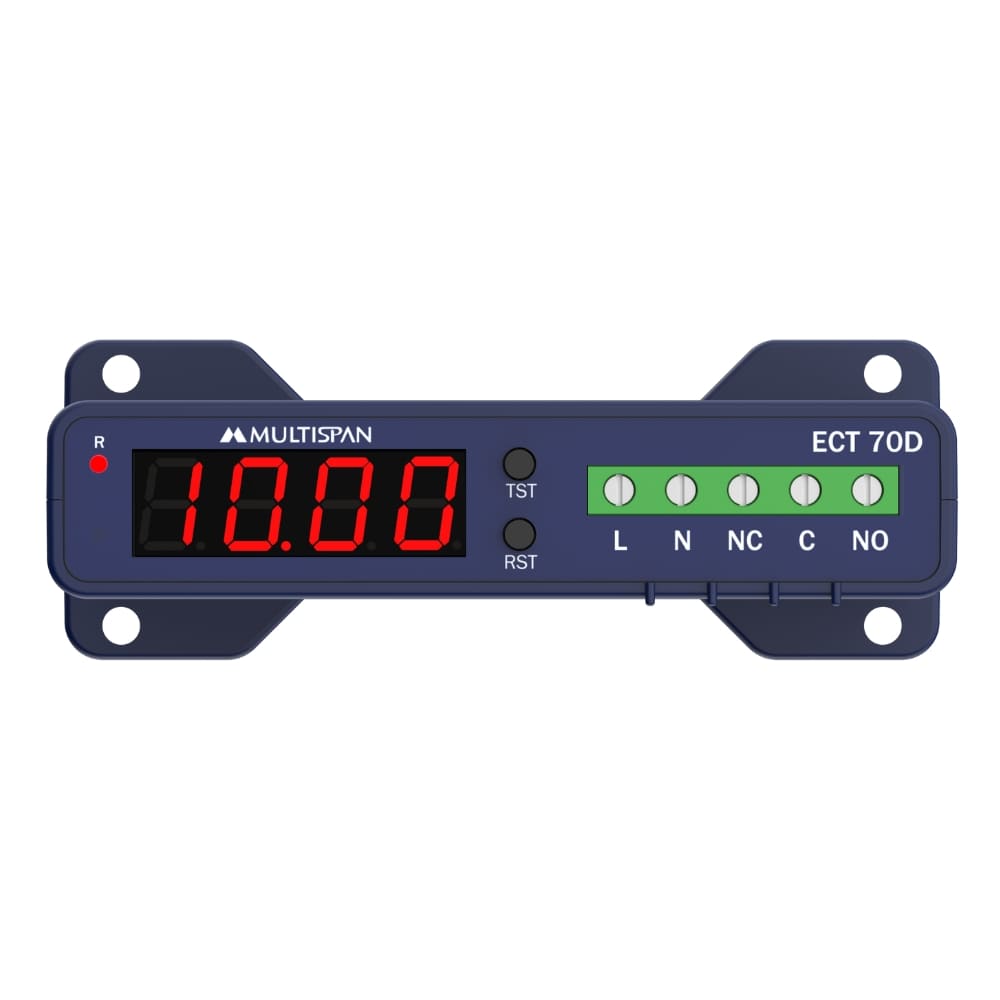

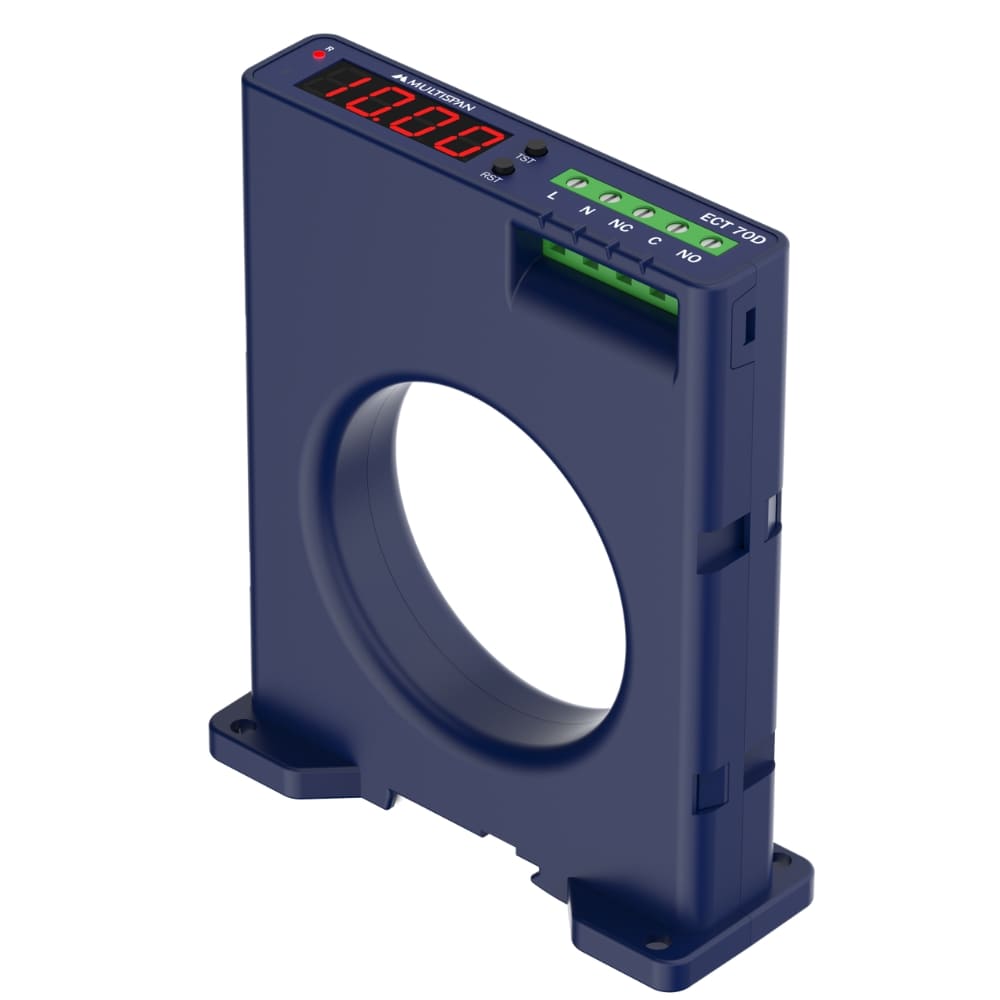

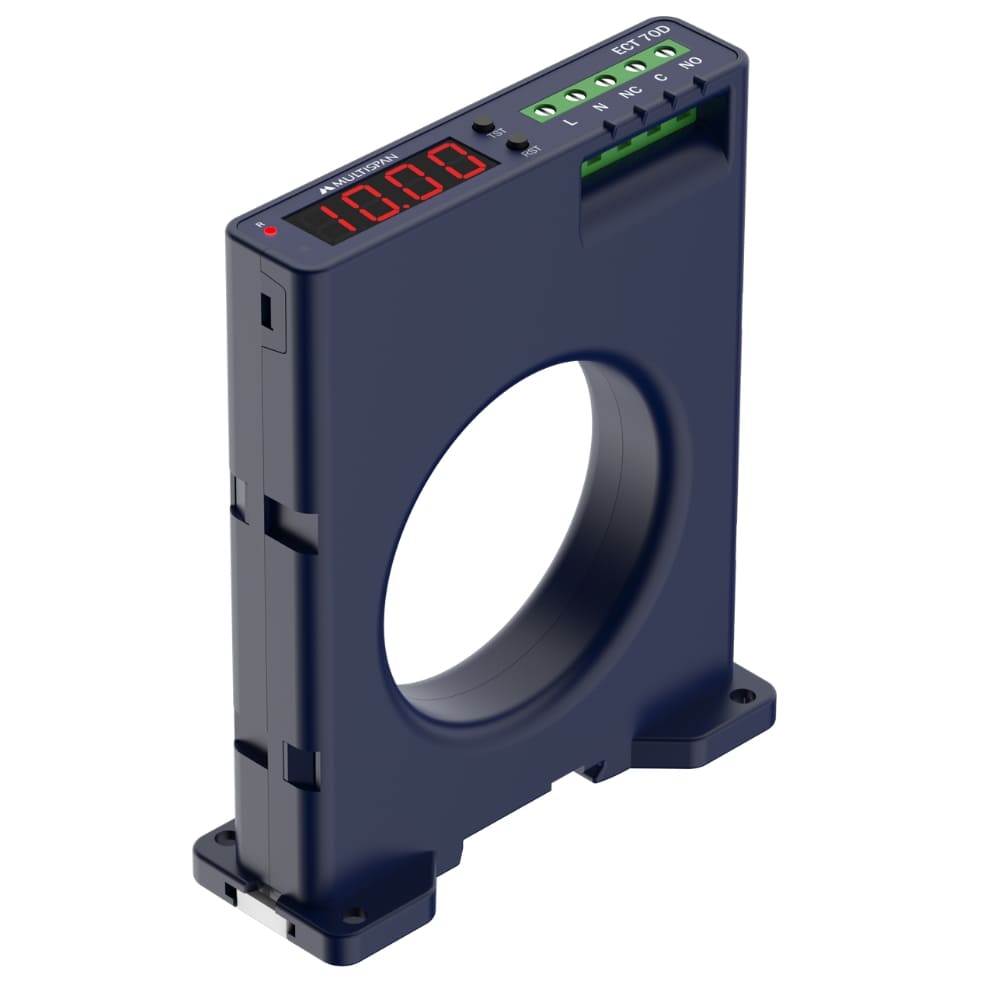

ECT-70D regular image ECT-70D front image ECT-70D side image

Earth Leakage Relay- BUILT IN CBCT ID 70 mm

Product: ECT-70D

  • Range: 0.030A To 30.00 A AC in CBCT
  • No Need of Separate CBCT as Built in CBCT (ID 70mm)
  • Digital Display for Programming Leakage Setting and Trip Delay
  • 1-Relay, 1-C/O, 5A, 230V AC
  • With Front Key and Terminal Reset and Test Function
  • Size: (H)115mm X (W)42mm X (D)141mm
  • Supply Voltage: 100-270V AC/DC

Top Variants:

INPUT SPECIFICATION :
Input Current 0.030 To 30.00 A AC in CBCT
Display Currant Range 0.030A To 30.00 Amp
Resolution If Current in mA = 0.001 mA
If Current is 10 Amp Above = 0.01A
DISPLAY & KEYS :
Display 4-Digit, 7-Seg., 0.34”, Red.
Keys Test, Rst
OUTPUT SPECIFICATION :
Relay 1 Nos.
Relay Type NO - C- NC
Rating 5A,230V AC Resistive Load
AUXILIARY SUPPLY :
Supply Voltage 100 To 270 V AC/DC
Power Consumption (VA Rating) 3VA @ 250 VAC MAX
ENVIRONMENT CONDITION
Operating Temp. 0 - 55°C
Relative Humidity 95% RH
  • Control & Relay Panel
  • Original Equipment Manufactures (OEMs)
  • Energy Management System
  • DG Set Panels
  • LT / HT Panel
  • Power Control Center Panels
  • Motor Control Center Panels
