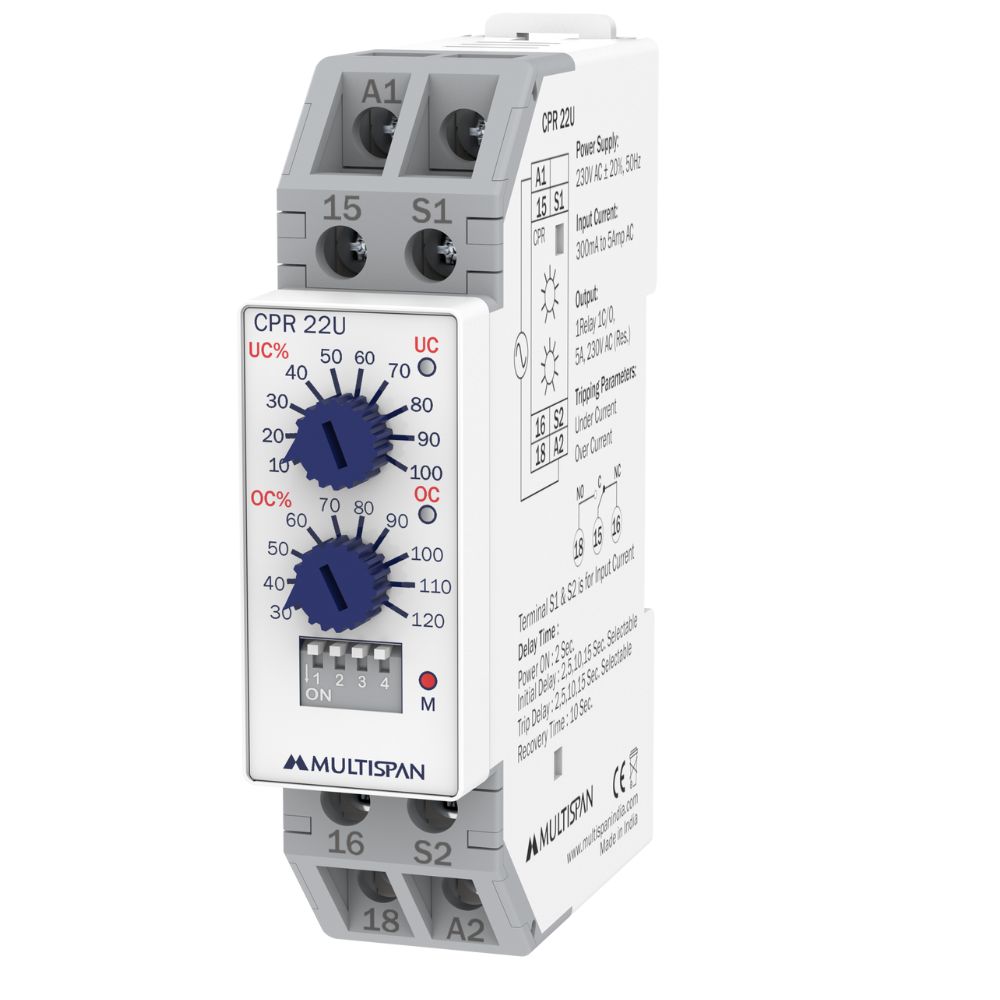

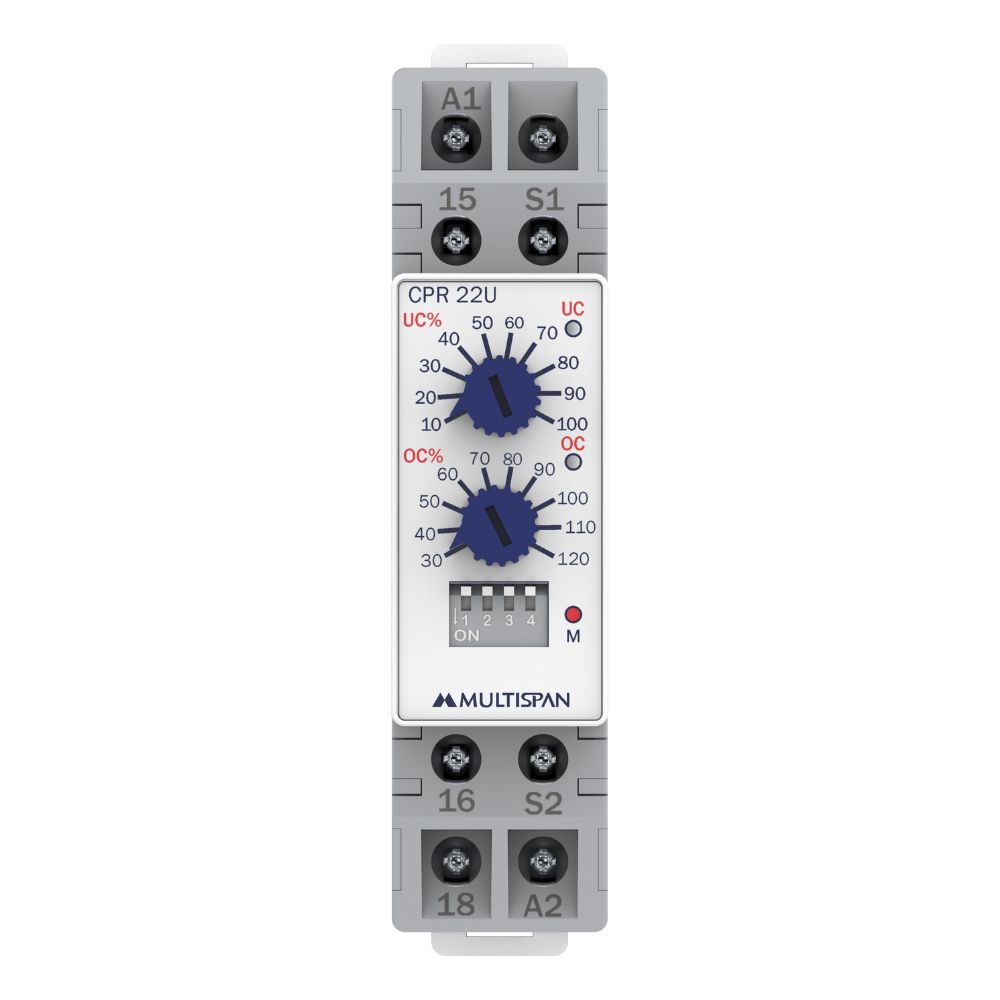

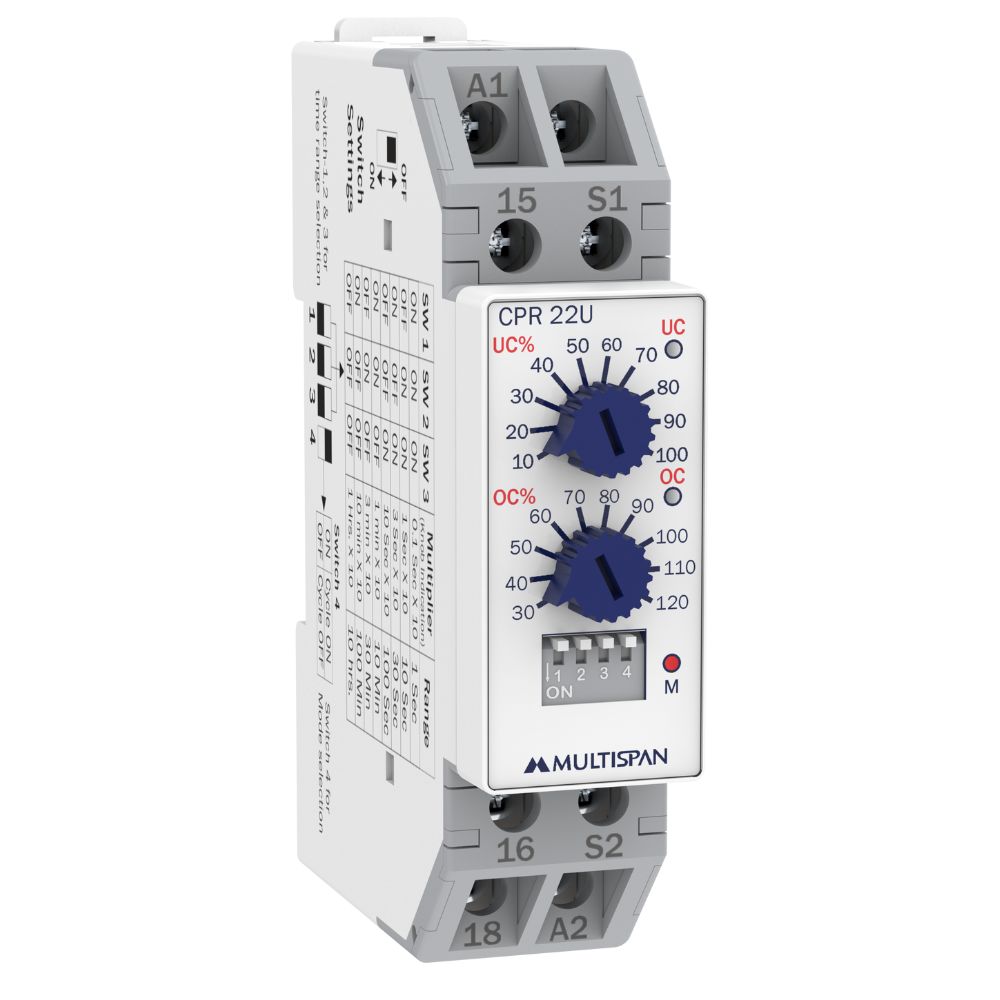

CPR-22U regular image CPR-22U front image CPR-22U side image
Enquiry

Current Protection Relay

Product: CPR-22U

  • Programmable Over & Under Current
  • 1-Relay, 1-C/O
  • Fail Safe & Non Fail Safe Mode
  • Available in 1Ø and 3Ø
  • Size: (H)90mm X (W)22.5mm X (D)72mm
  • Supply Voltage: 230V AC

Top Variants:

CR-3K CPR-22U
Parameter Specification
Power Supply 230V ± 20% AC
Input Voltage 300mA to 5Amp AC
Rated Voltage 5A
Output 1-Relay, 1-C/O, 5A 230V AC Resistive Load
Tripping Parameters Under Voltage, Over Voltage
  • DG Set Panels
  • Motor Control Center Panels
  • Control Panels
  • Distribution Panels
  • Process Control
