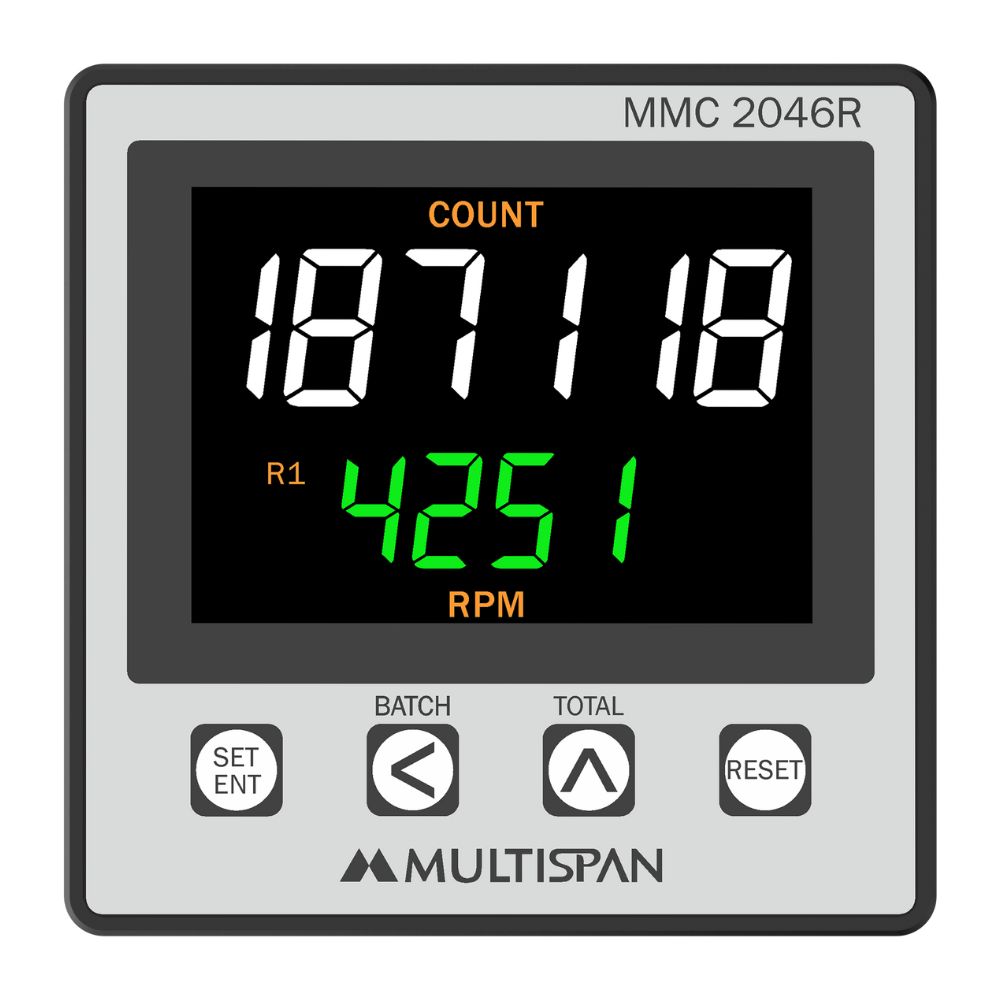

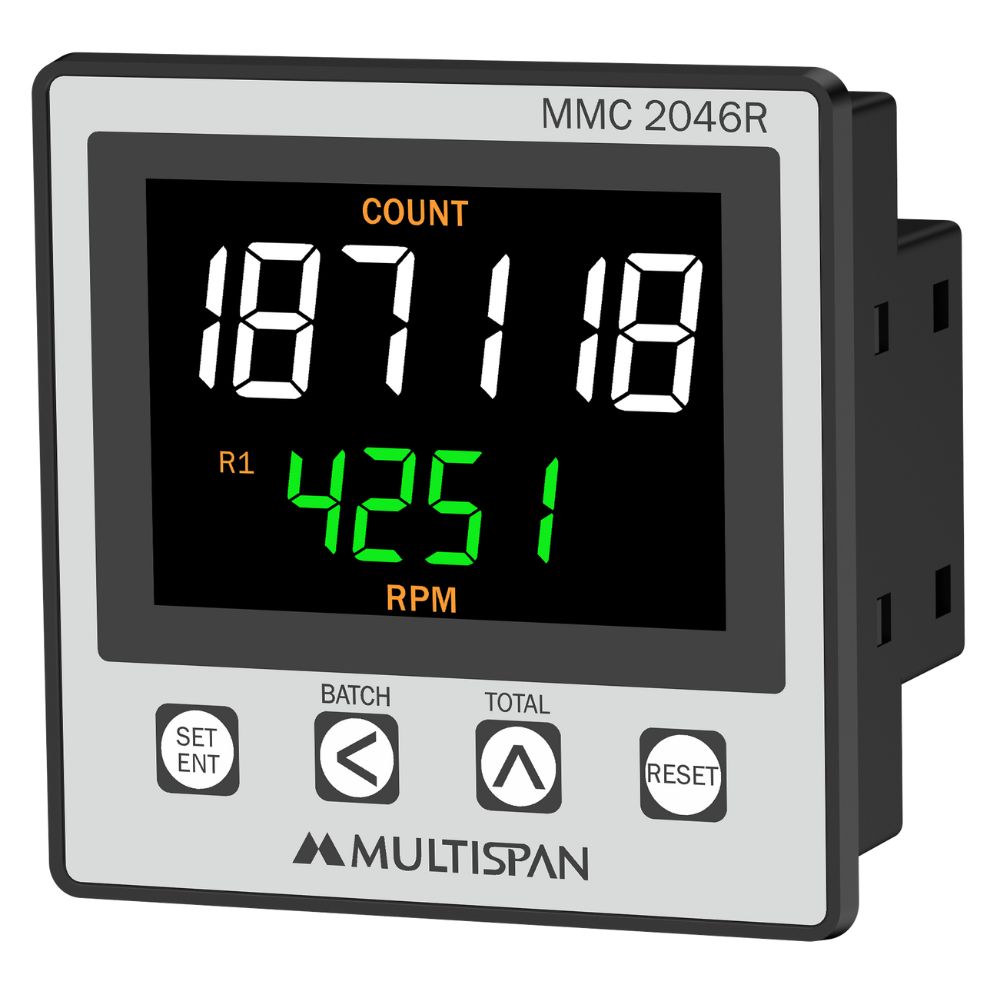

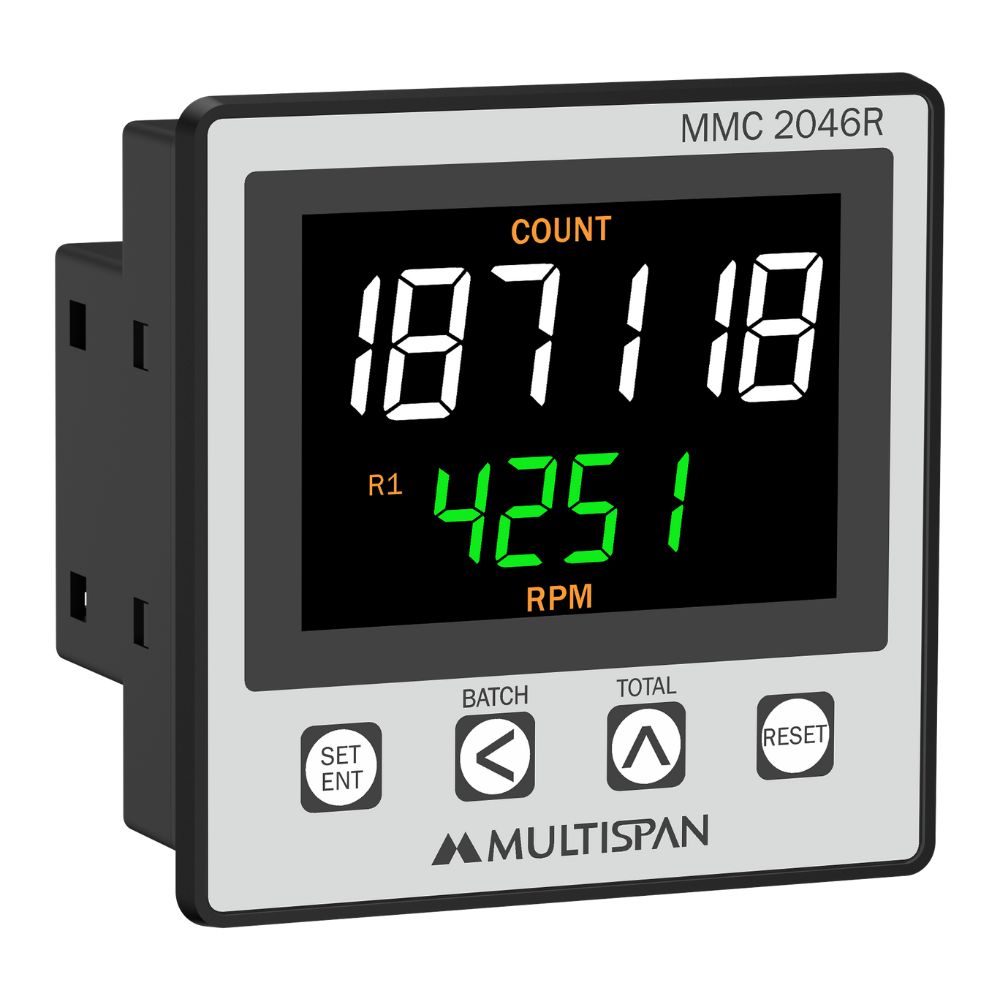

MMC-2046R - Counter + RPM   regular image MMC-2046R - Counter + RPM  front image MMC-2046R - Counter + RPM  side image

Counter + RPM

Product: MMC-2046R

  • Proximity PNP/NPN (Selectable) & Micro Switch
  • 1-Relay Output on Count Totalizer
  • Individual Display for Total Count & RPM
  • Auto/Manual Reset
  • Size: (H)72mm x (W)72mm x (D)45mm
  • Supply Voltage: 100 to 270V AC

Top Variants:

Model MMC-2046R
Display

UPPER:- 6 Digit 7 seg 0.56”, White LED Display
LOWER:- 4 Digit 7 seg 0.4”, Green LED Display

Size (mm) 72  (H) X 72 (W) X 45 (D)
Panel Cutout (mm) 68 (H) X 68 (W)
Range Counter : 0 - 999999, RPM : 4 - 5000
Output 1-Relay, 1-C/O, 230V AC,5A
Power Supply 100 to 270V AC, 50/60Hz, Approx 4VA
Sensor Proximity PNP/NPN (Selectable) & Micro Switch
Memory Nonvolatile
Reset Reset at Both Front & Back

Protection Level (As per request)

IP-65(Front side) AS per IS/IEC 60529:2001

Operating Temperature

0°C To 55°C

Relative Humidity

Upto 95% RH Non Condensing
  • Dust Collector
  • Bag Filteration
  • Hydrophonic
  • Pharmaceutical
  • Food Processing
