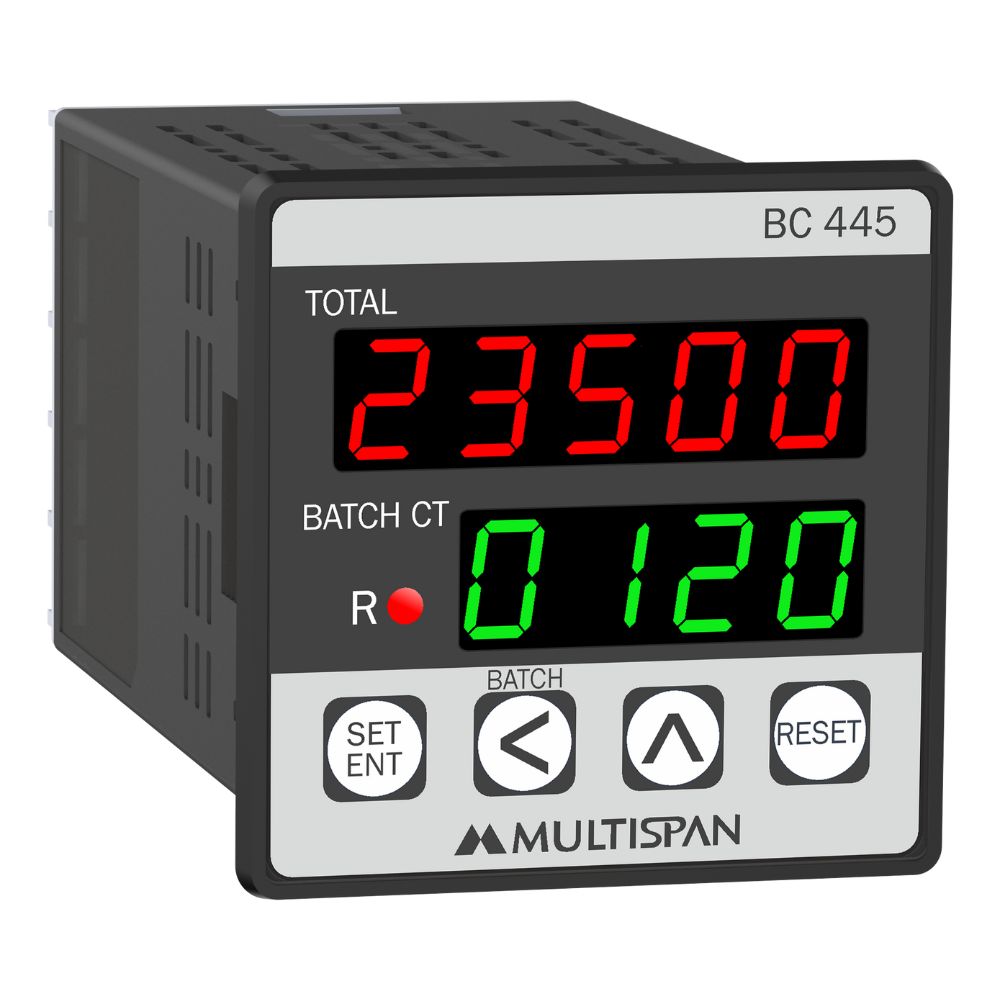

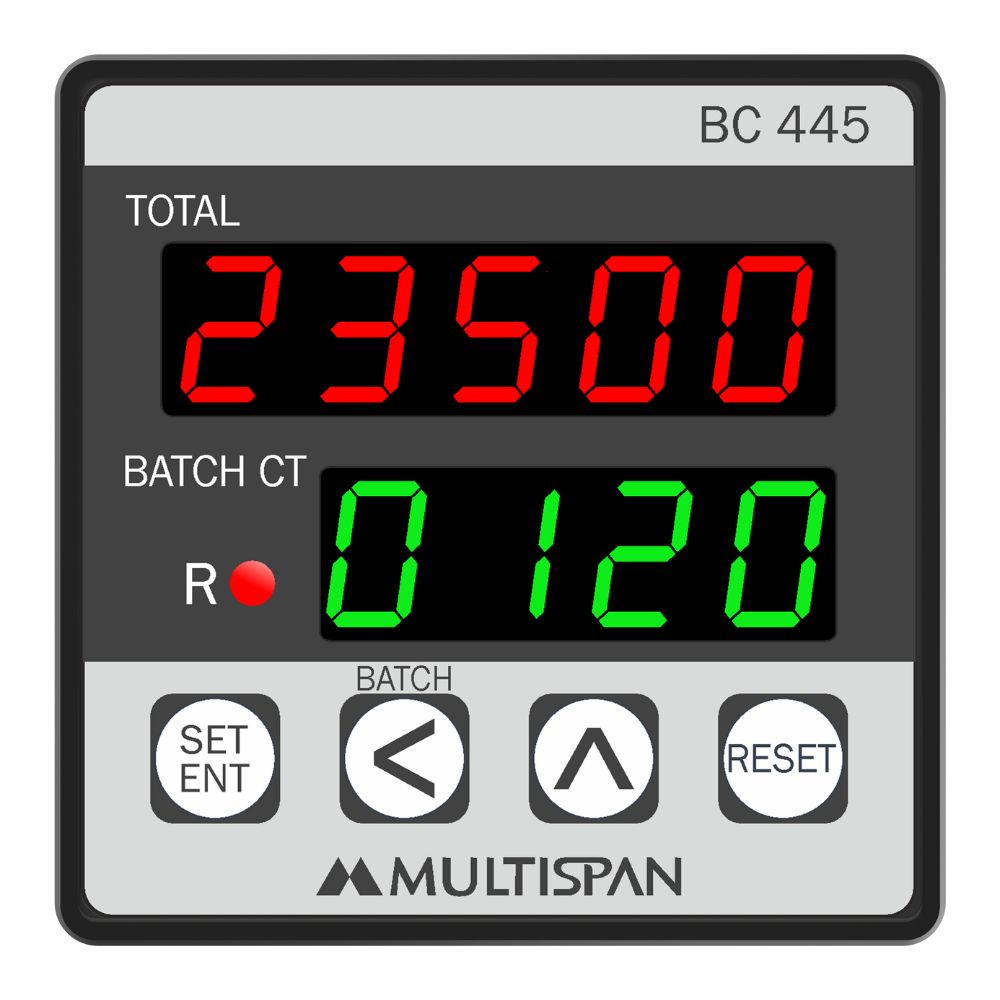

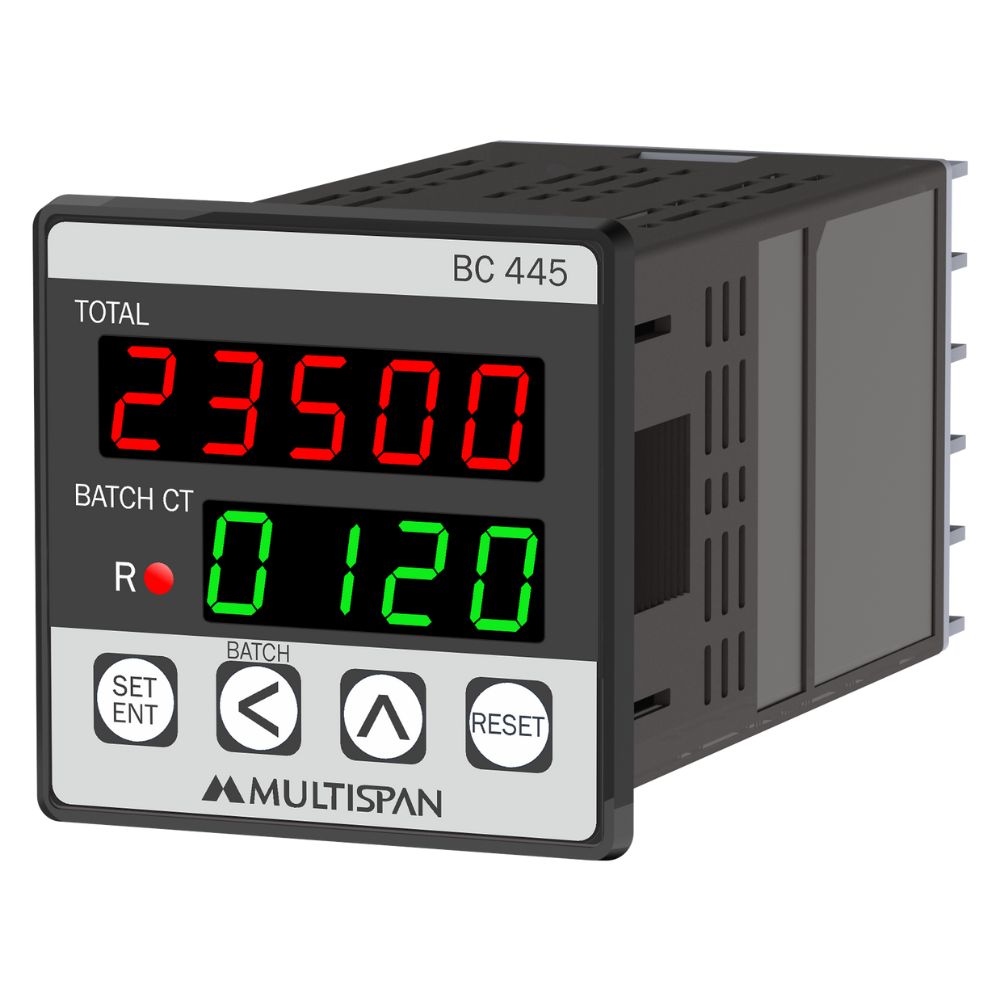

BC-445 regular image BC-445 front image BC-445 side image

Batch Counter

Product: BC-445

  • Proximity or Micro Switch Input
  • Single relay + Buzzer Output
  • 5-Digit Total Count, 4-Digit Batch Count
  • Auto/Manual Reset
  • Size: (H)48mm x (W)48mm x (W)70mm
  • Supply Voltage: 100-270V AC SMPS

Top Variants:

Model BC-445
Display UPPER:- 5 Digit 7 seg 0.3”,red LED Display
LOWER:- 4 Digit 7 seg 0.3”, green LED Display
Size (mm) 48 (H) X 48 (W) X 70 (D)
Panel Cutout (mm) 45 (H) X 45 (W)
Output 1-Relay, 1-C/O, 230V AC, 5A & Buzzer
Power Supply 100 To 270V AC, 50/60 Hz, Approx 4VA
Sensor Proximity PNP/NPN (Selectable) & Micro Switch
Memory Nonvolatile
Protection Level (As per request) IP-65 (Front side) As per IS/IEC 60529:2001
Operating Temperature 0°C To 55°C
Relative Humidity Upto 95% RH Non Condensing
  • Pharmaceutical Machinery
  • Product Counting Machinery
  • Packaging Machinery
