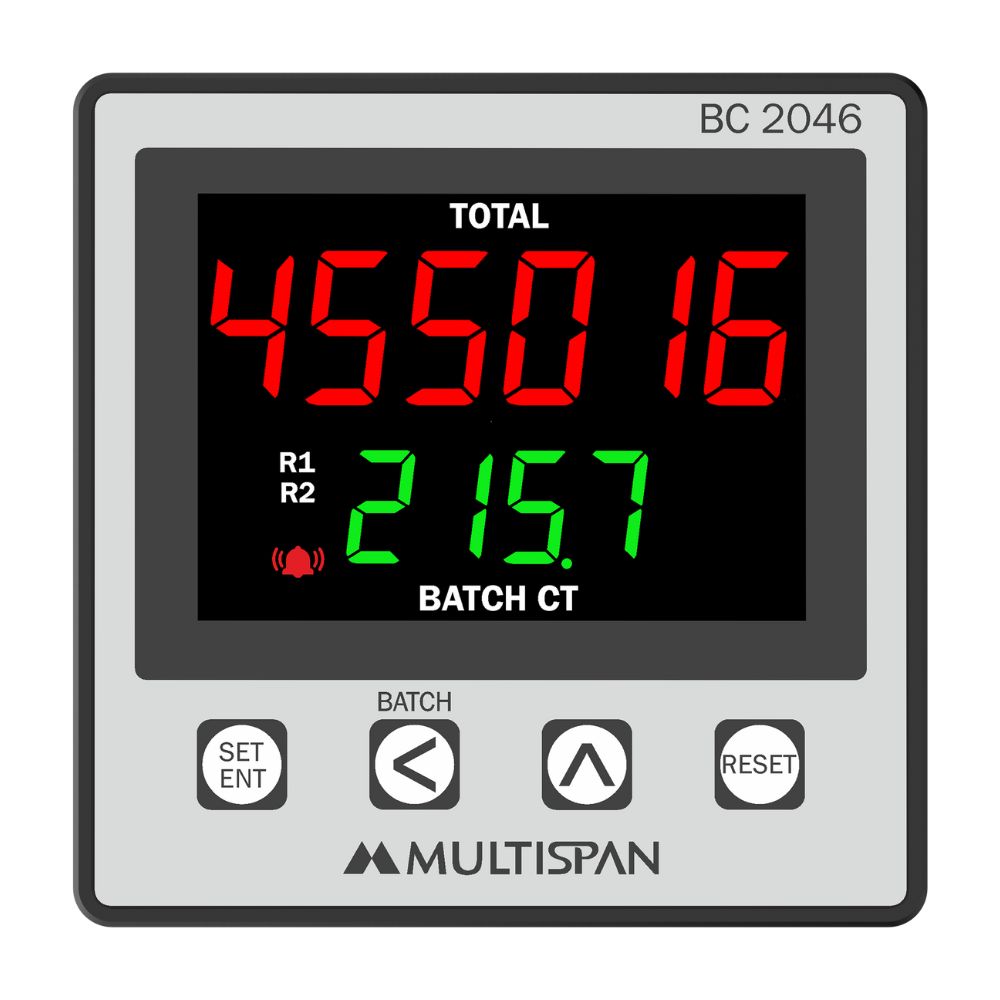

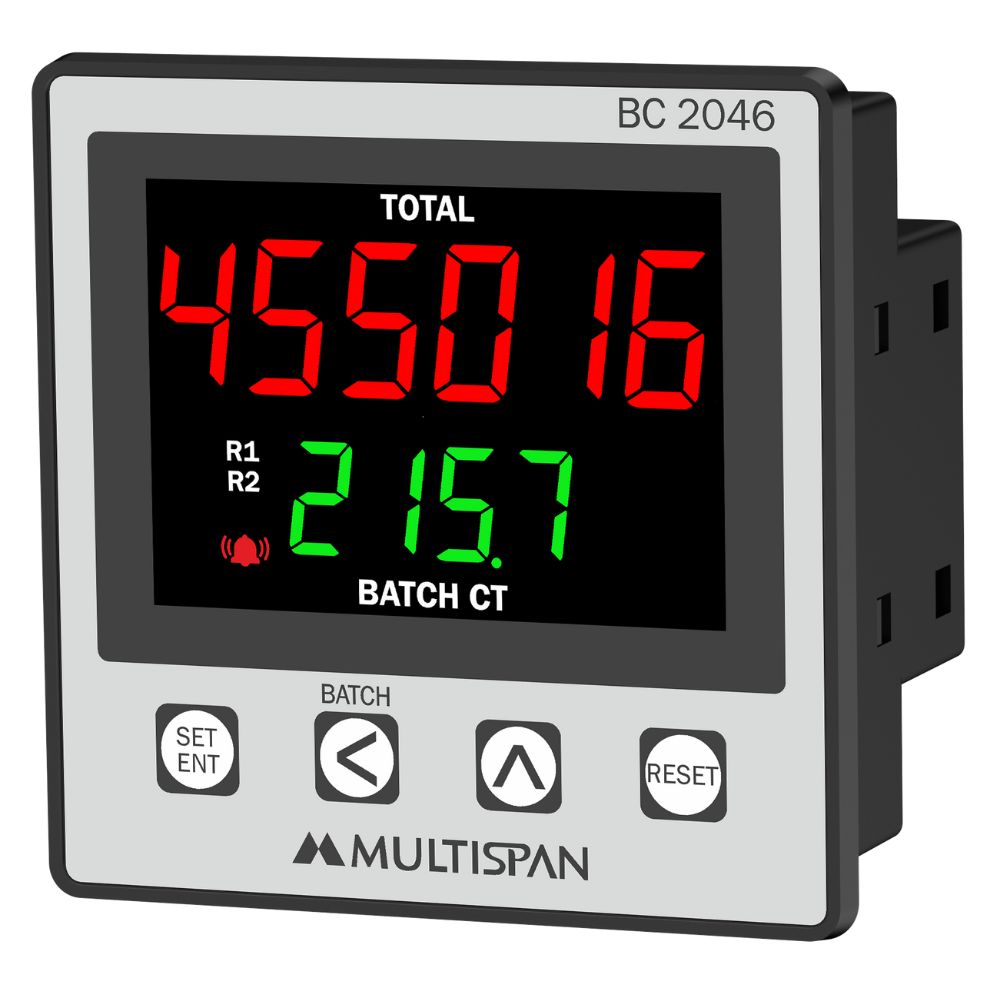

| Model | BC-2046 |
|---|---|
| Display | UPPER: 6-Digit, 7-Seg 0.56", RED LED Display |
| LOWER: 4-Digit, 7-Seg 0.4", GREEN LED Display | |
| Size (mm) | 72 X 72 X 45 mm |
| Panel Cutout (mm) | 68 X 68 mm |
| Output | 1-Relay, 1-C/O, 230V AC, 5A & Buzzer |
| Power Supply | 100 To 270V AC, 50/60 Hz, Approx 4VA |
| Sensor | Proximity PNP/NPN (Selectable) & Micro Switch |
| Memory | Nonvolatile |
| Protection Level (As per request) | IP-65 (Front side) As per IS/IEC 60529:2001 |
| Operating Temperature | 0°C To 55°C |
| Relative Humidity | Upto 95% RH Non Condensing |
- Pharmaceutical Machinery
- Product Counting Machinery
- Packaging Machinery
