| Technical Specification | |
| INPUT: | |
| Voltage AC | |
| Input voltage AC | 300 to 520V AC (L - L) |
| Burden | < 9 VA |
| Frequency | 50/60 Hz |
| Current AC (1 CT Sensing) | |
| Primary CT Ratio | 5 to 9999 Amp Selectable |
| Secondary Current Ac | 0.01 To 5.0 Amp (Without CT) |
| Burden | < 0.4 VA |
| Overload | Upto 6A Continuous |
| DISPLAY, KEY & LED | |

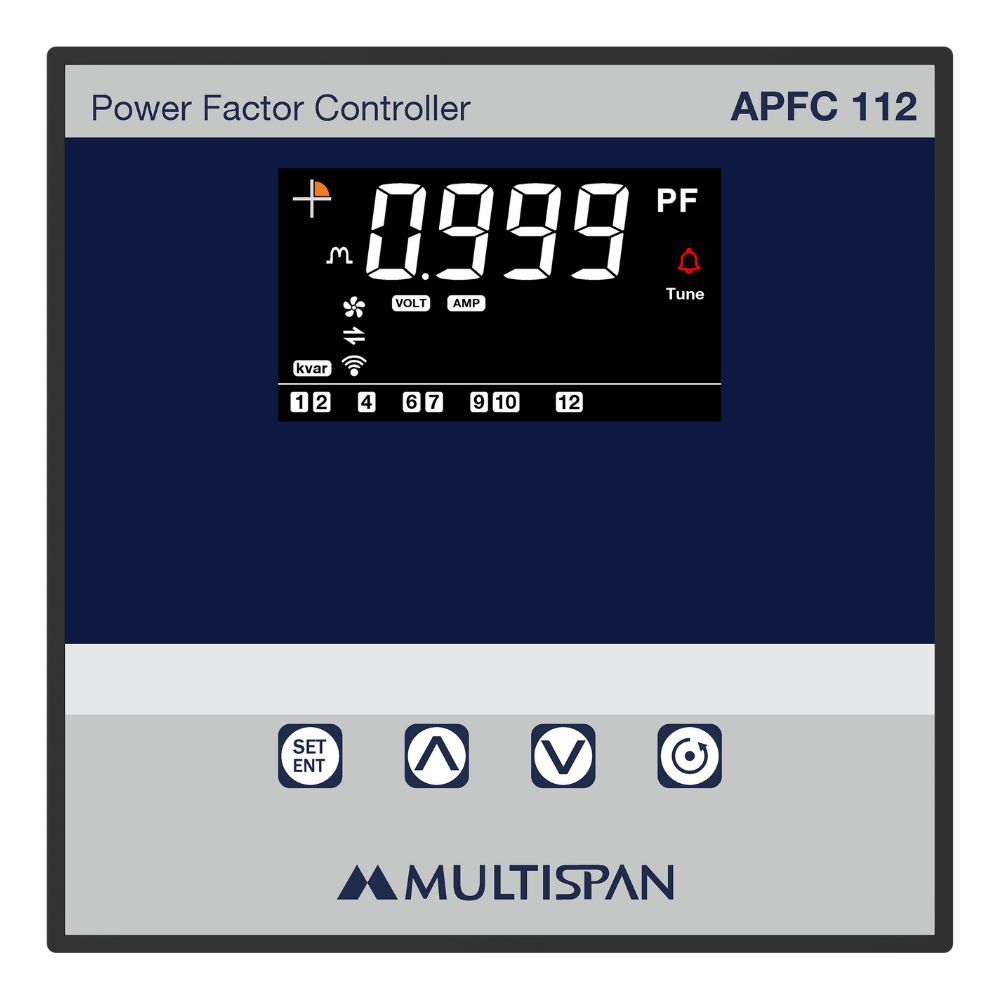

| Display | Upper: 4-Digit,7-Seg,0.60" Lower: 7-Digit,7-Seg,0.38" |
| Key | SET/ENT, INC, DEC, EXIT |
| DIMENSION | |
| Size (mm) | 144 (H) x 144 (W) x 70 (D) |
| Panel Cutout (mm) | 137 (H) x 137 (W) |
| CONTROLLING RANGE | |
| Operating Mode | Kvar / Intel / Manual |
| Programmable Hysteresis |
0 to 25 KVAr |
| OUTPUT SPECIFICATION | |
| 8 Stage Capacitor Relay | |
| Relay Type | (NO-C) |
| Rating | 7A, 250V AC |
| AUXILIARY SUPPLY | |
| Supply voltage | 300V to 520V AC (L-L) |
| Power consumption (VA RATING) |
Approximately 9VA |
| ACCURACY | Class 0.5 (Standard) |
| ENVIRONMENT CONDITION | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH (non-condensing) |
| Note: | RS-485 Modbus is available as per request |
- PF Management using Single CT Method
- For 3Ø Balanced Industrial Loads
- Energy Monitoring System
- DG Set Panels
- Process Control
- Power Factor Correction Panels
- Commercial Buildings
