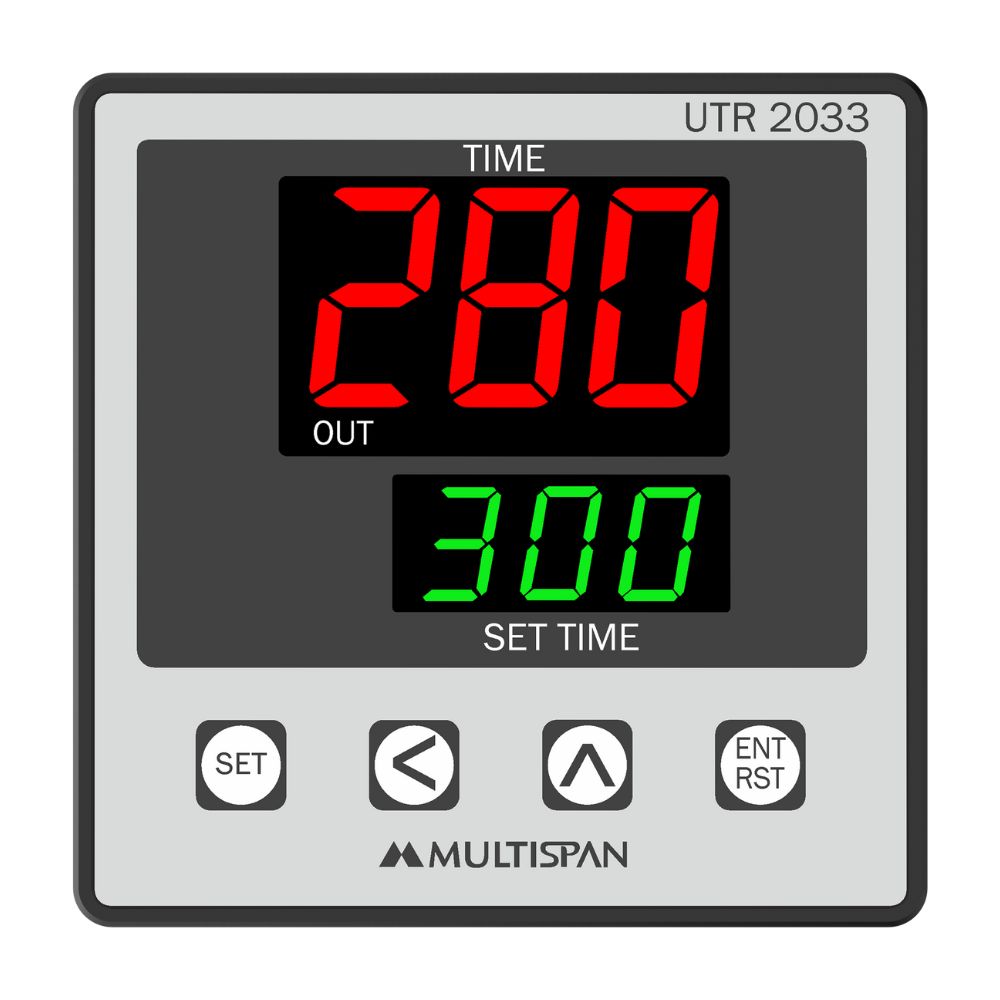

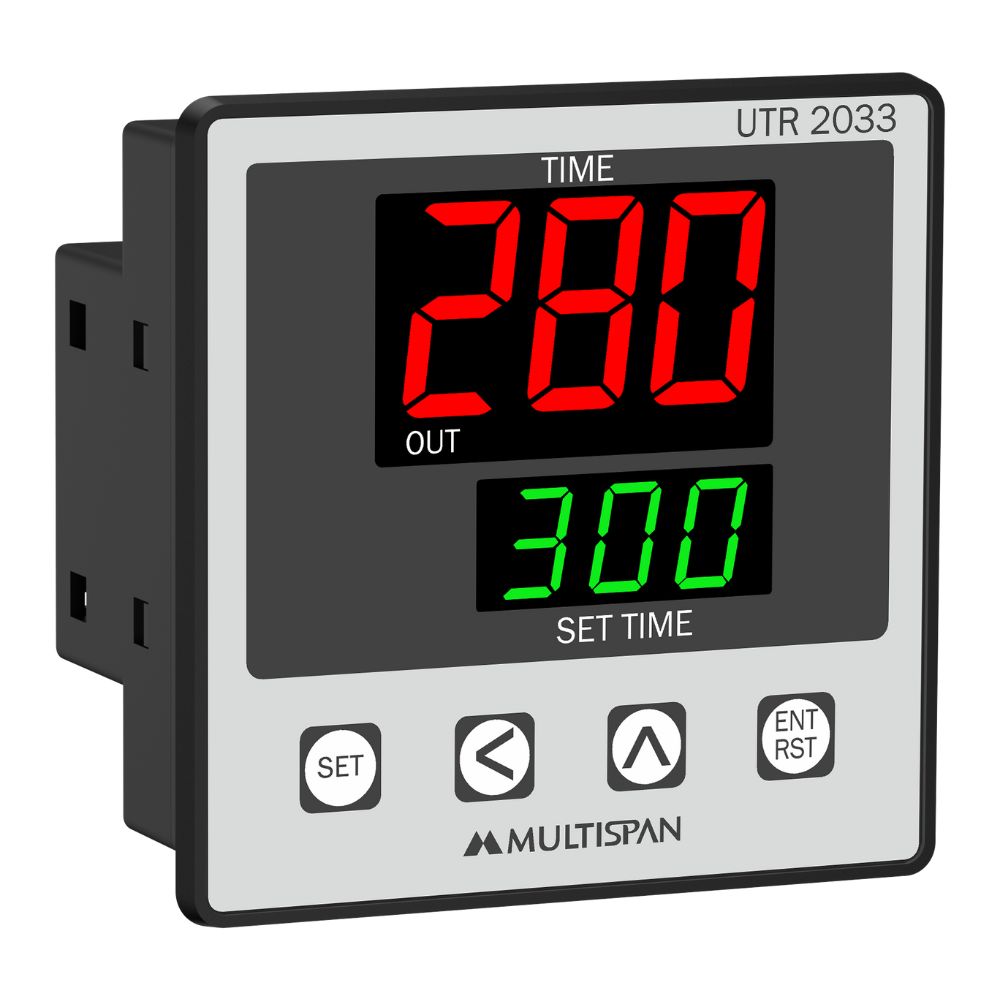

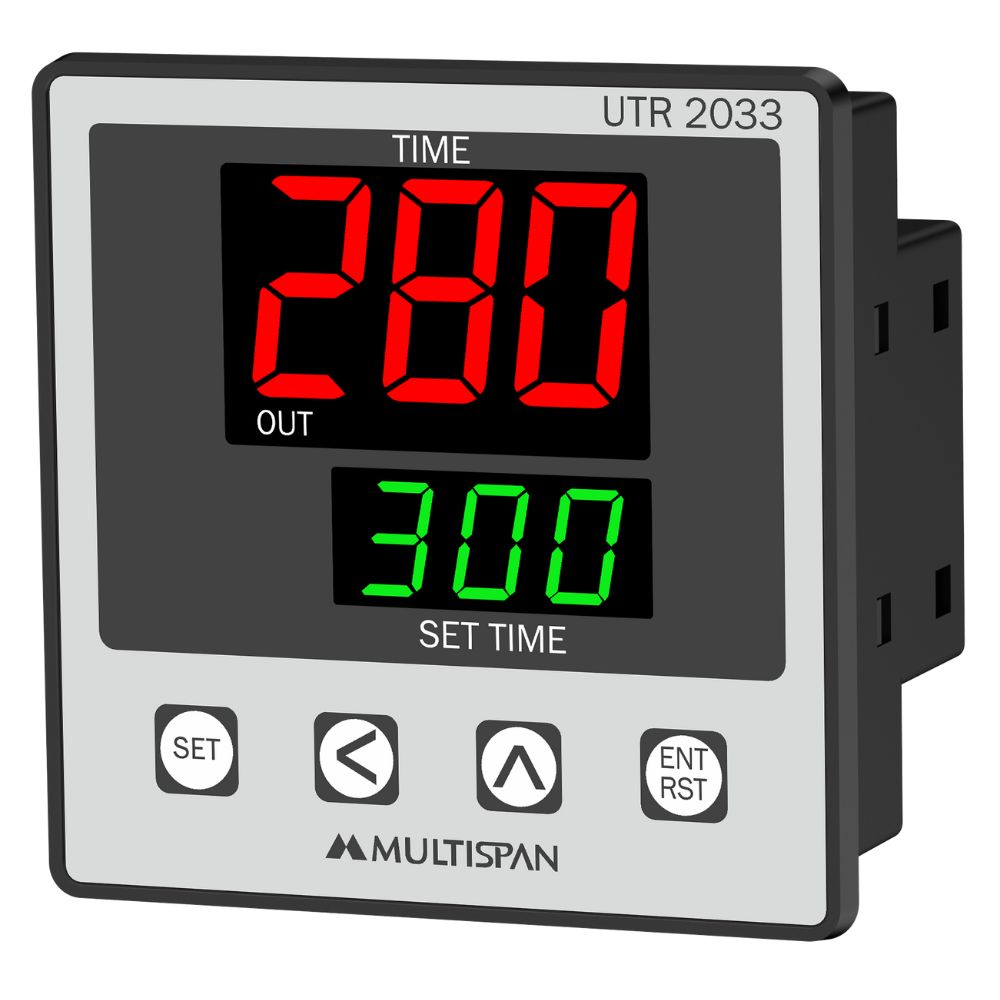

1-Relay Digital Timer
Product: UTR-2033
- 3+3 Digit Dual Display Timer
- PNP/NPN/Micro Switch Trigger Input
- Instant On-Off Delay/Cyclic Mode
- Range: Hour/Minute/Second
- Reset by Front Keypad and Remote
- With Power Fail Memory
- Size: (H)72mm x (W)72mm x (D)45mm
- Supply Voltage: 100-270V AC
Top Variants:
| INPUT SPECIFICATION: | |
| Input (Start Pulse) | NPN/PNP Proximity |
| Micro Switch | |
| Time Range | Sec (9.99/99.9/999) |
| Min (9.59/99.9/999) | |
| Hour (9.59/99.9/999) | |
| DISPLAY AND KEYS | |
| Display | Upper: 3-Digit, 7-Segment, 0.80” |
| Lower: 3-Digit, 7-Segment, 0.40” | |
| Keys | SET, ENT/RST, SHIFT, INC |
| DIMENSION | |
| Size (mm) | 72 (H) x 72 (W) x 45 (D) mm |
| Panel Cutout (mm) | 68 (H) x 68 (W) mm |
| GENERAL SPECIFICATION: | |
| Operating Mode | Cyclic On Timer |
| Cyclic Off Timer | |
| Delay On Timer | |
| Delay Off Timer | |
| Counting Direction | Up/ Down |
| Reset Option | Front Panel Reset |
| Terminal Reset | |
| OUTPUT SPECIFICATION: | |
| Relay Output | |
| Relay | 1 nos. |
| Relay Type | 2-C/O |
| Rating | 5A, 230V AC |
| AUXILIARY SUPPLY: | |
| Supply voltage | 100 to 270V AC, 50-60Hz |
| Power consumption (VA RATING) | Approx 3 VA @ 230V AC MAX |
| ENVIRONMENT CONDITION: | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH (non-condensing) |
| Protection Level (AS Per Request) | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
- Pharmaceutical and Biotech Industries
- Industrial Process Control
- Food and Beverage Industry
