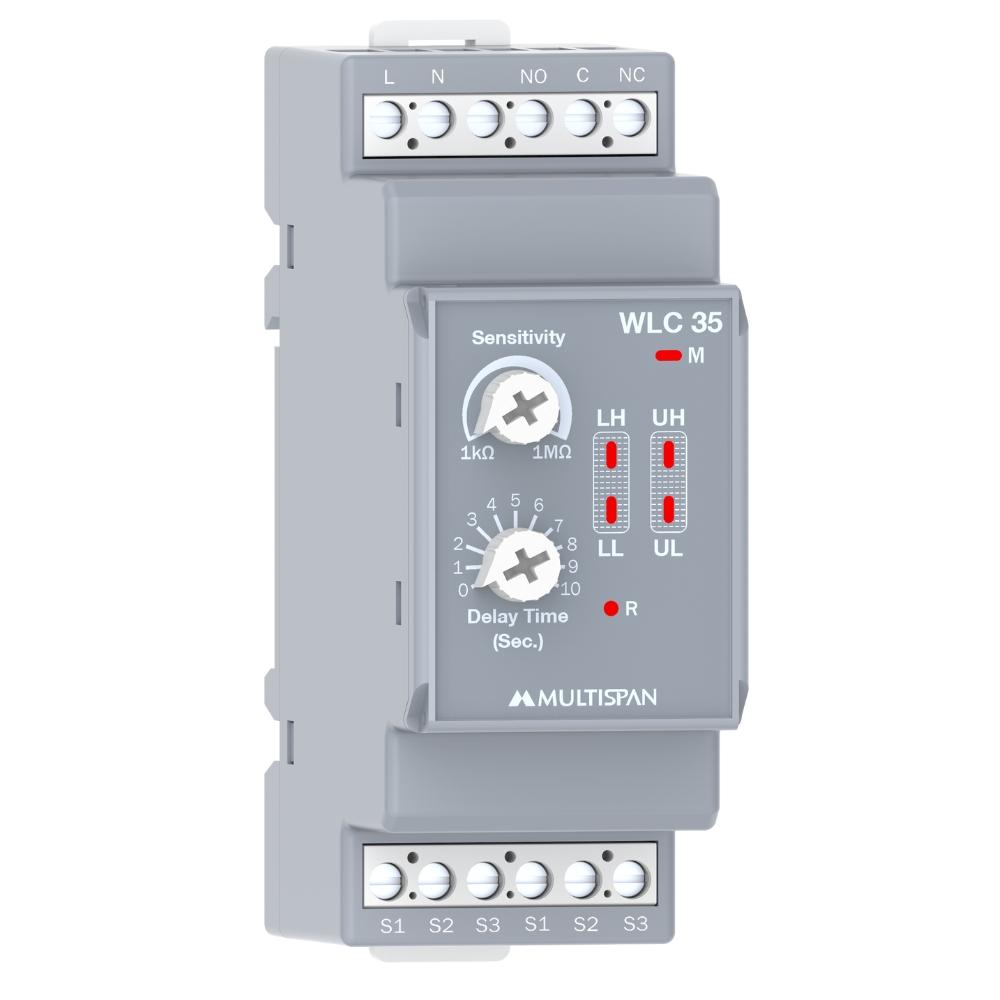

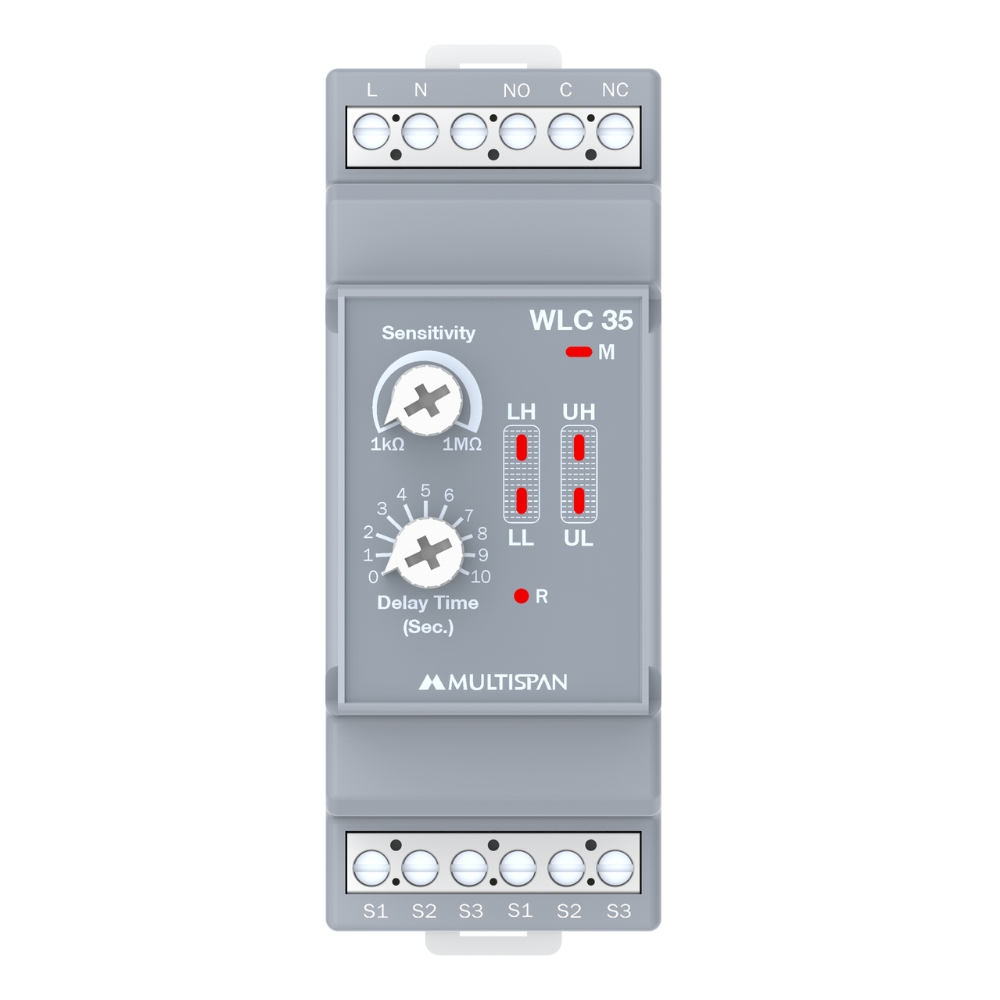

Water Level Controller
Product: WLC-35
- Input: 6 Probes
- Sensitivity Adjustable: 1K Ohm to 1M Ohm
- Delay Time (0-10) Sec.
- High & Low-Level Indication LED for Lower & Upper Tank
- Pump protection from Dry run & Overflow condition
- Size: (H)90mm x (W)35mm x (D)62.5mm
- Supply Voltage: 100-270V AC, 50/60Hz
| Model | WLC 35 |
| Mounting | Din Rail Mounting |
| Input Sensor | 6 nos. prods |
| S1: Common S1: Common (Upper) S2: Low S2: Low (Upper) S3: High S3: High (Upper) |
|
| Indications | LED 1: Relay LED 2: High Level (Lower) LED 3: Low Level (Lower) LED 4: Mains LED 5: High Level (Upper) LED 6: Low Level (Upper) |
| Power Supply | 100 270V AC, 50/60 Hz, 3VA |
| Output Rating | 5Amp, 230V AC (Resistive) |
| Dimension | 90 x 35 x 62.5 mm |
| Output | 1 Relay, 1 C/O (NO-C-NC) |
| Sensitivity | 1K to 1M ohms |
| Reset | Auto |
| Trip Delay | 0 to 10 sec (Selectable) |
- Perfect for Drain & Fill Control
- Water Distribution Pump Stations
- Submersible Pump Panels
- Soda Machines
- Textile Industry Setups
- Boiler Panels
