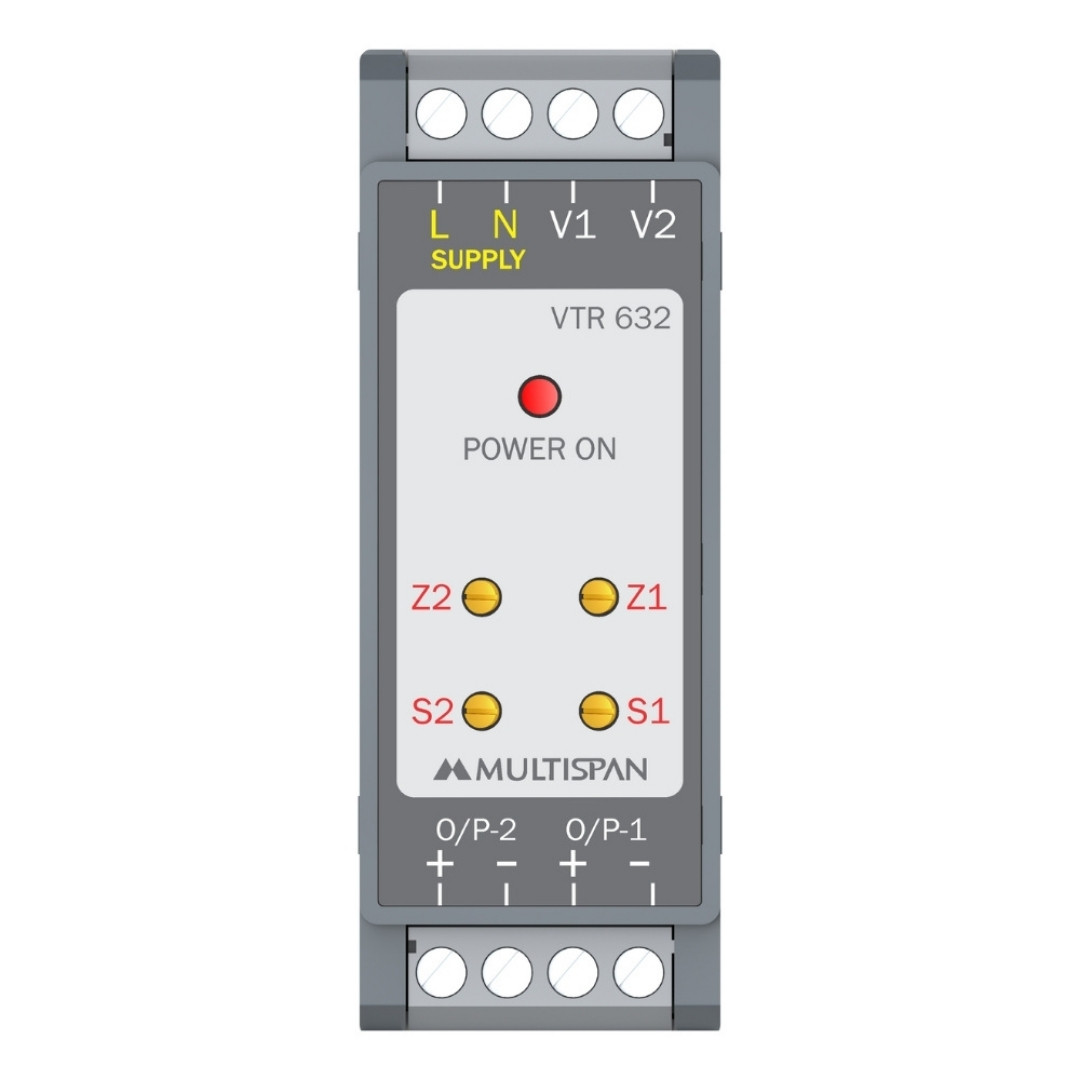

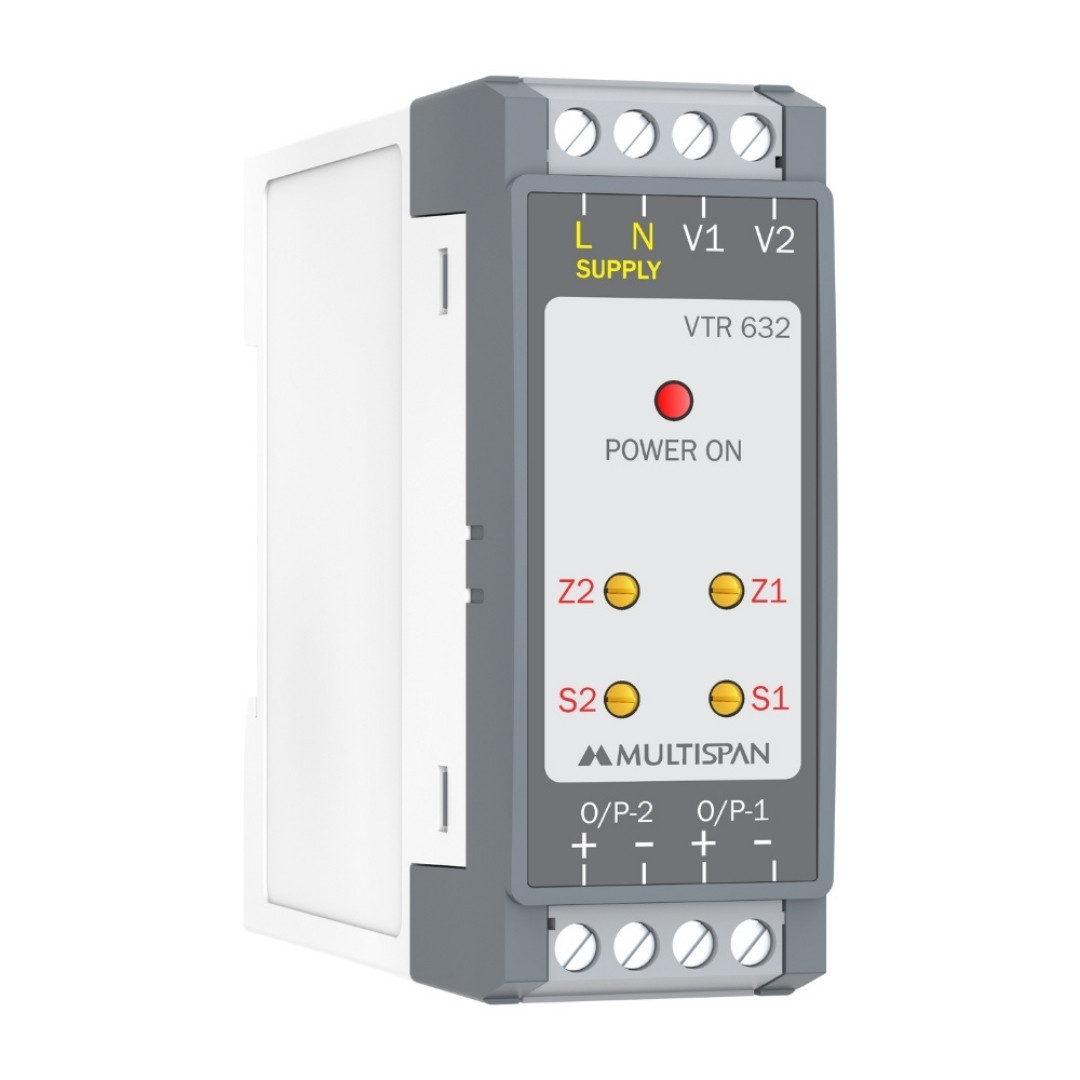

VTR-632-Voltage Transducer - product image VTR-632-Voltage Transducer - product image VTR-632-Voltage Transducer - product image

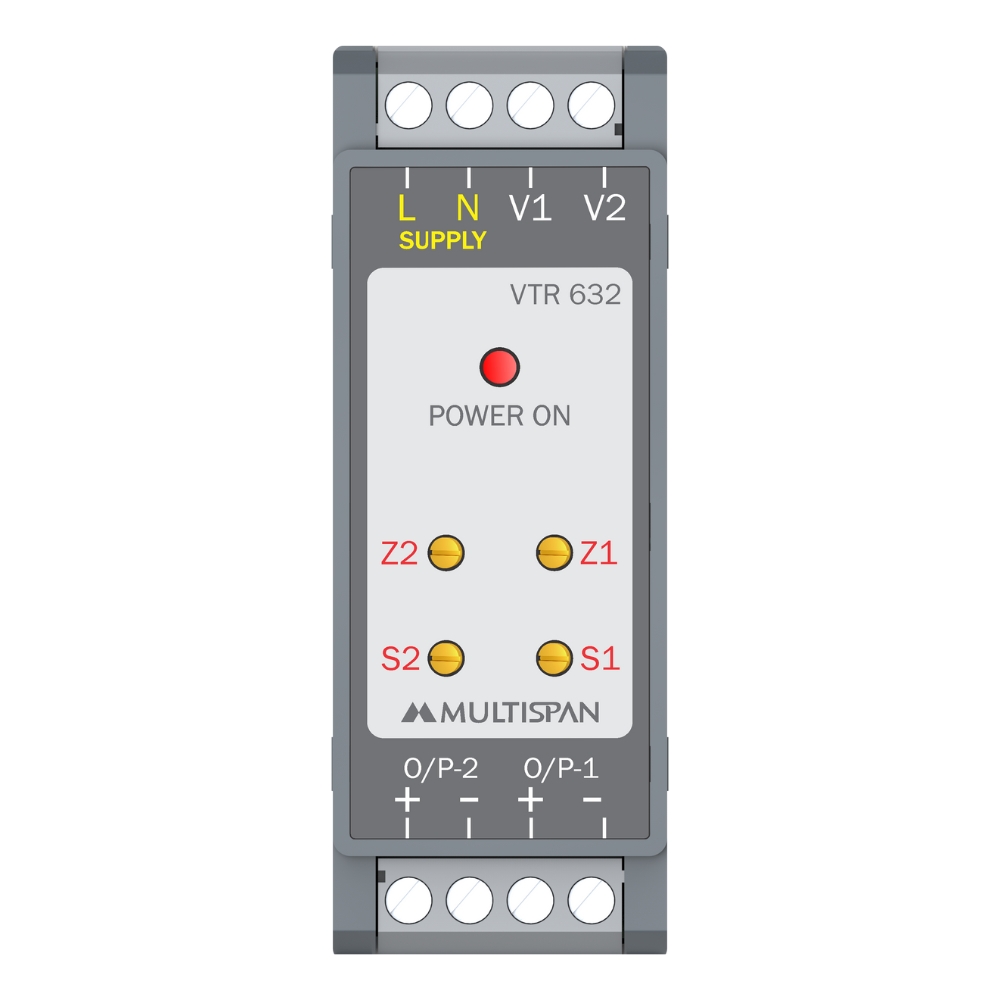

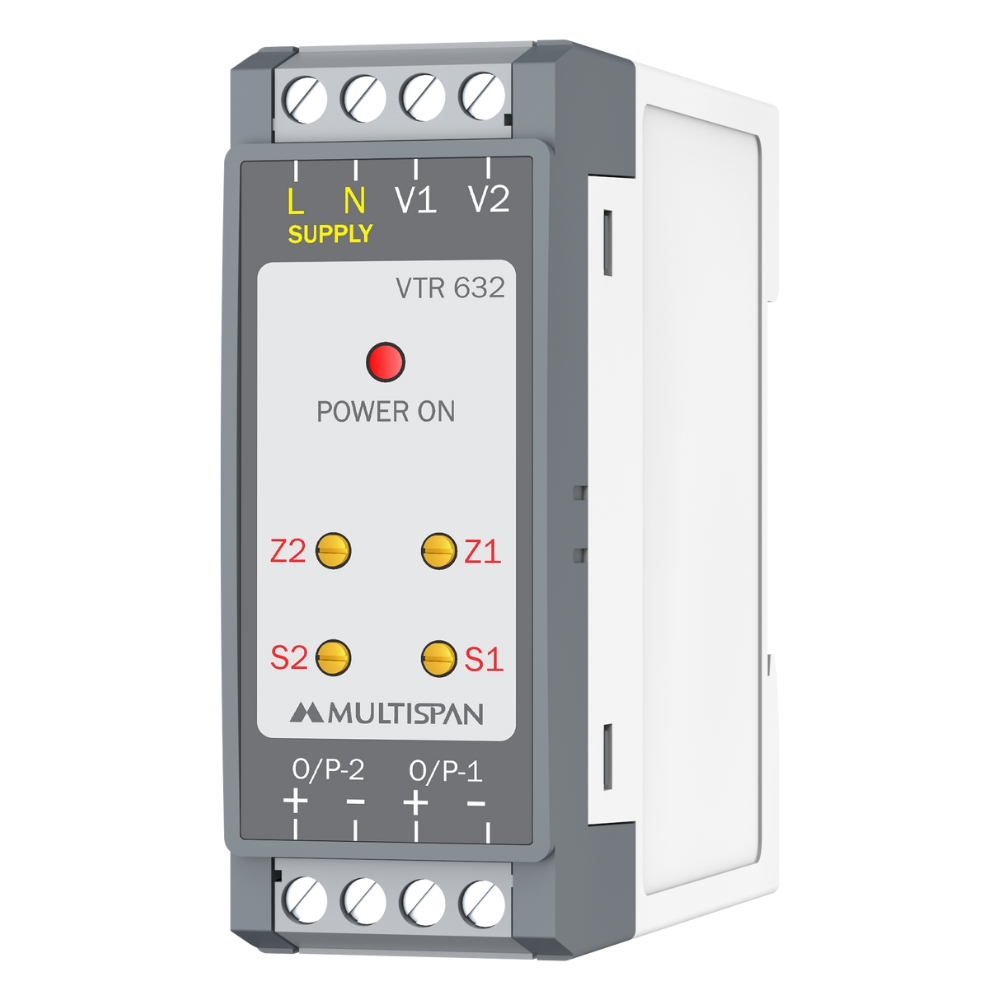

Voltage Transducer

Product: VTR-632

  • Fix AC Voltage Input with Fix Analog Output
  • Available in Single and Dual Output with Higher Noise Rejection Ratio
  • 3-Way Isolation Input-Output, Input-Supply, Output-Supply
  • Size: (H)76mm x (W)28mm x (D)85mm
  • Supply Voltage: 100-270V AC/24V DC

INPUT SPECIFICATION
Input AC Voltage
Input Inpedance >100KΩ
CMRR >120dp (Typical)
Temperature Co-efficient <100 PPM
DIMENSION
Size (mm) 76 (H) X 28 (W) X 85 (D)
OUTPUT SPECIFICATION:
Output  0 to 20mA DC, 4 to 20mA DC, 0 to 10V DC
Response Type <150ms
Output Inpedance >220Ω
POWER SUPPLY:
Auxiliary Voltage 100 TO 270V AC, 50/60Hz or 24V DC
Power Consumption
( VA Rating )
3 VA
ISOLATION:
Isolation Type Optical - 3 way
Isolation between
supply, input & Output
At least 1.5KV AC for 1 min
