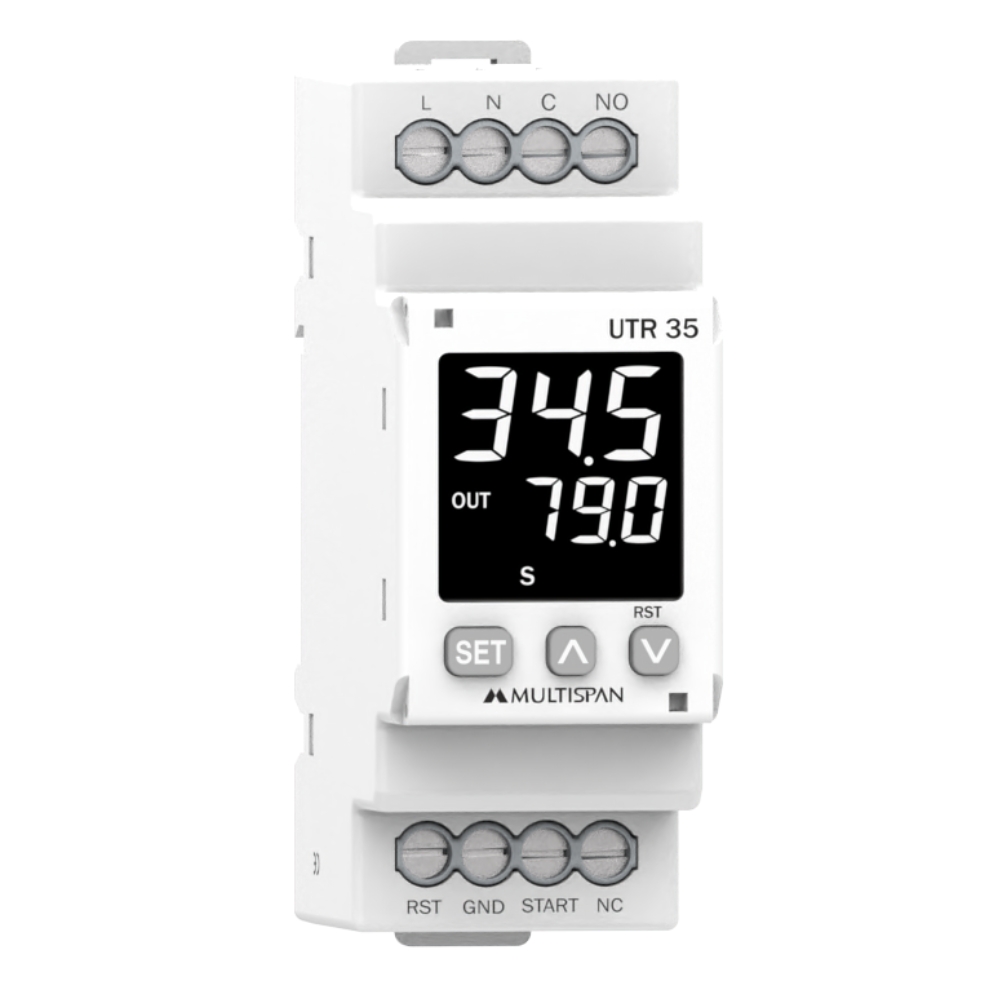

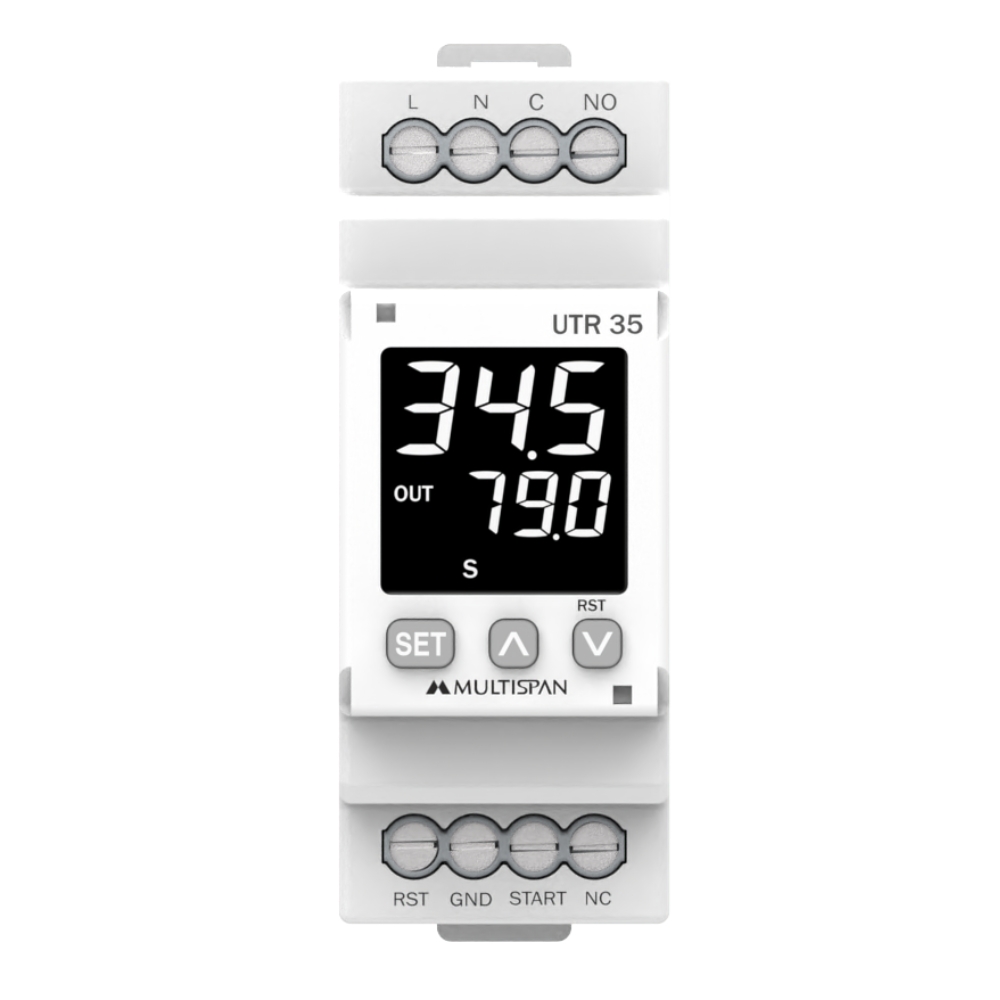

Universal Timer Relay
Product: UTR-35
- Bright 3+3 Display in Din Rail Mount
- Time Range:- 0.01 Sec. to 999 Hrs
- Operating Mode :- Cyclic (On / Off timer ), Delay (On / Off timer )
- 1-Relay, 1-C/O
- With Front Key and Terminal Reset
| INPUT SPECIFICATION | |
| Input (Start Pulse) | Start / Rst Micro switch |
| Micro Switch | |
| Time Range | Sec (9.99/99.9/999) |
| Min (9.59/99.9/999) | |
| Hour (9.59/99.9/999) | |
| DISPLAY AND KEY : | |
| Display | Upper: 3 digit, 7 segment, 0.4” |
| Lower: 3 digit, 7 segment, 0.28” | |
| Keys | SET , UP, DOWN/RST |
| DIMENSION : | |
| Dimension (mm) | 90 (H) x 35 (W) x 61.5 (D) |
| GENERAL SPECIFICATION: | |
| Operating Mode | Cyclic On Timer |
| Cyclic Off Timer | |
| Delay On Timer | |
| Delay Off Timer | |
| Counting Direction | |
| UP/ DOWN | |
| Reset Option | Front Panel Reset |
| Terminal Reset | |
| OUTPUT SPECIFICATION | |
| Relay | 1Relay 1 C/O |
| Rating | 5A, 230V AC |
| AUXILIARY SUPPLY | |
| Supply voltage | 100 to 270V AC, 50-60Hz |
| Power consumption (VA RATING) |
Approx 4 VA @ 230V AC MAX |
| ENVIRONMENT CONDITION | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH |
| (non-condensing) | |
- Control & Relay Panel
- Energy Management System
- DG Set Panels
- LT / HT Panel
- Power Control Center Panels
- Motor Control Center Panels
