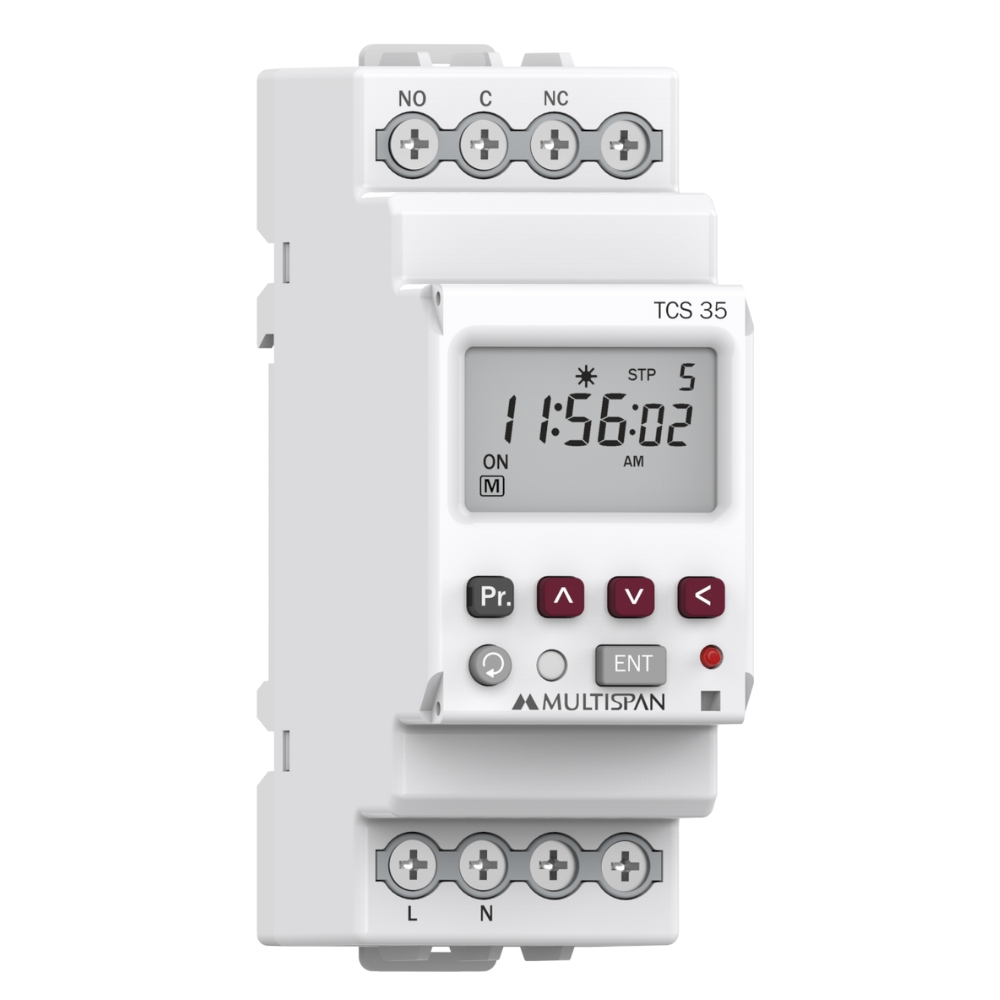

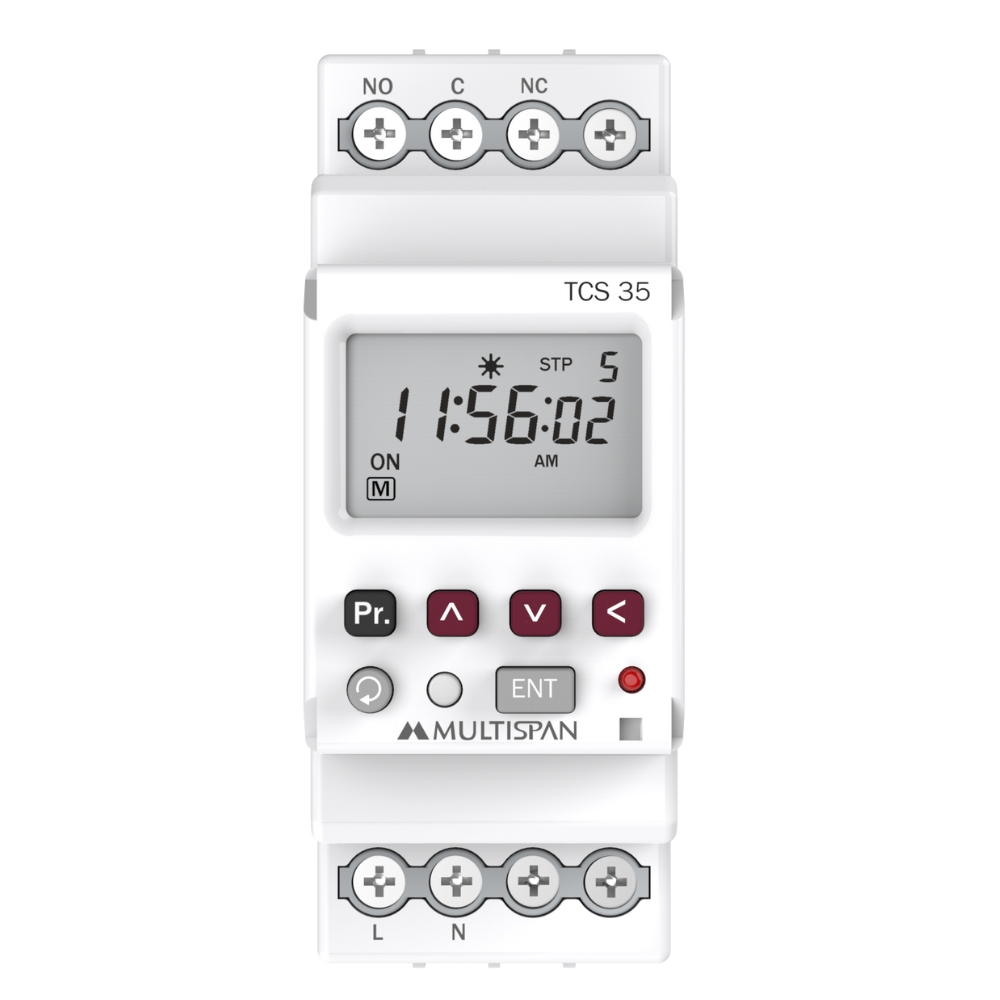

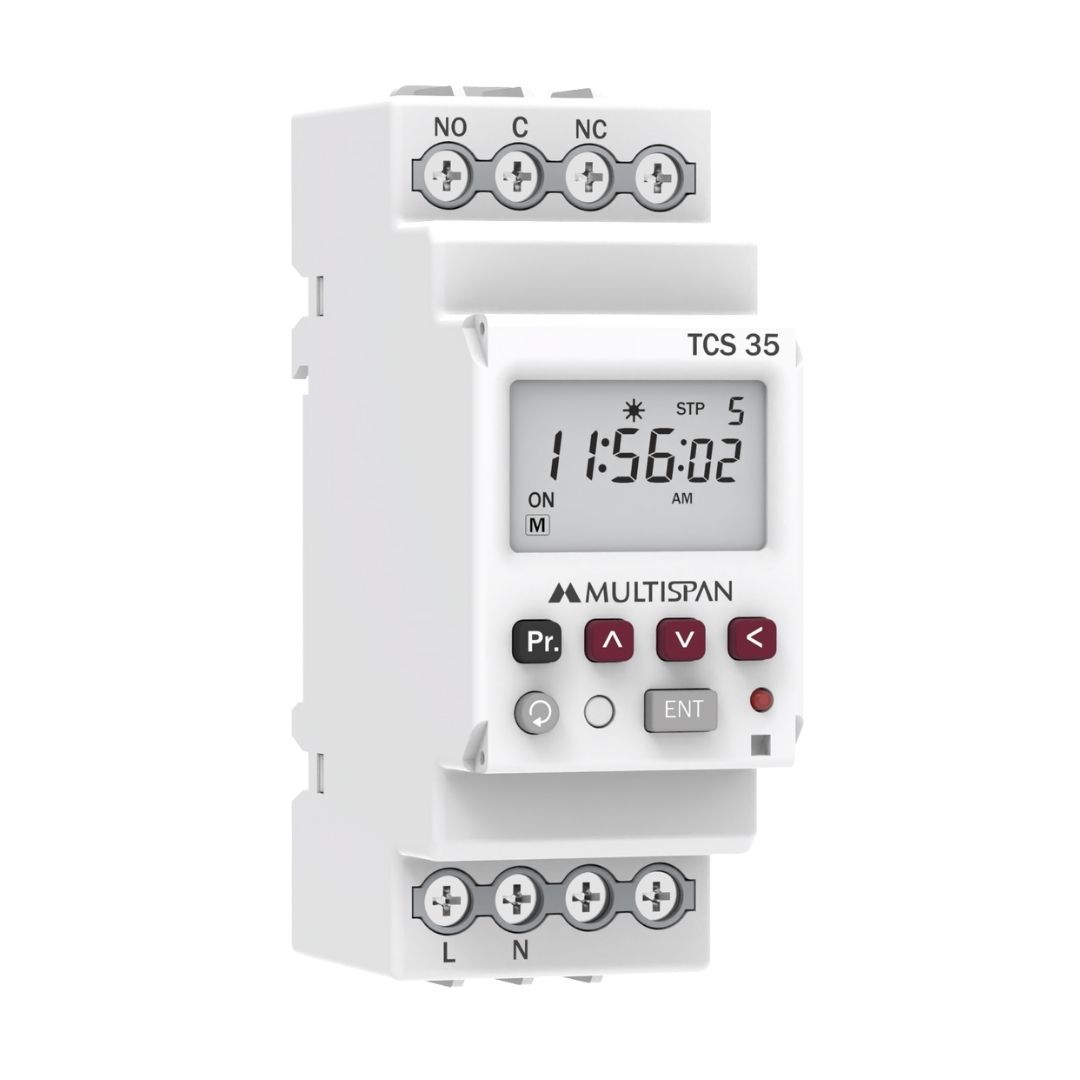

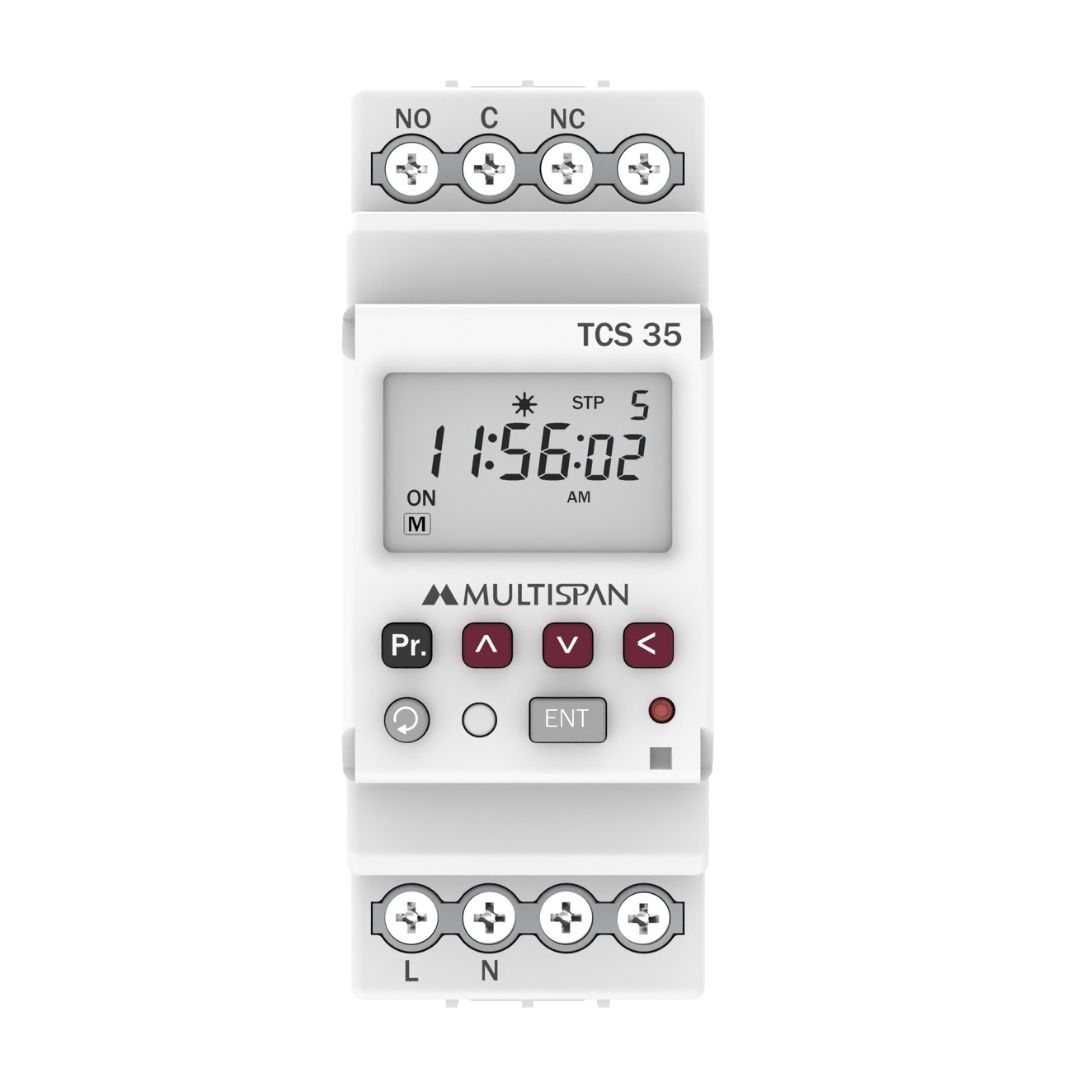

Time Control Switch
Product: TCS-35
- Total 50 On Steps And 50 Off Steps
- Sets holidays without having to revise the existing program. Can be set 0 to 24 dates max.
- Range Hour/Minute/Second
- Reset by Front Keypad
- With battery backup for RTC
| INPUT SPECIFICATION: | |
| Voltage | 230 AC ± 10% |
| Frequency | |
| 50 Hz to 60 Hz | |
| DISPLAY AND KEYS | |
| Display | Lower: 3-Digit, 7-Segment, 0.40” |
| Keys | PRG, SHIFT, UP, DOWN, ENT, ESC, RST |
| GENERAL SPECIFICATION: | |
| Dimension (mm) | 90 (H) x 35 (W) x 62 (D) mm |
| Weekly Program | For Relay 1 Total 50 On Steps And 50 Off Steps |
| Holiday Setting | 24 Date Maximum |
| Clock | 12 Hr (AM / PM) And 24 Hr Selection |
| OUTPUT SPECIFICATION: | |
| Relay Output | |
| Relay | 1 nos. |
| Relay Type | 1 C/O (NO-C-NC) |
| Rating | 16A, 230V AC Resistive Load 24V DC |
| ENVIRONMENT CONDITION: | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH (non-condensing) |
- Home Automation
- Commercial Buildings
- Irrigation Systems:
- Security Systems:
- Public Utilities
