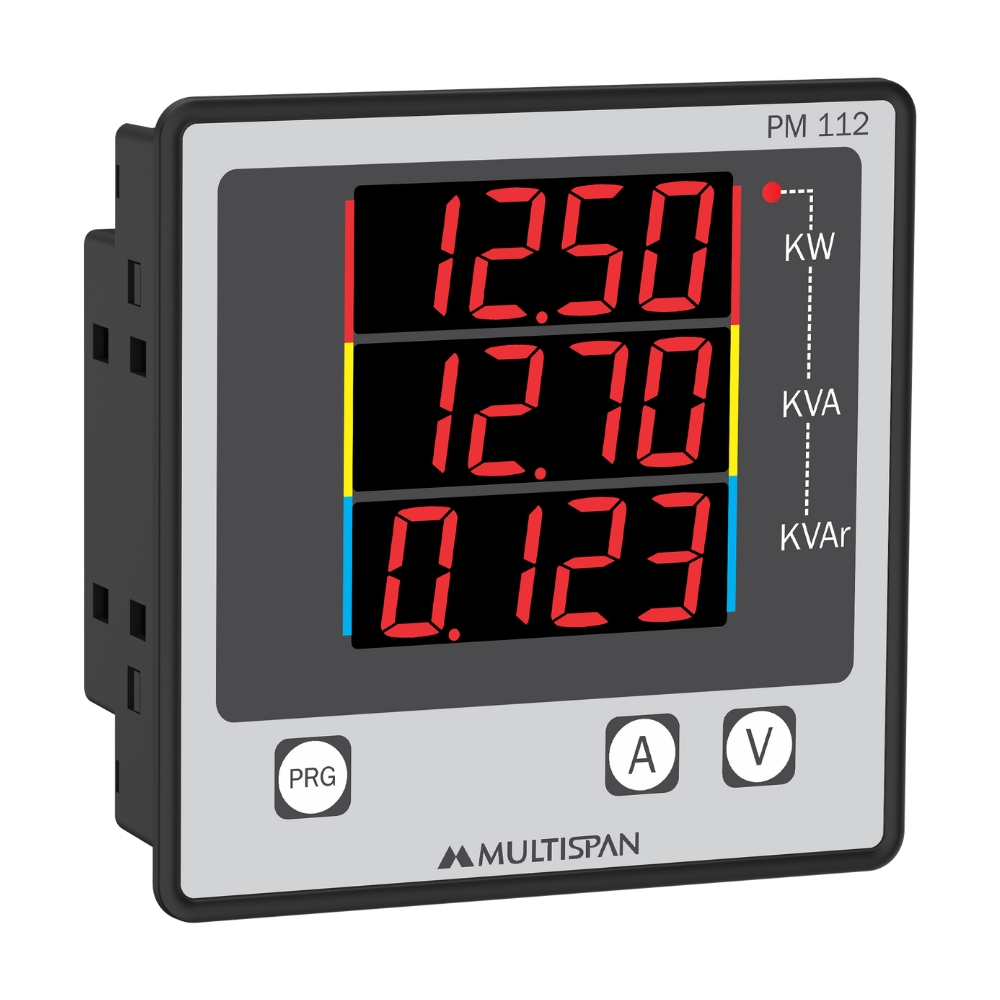

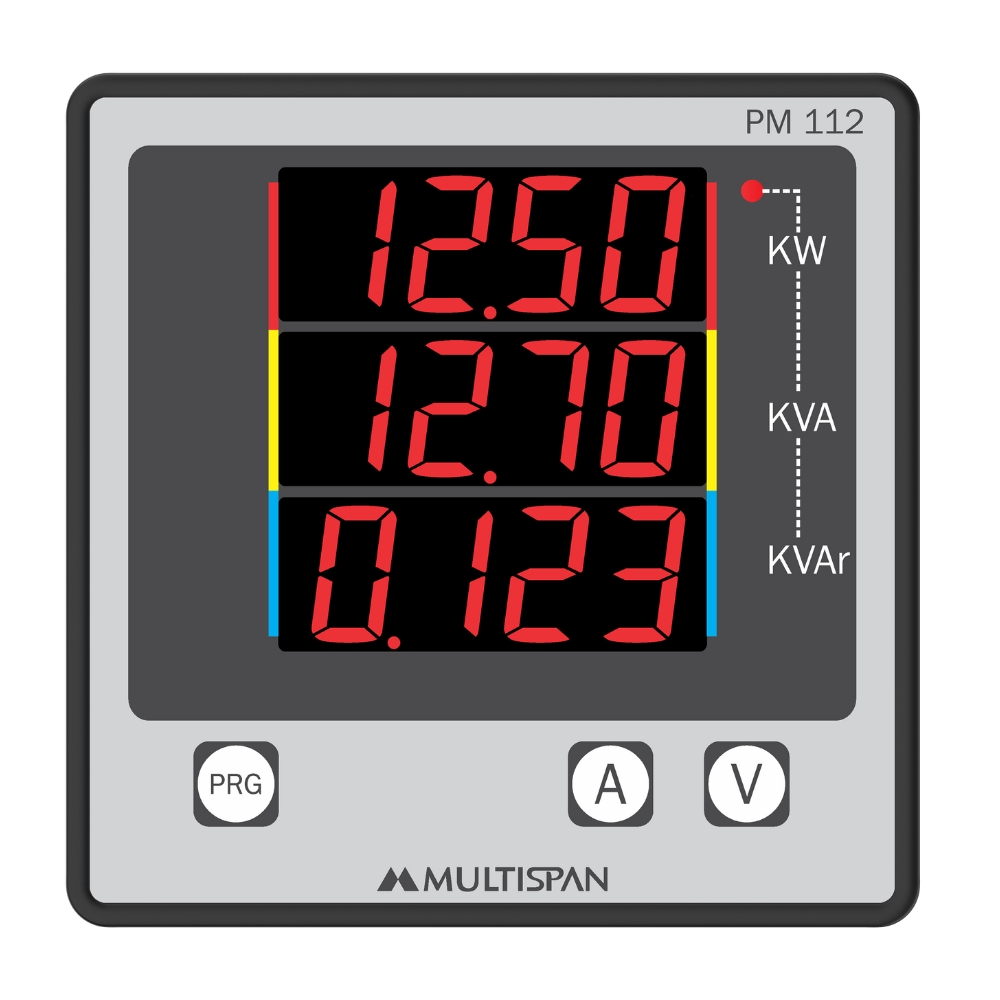

Three Phase Power Analyzer - PM-112 regular image Three Phase Power Analyzer - PM-112 front image Three Phase Power Analyzer - PM-112 side image

Three Phase Power Analyzer

Product: PM-112

  • Network Selection: 3Ø-4W
  • 4+4+4 Digit, 7-Segment RED LED Display
  • Additional Features: Power Factor and Kilo-Watt Display with Indication
  • 173-467V AC (L-L), 100-270V AC (L-N)
  • Size: (H)96mm X (W)96mm X (D)43mm
  • Self-Powered

INPUT
Input Signal 3Ø 4 Wire
CT Primary UP to 9999A (Programmable)
System PF 0.100 - 1.000
Frequency 45.0 to 65.0 Hz
DISPLAY, KEY & LED
Display 4 Digit , 3 Line 7 Seg.
0.56”Red LED

Key PRG , Amp, Volt
DIMENSION
Size (mm) 96 (H) x 96 (W) x 43 (D) mm
Panel Cutout 92 (H) x 92 (W) mm
ACCURACY
Class 0.5 (Standard)
POWER SUPPLY
Self Powered 100 to 270V AC (VL1 & N)
Burden 3VA
POWER
kW Total 0.000 - 9999 kW
kVA Total 0.000 - 9999 kVA
kVAr Total 0.000 - 9999 kVAr
ENVIRONMENTAL CONDITION
Working Temperature 0 to 55°C
Storage Temperature 0 to 55°C
Relative Humidity 95 % RH Non-Condensing
Protection Level
( As per Request )
IP-65 (Front side As per
IS/IEC 60529 : 2001)

Weight (Approx) gms :
Unpacked 187
Packed 236

  • Control & Relay Panel
  • Energy Management System
  • DG Set Panels
  • LT Panel
  • Power Control Center Panels
  • Motor Control Center Panels
