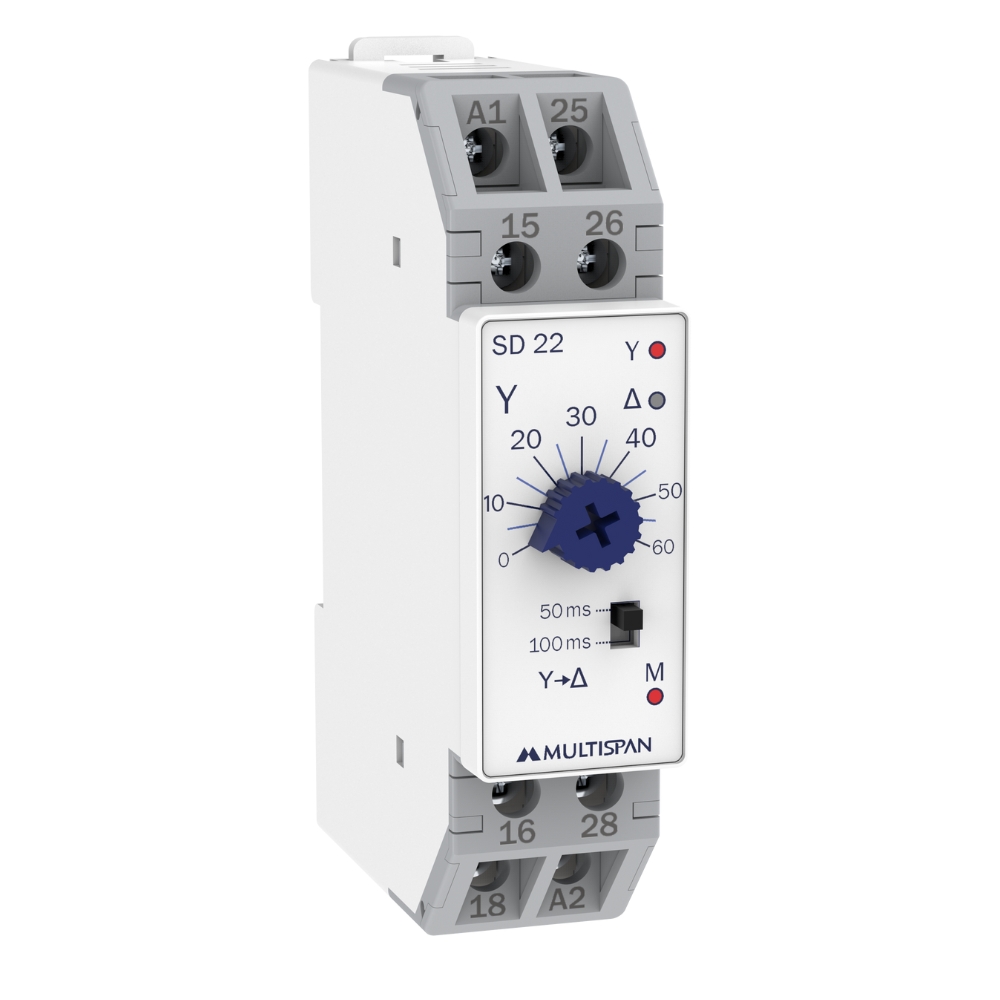

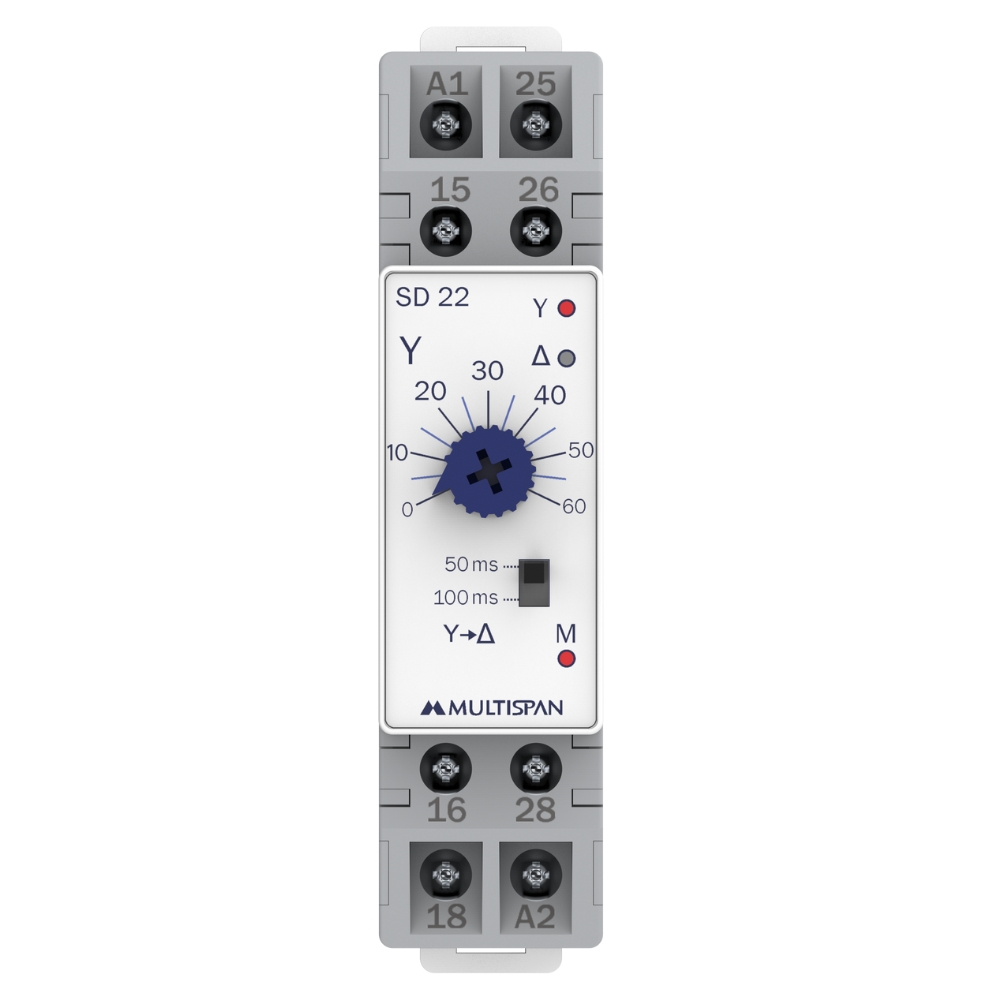

Star Delta Timers
Product: SD-22
- 0 Sec to 60Sec
- Pause Time Selection 50mSec and 100mSec
- Size: (H)90mm x (W)22.5mm x (D)72mm
- Supply Voltage: 230V AC
Top Variants:
| Parameter | Specification |
|---|---|
| Power Supply |
230 V AC ±20%, 50 Hz |
| Output | 2-Relay O/P (1-C/O, 5A 230 VAC Resistive Load) - 1st Relay for Star Connection & 2nd Relay for Delta Connection |
| Time Range | 0 to 60 sec |
| Pause Time | 50 ms or 100 ms selection by front key |
Product Variant
| Model | Description | Supply |
| SD-22-B1-00 | Range: 0 to 60 Sec Output: 2 Relay |
230V AC |
| SD-224-E1-00 | 415V AC | |
| SD-221-00 | 110V AC |
