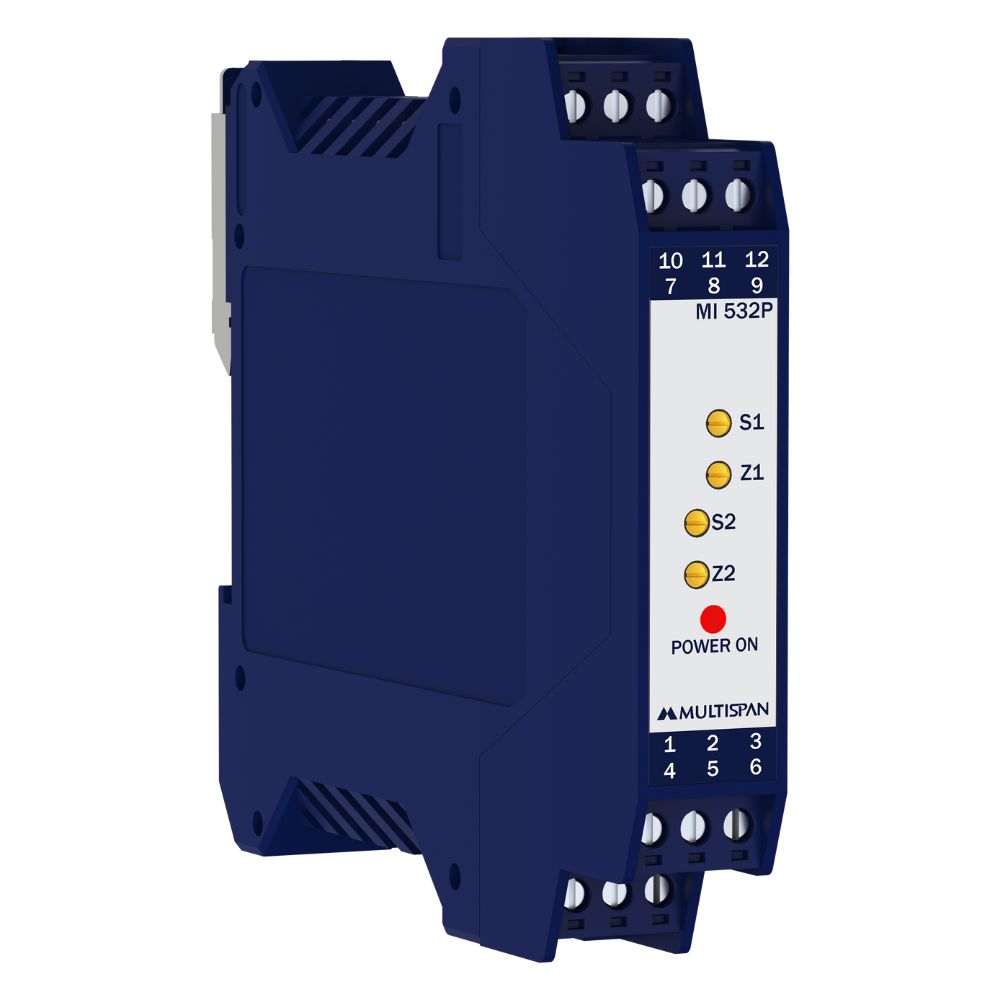

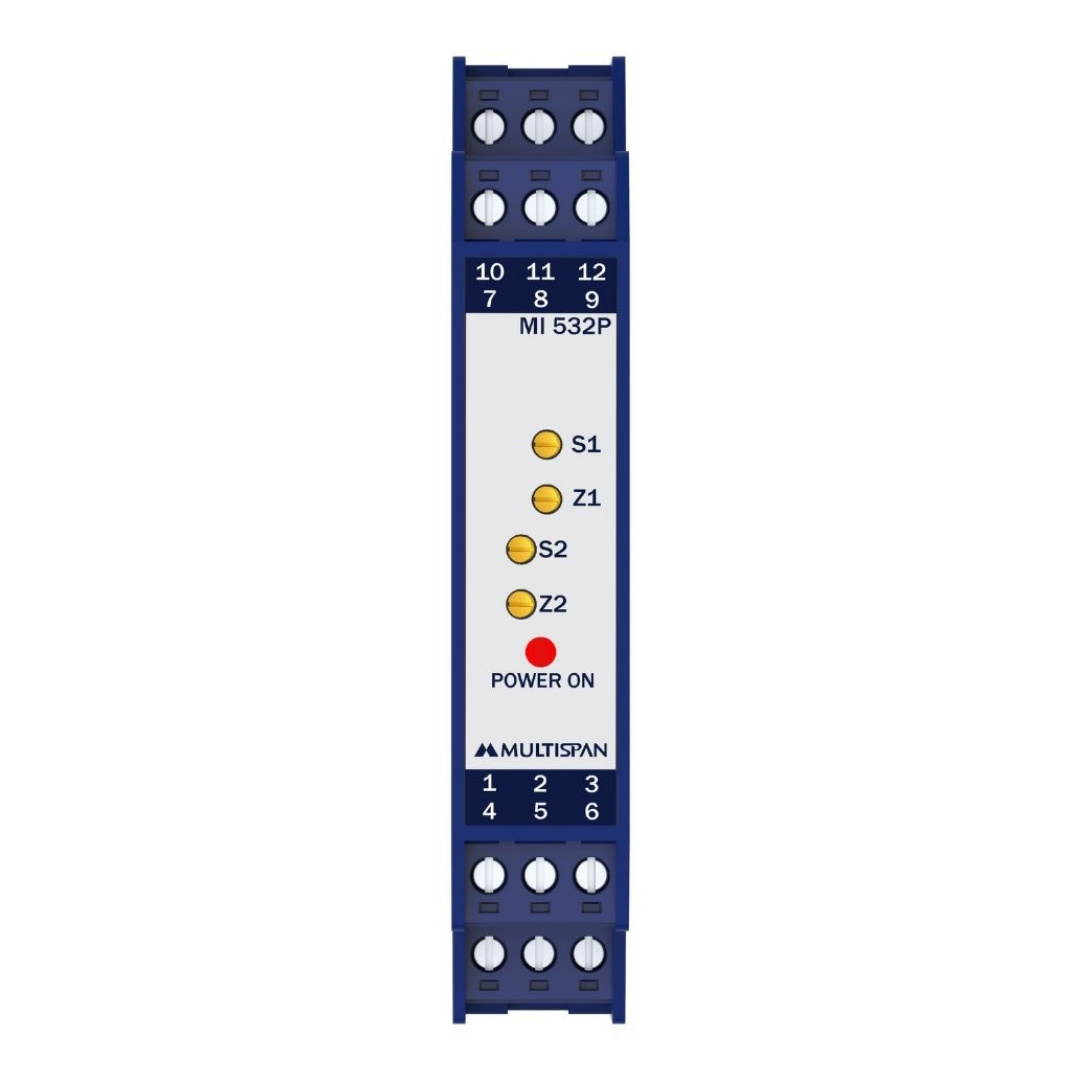

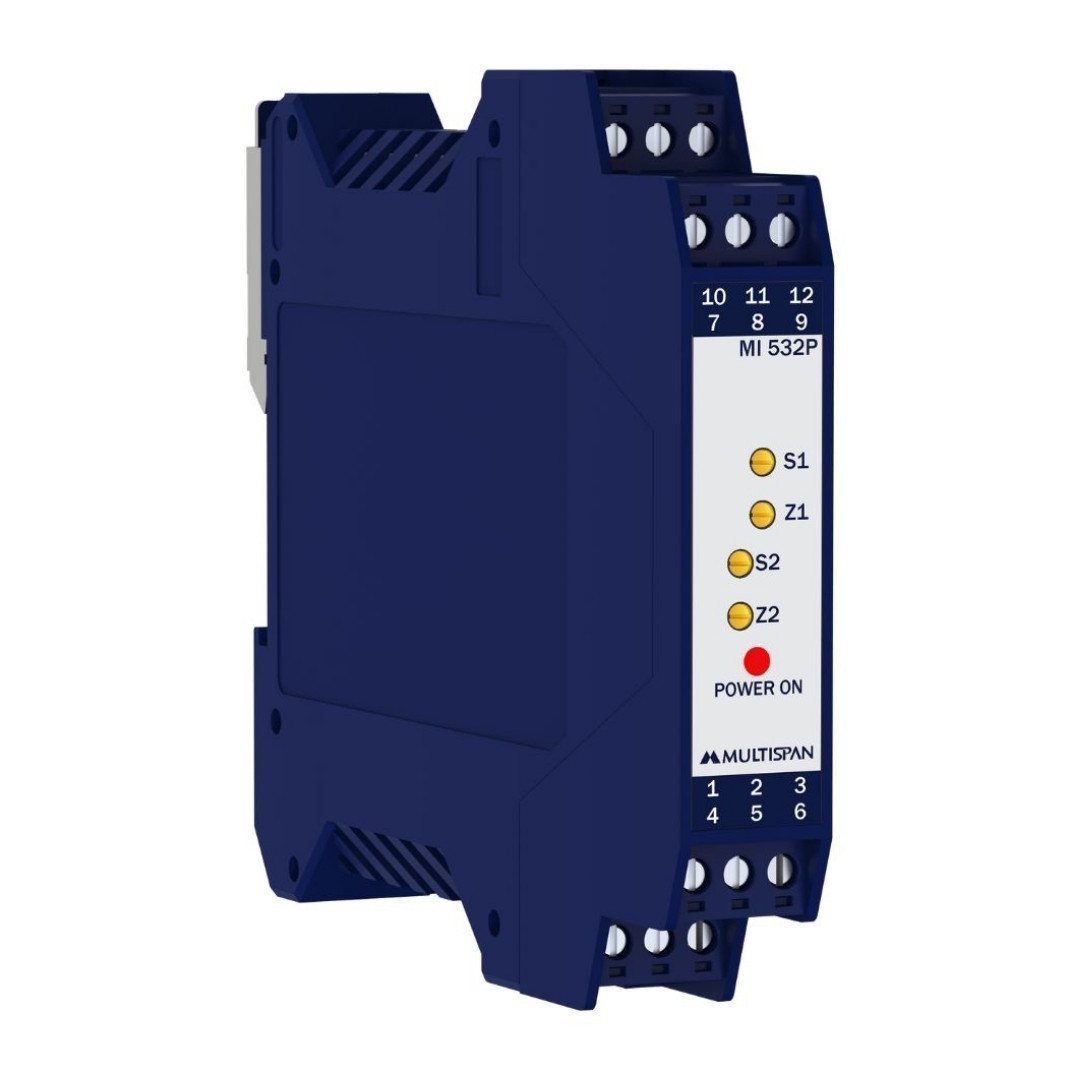

Signal Isolator-Temperature Input
Product: MI-532P
- RTD Input
- Available in Single and Dual Output with Higher Noise Rejection Ratio
- 3-Way Isolation Input-Output, Input-Supply, Output-Supply
- Size: (H)100mm X (W)17.5mm X (D)115mm
- Supply Voltage: 100-270V AC/24V DC
| INPUT SPECIFICATION | |
| Input | PT-100/3W |
| Input Range | 0 to 400 °C |
| CMRR | >120dp (Typical) |
| Temperature Co-efficient | <100 PPM |
| DIMENSION | |
| Size (mm) | 100 (H) X 17.5 (W) X 115 (D) |
| OUTPUT SPECIFICATION: | |
| Output 1 & 2 | 4 to 20mA DC, 4 to 20mA DC, 0 to 10V DC (Factory Set) |
| Response Type | <150ms |
| Output Inpedance | <500Ω |
| POWER SUPPLY | |
| Auxiliary Voltage | 100 to 270V AC or 24V DC (Factory Set) |
| Power Consumption ( VA Rating ) | 5VA |
| ISOLATION: | |
| Isolation Type | Optical - 3 way |
| Isolation between supply, input & Output |
At least 1.5KV AC for 1 min |
- Field Interface Device
- Impedance Matching of Transmitters and Receiver
- Isolation of Field Signals
- Distribution of Signals
- Factory Automation
- Powering of Field Transmitters
