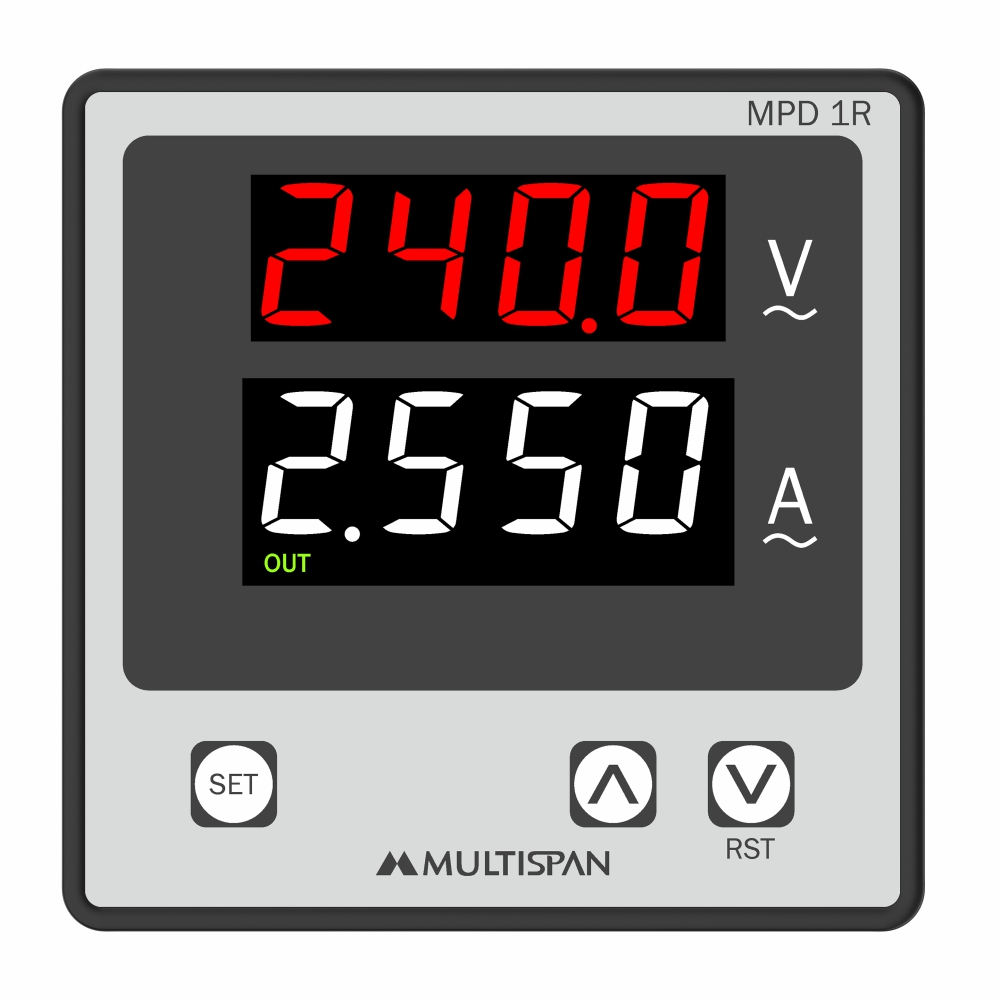

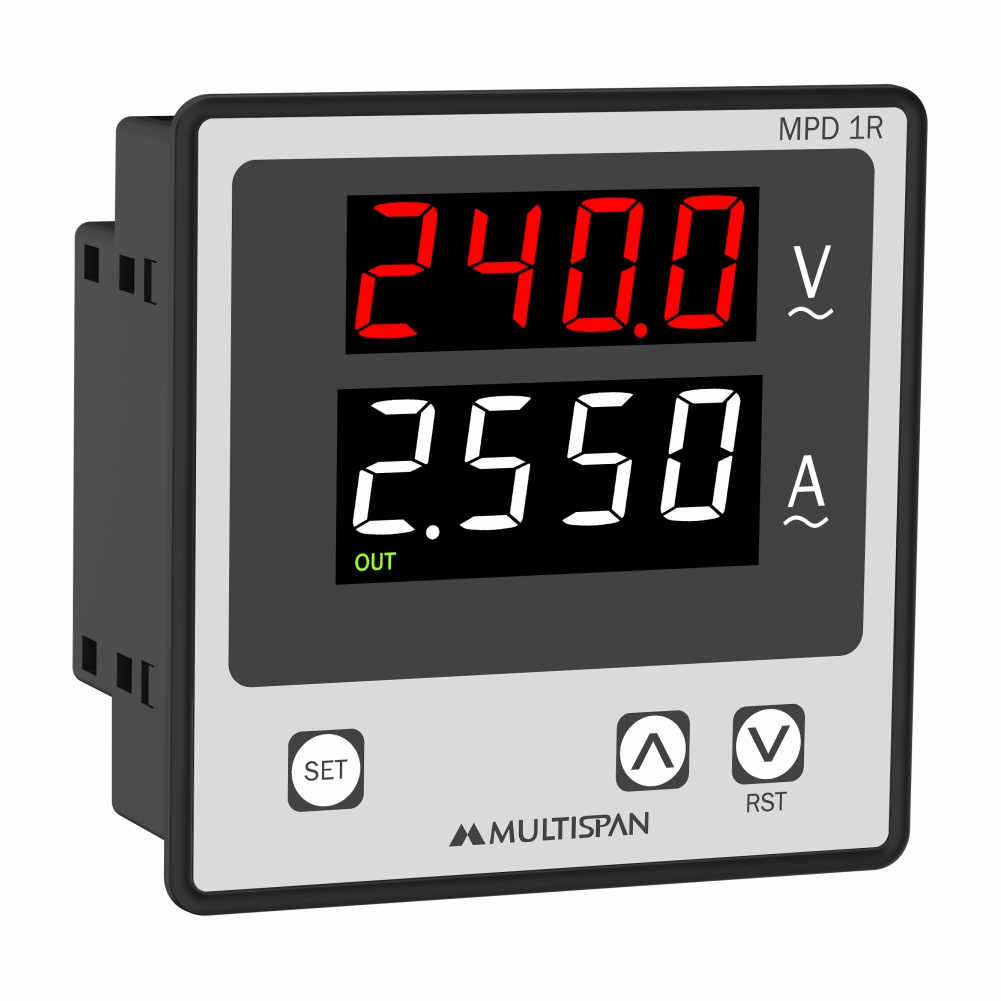

Protection Relay - MPD-1R
Product: MPD-1R
- User Selectable Trip Time
- Auto/Manual/ZVR Reset Function
- True RMS Measurement
- Direct Voltage AC : 20 to 500V AC
- Primary CT Ratio : 5 to 9999 Amp selectable
- Secondary Current AC : 0.05 to 5 Amp AC
- 1 Relay protection
- Size : 96 (H) X 96 (W) X 43 (D) mm
- Supply Voltage : 100 to 270V AC/DC, 50/60Hz
| INPUT: | |
| Voltage AC | |
| Direct Voltage AC | 20 to 500V AC |
| Burden | < 0.2VA |
| Current AC | |
| Primary CT Ratio | 5 to 9999 Amp selectable |
| Secondary Current AC | 0.05 to 5 Amp AC |
| Burden | < 0.2VA |
| Frequency | 45.0 to 65.0 Hz |
| DISPLAY AND KEYS: | |
| Display | 4 Digit, 2 Line 7 Seg 0.56”, RED LED & White LED |
| Keys | SET, INC, DEC(RST) |
| DIMENSION: | |
| Size (mm) | 96 (H) X 96 (W) X 43 (D) mm |
| Panel Cutout (mm) | 92 (H) X 92 (W) mm |
| Network Selection | 1 Phase - 2 Wire |
| TRIP SETTING: | |
| Under Current | 0.00 to CTR |
| Over Current | 0.00 to CTR |
| Under Voltage | 0 to 500V AC |
| Over Voltage | 0 to 500V AC |
| TIME PARAMETER: | |
| Power On Delay | 0 to 99 Sec |
| Initial Time Delay | 0 to 99 Sec |
| Trip Delay Time(Voltage, Current) | 0 to 999 Sec |
| Recovery Time | 0 to 99 Sec |
| OUTPUT SPECIFICATION: | |
| Relay | 1 Nos |
| Relay Type | ( NO - C - NC ) |
| Rating | 5 Amp, 250V AC |
| AUXILIARY SUPPLY: | |
| Supply Voltage | 100 to 270V AC/DC, 50/60Hz |
| Power Consumption | 3VA @ 230 AC MAX |
| ENVIRONMENTAL CONDITION: | |
| Working Temperature | 0 to 55°C |
| Storage Temperature | 0 to 55°C |
| Relative Humidity | 95 % RH Non-Condensing |
| Protection Level (As Per request) | IP-65 (Front side As per IS/IEC 60529 : 2001) |
