LPS24-10A SMPS | 24VDC 10A Industrial Power Supply

LOADING IMAGES

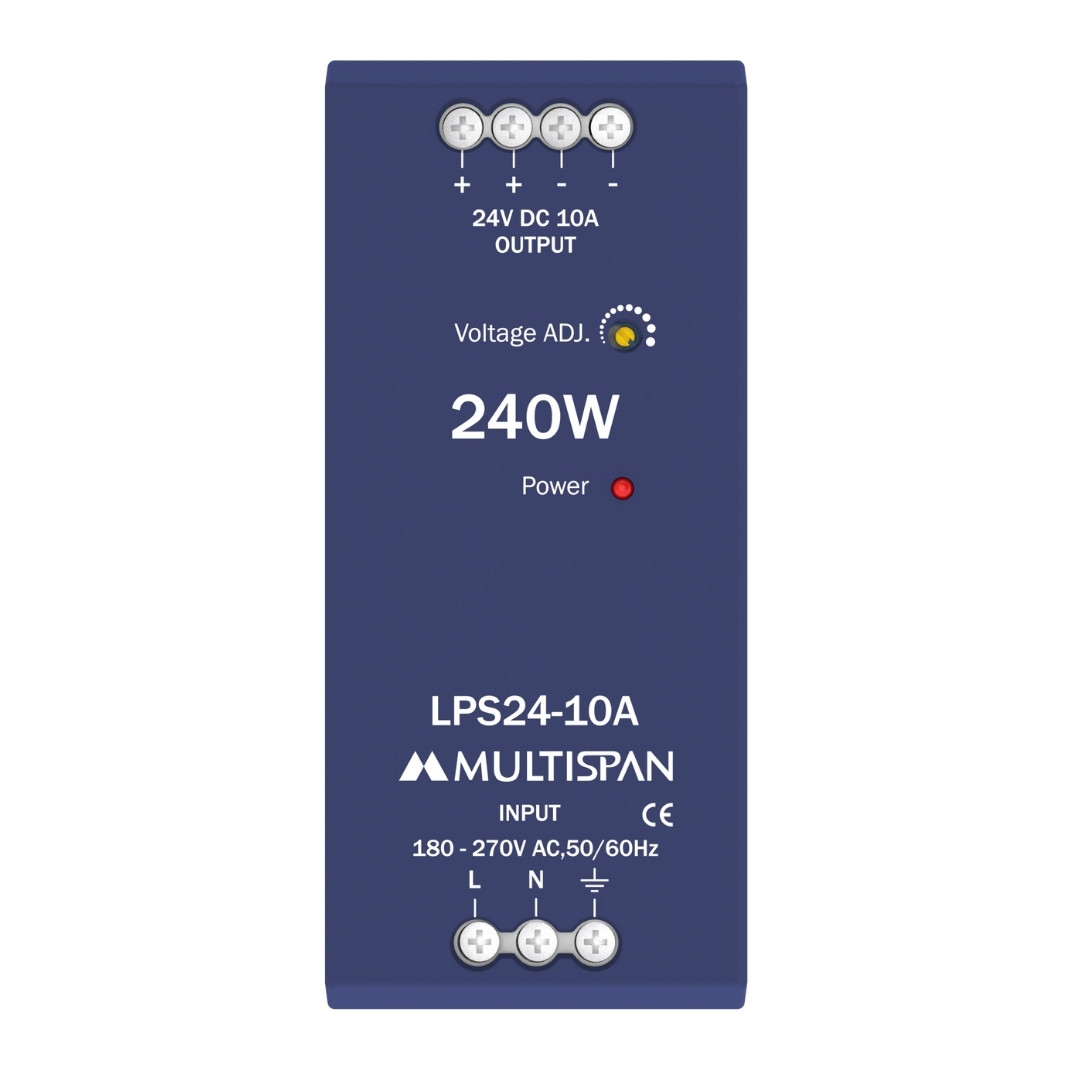

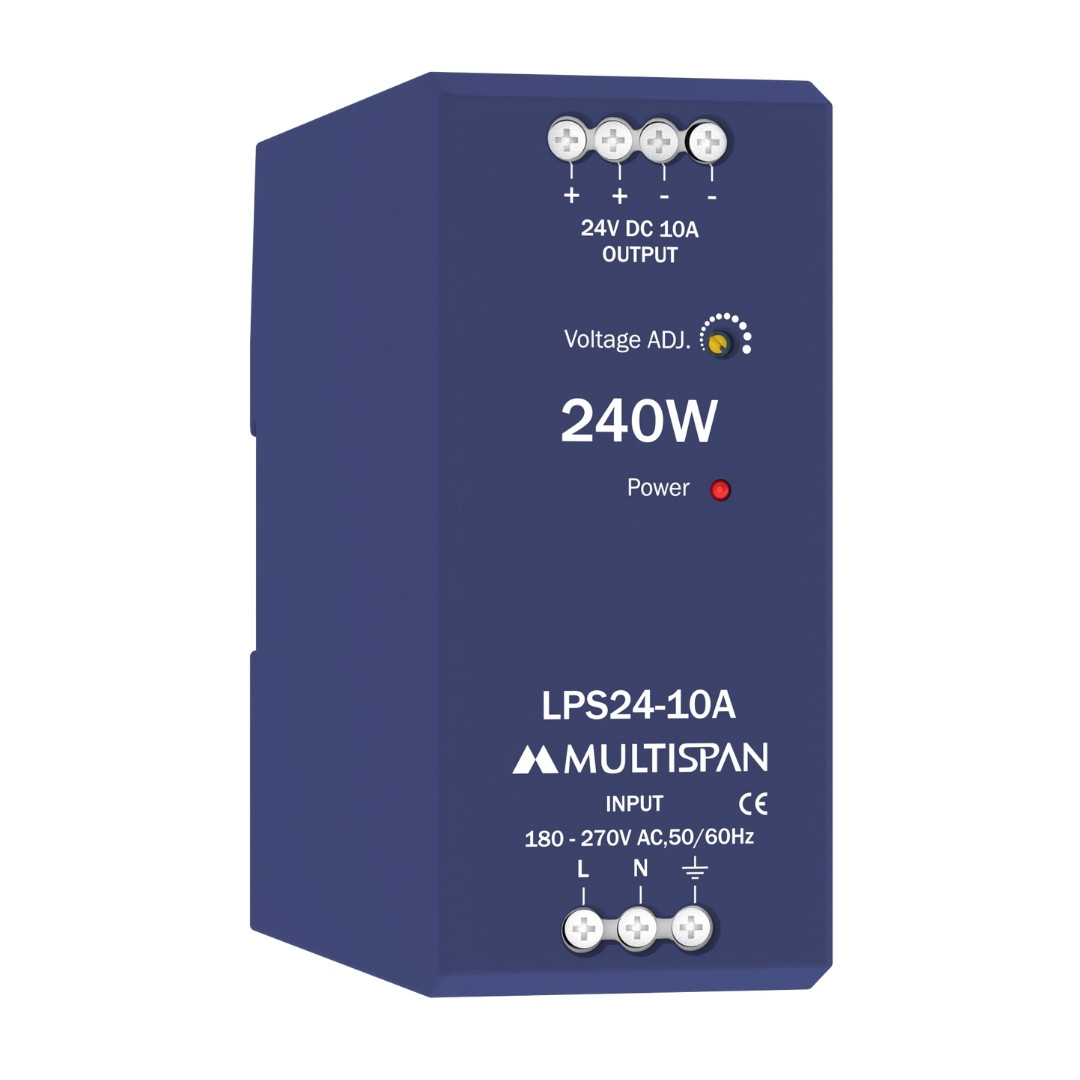

Product: LPS24-10A

Power 240W
Input Voltage : 180-270V AC / 250 to 370V DC
Output Voltage : 24V DC
Efficiency Up to 87% @230V AC
Protection Parameter : Output Overload, Output Over Voltage , Output short circuit, Over Temperature

Input Specification :
Supply Voltage	180 to 270V AC (L-N) 250 to 370V DC
Frequency Range	50 / 60Hz
Power Factor	> 0.95 @ Full Load
Current Consumption	2.5A@180V AC 1.9A@230V AC
Efficiency (TYP.)	Up to 87%@230VAC
Start UP time	<2 sec@230V AC (Full Load)
Output Specification :
Nominal DC Voltage	24V DC
Output Voltage	24-28V DC
Output Current	0 - 10A
Ripple & noise	<1% of V out
Line Regulation	±1%
Load Regulation	±1%
Hold UP Time	>30ms at 24 V @ 230V AC (Full Load)
LED Indication
LED 1	Power On
Protection Parameters:
Input Fuse	4A-250V AC Internal
Output Over Load	11A to 11.5A of Constant type down to 15V DC Output ; Hiccup mode for heavy overload; autorecovery
Output Short Circuit	Hiccup mode when output is shorted;Recovers automatically after fault condition is removed.
Output Over Voltage	SMPS Latches off if output voltage 31V DC ± 0.5V DC
Over Temperature	Power supply shuts down when the temperature goes above specified limit;
Over Temperature	Turns on automatically after temperature goes back to Normal operating conditions.
Isolation between Input and Output :	2.5 KV
Environmental
Working Temperature	-25°C to 50°C * De-rate output power at 3w/°C above +50°C Ambient
Storage Temperature	-40°C to 85°C
Relative Humidity	95% RH Non-condensing
Mechanical Characteristics
Mounting Type	Din Rail Mount
Size	125(H) x 55 (W) x 135 (D)
Material Body	Polycarbonate (PC)
Terminal Screw Size	M3
Screw Torque (N.m)	0.5
Wire Gauge (AWG)	28-12
