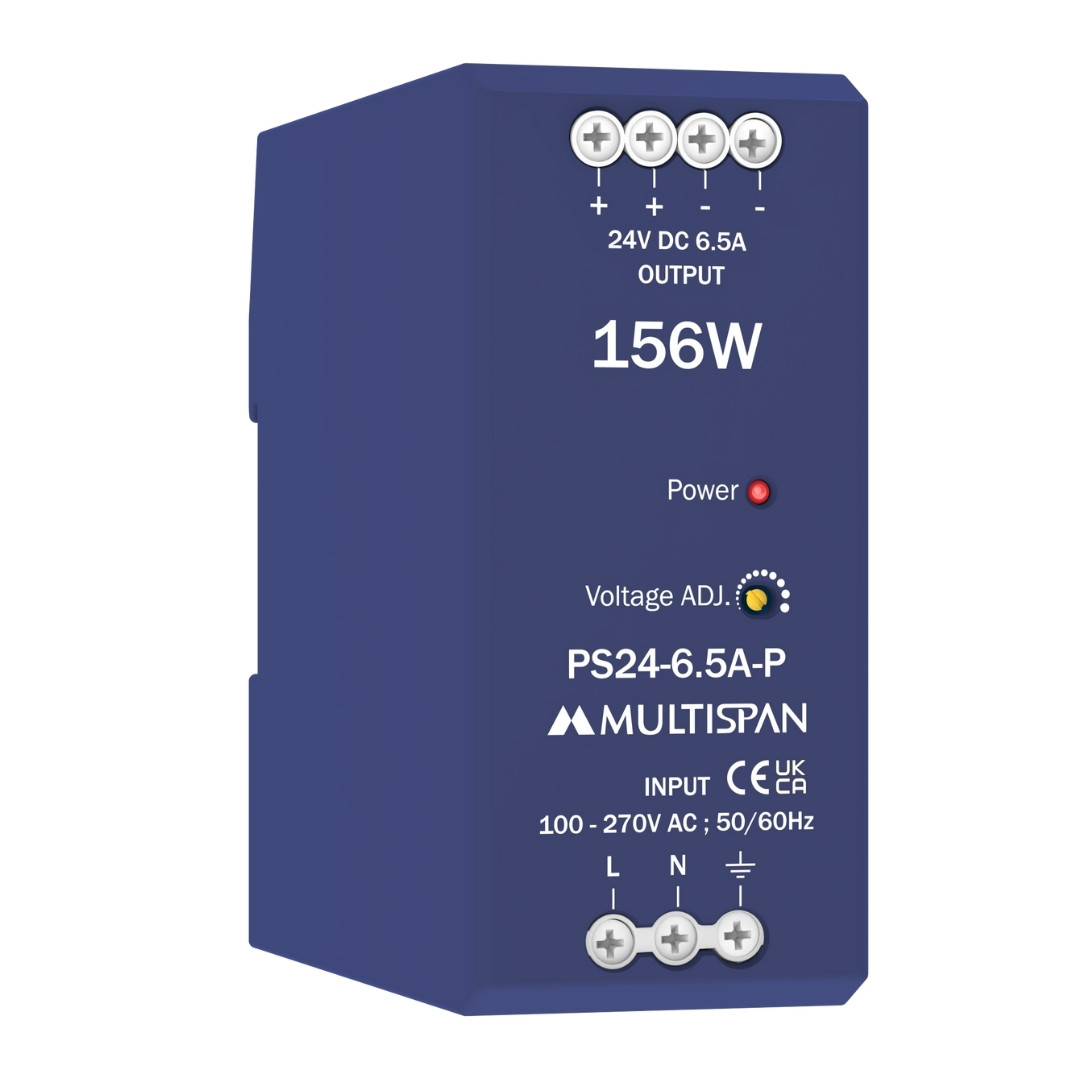

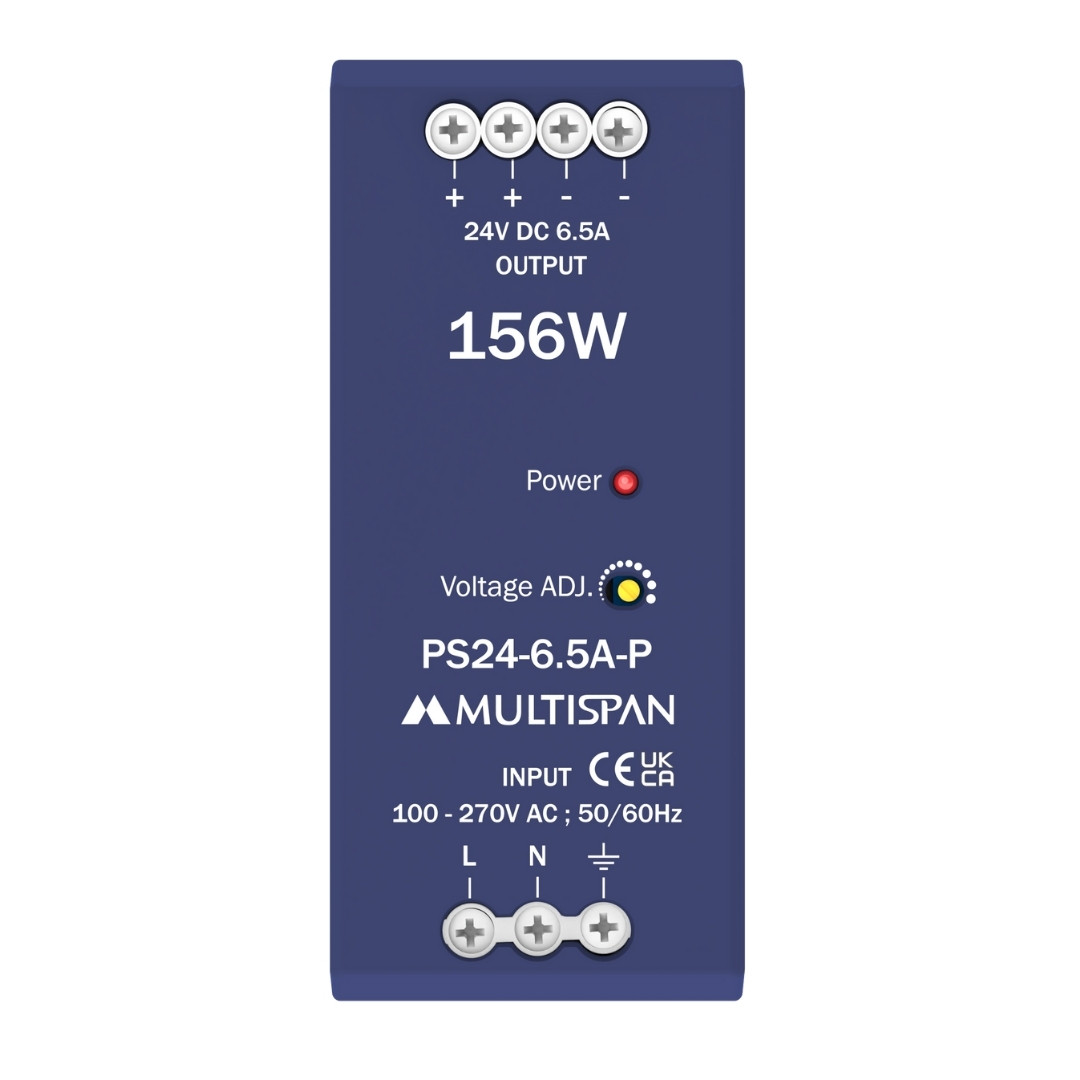

Product: PS24-6.5A-P (Plastic Body)

Power 156W
Input Voltage : 100-270V AC
Output Voltage : 24V DC
Efficiency <89%@230VAC
Material: Polycarbonate (PC)
Protection Parameter : Output Overload, Output Over Voltage , Output short circuit, Over Temperature

Input Specification :
Supply Voltage	100 to 270V AC±10%,(L-N) 127 to 350V DC
Frequency Range	50 / 60Hz
AC Current (TYP.)	2.9A@100V AC 1.2A@270V AC
Efficiency (TYP.)	<89%@230VAC
Start UP time	<1 sec@230V AC &
Start UP time	<3 sec@100VAC (Full Load)
Output Specification :
Output Voltage	24-28V DC
Output Current	6.5A at 24V; 5.57A at 28V
Ripple & noise	<1% of V out
Line & Load Regulation	±1%
Hold UP Time	<60ms at 230V AC &
Hold UP Time	>15ms at 100V AC (Full Load)
LED Indication
LED 1	Power On
Protection Parameters:
Input Fuse	5A-250V AC Internal
Output Over Load	110% to 120% of rated output Current protection Protection Type : hiccup mode; recover automatically after fault condition is removed
Output Short Circuit	Hiccup mode when output is shorted; Recovers automatically after fault condition is removed.
Output Over Voltage	SMPS Latches off if output voltage exceeds the specified output voltage limit.
Over Temperature	SMPS Latches off if the transformer temperature exceeds 120°C
Isolation between Input and Output :	2.5 KV
Mechanical Characteristics
Mounting Type	Din Rail Mount
Size	110 (H) x 48 (W) x 111 (D)
Material Body	Polycarbonate (PC)
Terminal Screw Size	M3
Screw Torque (N.m)	0.5
Wire Gauge (AWG)	28-12
