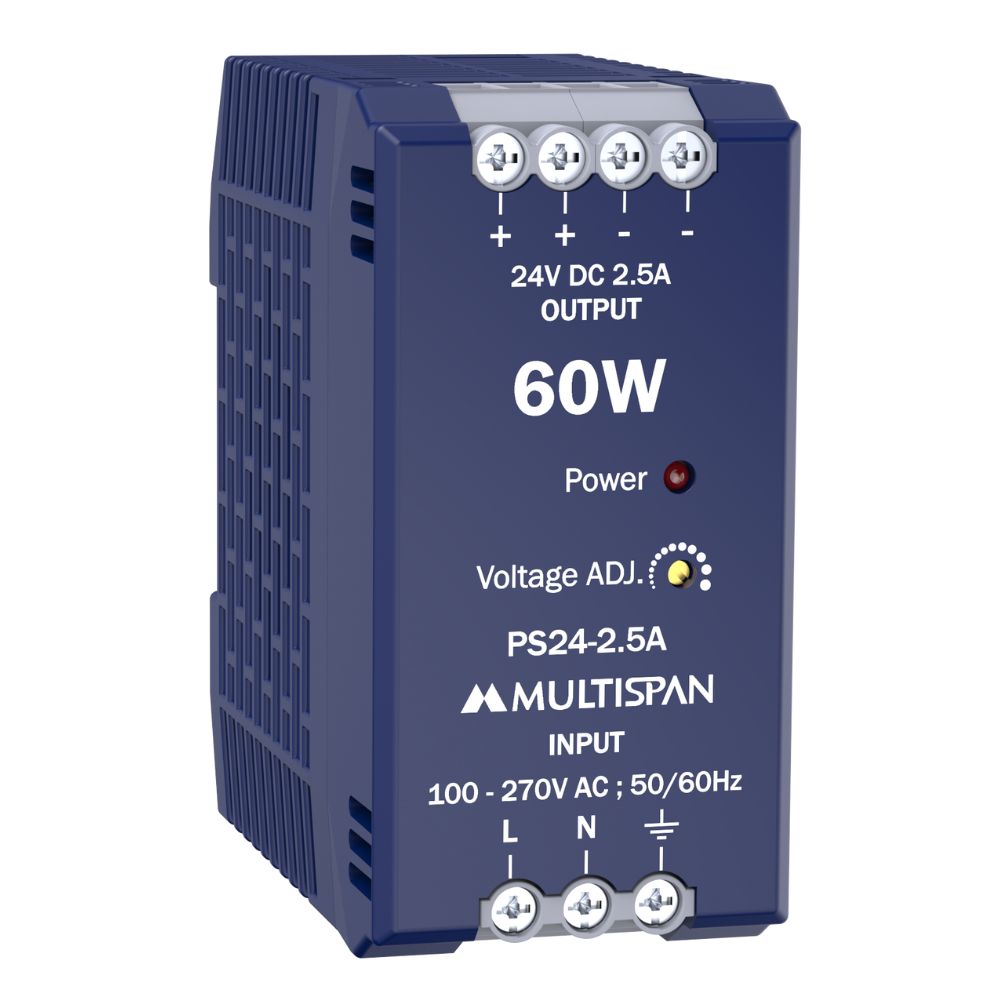

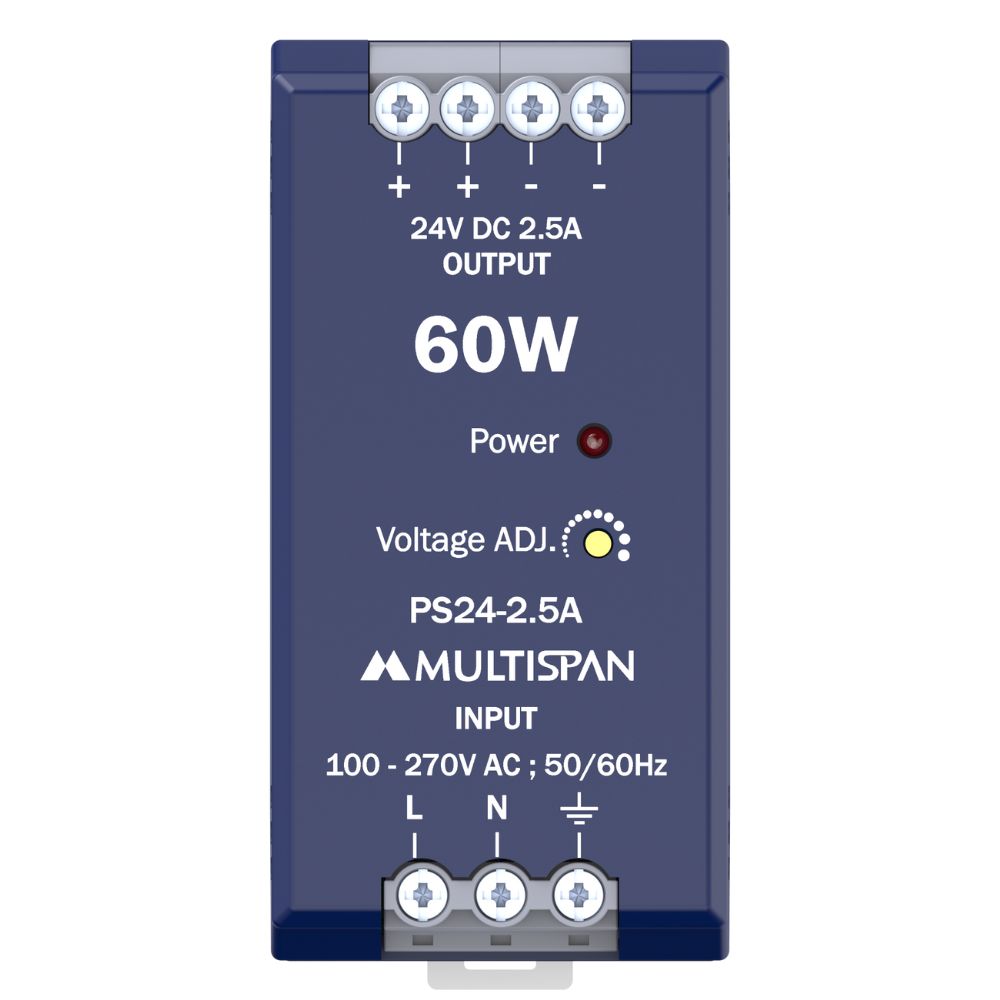

Product: PS24-2.5A

Power 60W
Input Voltage : 100-270V AC
Output Voltage : 24V DC
Efficiency : 89% @230V AC
Material: 24VDC (Polycarbonate) & 12VDC (Aluminium)
Protection parameter : Output Overload, OutputOver Voltage , Output short circuit, Over Temperature

Input Specification :
Supply Voltage	100 to 270V AC±10%,(L-N)
Frequency Range	50 / 60Hz
AC Current (TYP.)	0.930A@100V AC, 0.470A@270V AC
Efficiency (TYP.)	>89%@230V AC
Start UP time	<1 sec@230V AC &
Start UP time	<3 sec@100VAC (Full Load)
Output Specification :
Output Voltage	23 - 28V DC
Output Current	2.5A at 24; 2.1A at 28V
Ripple & noise	<1% of V out
Line & Load Regulation	±1%
Hold UP Time	<60ms at 230V AC &
Hold UP Time	>15ms at 100V AC (Full Load)
Protection Parameters:
Input Fuse	3.15A-250V AC Internal
Output Over Load	110% to 120% of rated output Current protection Protection Type : hiccup mode;recover automatically after fault condition is removed
Output Short Circuit	Hiccup mode when output is shorted;Recovers automatically after fault condition is removed.
Output Over Voltage	SMPS Latches off if output voltage Exceeds the specified output voltage Limits.
Over Temperature	Power supply shuts down when the temperature goes above specified limit;
Over Temperature	Turns on automatically after temperature goes back to Normal operating conditions.
Isolation between Input and Output :	2.5 KV
Physical :
Mounting Type	Din Rail Mount
Size	90 (H) x 45 (W) x 84 (D)
Material	Polycarbonate
