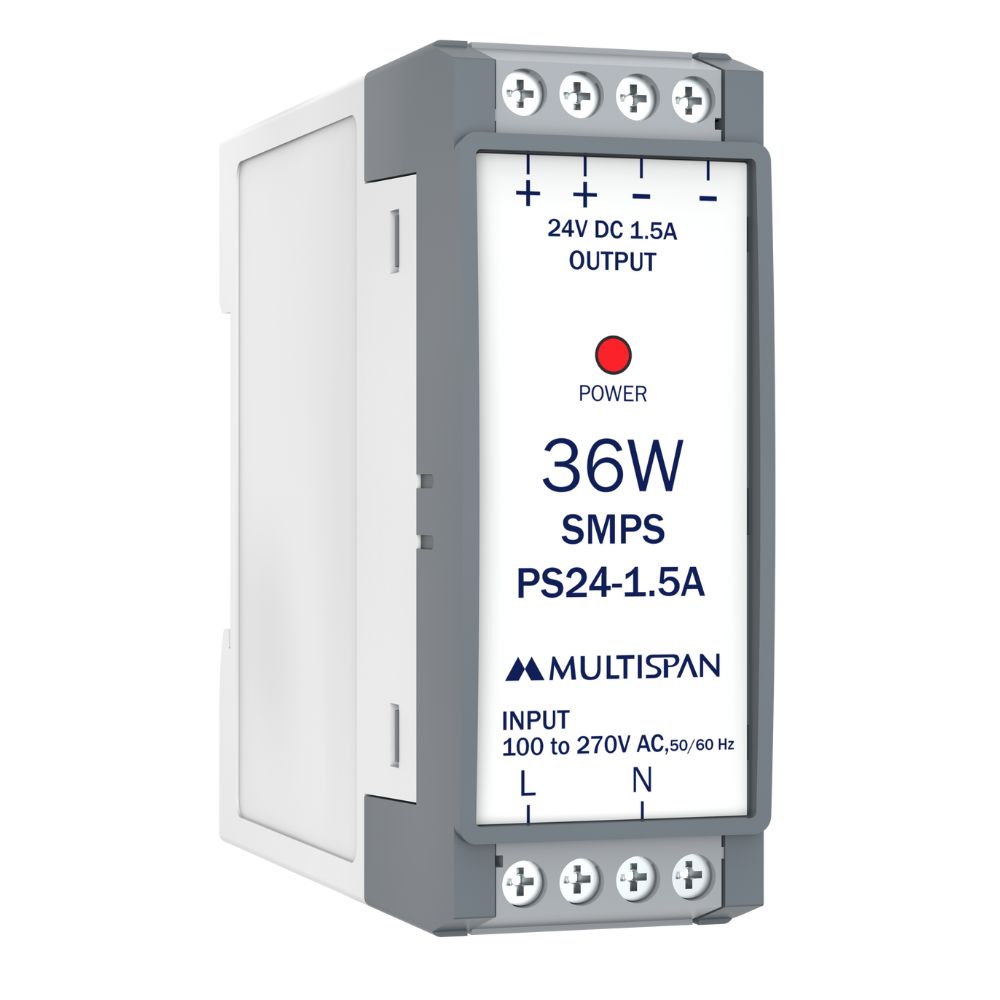

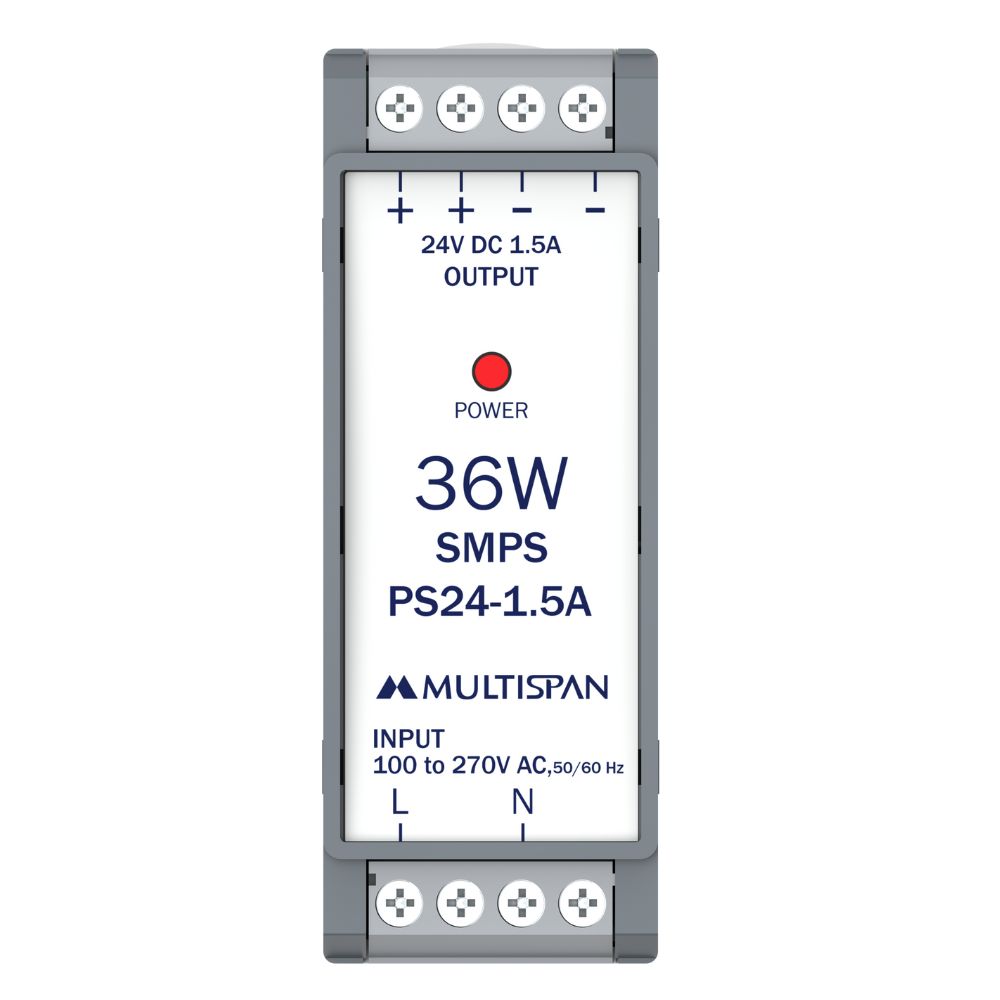

Product: PS24-1.5A

Power 36W
Input Voltage : 100-270V AC
Output Voltage : 24V DC
Efficiency > 85% @230V AC
Material: Plastic Enclosure.
Protection parameter : Output Overload, Output Over Voltage , Output short circuit, Over Temperature

Input Specification :
Supply Voltage	100 to 270V AC±10%,(L-N)
Frequency Range	50 / 60Hz
AC Current (TYP.)	0.650A@100V AC, 0.320A@270V AC
Efficiency (TYP.)	>85%@230V AC
Start UP time	<1 sec@230V AC &
Start UP time	<3 sec@100VAC (Full Load)
Output Specification :
Output Voltage	24V DC
Output Current	1.5A at 24V
Ripple & noise	<1% of V out
Line & Load Regulation	±1%
Hold UP Time	<60ms at 230V AC &
Hold UP Time	>15ms at 100V AC (Full Load)
Protection Parameters:
Input Fuse	3.15A-250V AC Internal
Output Over Load	110% of rated output Current protection Protection Type : hiccup mode; recover automatically after fault condition is removed
Output Short Circuit	Hiccup mode when output is shorted;Recovers automatically after fault condition is removed.
Over Temperature	Power supply shuts down when the temperature goes above specified limit;
Over Temperature	Turns on automatically after temperature goes back to Normal operating conditions.
Isolation between Input and Output :	2.5 KV
Physical :
Mounting Type	Din Rail Mount
Size	76 (H) x 28 (W) x 85 (D)
Material	Polycarbonate
