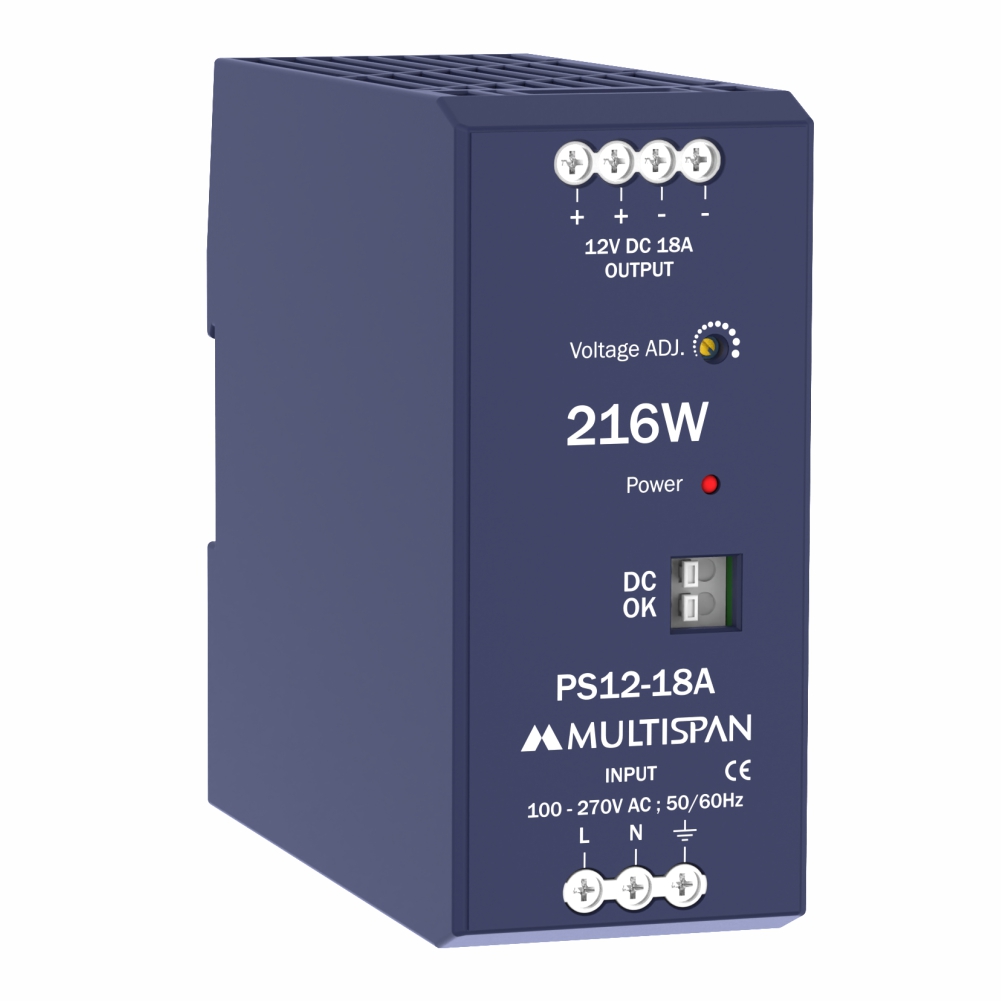

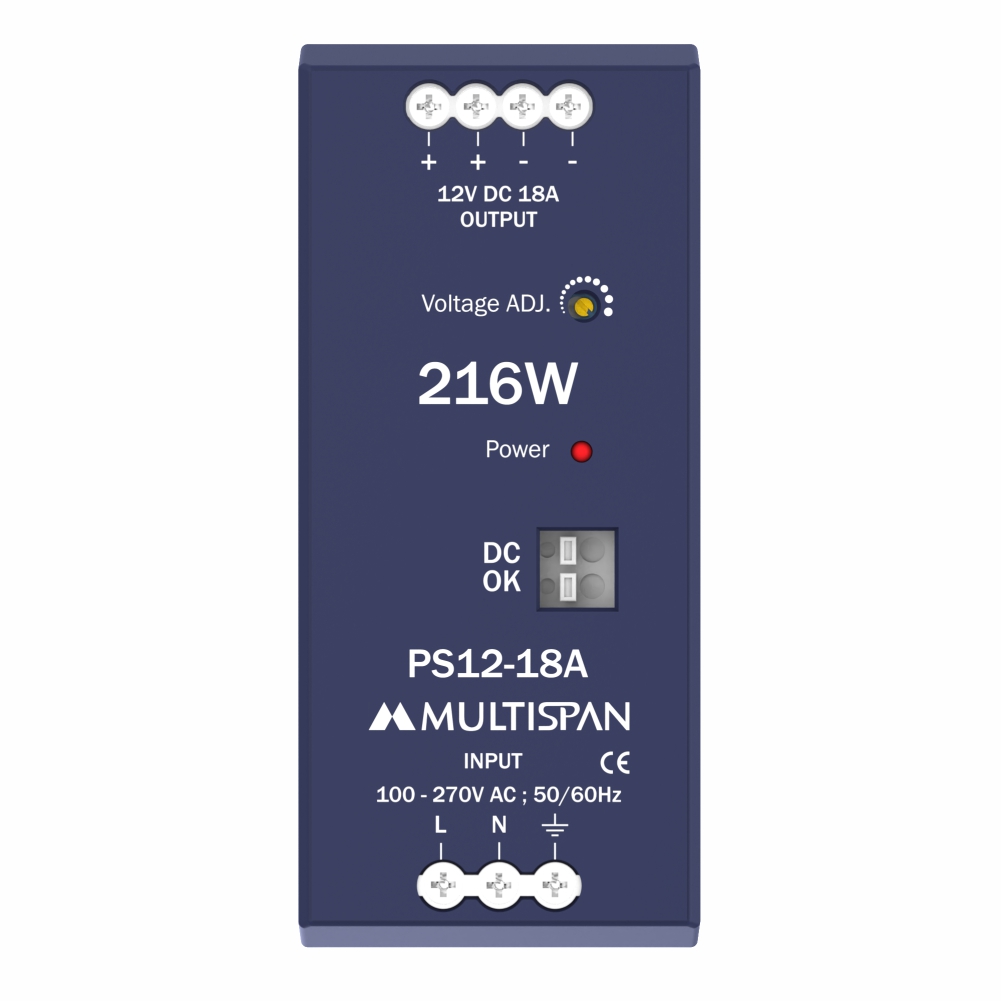

Product: PS12-18A

216W rated power
Supply Voltage : 100 to 270V AC (L-N) , 100 to 370V DC
Output Voltage : 12-14V DC
Efficiency (TYP.) : Up to 92%
Protection Available : Overload, Over voltage, Output short circuit, Over Temperature

Input Specification :
Supply Voltage	100 to 270V AC (L-N) 100 to 370V DC
Frequency Range	50 / 60Hz
Power Factor	>0.95 @ Full Load
AC Current (TYP.)	2.4A@100V AC, 1.1A@230V AC
Efficiency (TYP.)	Up to 92%
Start UP time	<2 sec@230V AC (Full Load)
Output Specification :
Output Voltage	12-14V DC
Output Current	18A at 12V; 15.4A at 14V
Ripple & noise	<1% of V out
Line Regulation	±0.5%
Load Regulation	±1%
Hold UP Time	>13ms at 12V @ 100/230V AC (Full Load)
LED Indication
LED 1	Power On
Protection:
Input Fused	4A -250V AC Internal
Output Over Load	110% to 140% of rated output Current protection Protection Type : hiccup mode;
Output Over Load	recover automatically after fault condition is removed
Output Short Circuit	Hiccup mode when output is shorted;Recovers automatically after fault condition is removed.
Output Over Voltage	SMPS Latches off if output voltage 16V DC ± 0.5V DC
Over Temperature	Power supply shuts down when the temperature goes above specified limit;
Over Temperature	Turns on automatically after temperature goes back to Normal operating conditions.
Isolation between Input and Output :	2.5 KV
Environmental
Working Temperature	-25°C to 50°C * De-rate output power at 3w/°C above +50°C Ambient
Storage Temperature	-40°C to 85°C
Relative Humidity	95% RH Non-condensing
Mechanical Characteristics
Mounting Type	Din Rail Mount
Size	125 (H) x 55 (W) x 135 (D)
Material Body	Polycarbonate (PC)
Terminal Screw Size	M3
Screw Torque (N.m)	0.5
Wire Gauge (AWG)	28-12
