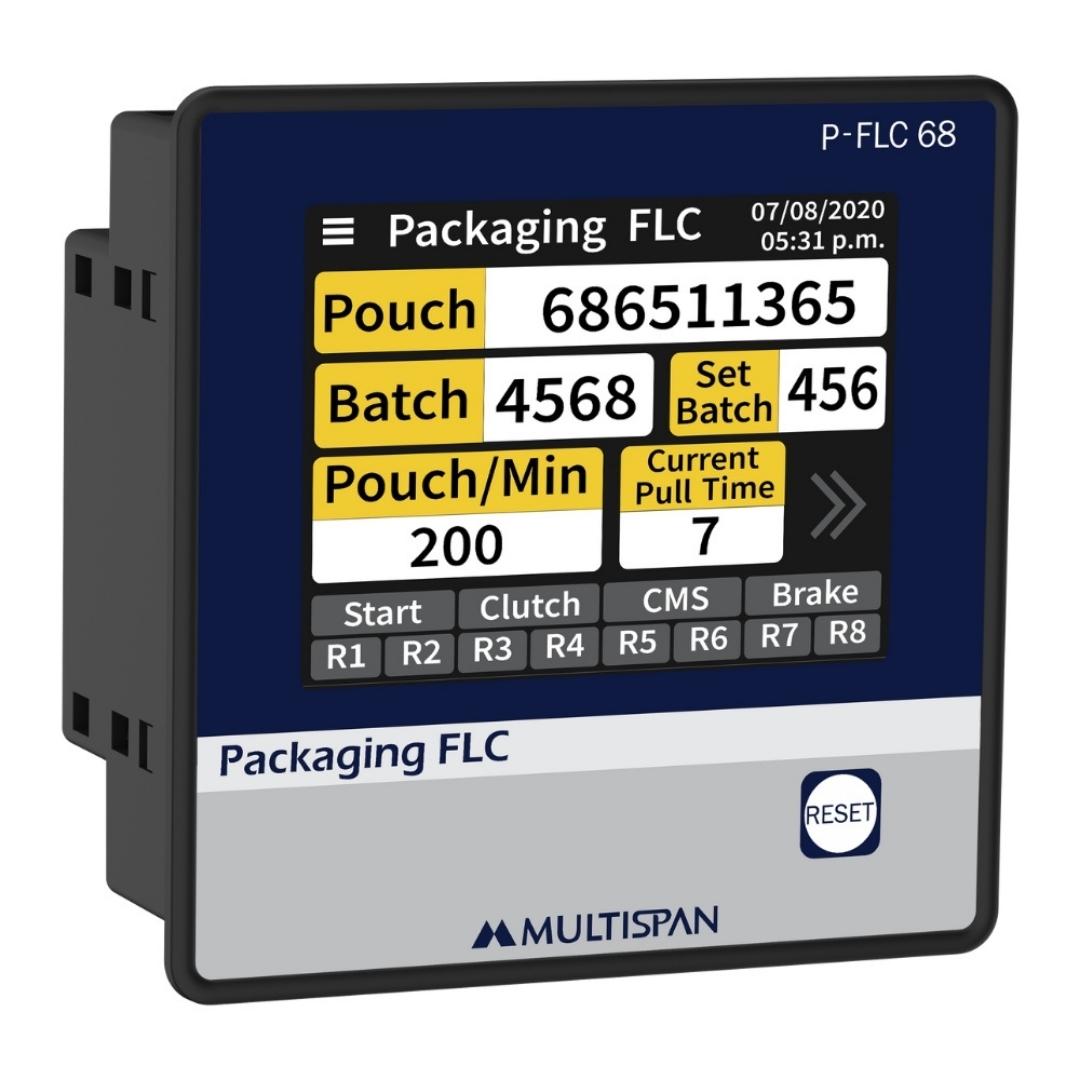

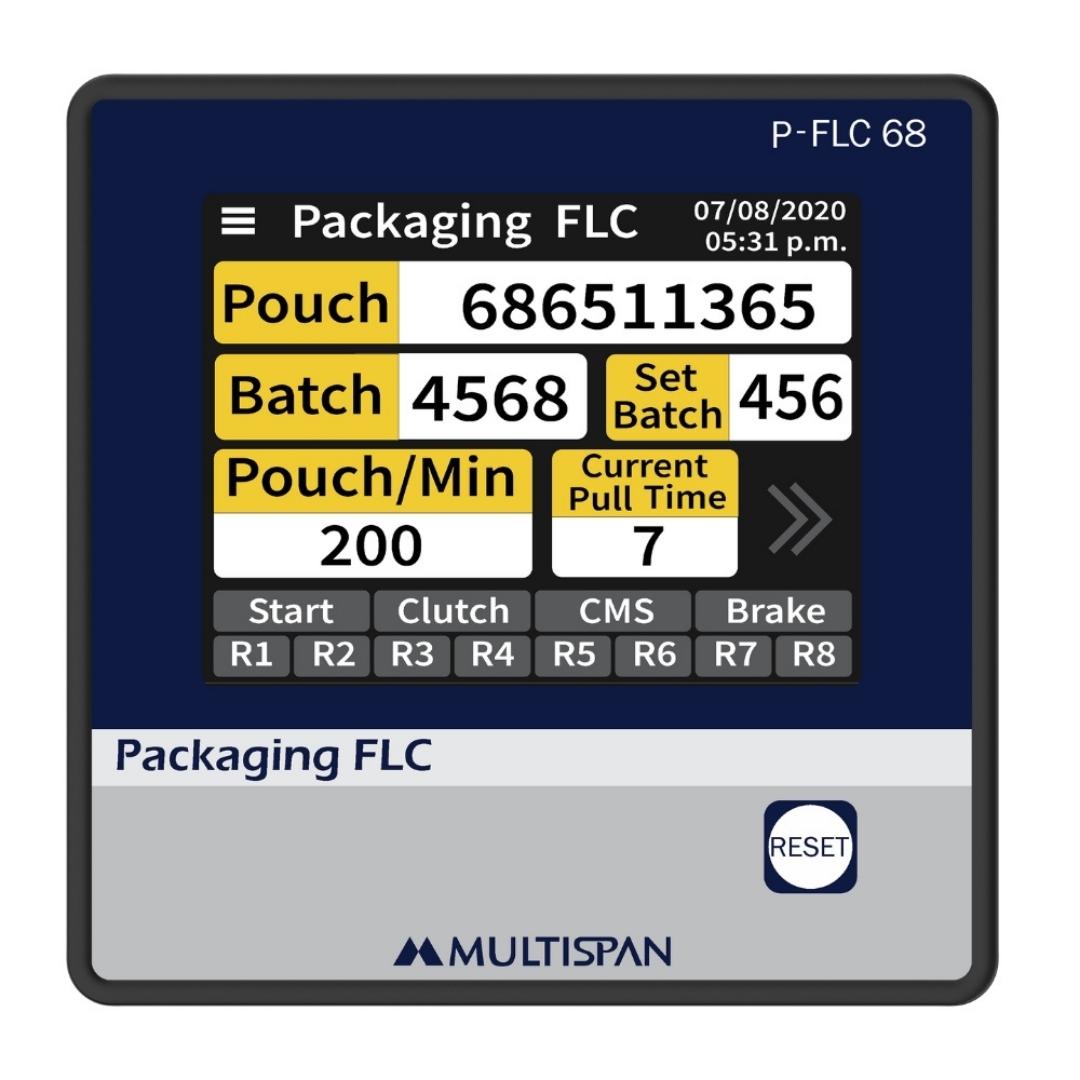

Multi output Photo Electric Controller
Product: PFLC-68
- 2 Proximity + 1 Photo Sensor Input
- Upto 8-Relay Output
- Clutch Brake Output
- Touch Display
- Size: (H)96mm x (W)96mm x (D)54mm
- Supply Voltage: 24V DC
| INPUT SPECIFICATION: | |
| Input | Clutch Proxy |
| Unwinding Motor Start Proxy | |
| Eye Mark Sensor Proxy | |
| DISPLAY AND KEYS | |
| Display | 320 x 240 px Resistive Touch screen Display |
| Keys | Reset |
| DIMENSION: | |
| Size (mm) | 96 (H) x 96 (W) x 54 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| OUTPUT SPECIFICATION: | |
| Relay Output | |
| Relay | 8-nos RLY-1 Horizontal Seal RLY-2 Vertical Seal RLY-3 Cutter RLY-4 Nitrogen Fill RLY-5 Batch Cutter RLY-6 Batch Coding RLY-7 Auger RLY-8 Unwinding |
| Relay Type | NO-C |
| Rating | 5A, 230V AC |
| Clutch & Brake Output | 24 V DC |
| AUXILIARY SUPPLY: | |
| Supply voltage | 24V DC |
| Power consumption (VA RATING) | Approx 6 VA |
| ENVIRONMENT CONDITION: | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH (non-condensing) |
| Protection Level (AS Per Request) | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
