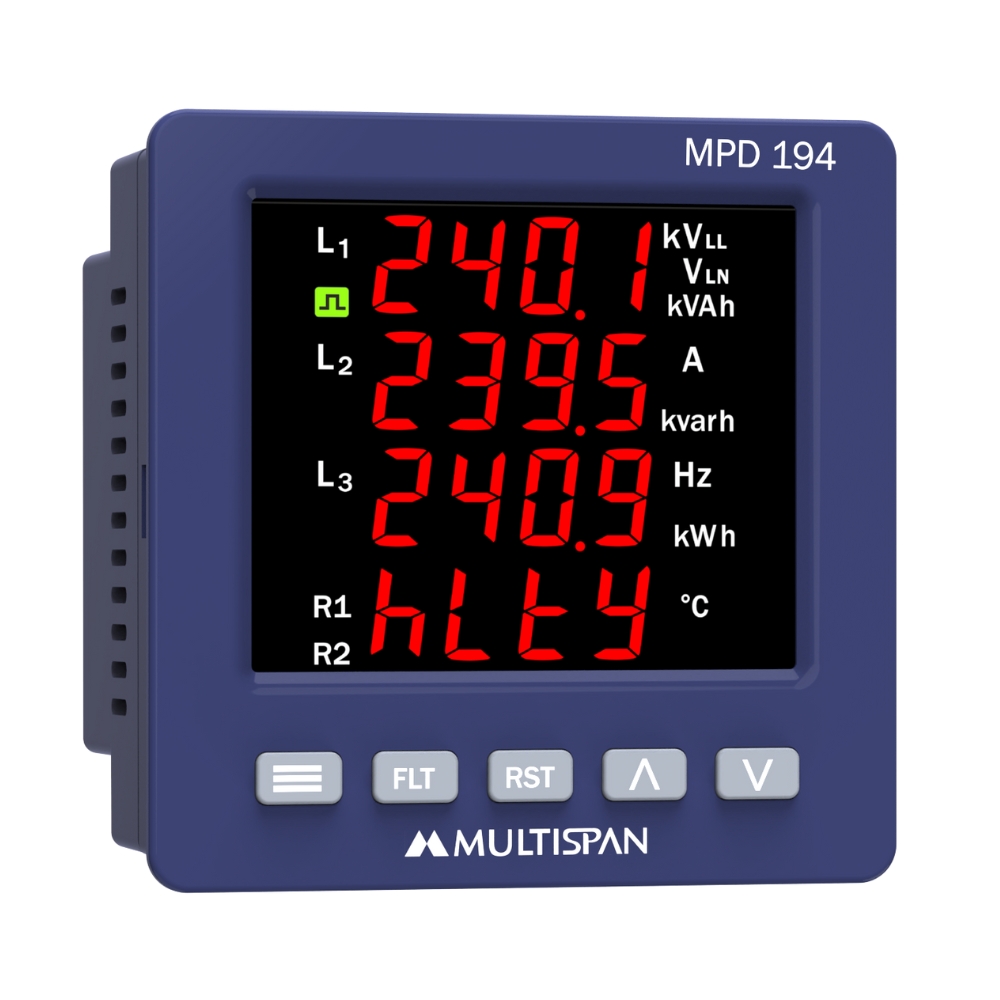

Motor Protection Device - MPD-194 front image

Enquiry

Product: MPD-194

4 Line – 4 Digit Display for Easy to Use and Understand 3 Phase Value
3Ø 4Wire /3 Ø 3Wire / 1Ø 2Wire
Programmable Tripping Parameter
Single Instrument works for Both MFM and Protection Relay
Programmable Relay 1 Relay 2 C/O
Fail Safe and Non Fail Safe Mode
RS-485 MODBUS Available as on request

Product Variant

PARAMETER SPECIFICATION
Input Signal	3Ø-3Wire / 3Ø-4Wire / 1Ø-2Wire
Current Input	Up To 9999
Voltage	30 To 320V AC
Input	50 To 550V AC
System PF	0.100 - 1.000
Frequency (Hz)	45.00 - 60.00 Hz
Load hours	9999.59 Hrs/Min.
No load hours	9999.59 Hrs/Min.
RPM	3600 RPM @ 60 Hz & 2 pole
POWER
kW Total	0.000 - 9999 kW
kW Per Phase	0.000 - 9999 kW
kVA Total	0.000 - 9999 kVA
kVA Per Phase	0.000 - 9999 kVA
kVAr Total	0.000 - 9999 kVAr
kVAr Per Phase	0.000 - 9999 kVAr
ENERGY
kWh Total	000.000 - 999999999.999 kWh
kVAh Total	000.000 - 999999999.999 kVAh
kVArh Total	000.000 - 999999999.999 kVArh
Input	PTC Thermistor
Setting for PTC
1. Sensor Short	0-39 ohm
2. Sensor Healthy	40 ohm - 4K ohm
3. Sensor Trip	4.1K ohm - 5.5K ohm
4. Sensor Open	5.6K ohm & Above
5. Sensor Cut in	1.5K ohm - 1.8K ohm
Temperature range for Thermisto	70°C to 180°C ( for PTC)
DISPLAY & KEY
Display	4 Digit,4 Line 0.50" RED
Key	PROGRAM , FLT, RST, UP, DOWN
DIMENSION :
Size	98 (H) x 98 (W) x 61.5 (D) mm
Panel Cutout	92 (H) x 92 (W) mm
AUXILIARY SUPPLY :
Supply voltage	50 to 550V AC, 50/60Hz
Power consumption (VA RATING)	Approx 6 VA @ 230V AC MAX
TIME PARAMETER:
Power On Delay	2.0 to 999.9 Sec
Initial Time Delay	0.0 to 999.9 Sec
Trip Delay Time	0.0 to 999.9 Sec
Reset Time	0.0 to 999.9 Sec
OUTPUT SPECIFICATION:
Relay	2 Nos
Relay Type	1st Relay ( NO - C - NC ) 2nd Relay ( NO - C - NC )
Rating	1st Relay 10Amp, 250V AC 2nd Relay 10 Amp, 250V AC
ACCURACY:
Class 0.5 (Standard)
ENVIRONMENT CONDITION
Operating Temp.	0°C to 55°C
Relative Humidity	Upto 95% RH (non-condensing)
Protection Level (AS Per Request)	IP-65 (Front side) As per IS/IEC 60529 : 2001

Electrical Control Panel
Submersible Pump
Road Construction Panel
MCC Panel
Industrial Chiller And HV AC System
D.G. Set

Product Variant

Part No.	Input Current	Ampere Range
MPD-194-M1-E2-N0	Up to 9999 Amp Primary CT Selectable	10mA to 5.00A
MPD-194-M1-E2-N7	30A with DIN 30AX CT	1 to 30.0A
MPD-194-M1-E2-N6	60A with DIN 60AX CT	2 to 60.0A
MPD-194-M1-E2-N8	100A with DIN 100AX CT	4 to 100A
MPD-194-M1-E2-60A	60A with MCT 60A	2 to 60.0A
MPD-194-M1-E2-125A	125A with MCT 125A	4 to 125A
MPD-194-M1-E2-250A	250A with MCT 250A	10A to 250A
