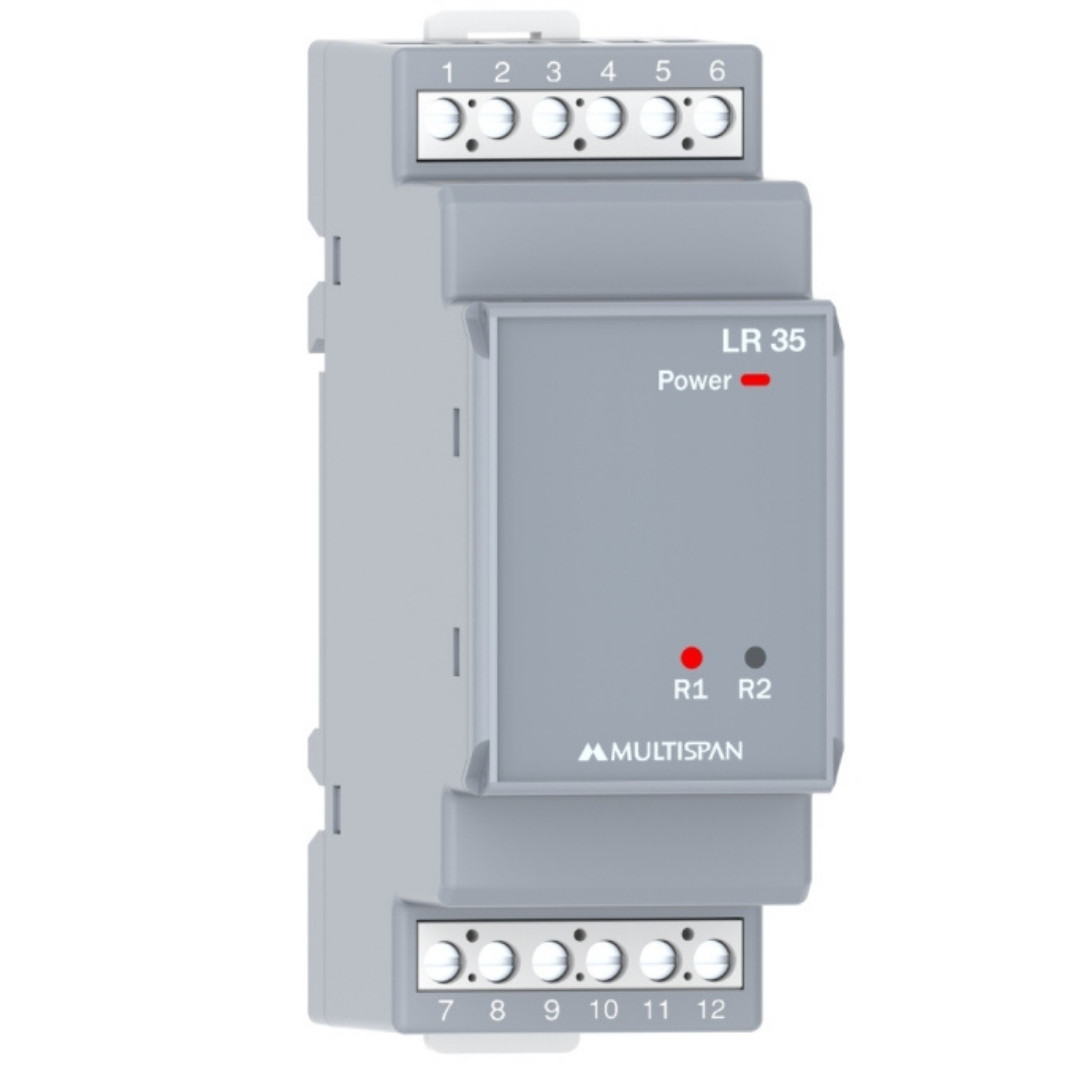

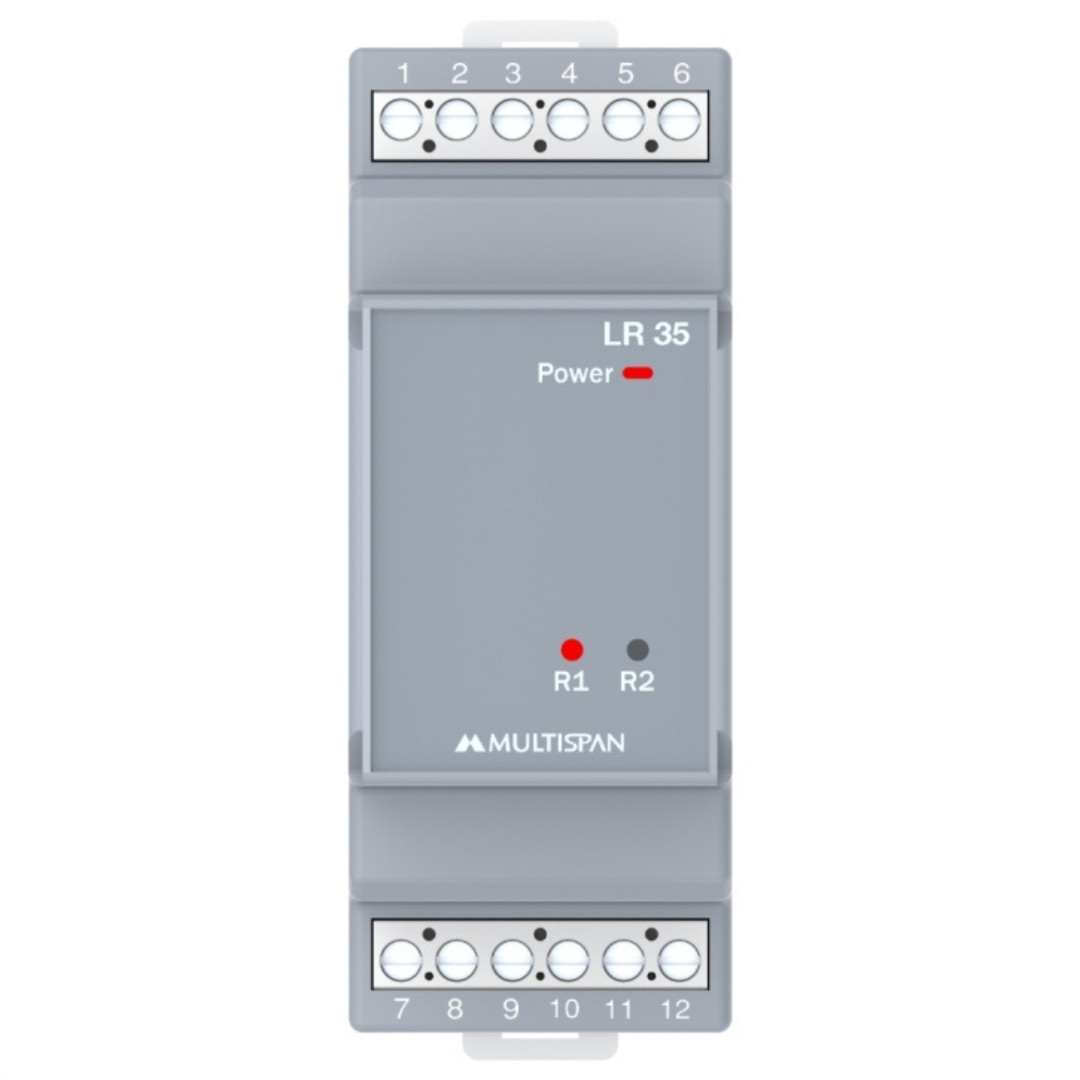

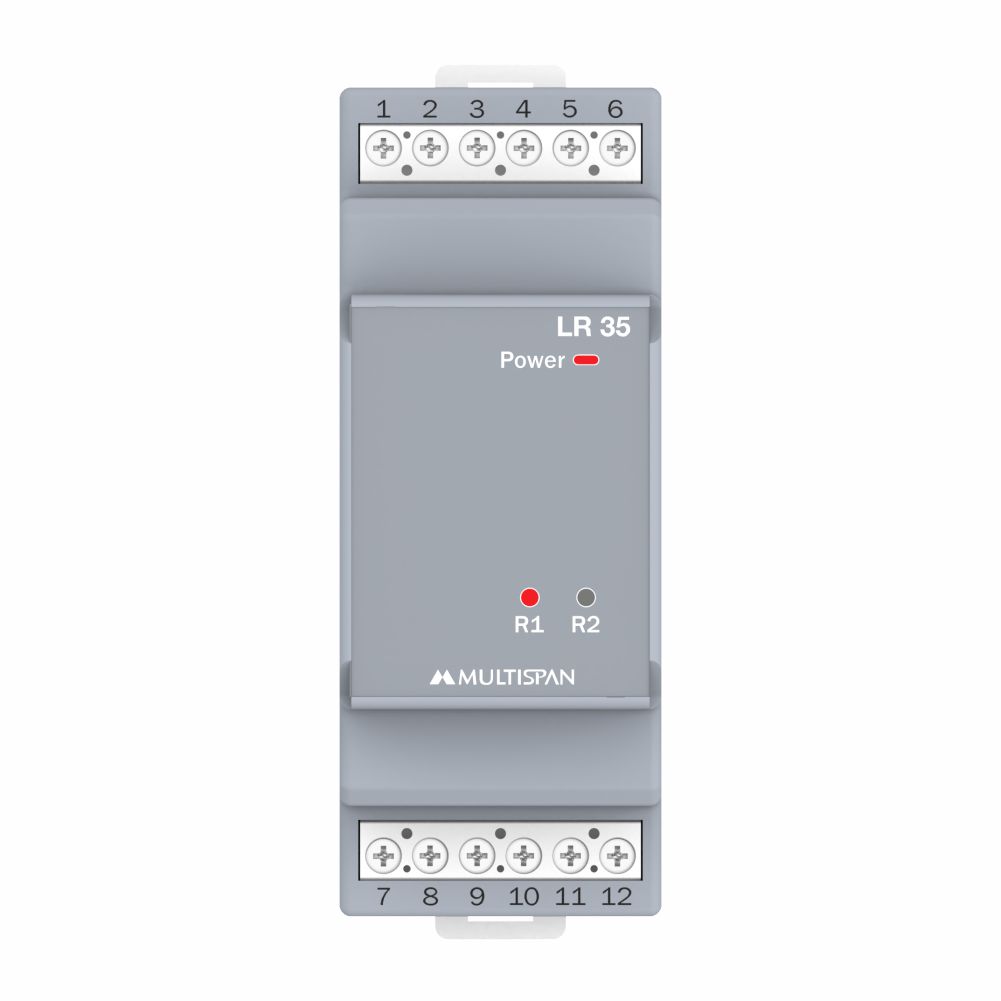

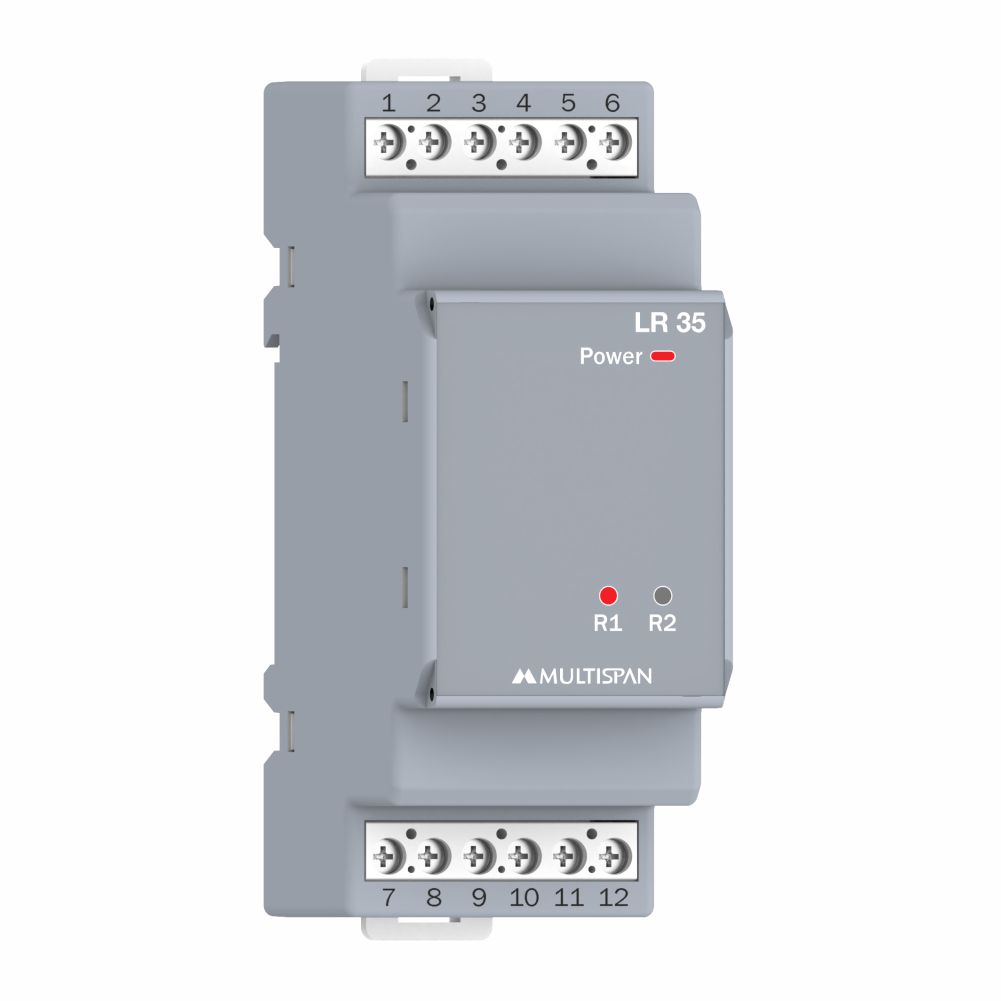

LR-35 Two Load Sharing Relay - product image LR-35 Two Load Sharing Relay - product image LR-35 Two Load Sharing Relay - product image

load sharing relay

Product: LR-35

  • For balancing operation between 2 Loads – Like Generators, Motors, Pump
  • Increasing Load Work life
  • 2 Potential Free Micro Switch Input
  • 2 Relay ,5A, 230V AC
  • Size(mm): 90(H) x 35(W) x 60(D)
  • Supply Voltage : 100-270V AC

Model LR-35
Power Supply 100 - 270V AC,50/60 Hz,3VA
Input Sensor 2 Micro Input
Indications LED 1 : Main
LED 2 : Relay 1
LED 3 : Relay 2
Time Delay 1 Sec
Output 2 Relay,1C/O (NO-C-NC)
Output Rating 5Amp,230V AC(Res.)
Dimension(mm) 90(H) x 35(W) x 60(D)
Mounting Din Rail Mounting

Product Variant

Part code Size(mm) Input Output Aux. Supply
LR-35-E3-00 90(H) x 35(W) x 60(D) 2 Microswitch 2 Relay 100-270V AC/DC
