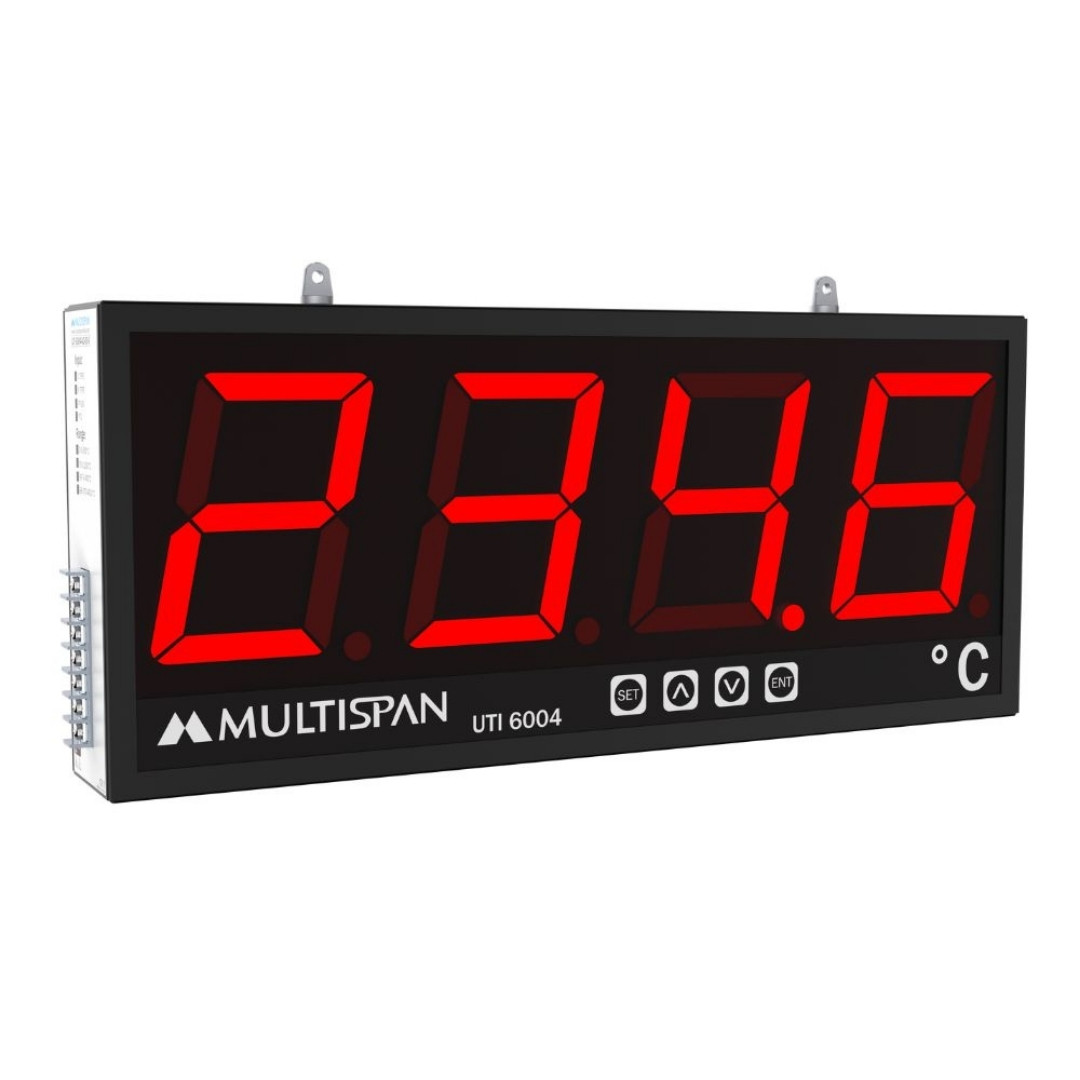

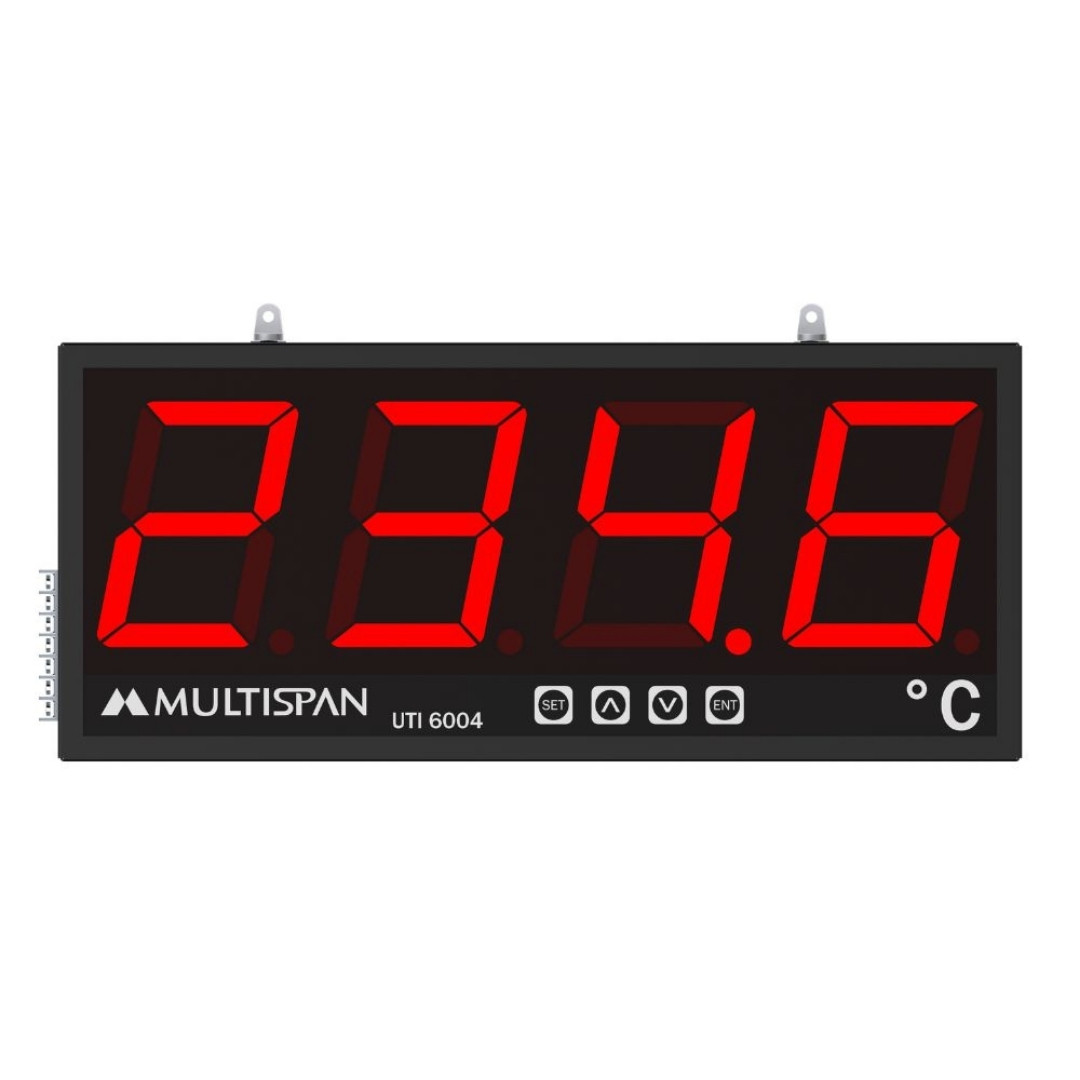

UTI-6004 Jumbo Display Indicator - product image UTI-6004 Jumbo Display Indicator - product image UTI-6004 Jumbo Display Indicator - product image

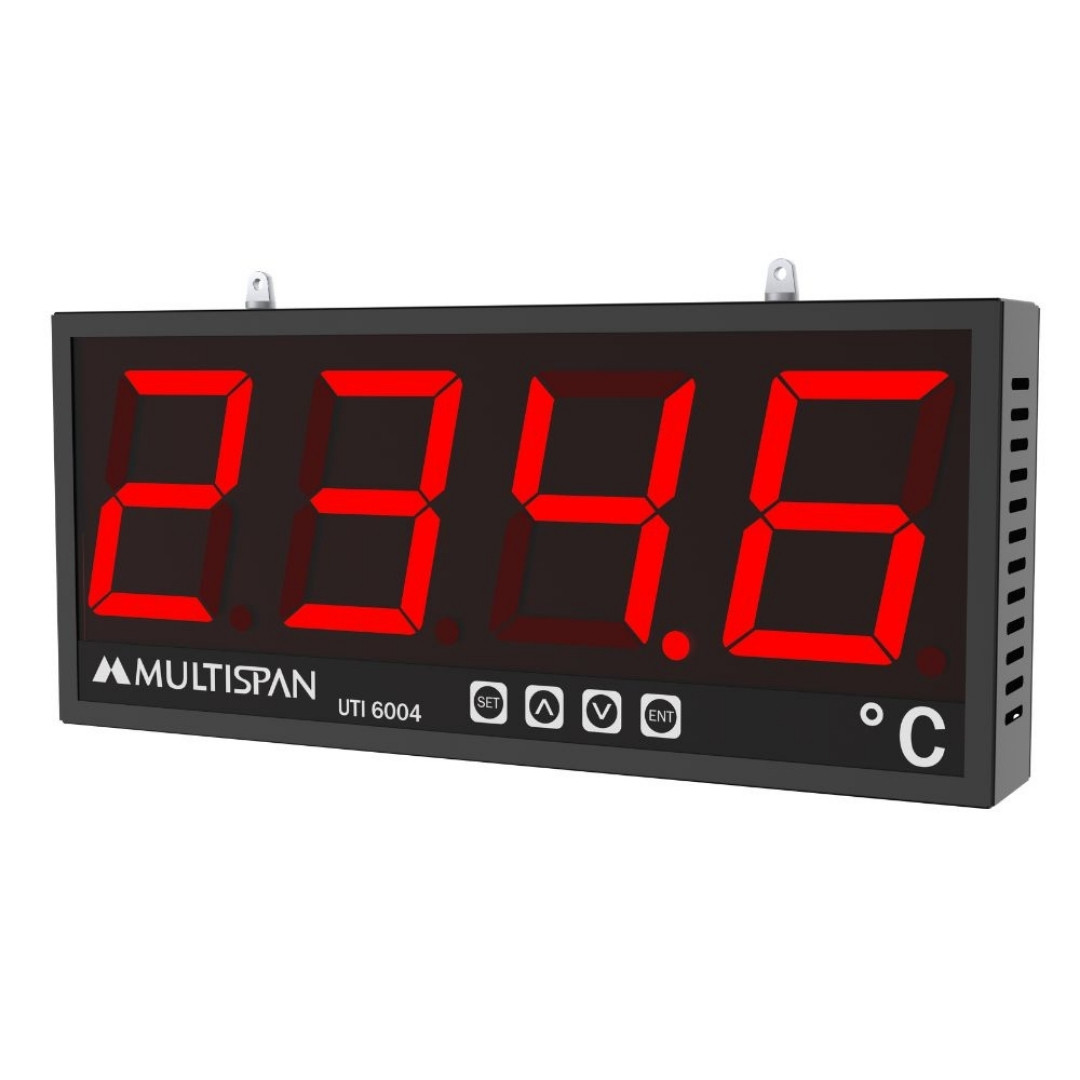

Jumbo Display Temperature indicator

Product: UTI-6004

  • 4-Digit, 4-Inch Red LED Display(Single/Dual Side)
  • Universal Input (J/K/RTD)
  • Optional Relay and Retransmission Output Possible
  • Size: Single display:- 165 (H) X 392 (W) X 55 (D)mm
             Dual display:- 165 (H) X 392 (W) X 75 (D)mm
  • Supply Voltage: 100-270V AC

Model No UTI-6004
Description Micro Controller Based, Single Side Display
Display 4-Digit, 7-Segment, 4-Inch in Red Led Display
Size (mm) Single display:- 165 (H) X 392 (W) X 55 (D)mm
Dual display:- 165 (H) X 392 (W) X 75 (D)mm
Range J Type: 0 to 400°C
K Type: 0 to 1200°C
PT: -99 to 400°C
PT.1: -99.9 to 400.0°C
Input J, K, PT, PT.1
Power Supply 100 To 270V AC, 50/60 Hz, Approx 3VA
Protection Level
(As per request)
IP-65(Front side) AS per IS/IEC 60529:2001

Product Variant

sr.no Model  Input  Display Output Relay
1 UTI-6004-A2-00-S J/K/Pt-100 Single Side
2 UTI-6004-A2-01-S   1
3 UTI-6004-A2-02-S   2
4 UTI-6004-A2-00-D Dual Side
5 UTI-6004-A2-03-S R type  Single Side
