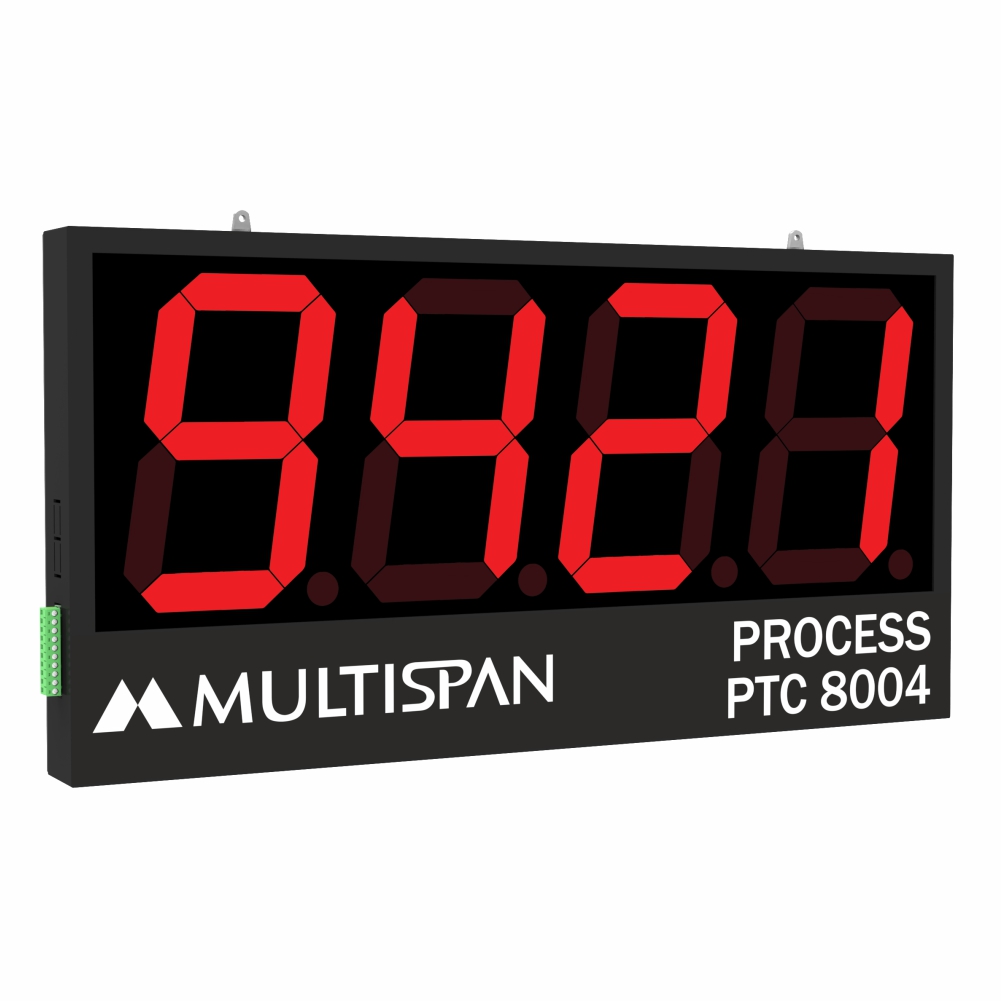

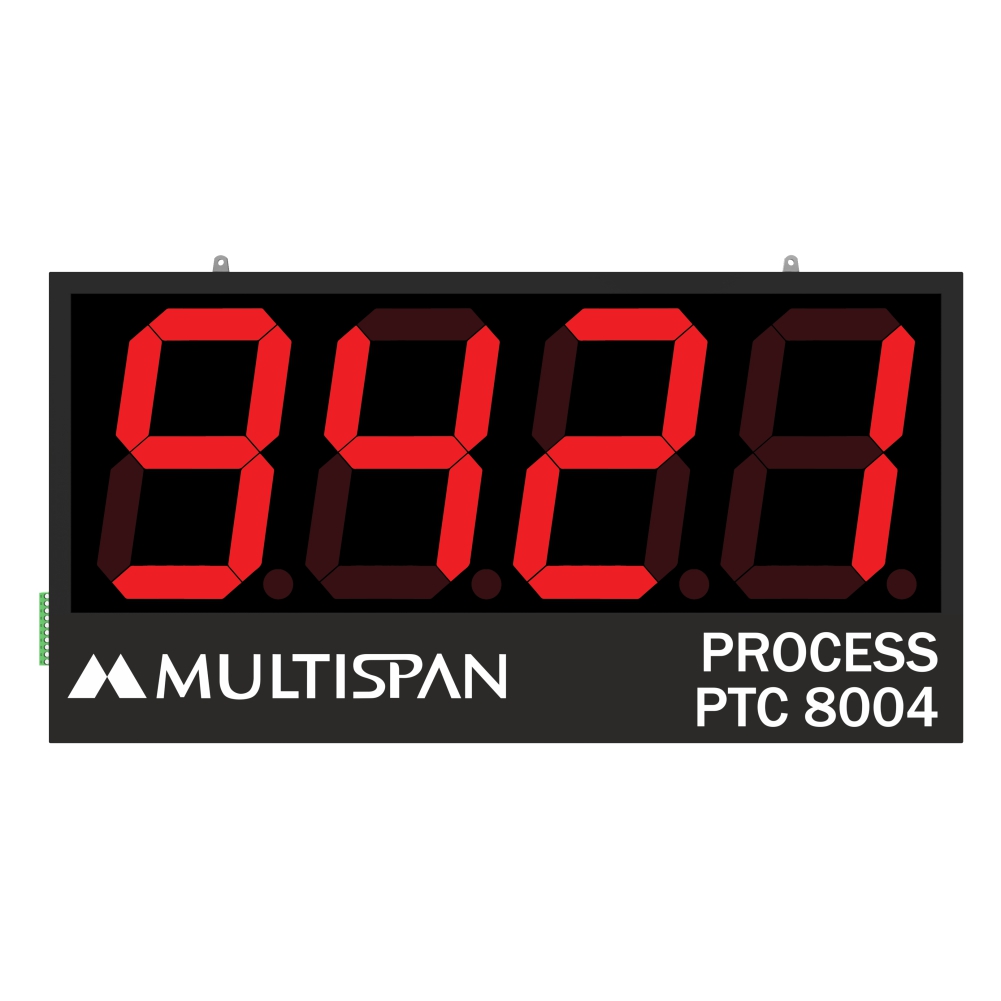

Jumbo Display Process indicator - PTC-8004
Product: PTC-8004
- 4-Digit, 4-Inch Red LED Display
- Universal Input
(Thermocouple : J/K,
RTD : PT-100 ,
Volt : 0-10V DC,
mA : 4-20mA , 0-20mA) - Upto 3-Digit resolution
- Optional Relay and Retransmission Output Possible
- Size: Display:- 325 (H) x 630 (W) x 50 (D) mm
Supply Voltage: 100 to 250V AC, 50-60Hz
| Model No | PTC-8004 |
| Description | Micro Controller Based, Display |
| Display | 4-Digit, 7-Seg, 4-Inch”, Red LED Display |
| Size (mm) | Display: 325 (H) x 630 (W) x 50 (D) mm |
| Range | -999 to 9999 (selectable) |
| Input | J/K, RTD : PT-100 ,0 To 10V DC, 0 To 20mA DC, 4 To 20mA DC ( Selectable) |
| Power Supply | Single:- 100 To 250V AC, 50/60 Hz Approx 4VA |
| Protection Level (As per request) |
IP-65(Front side) AS per IS/IEC 60529:2001 |
| Note | Range & Decimal Point Selectable Reverse Scalling Possible |
- Temperature & Process Indication
- Pressure/Level/Flow Monitoring
- Plastic molding/extrusion
- temperature monitoring
- Remote Process Supervision
- Heat treatment – furnace temperature monitoring
