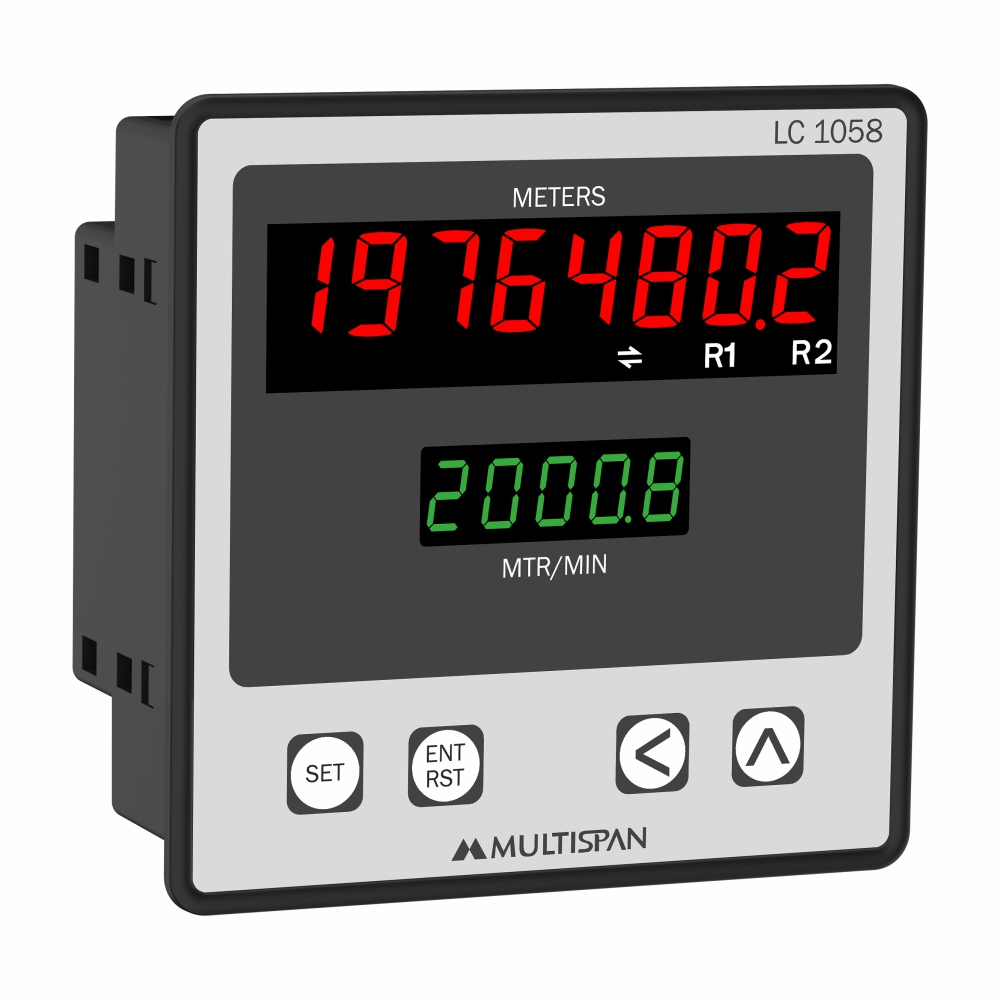

Flow Totalizer LC-1058
Product: LC-1058
- Input NPN/PNP Proximity
- Individual Display for Meter & Mtr/Min
- RS-485 Modbus Output Facility
- Size: (H)96mm x (W)96mm x (D)54mm
- Supply Voltage: 100-270V AC/DC
| INPUT SPECIFICATION: | ||||
| Input | NPN/PNP PROXIMITY | |||
| Resolution |
Total Meters (DP Selectable), MTR/MIN. (DP Auto Shift) |
|||
| Range Limits | 0- 99999999 Total Meters (DP Selectable) 0 - 99999 MTR/MIN. (DP Auto Shift) |
|||
| DISPLAY AND KEYS: | ||||

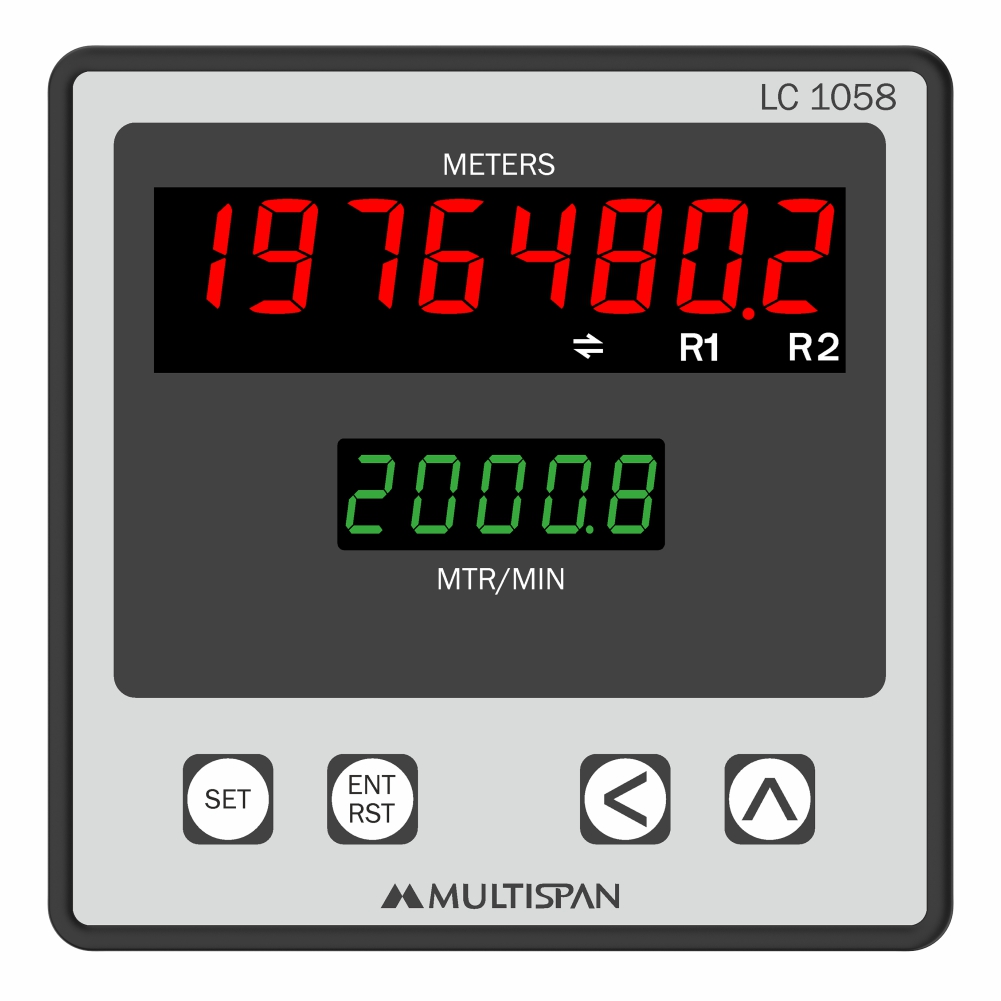

| Display |
Upper: 8-Digit, 7-Seg, 0.5” Red Lower: 5-Digit, 7-Seg, 0.4” Green |
|||
| Keys | SET, ENT/RST , SHIFT , UP | |||
| DIMENSION: | ||||
| Size (mm) | 96 (H) x 96 (W) x 54 (D) | |||
| Panel Cutout (mm) | 92 (H) x 92 (W) | |||
| GENERAL SPECIFICATION: | ||||
| Memory | Non Volatile | |||
| Reset Option | Front Panel Reset & Back Terminal Reset | |||
| OUTPUT SPECIFICATION: | ||||
| Relay Output | ||||
| Relay | 1 nos. | |||
| Relay Type | 1 C/O (NO-C-NC) | |||
| Rating | 5A, 230V AC | |||
| Modbus Output | ||||
| RS-485 Modbus Communication | ||||
| AUXILIARY SUPPLY: | ||||
| Supply voltage | 100 to 270V AC/DC, 50-60Hz | |||
| Power consumption (VA RATING) | Approx 5VA @ 230V AC MAX | |||
| ENVIRONMENT CONDITION: | ||||
| Operating Temp. | 0°C to 55°C | |||
| Relative Humidity |
Upto 95% RH |
|||
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 | |||
- Textile Industries
- Pipe Extrusion Machine
- Printing Machinery
