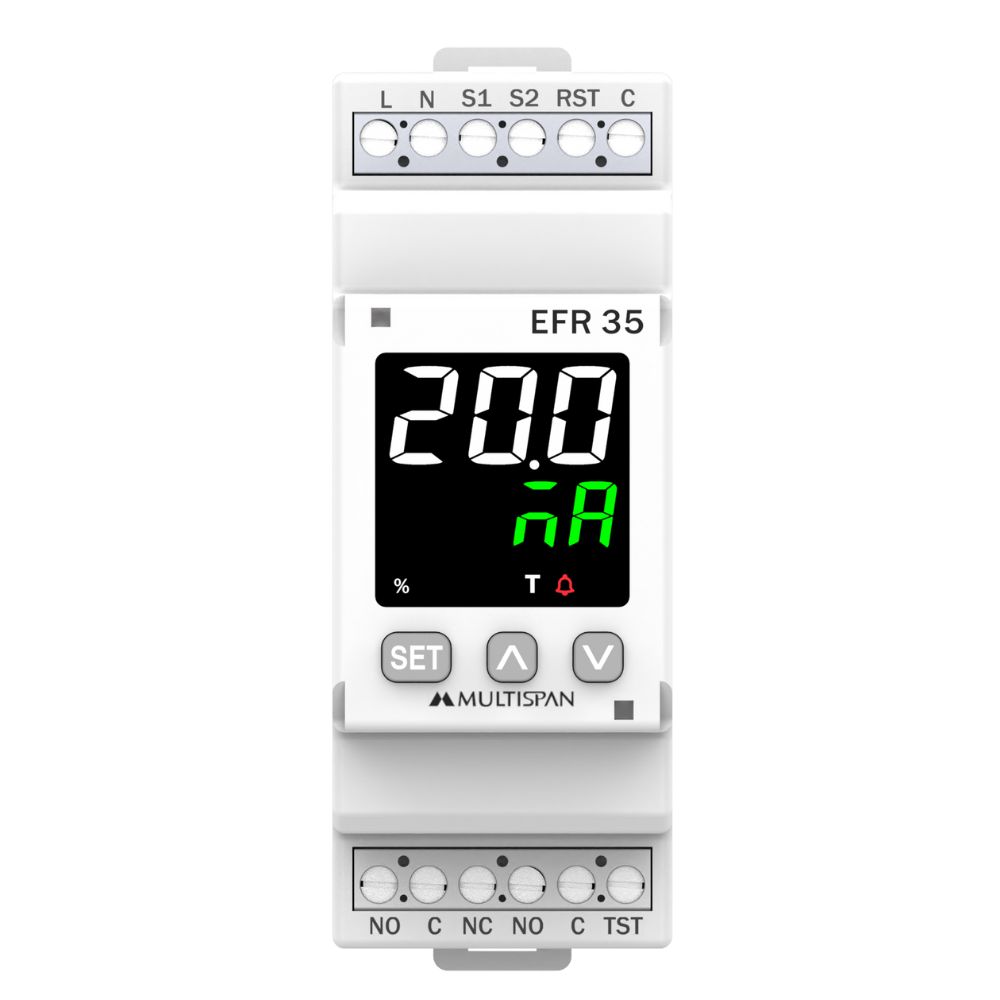

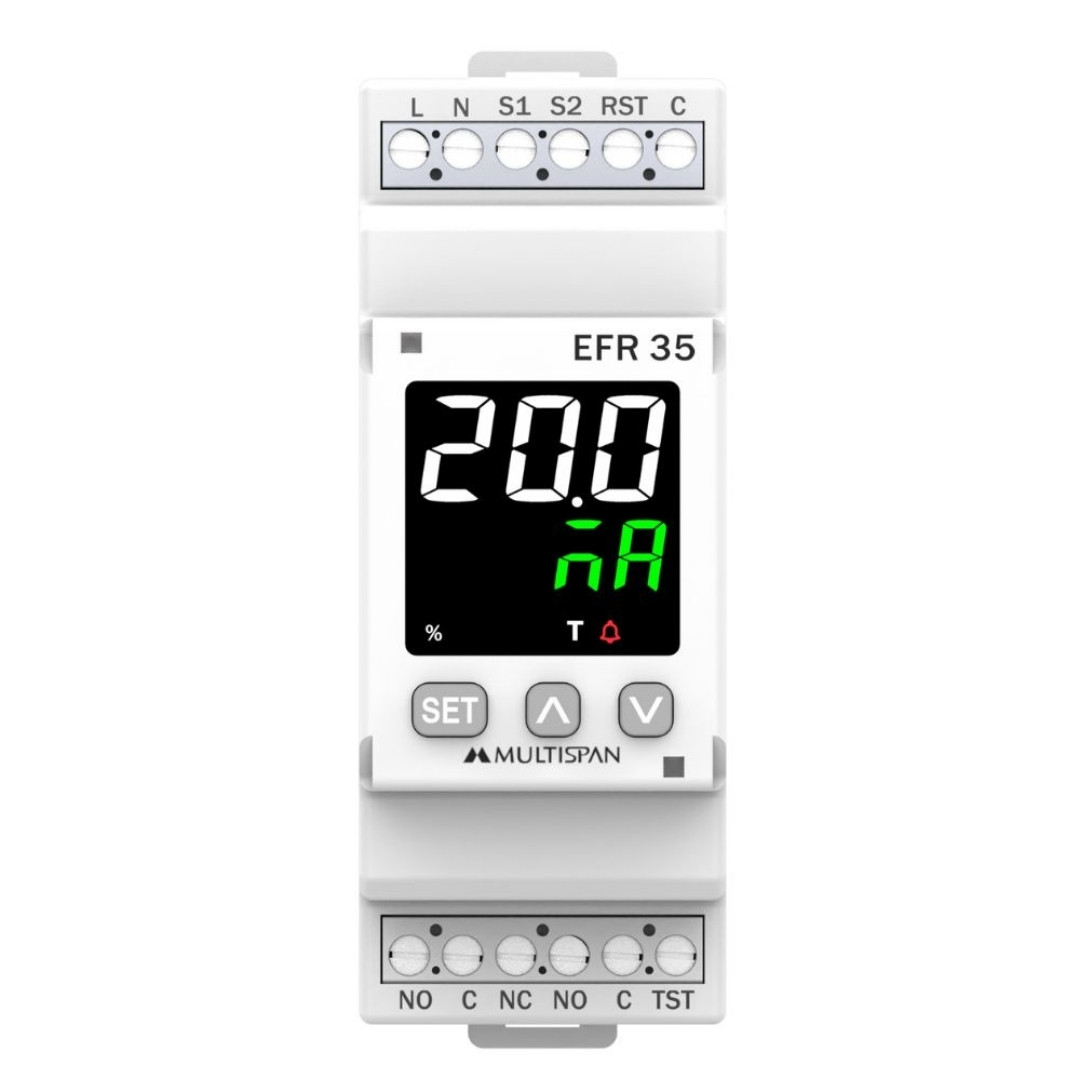

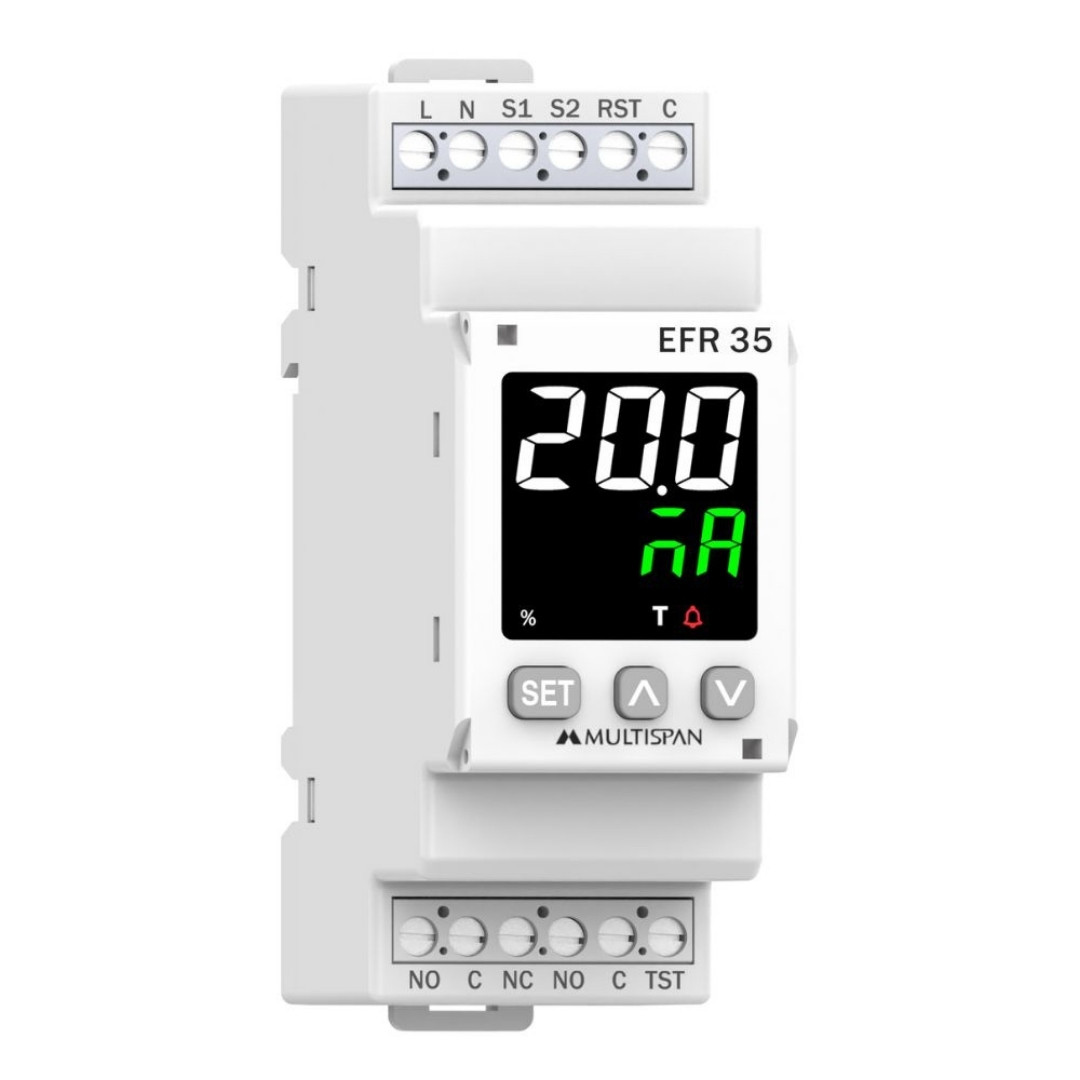

EFR-35 DIN Rail Mount with Display - product image EFR-35 DIN Rail Mount with Display - product image EFR-35 DIN Rail Mount with Display - product image

Din Rail Mount – Earth Fault Relay

Product: EFR-35

  • Input thru External CBCT
  • Front and Terminal Test and Reset Function
  • Programmable trip Delay
  • 2 Relay NO-C-NC, NO-C ,5A,250V AC / 30V DC
  • Size: 90 X 35 X 61.5 (H X W X D) mm
  • Supply Voltage : 100 To 270 V AC/DC,

INPUT SPECIFICATION :
Input Current 5 Amp. AC From CBCT OR CT
Range 10% to 100%
Resolution 1%
DISPLAY & KEYS :
Display Upper: 3 digit, 7 segment, 0.4” (White)
Lower: 3 digit, 7 segment, 0.28” (Green)
Keys SET, INC, DEC / RST
DIMENSION :
Size (mm) 90(H) X 35(W) X 61.5(D)
OUTPUT SPECIFICATION :
Relay 2 Nos.
Relay Type NO-C-NC, NO-C
Rating 5A,250V AC / 30V DC
AUXILIARY SUPPLY :
Supply Voltage 100 To 270 V AC/DC,50/60Hz
Power Consumption (VA Rating) 3VA @ 230 VAC MAX
ENVIRONMENT CONDITION:
Operating Temp. 0 - 55°C
Relative Humidity UP to 95% RH
(non-condensing)

  • Control & Relay Panel
  • Energy Management System
  • DG Set Panels
  • LT / HT Panel
  • Power Control Center Panels
  • Motor Control Center Panels
