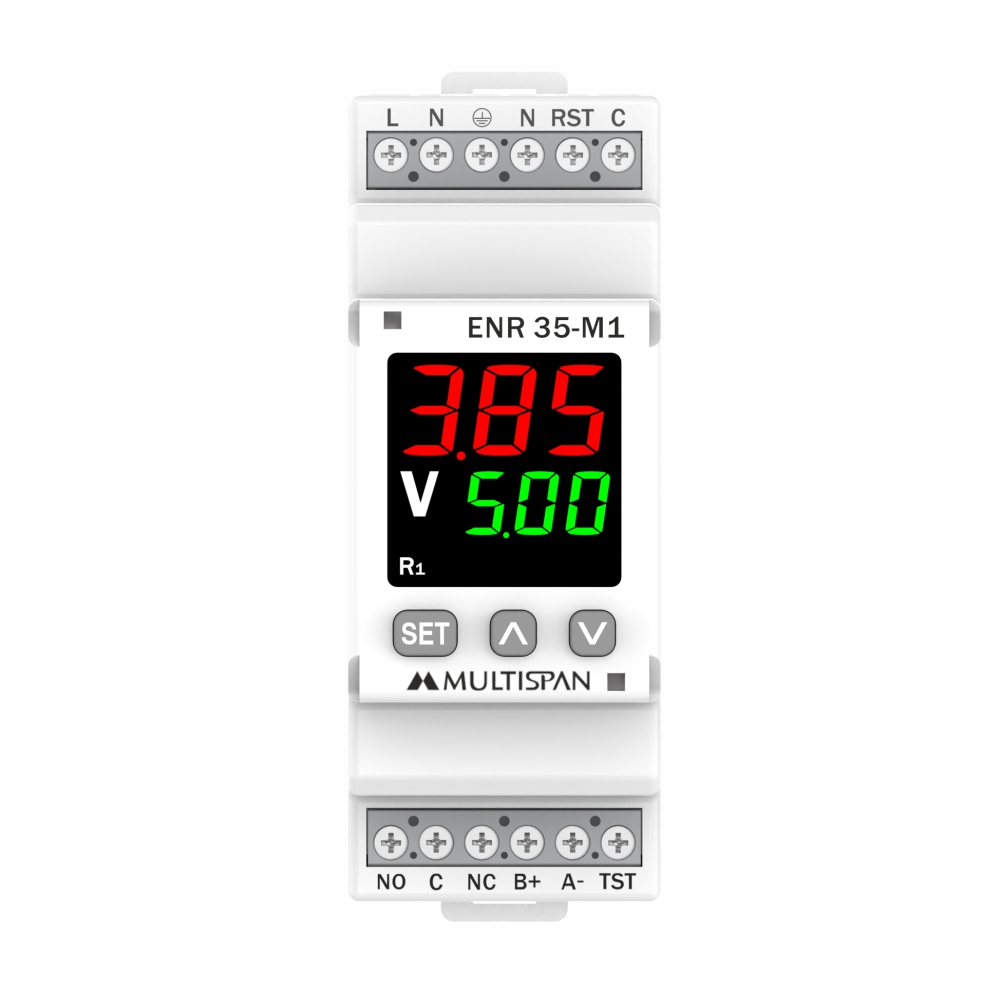

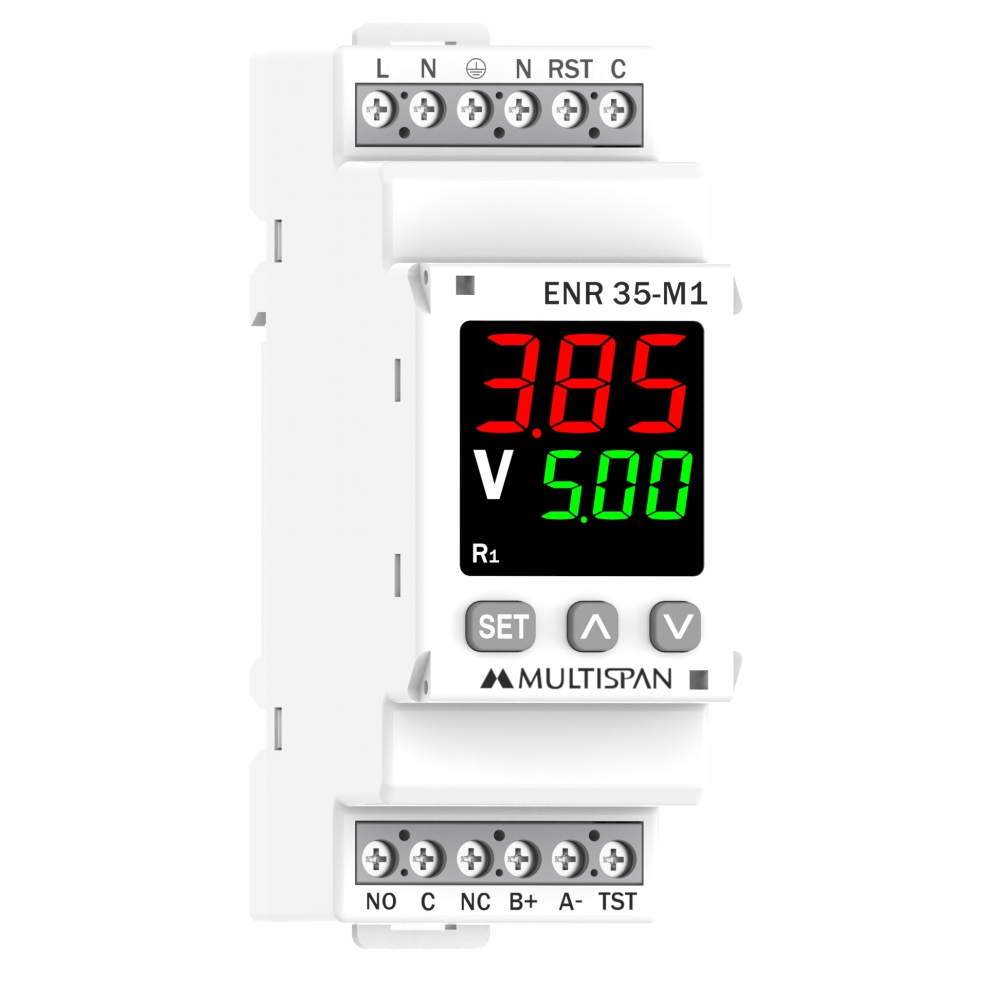

Din Rail Earth To Neutral Relay - ENR 35-M1
Product: ENR-35-M1
- Bright 3+3 LED Display in Din Rail Mount
- Earth to Neutral Voltage in 1Ø2W,3Ø3W & 3Ø4W System
- Auto/Manual Triping Reset Facility.
- Trip Reset Via Front key
- Test Mode Available
- RS-485 Modbus
- 1-Relay (NO-C-NC)
- Size: (H)90mm X (W)35mm X (D)61.5mm
- Supply Voltage: 100 To 270V AC/DC
| INPUT SPECIFICATION | |
| Input Voltage | 0.00 to 10.0V AC |
| Display Voltage Range | 0.00 to 10.0V AC |
| Resolution | 0.01V AC |
| DISPLAY AND KEY: | |
| Display | Upper: 3 digit, 7 segment, 0.4” (White) Lower: 3 digit, 7 segment, 0.28” (Green) |
| Keys | SET, INC, DEC/ RST |
| OUTPUT SPECIFICATION: | |
| Relay | 1 Nos. |
| Relay Type | NO-C-NC |
| Rating | 5A,250V AC Resistive Load |
| DIMENSION: | |
| Size (mm) | 90 (H) x 35 (W) x 61.5 (D) |
| AUXILIARY SUPPLY: | |
| Supply voltage | 100 to 270V AC/DC, 50-60Hz |
| Power consumption (VA RATING) | 3 VA @ 230V AC MAX |
| ENVIRONMENT CONDITION: | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH (non-condensing) |
- Control & Relay Panel
- Energy Management System
- DG Set Panels
- LT / HT Panel
- Power Control Center Panels
- Motor Control Center Panels
