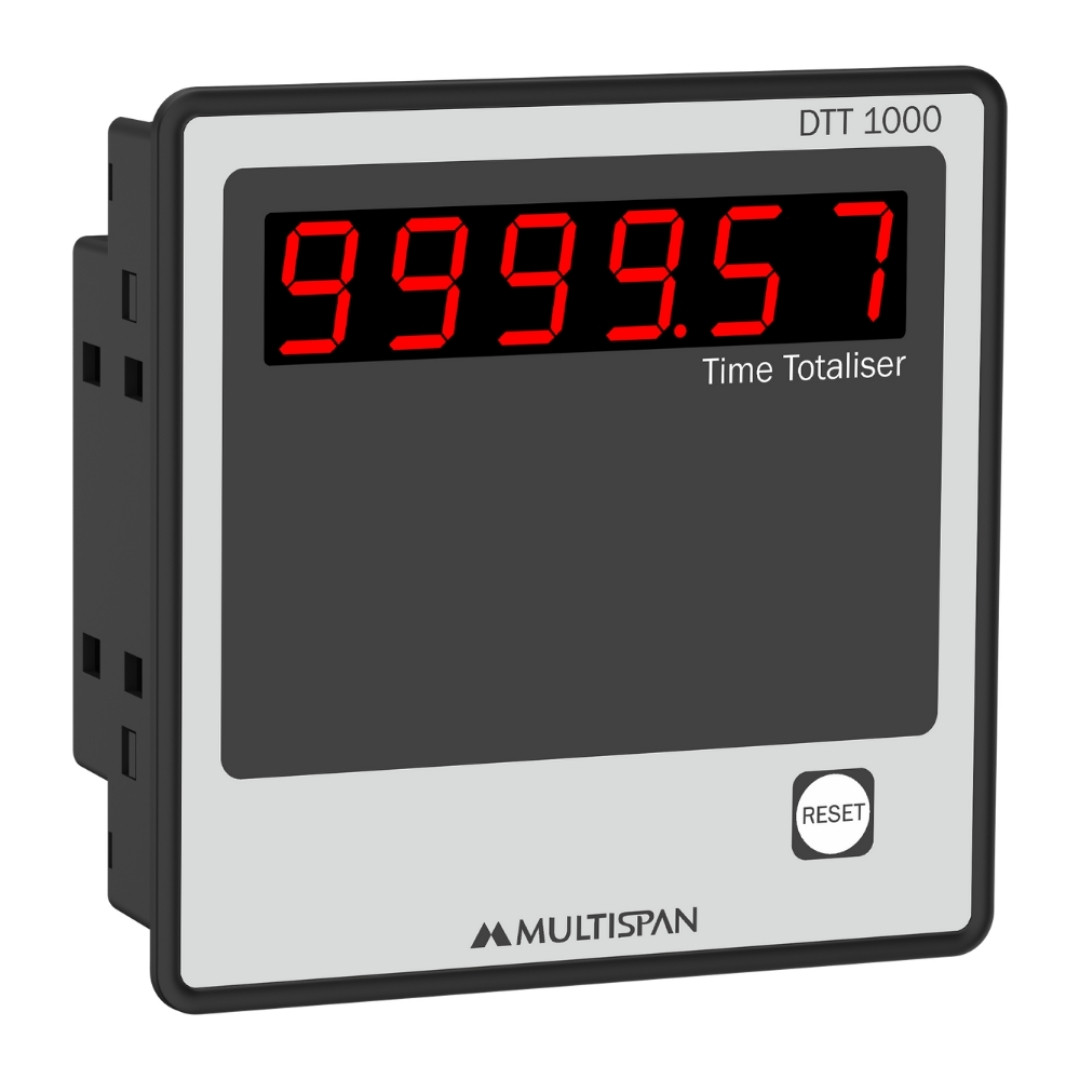

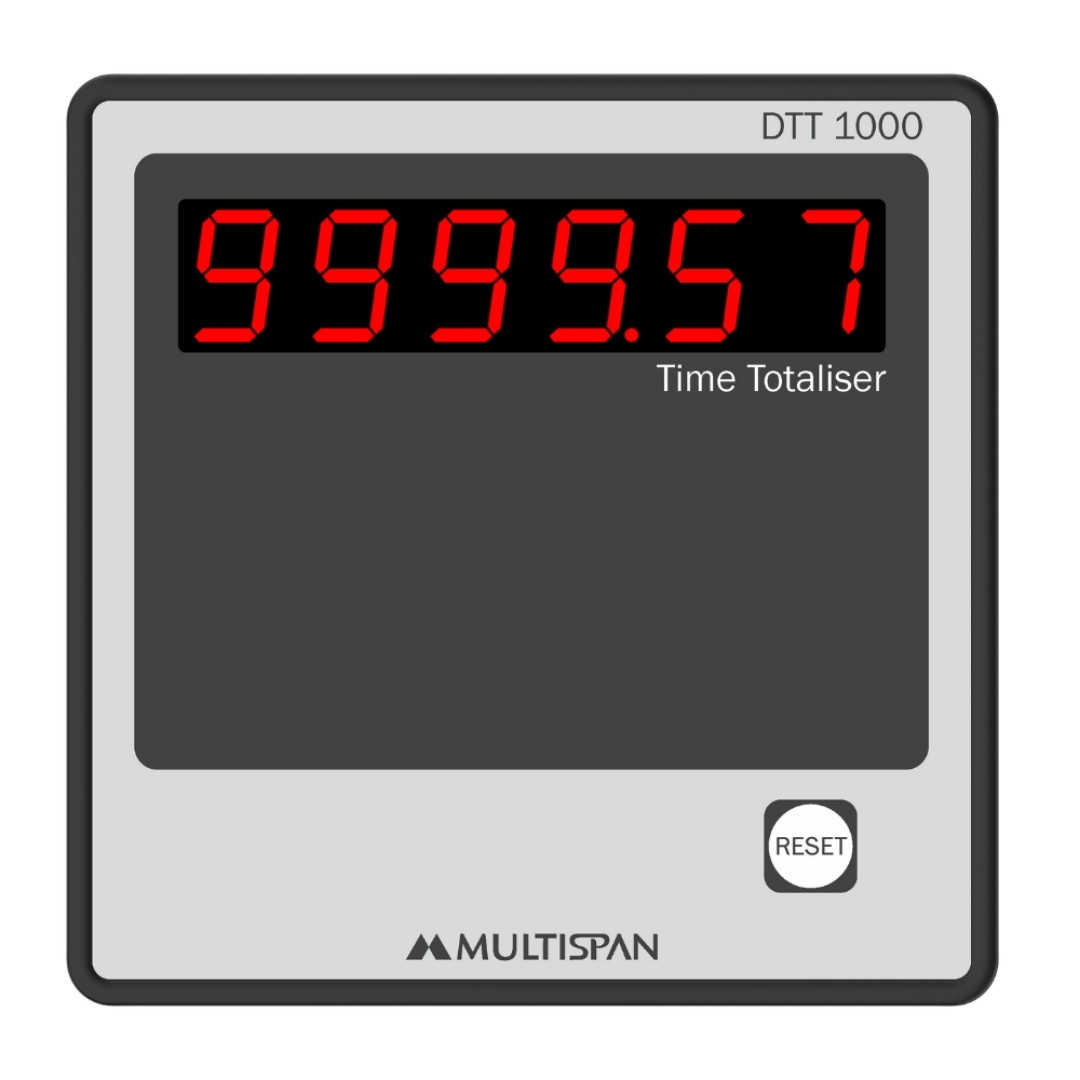

Digital Time Totalizer-Hour Meter
Product: DTT-1000
- 6-Digit Time Totalizer
- Micro Switch/Limit Switch/Proximity Switch/230V AC Input (Factory Set)
- Reset by Front Keypad and Remote
- Range Hour/Minute/Second
- With Power Fail memory
- Size: (H)96mm x (W)96mm x (D)43mm
- Supply Voltage: 230V AC
Top Variants:
| Description | DTT- 1000 |
| Dimension (mm) | 96 (H) x 96 (W) x 43 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| Display | Upper: 6-Digit, 7-segment, 0.56’’, Red LED |
| Supply | 230V AC, 50 Hz |
| Input | Micro switch/Limit Switch/Proximity Switch/230V AC input (Factory Set) |
| Reset | Reset On Front by Key |
- Packaging Machinery
- Extrusion Machinery
- Furnace & Boilers
- Ovens & Incubators
- Food Industry
Product Variant
| Sr.no | Model No | Input | Aux Supply | Size |
| 1 | DTT-1000-B1-01 | NPN/PNP Proximity | 230V AC | 96x96x43(HxWxD)mm |
| 2 | DTT-1000-B1-02 | 230V AC Pulse | 230V AC | 96x96x43(HxWxD)mm |
| 3 | DTT-2000-B1-01 | NPN/PNP Proximity | 230V AC | 72x72x45(HxWxD)mm |
| 4 | DTT-2000-B1-02 | 230V AC Pulse | 230V AC | 72x72x45(HxWxD)mm |
| 5 | DTT-3000-B1-01 | NPN/PNP Proximity | 230V AC | 48x96x26(HxWxD)mm |
| 6 | DTT-3000-B1-02 | 230V AC Pulse | 230V AC | 48x96x26(HxWxD)mm |
| 7 | DTT-5000-B1-04 | 230V AC Pulse | 230V AC | 37(H)x78(W)x70(D) mm |
| 8 | DTT-56G-B1-01 | NPN/PNP Proximity | 230V AC | 38x62x63(HxWxD)mm |
| 9 | DTT-56G-B1-02 | 230V AC Pulse | 230V AC | 38x62x63(HxWxD)mm |
