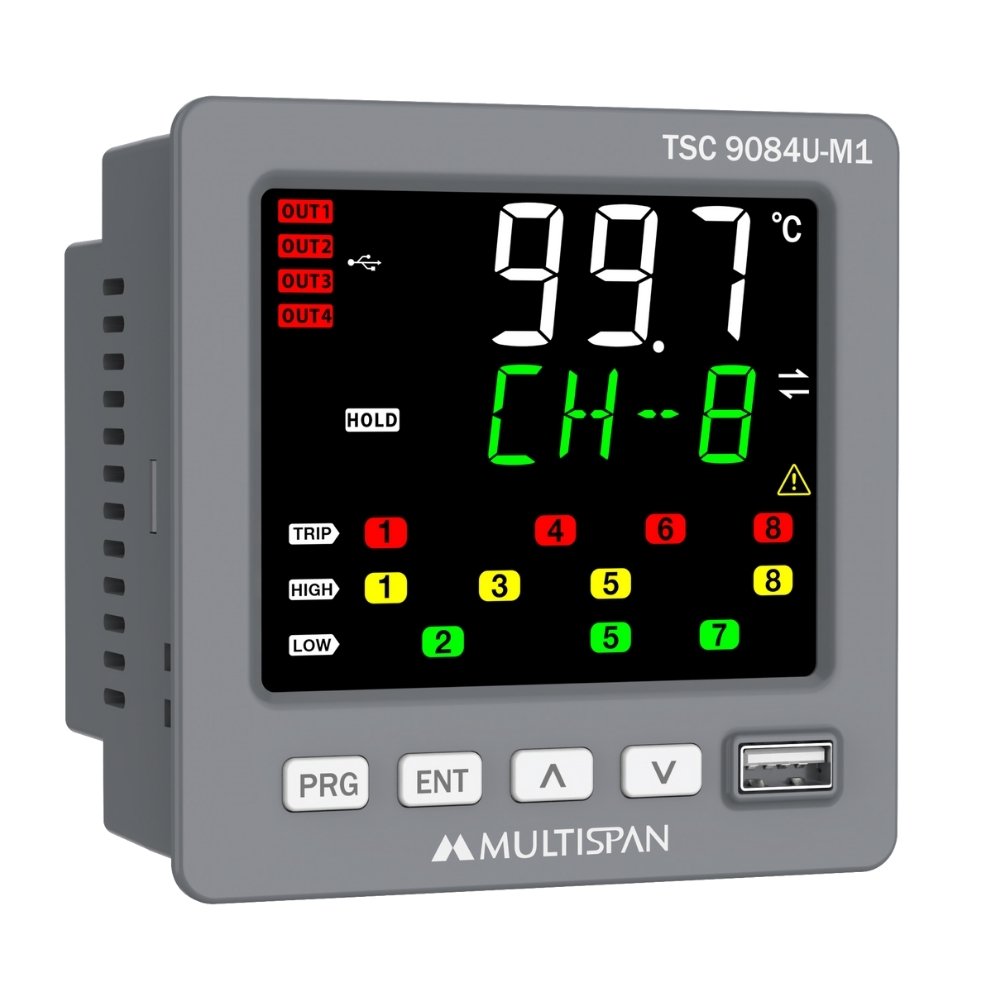

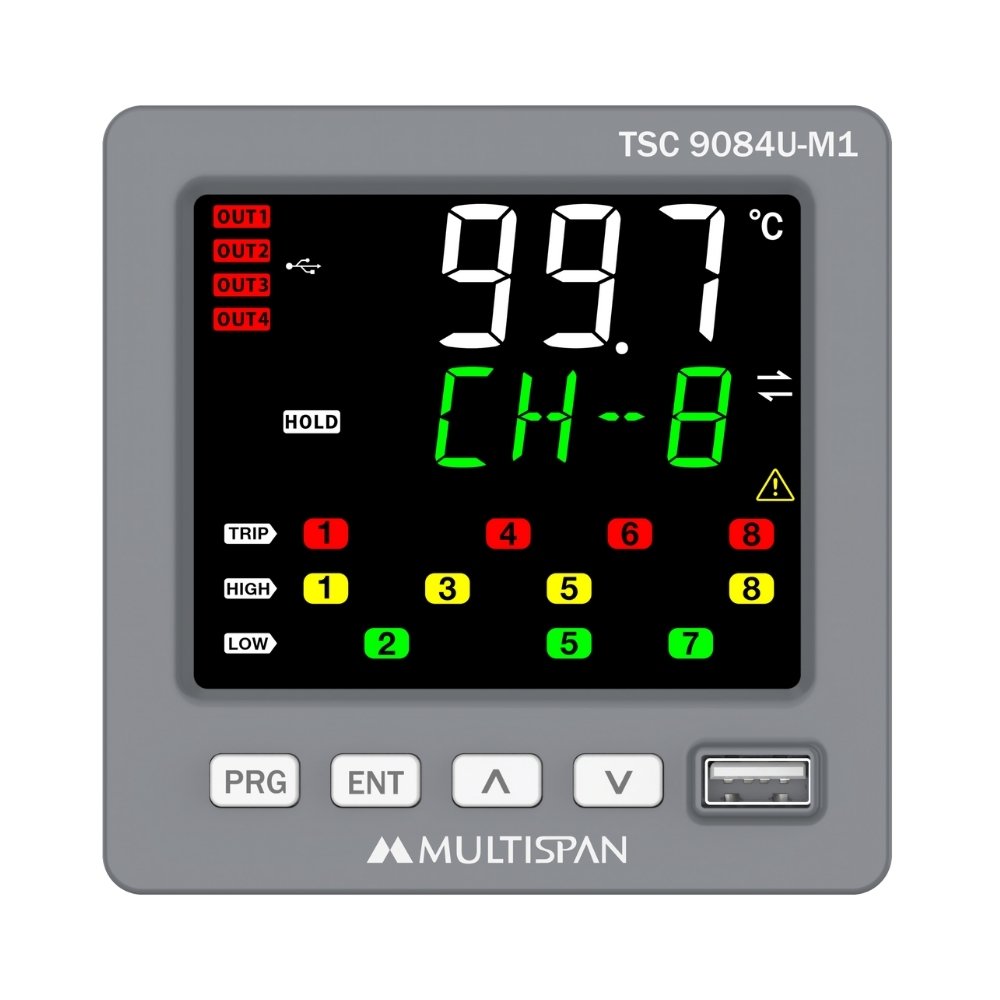

8 Channel Scanner with USB Data Logger
Product: TSC 9084U-M1
8 Channel Scanner
- Input:
- Thermocouple: J, J.1, K, K.1, PT-100, PT.1, R, S, E, N, T, B, C, L, U
- RTD: PT-100 (-200 to 600°C), PT.1 (-199.9 to 600.0°C)
- Output:
- 4 relay 1C/O, (NO-C-NC)
- ModBus RS-485
- USB Data Logging Facility
- Supply voltage: 100V To 270V AC/DC
| Display | UPPER: 4 Digit 7 seg 0.70”, WHITE LED Display | ||
| LOWER: 4 Digit 7 seg 0.50”, GREEN LED Display | |||
| Size (mm) | 98 (H) X 98 (W) X 76 (D) mm | ||
| Panel Cutout (mm) | 92 (H) X 92 (W) | ||
| Inputs and Range | Thermocouple | Thermocouple | |
|
J -200 to 800°C |
-328 to 1472°F -199.9 to 999.9°F -328 to 2192°F -199.9 to 999.9°F 32°C to 3272°F 32°C to 3362°F 32°C to 1112°F -328°C to 2462°F -328°C to 752°F 302°C to 3272°F 32°C to 4262°F -328°C to 1472°F -328°C to 1472°F |
||
| RTD | RTD | ||
| PT-100/3W -200 to 600°C PT.1/3W -199.9 to 600.0°C |
PT-100/3W -328 to 1112°F PT.1/3W -199.9 to 999.9°F |
||
| Accuracy | J, J.1, K, K.1, R, S, PT, PT.1 : ±0.25% Full Scale ± 1 Digit T, E, N, B, C, L, U : ±0.5% Full Scale ± 1 Digit |
||
| Output | 4 Relay (NO-C-NC) 1C/O 5A@230V AC, 5A for resistive load USB Data Logging Facility with RS-485 RTU MODBUS |
||
| Power Supply | 100 to 270V AC/DC,50/60 Hz, Approx 6VA | ||
| Operating Temperature | 0°C To 55°C | ||
| Relative Humidity | Up to 95% RH Non Condensing | ||
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
||
- Pharma & Chemical Industry application
- Generator Monitoring & Protection
- Machine Condition Monitoring
- As a distributed I/O module for interface with PLC/DCS/SCADA
- Compressor/Pump/DG set monitoring Remote terminal unit (RTU) For SCADA
- Laboratory Equipment Monitoring
