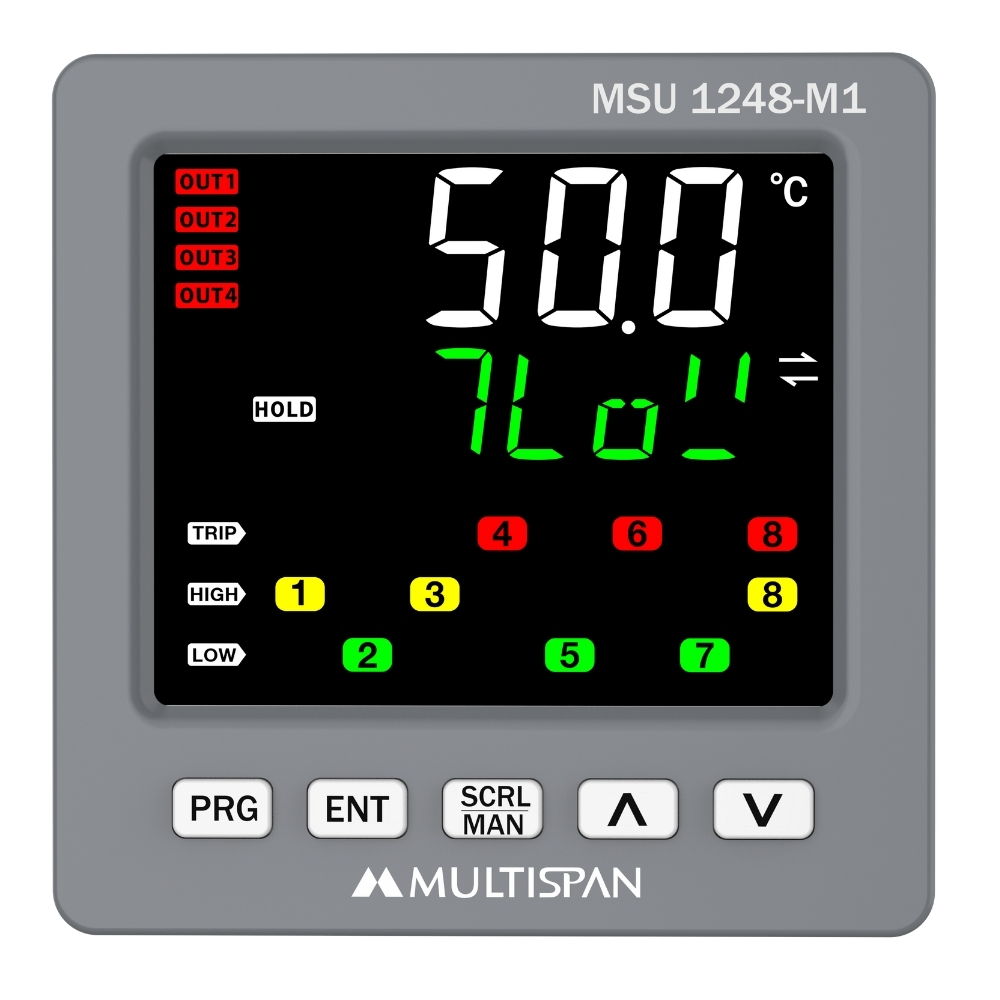

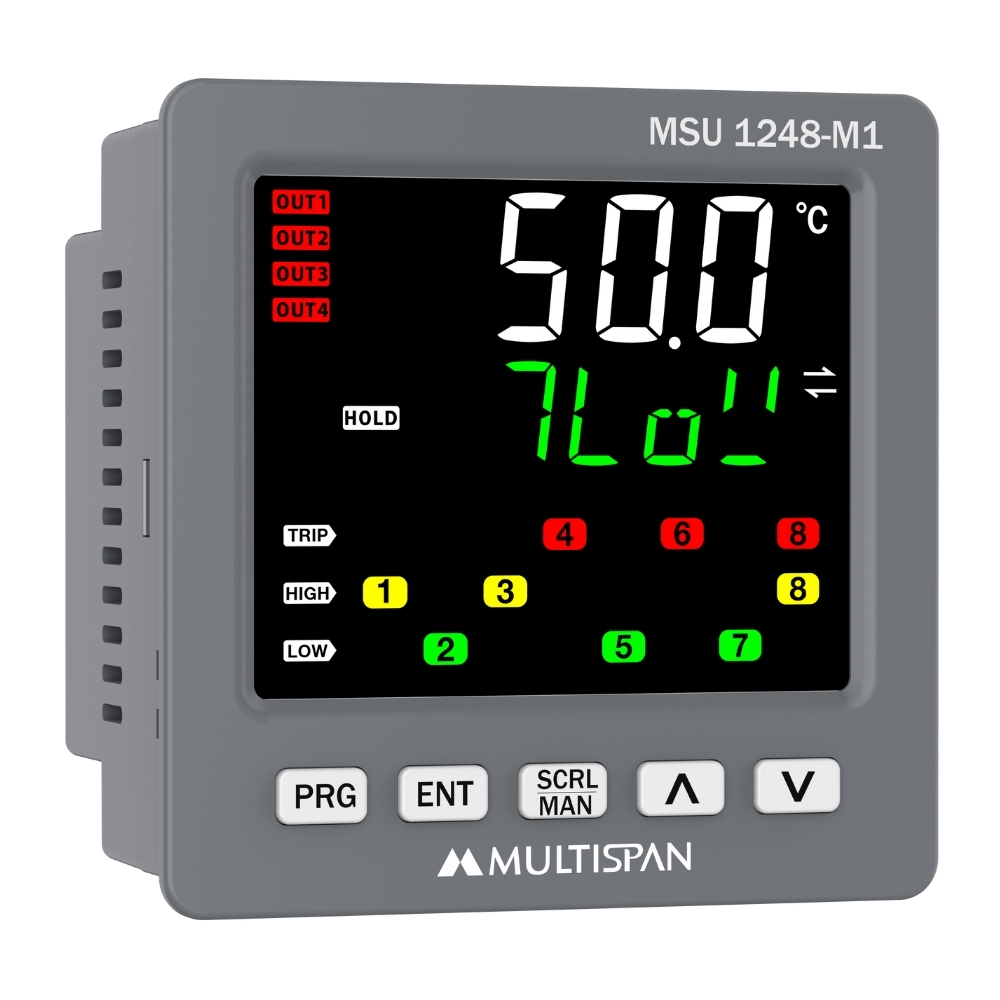

8 Channel Scanner with RS-485 Communication
Product: MSU-1248-M1
- Universal Input ((J, J.1, K, K.1, PT-100, PT.1,R,S,E,N,T,B,C,L,U 0 - 10V DC,
0 - 20mA DC, 4 - 20mA DC, 1 - 5V DC) - 4 Relay (NO-C-NC) 1C/O 5A@230V AC, 5A for resistive load
with RS-485 RTU MODBUS - Size: (H)98mm x (W)98mm x (D)76mm
- Supply Voltage: 100-270V AC/DC
| Display | UPPER: 4 Digit 7 seg 0.70”, WHITE LED Display | ||||
| LOWER: 4 Digit 7 seg 0.50”, GREEN LED Display | |||||
| Size (mm) | 98 (H) X 98 (W) X 76 (D) mm | ||||
| Panel Cutout (mm) | 92 (H) X 92 (W) | ||||
| Inputs and Range | Thermocouple | Thermocouple | Analog input | Range | |
|
J -200 to 800°C |
-328 to 1472°F -199.9 to 999.9°F -328 to 2192°F -199.9 to 999.9°F 32°C to 3272°F 32°C to 3362°F 32°C to 1112°F -328°C to 2462°F -328°C to 752°F 302°C to 3272°F 32°C to 4262°F -328°C to 1472°F -328°C to 1472°F |
0 - 10V DC 0 - 20mA DC 4 - 20mA DC 1 - 5V DC |
-1999 To 9999 | ||
| -1999 To 9999 | |||||
| RTD | RTD | -1999 To 9999 | |||
| PT-100/3W -200 to 600°C PT.1/3W -199.9 to 600.0°C |
PT-100/3W -328 to 1112°F PT.1/3W -199.9 to 999.9°F |
||||
| Output | 4 Relay (NO-C-NC) 1C/O 5A@230V AC, 5A for resistive load with RS-485 RTU MODBUS |
||||
| Power Supply | 100 to 270V AC/DC,50/60 Hz, Approx 7VA | ||||
| Operating Temperature | 0°C To 55°C | ||||
| Relative Humidity | Up to 95% RH Non Condensing | ||||
- Pharma & Chemical Industry application
- Generator Monitoring & Protection
- Remote terminal unit (RTU) For SCADA
- Compressor/Pump/DG set monitoring
- Machine Condition Monitoring
- As a distributed I/O module for interface with PLC/DCS/SCADA
- Laboratory Equipment Monitoring

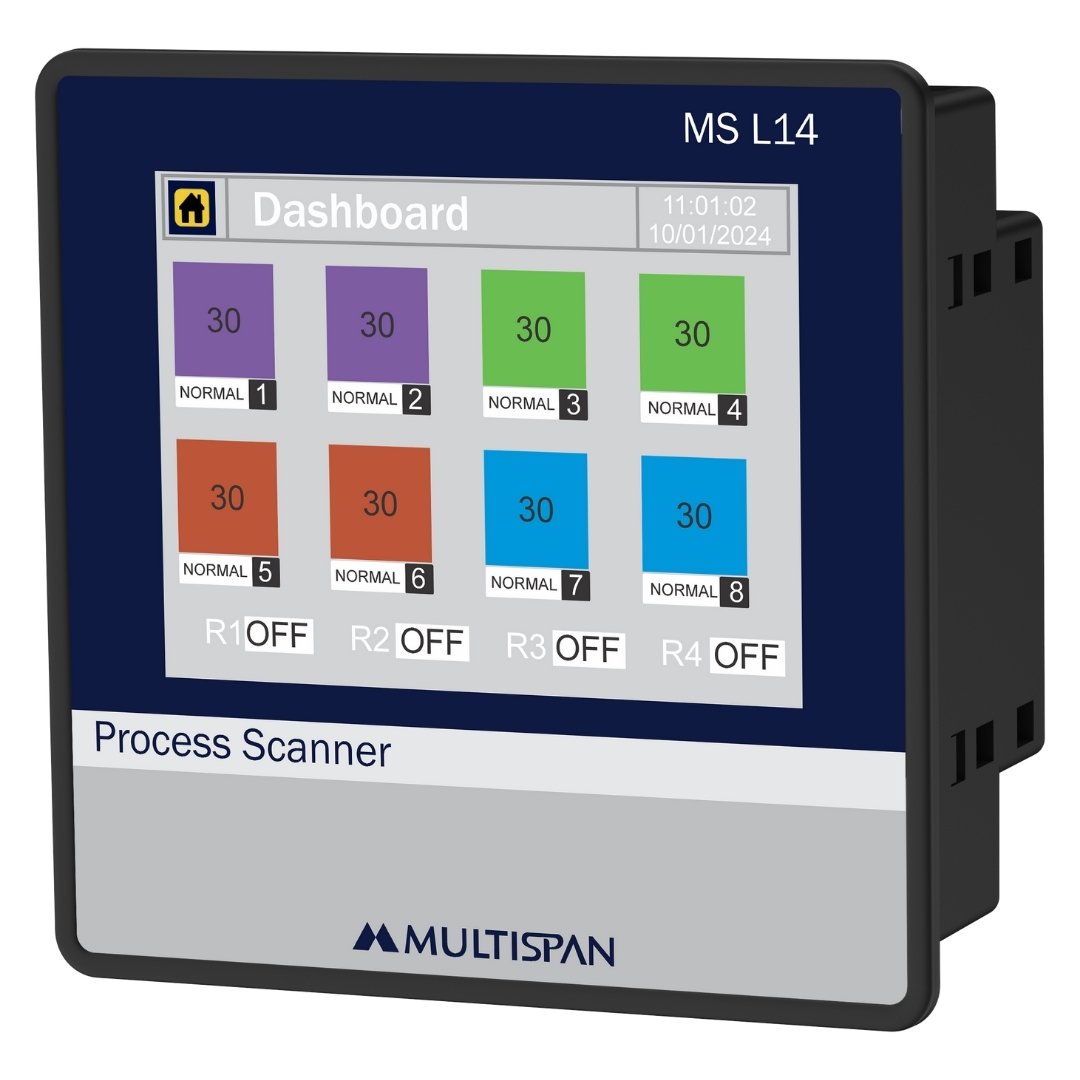

Related Products
