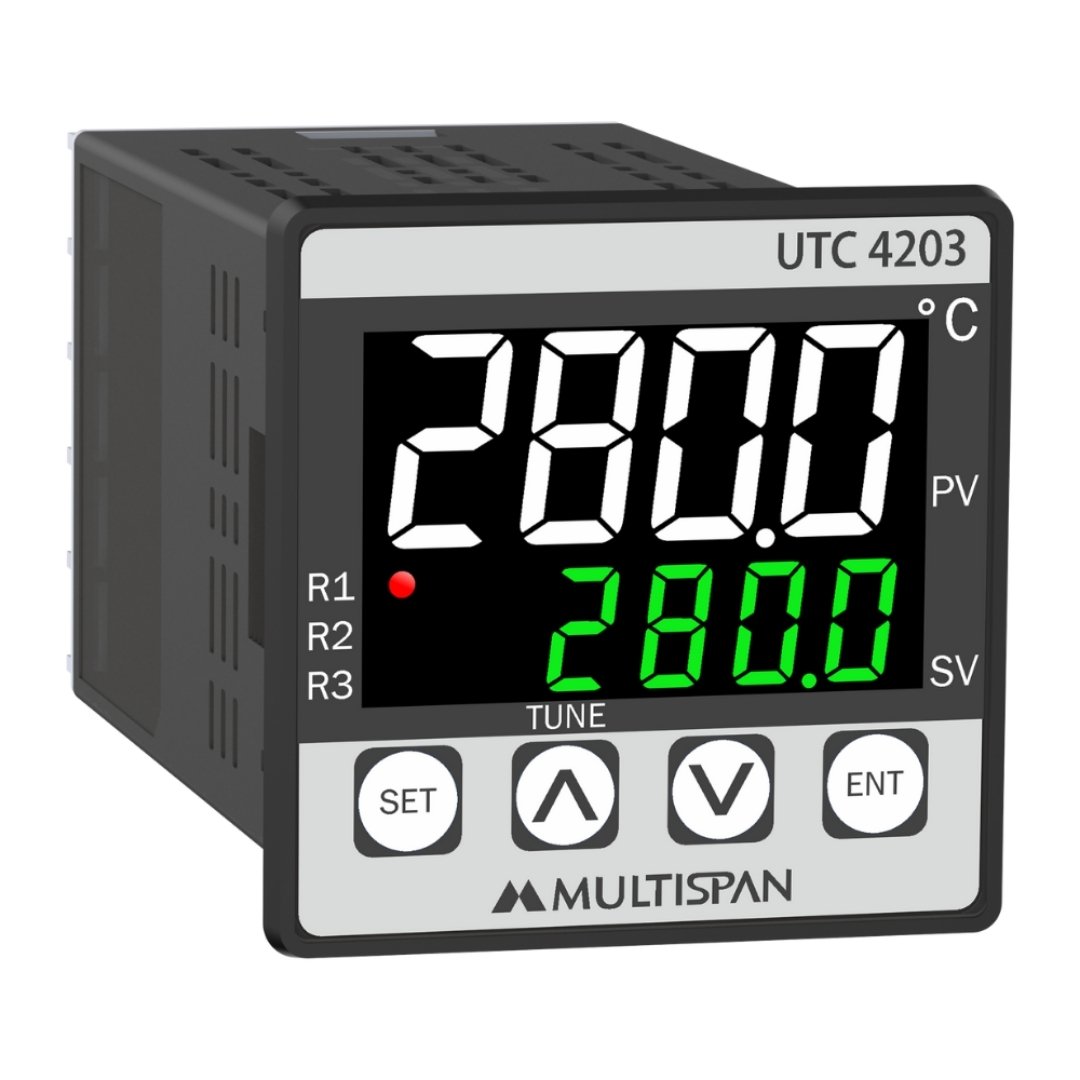

4-Digit Dual Display Three Output PID Controller
Product: UTC-4203
- Universal Input (J/K/RTD)
- 4-Digit Dual Red/White LED Display
- PID/On-Off Controller
- Three Output (Relay or SSR) for Load Control & Alarm Functions
- With Soak Timer Facility
- Size: (H)48mm x (W)48mm x (D)95mm
- Supply Voltage: 100-270V AC
Top Variants:
| INPUT SPECIFICATION: | ||
| Input Types | Input | Range |
| J | 0 to 600°C | |
| K | 0 to 1200°C | |
| PT | -99 to 400°C | |
| PT.1 | -99.9 to 400.0°C | |
| Resolution | 1°C | |
|
Indication |
±1% of FSD ± 1°C (FSD:- Full Scale Deflection) |
|
| DISPLAY AND KEYS: | ||

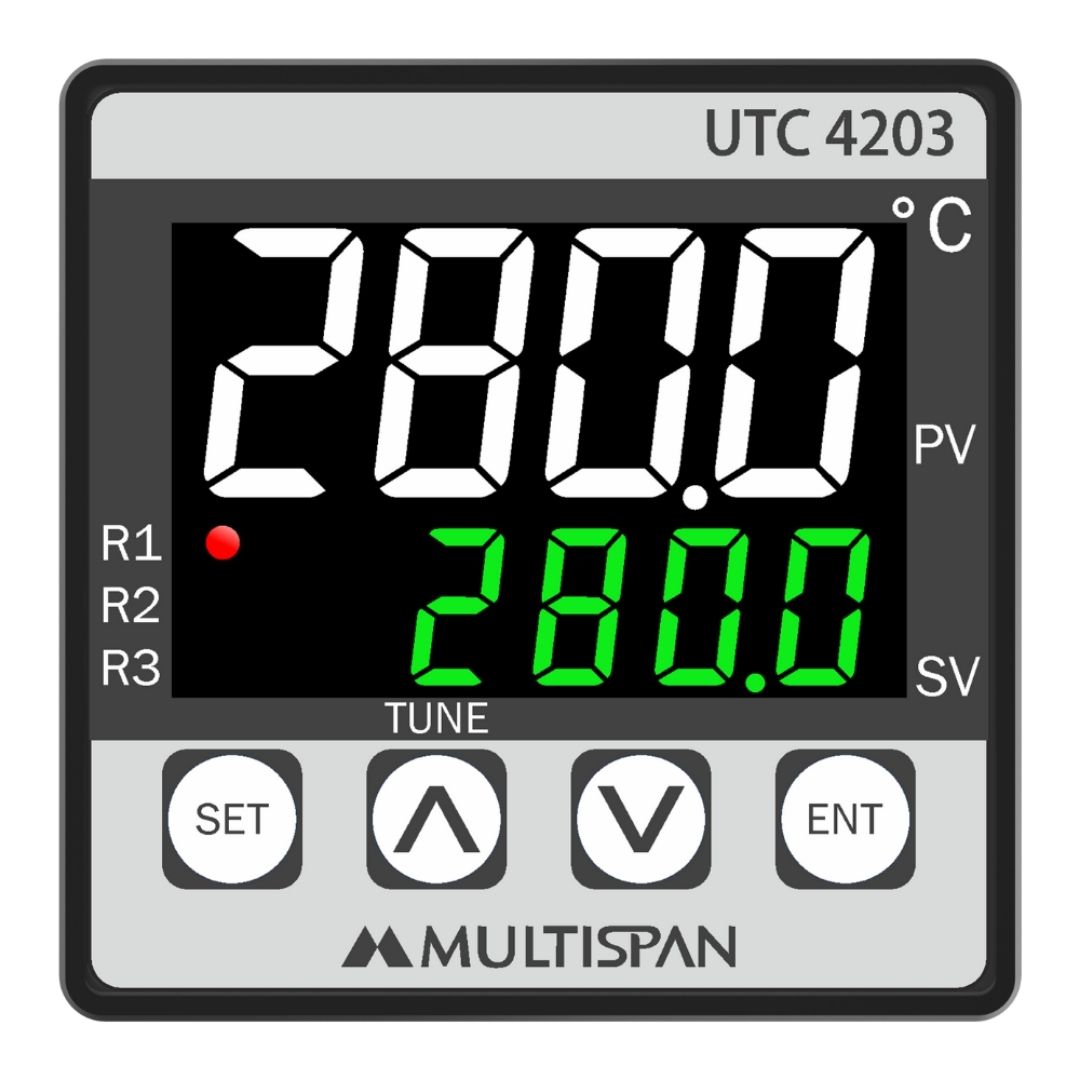

| Display | Upper: 4 digit, 7 segment, 0.56” Red LED | |
| Lower: 4 digit, 7 segment, 0.33” Green LED | ||
| Keys | SET, INC, DEC, ENT | |
| DIMENSION: | ||
| Size (mm) | 48 (H) x 48 (W) x 95 (D) | |
| Panel Cutout (mm) | 45 (H) x 45 (W) | |
| CONTROL METHOD: | ||
| Heating | 1. PID control with Auto-Tuning | |
| 2. ON-OFF control | ||
| POWER SUPPLY | ||
| Supply voltage | 100 to 270V AC, 50-60Hz | |
| Power consumption (VA RATING) | 4VA @ 230V AC MAX | |
| OUTPUT SPECIFICATION : | ||
| Relay Output | ||
| Relay | 1 Nos | |
| Relay Type | 1 C/O , (NO-C-NC) | |
| Rating | 10A, 230V AC / 28 V DC | |
| SSR Drive Output | ||
| Output Signal | 12V DC, 30mA DC | |
| (ON-OFF Condition) | ||
| ENVIRONMENT CONDITION: | ||
| Operating Temp. | 0°C to 55°C | |
| Relative Humidity | Upto 95% RH | |
| (non-condensing) | ||
| Protection Level (As per request) | IP-65 (Front side) As per IS/IEC 60529 : 2001 | |
- Pharmaceutical Industries
- Extrusion Machinery
- Furnace & Boilers
- Ovens & Incubators
- Process Industry
Product Variant
|
Sr.no |
Model No |
Input |
Output |
Aux Supply |
Display |
Size |
| 1 | UTC-4203-A2-00-RG | J/K/Pt-100 (Selectable) | 3 Relay | 100-270V AC | Red + Green | 48x48x95(HxWxD)mm |
| 2 | UTC-4203-A2-01-RG | J/K/Pt-100 (Selectable) | SSR + 2 Relay | 100-270V AC | White + Green | 48x48x95(HxWxD)mm |
| 3 | UTC-4203-A2-00-WG | J/K/Pt-100 (Selectable) | 3 Relay | 100-270V AC | Red + Green | 48x48x95(HxWxD)mm |
| 4 | UTC-4203-A2-01-WG | J/K/Pt-100 (Selectable) | SSR + 2 Relay | 100-270V AC | White + Green | 48x48x95(HxWxD)mm |
| 5 | UTC-3203-A2-00-RG | J/K/Pt-100/R/S(Selectable) | 3 Relay | 100-270V AC | Red + Green | 96x48x85(HxWxD)mm |
| 6 | UTC-3203-A2-01-RG | J/K/Pt-100 (Selectable) | SSR + 2 Relay | 100-270V AC | Red + Green | 96x48x85(HxWxD)mm |
