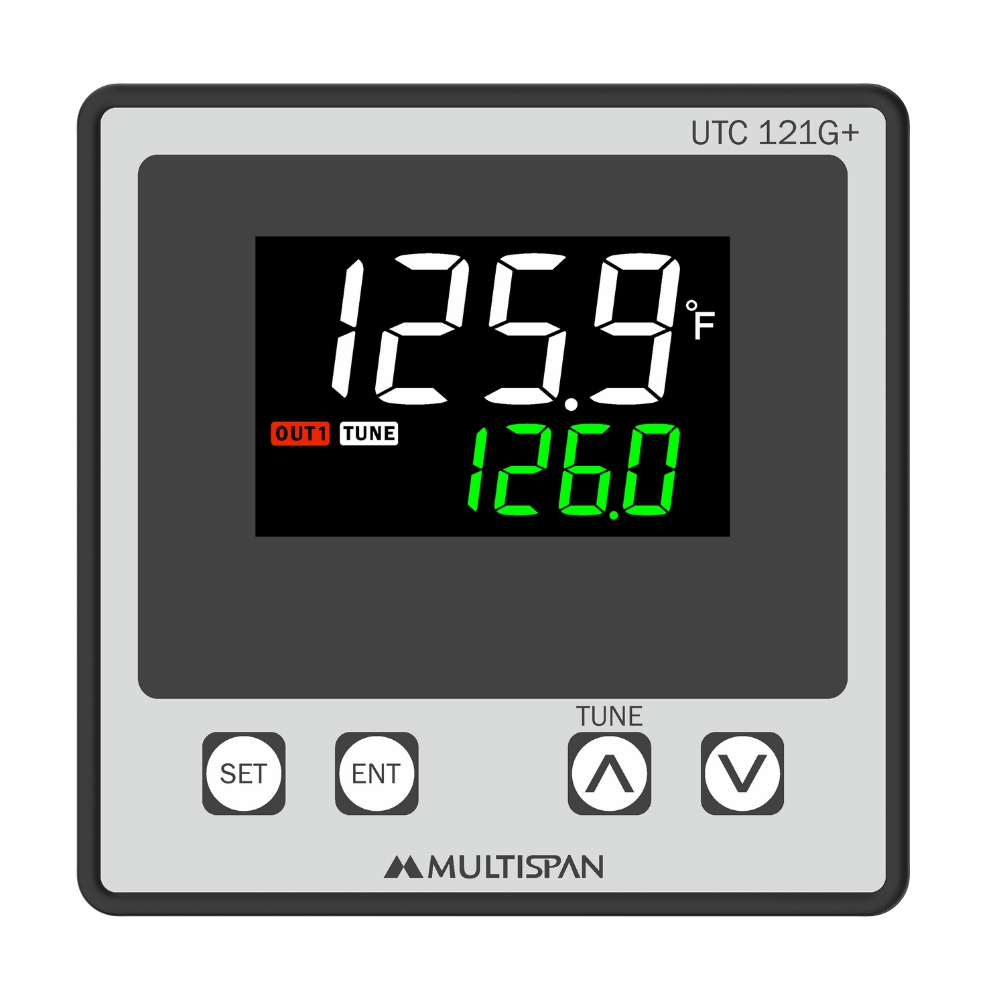

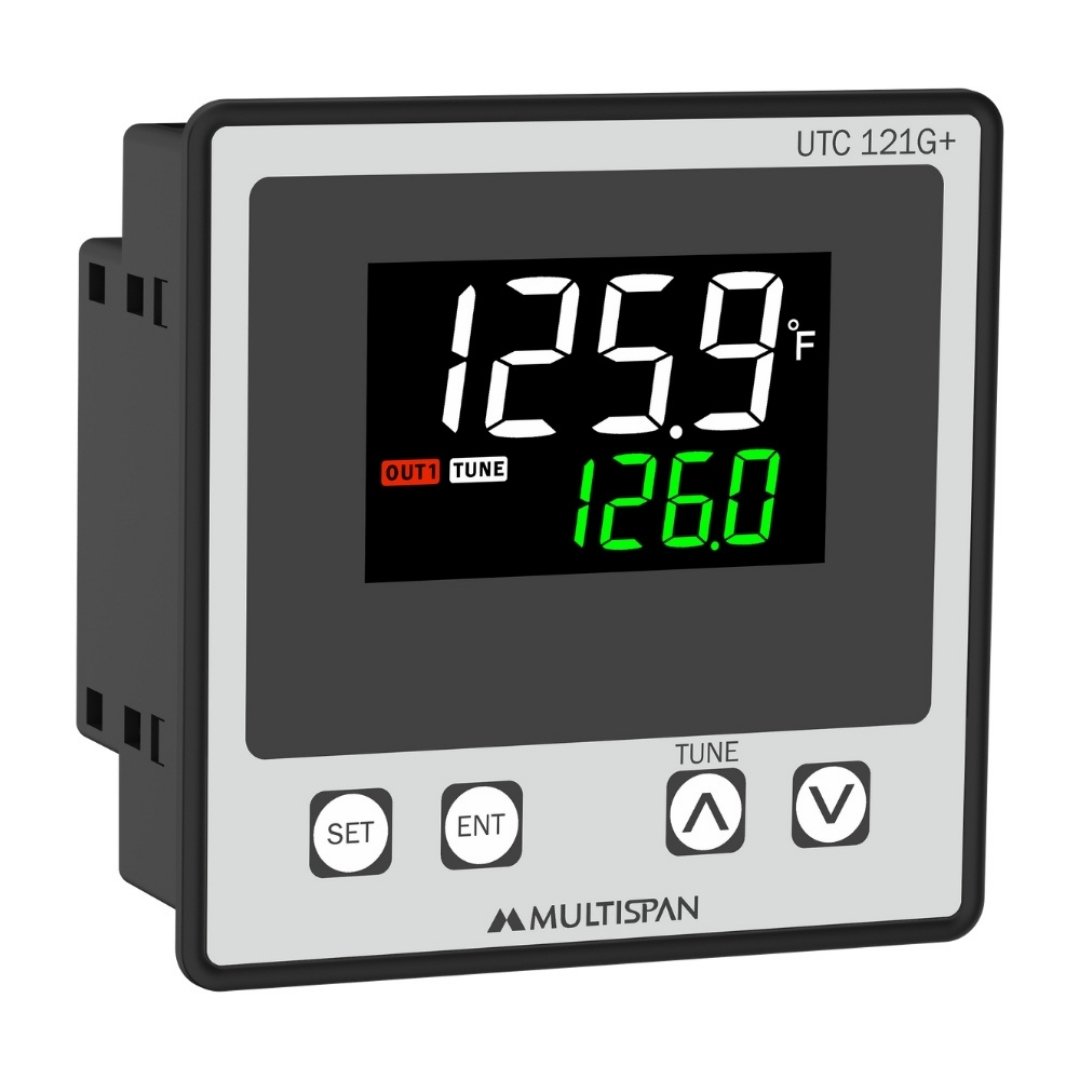

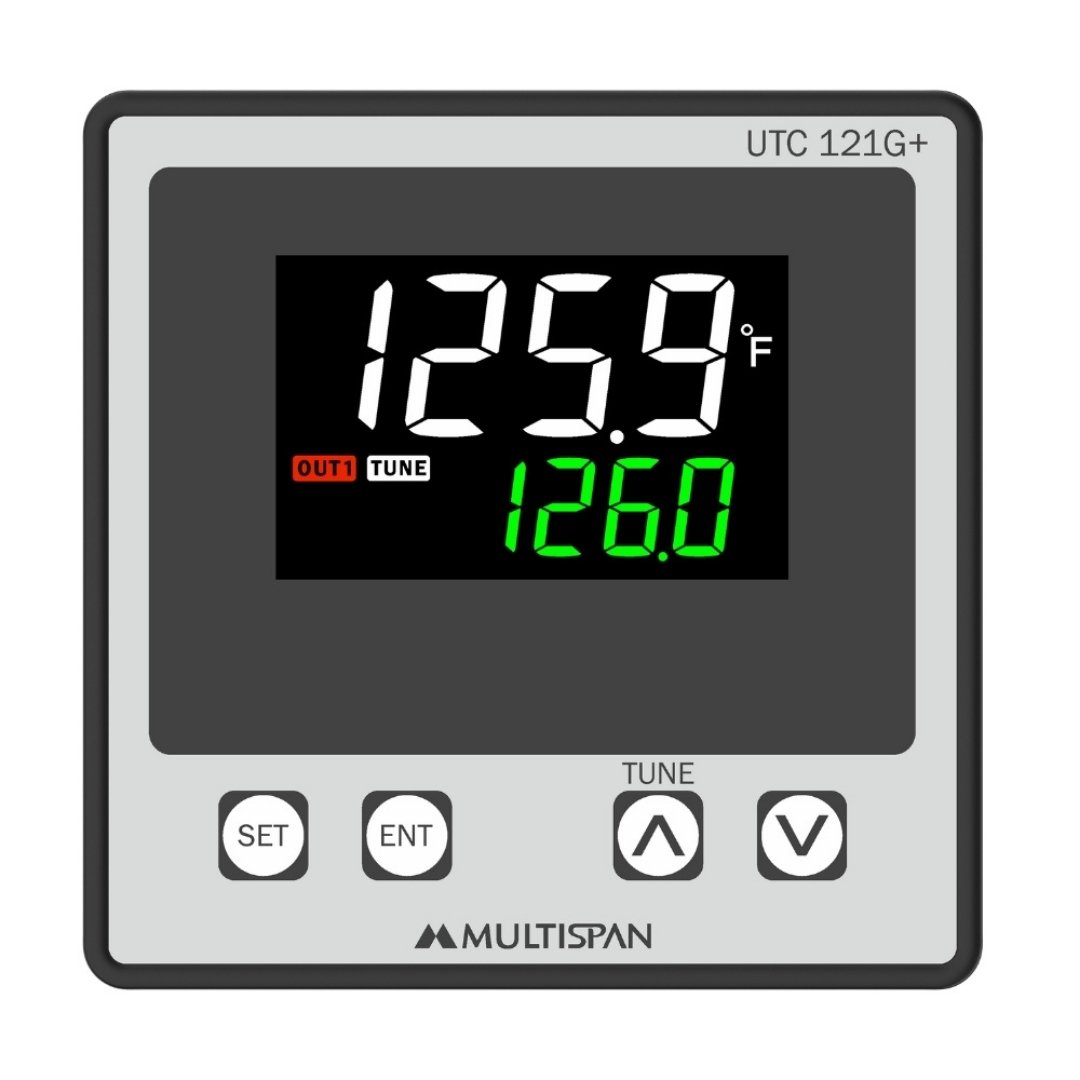

4-Digit Dual Display Single Output Accurate PID Controller
Product: UTC-121G
- Universal Input J/K/RTD
- 4-Digit Dual Red/White LED Display
- Accurate PID Controller
- Single Output (Relay || SSR) for Load Control
- Size: (H)96mm x (W)96mm x (D)54mm
- Supply voltage: 100-270V AC
| INPUT SPECIFICATION: | ||
| Input Types | Input | Range |
| J | 0 to 600°C | |
| J.1 | 0.0 to 400.0°C | |
| K | 0 to 1200°C | |
| K.1 | 0.0 to 500.0°C | |
| PT-100 | -99 to 400°C | |
| PT.1 | -99.9 to 400.0°C | |
| Resolution | J,K,PT-100 = 1°C | |
| J.1,K.1,PT.1 = 0.1°C | ||
| Indication Accuracy | ±0.5% of FSD | |
| DISPLAY AND KEYS: | ||
| Display | Upper: 4-Digit, 7-Segment, 0.70” | |
| Lower: 4-Digit, 7-Segment, 0.50” | ||
| Keys | SET, INC, DEC, ENT | |
| DIMENSION: | ||
| Size (mm) | 96 (H) x 96 (W) x 54 (D) | |
| Panel Cutout (mm) | 92 (H) x 92 (W) | |
| CONTROL METHOD: | ||
| Heating | 1. PID Control with Auto-Tuning | |
| 2. ON-OFF Control | ||
| Cooling | ON-OFF Control | |
| OUTPUT SPECIFICATION: | ||
| Relay Output | ||
| Relay | 1 Nos | |
| Relay Type | 1C/O (NO-C-NC) | |
| Rating | 10A, 230V AC / 28V DC | |
| SSR Drive Output | ||
| Output Signal | 12V DC, 30mA DC | |
| (On-Off Condition) | ||
| Relay || SSR | ||
| POWER SUPPLY: | ||
| Supply Voltage | 100 to 270V AC, 50-60Hz | |
| Power Consumption (VA Rating) | 4VA @ 230V AC MAX | |
| ENVIRONMENT CONDITION: | ||
| Operating Temp. | 0°C to 55°C | |
| Relative Humidity | Upto 95% RH | |
| (non-condensing) | ||
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 | |
- Packaging Machinery
- Extrusion Machinery
- Furnace & Boilers
- Ovens & Incubators
- Food Industry
Product Variant
| Sr.no | Model No | Input | Output | Aux Supply | Display | Size |
|---|---|---|---|---|---|---|
| 1 | UTC-121G-RG-A2-00 | J/K/Pt-100 (Selectable) | Relay || SSR | 100-270V AC | Red + Green | 96x96x54(HxWxD)mm |
| 2 | UTC-121G-WG-A2-00 | J/K/Pt-100 (Selectable) | Relay || SSR | 100-270V AC | White + Green | 96x96x54(HxWxD)mm |
| 3 | UTC-121G-WG-A2-51 | J/K/Pt-100/R/S(Selectable) | Relay || SSR | 100-270V AC | White + Green | 96x96x54(HxWxD)mm |
| 4 | UTC-221G-RG-A2-00 | J/K/Pt-100 (Selectable) | Relay || SSR | 100-270V AC | Red + Green | 72x72x85(HxWxD)mm |
| 5 | UTC-221G-WG-A2-00 | J/K/Pt-100 (Selectable) | Relay || SSR | 100-270V AC | White + Green | 72x72x85(HxWxD)mm |
| 6 | UTC-221G-WG-A2-51 | J/K/Pt-100/R/S(Selectable) | Relay || SSR | 100-270V AC | White + Green | 72x72x85(HxWxD)mm |
| 7 | UTC-421G-RG-A2-00 | J/K/Pt-100 (Selectable) | Relay || SSR | 100-270V AC | Red + Green | 48x48x95(HxWxD)mm |
| 8 | UTC-421G-WG-A2-00 | J/K/Pt-100 (Selectable) | Relay || SSR | 100-270V AC | White + Green | 48x48x95(HxWxD)mm |
| 9 | UTC-421G-WG-A2-51 | J/K/Pt-100/R/S(Selectable) | Relay || SSR | 100-270V AC | White + Green | 48x48x95(HxWxD)mm |
